SITECO Connect DALI2 components

ProducttypesConfiguration & Datasheets

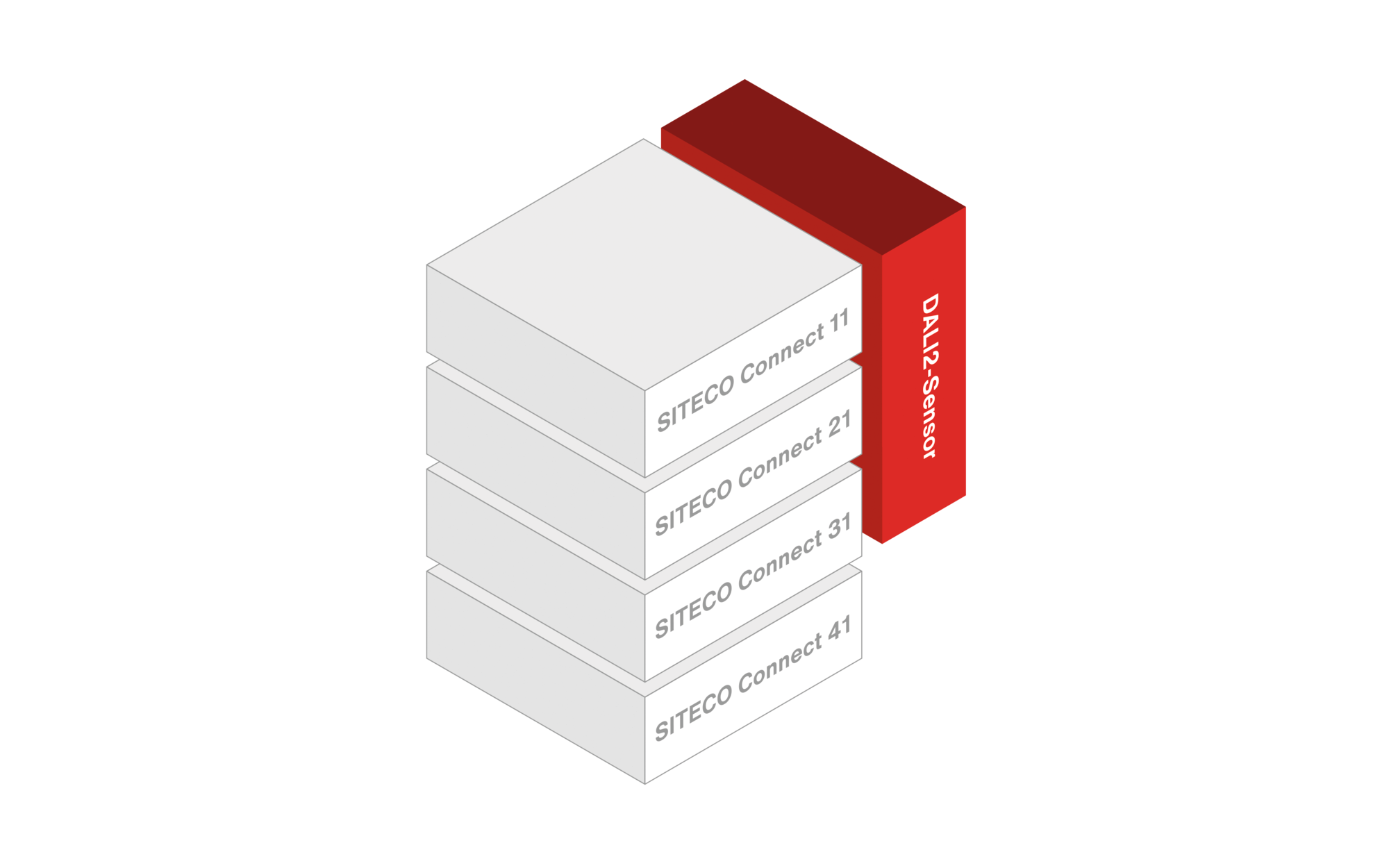

SITECO Connect sensors with a DALI2 interface can be connected to a wide variety of control systems such as SITECO Connect 11, 21, 31 or other lighting and building control systems available on the market. The future-proof sensors can be retrofitted thanks to open and standardized interfaces. Remain as flexible as possible, even if your individual requirements change: the sensors can be relocated at any time.

Open interfaces enable modularity, flexibility and future safety

pour bureaux/salles de cours

Intro to Productfamily

Data

Hauteur de pose 2,5…10m
Particularité champ de détection carré
Champ de détection de mouvement radial min./max. 5x 5m/11x 11m, tangentiel min./max. 6x 6m/28x 28m
Champ de détection de présence min./max. 4,8x 4,8m/8,2x 8,2m

Specials

DALI2 standard guarantees future safety through an open interface and flexibility in the event of later changes
Any connection to SITECO Connect 11, 21 and 31 gen2 or to any other LMS or BMS system with a certified DALI2 interface according to part 101, 103, 303 and 304
Multi-sensor for use in offices and classrooms
Very high detection quality for high work safety and low follow-up times
Separate and powerful localization LED for quick and safe commissioning
Sensor planning in Relux saves time and gives you the security of planning sensor detection correctly
Large champ de détection pour minimiser le nombre de capteurs et les besoins en investissement
Fonction anti-éblouissement du champ de détection pour une commande encore plus précise

Configuration & Datasheets

  • DALI2 certified according to part 101,103,303,304
  • DALI current I= 6mA

Results

multicapteur, esclave, 2,5..10m

N° de commande: 5LZ925601GTIN (EAN): 4058352362020
GammePds (kg)
SITECO Connect0,2

module de capteur PS2-S, esclave, 2,5..10m

N° de commande: 56TL1MDSPS2AGTIN (EAN): 4058352400685
GammePds (kg)
Licross® Trunking0,7

multicapteur, esclave, 2,5..10m

N° de commande: 5LZ925601GTIN (EAN): 4058352362020

GammeSITECO Connect
Pds (kg)0,2

module de capteur PS2-S, esclave, 2,5..10m

N° de commande: 56TL1MDSPS2AGTIN (EAN): 4058352400685

GammeLicross® Trunking
Pds (kg)0,7

Mandatory accessory

Désignationpack de base S/P, PC Touch Panel 7" avec ARM Cortex-A8, écran TFT 7", encastré, dans un répartiteur électrique, avec écran, noirUE1 piècePds (kg)0,9Prix (CHF)7234,00N° de commande: 5LZ930101GTIN (EAN): 4058352385913Show details
Désignationpack de base M/P, PC Touch Panel 7" avec Intel Atom®, max. 4 cœurs, écran TFT 7", encastré, dans un répartiteur électrique, avec écran, noirUE1 piècePds (kg)0,9Prix (CHF)9498,00N° de commande: 5LZ930103GTIN (EAN): 4058352385937Show details
Désignationpack de base S/D, PC sur rail DIN avec processeur ARM Cortex™ A8 1 GHz, encastré, dans un répartiteur électriqueUE1 piècePds (kg)0,6Prix (CHF)5855,00N° de commande: 5LZ930100GTIN (EAN): 4058352385906Show details
Désignationpack de base M/D, PC sur rail DIN avec Intel Atom® 1,47GHz, encastré, dans un répartiteur électriqueUE1 piècePds (kg)0,6Prix (CHF)7598,00N° de commande: 5LZ930102GTIN (EAN): 4058352385920Show details
Désignationcontrôleur, contrôle central, avec fil, 6 TEUE1 piècePds (kg)0,5Prix (CHF)4760,00N° de commande: 5LZ905950GTIN (EAN): 4058352668863Show details
Désignationcontrôleur, contrôle central, avec filUE1 piècePds (kg)0,2Prix (CHF)4259,00N° de commande: 5LZ960100GTIN (EAN): 4058352651612Show details

Optional accessory

Désignationboîtier pour une pose en saillieUE1 piècePds (kg)0,1Prix (CHF)18,50N° de commande: 5LZ925APGTIN (EAN): 4050737767505Show details
