SITECO

Highbay

Family Product selection Configuration & data sheets

Family

Highbay Xtreme Robust. High efficiency (194lm/W) and service life (100,000 hours), -25 to +70°C, real glass cover

Highbay 11 High-end. Outstanding lighting technology and high-quality design meet unrivalled efficiency (211lm/W) and service life (100,000 hours)

Highbay 21 Performance. Excellent efficiency (194lm/W) and service life (75,000 hours)

Highbay 31 Standard. Proven technology for standard applications with excellent efficiency (170lm/W) and service life (70,000 hours)

Highbay 41 Basic. Practical, efficient (175lm/W) and durable (50,000 hours)

Product selection

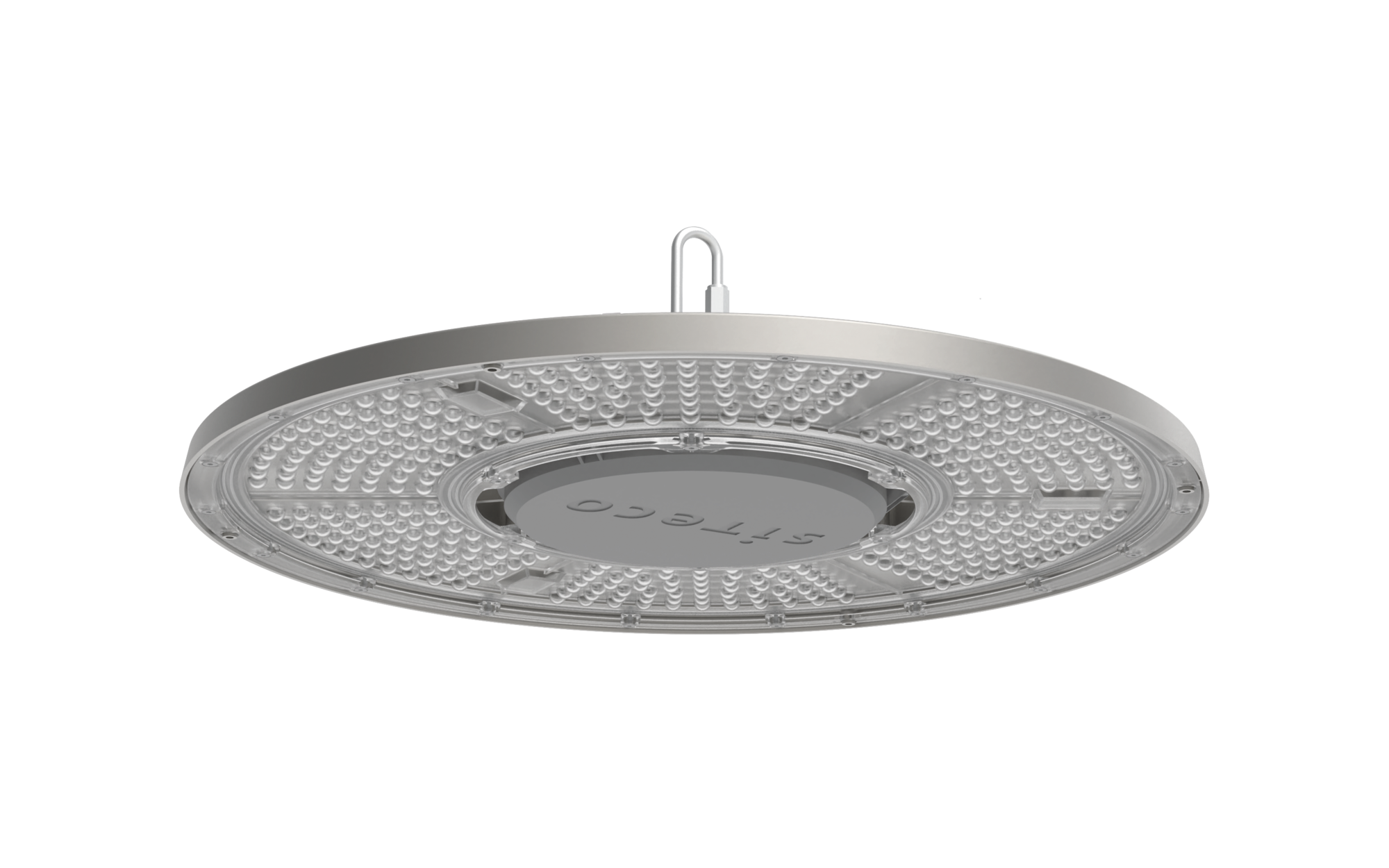

Highbay 31 S

Highbay 31 L

Highbay 31 S

Key data

Article high bay luminaire
Lighting effect direct rotationally symmetric distribution, 60°; direct rotationally symmetric distribution, 90°
Net luminous flux 14000lm to 20000lm
Colour temperature 4000K
Control ON/OFF; DALI 2
Cover PC
Protection rating IP65
Insulation class insulation class I (protective earthing)
Protection symbol D
Impact resistance IK08
IFS corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry

Special features

Long service life (up to 100,000 hours) and use at elevated ambient temperatures up to 45°C thanks to excellent thermal management of the LEDs and drivers
Efficient light control and visual comfort in narrow and wide distribution design via lens optic of robust UV-stabilised PC
Reflectors of aluminium and PC avaliable as accessory for optimisation of glare reduction
Suitable for demanding ambient conditions (IP65/IK08) and for the food industry (IFS)

Configuration & data sheets

Control

Beam angle

Light management

  • incl. connection cable (l= 1500mm) with free wire ends; please order system plug connection separately if required
  • includes suspension eyelet and screw carabiner of V2A; Fixing to on-site eyelet without further luminaire-specific installing accessories; for further installation methods: please order mounting accessory separately
  • please order photometric accessories separately if required

Results

Highbay 31-S, 60°

Order No.: 51HC417A4FMB GTIN (EAN): 4058352700013
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8014000lm94W150lm/WON/OFF2.3
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Highbay 31-S, 60°

Order No.: 51HC41DA4FMB GTIN (EAN): 4058352700075
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8014000lm94W150lm/WDALI 22.9
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Highbay 31-S, 60°

Order No.: 51HC417A4JMB GTIN (EAN): 4058352700037
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8020000lm134W150lm/WON/OFF2.4
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Highbay 31-S, 90°, PIR sensor

Order No.: 51HC427A4FMB01 GTIN (EAN): 4058352700150
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8014000lm94W150lm/WON/OFF2.4
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Highbay 31-S, 90°

Order No.: 51HC42DA4FMB GTIN (EAN): 4058352700259
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8014000lm94W150lm/WDALI 22.9
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Highbay 31-S, 90°

Order No.: 51HC427A4JMB GTIN (EAN): 4058352700174
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8020000lm134W150lm/WON/OFF2.4
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Highbay 31-S, 90°, PIR sensor

Order No.: 51HC427A4JMB01 GTIN (EAN): 4058352700204
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8020000lm134W150lm/WON/OFF2.6
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Highbay 31-S, 90°

Order No.: 51HC427A4FMC GTIN (EAN): 4069025251169
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8014000lm83W170lm/WON/OFF2.3
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Highbay 31-S, 60°

Order No.: 51HC417A4FMBGTIN (EAN): 4058352700013

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux14000lm
Connected load94W
Luminous efficacy150lm/W
ControlON/OFF
Wt. (kg)2.3
Show all details

Highbay 31-S, 60°

Order No.: 51HC41DA4FMBGTIN (EAN): 4058352700075

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux14000lm
Connected load94W
Luminous efficacy150lm/W
ControlDALI 2
Wt. (kg)2.9
Show all details

Highbay 31-S, 60°

Order No.: 51HC417A4JMBGTIN (EAN): 4058352700037

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux20000lm
Connected load134W
Luminous efficacy150lm/W
ControlON/OFF
Wt. (kg)2.4
Show all details

Highbay 31-S, 90°, PIR sensor

Order No.: 51HC427A4FMB01GTIN (EAN): 4058352700150

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux14000lm
Connected load94W
Luminous efficacy150lm/W
ControlON/OFF
Wt. (kg)2.4
Show all details

Highbay 31-S, 90°

Order No.: 51HC42DA4FMBGTIN (EAN): 4058352700259

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux14000lm
Connected load94W
Luminous efficacy150lm/W
ControlDALI 2
Wt. (kg)2.9
Show all details

Highbay 31-S, 90°

Order No.: 51HC427A4JMBGTIN (EAN): 4058352700174

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux20000lm
Connected load134W
Luminous efficacy150lm/W
ControlON/OFF
Wt. (kg)2.4
Show all details

Highbay 31-S, 90°, PIR sensor

Order No.: 51HC427A4JMB01GTIN (EAN): 4058352700204

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux20000lm
Connected load134W
Luminous efficacy150lm/W
ControlON/OFF
Wt. (kg)2.6
Show all details

Highbay 31-S, 90°

Order No.: 51HC427A4FMCGTIN (EAN): 4069025251169

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux14000lm
Connected load83W
Luminous efficacy170lm/W
ControlON/OFF
Wt. (kg)2.3
Show all details

Optional accessories

Articlesystem connector: plug/socket, IP65, 3-pole, max. 2.5mm²PU1 pc.Wt. (kg)0.1Order No.: 5NX30003GTIN (EAN): 4058352143254Show all details
Articlesystem connector: plug/socket, IP65, 5-pole, max. 2.5mm²PU1 pc.Wt. (kg)0.1Order No.: 5NX30005GTIN (EAN): 4058352143391Show all details
Articlereflector, ø= 480mm, PC, transparent prismatic structure, rotationally symmetric narrow to wide distributionPU1 pc.Wt. (kg)1.4Order No.: 59HC91001GTIN (EAN): 4058352463192Show all details
Articlereflector, ø= 433mm, aluminium, Alu-Soft, rotationally symmetric narrow to wide distributionPU1 pc.Wt. (kg)0.3Order No.: 59HC91003GTIN (EAN): 4058352463215Show all details
Articlemounting bracketPU1 pc.Wt. (kg)1.0Order No.: 59HC92001GTIN (EAN): 4058352463239Show all details
