SITECO

Highbay

Family Product selection Configuration & data sheets

Product selection

Highbay 31 S

Highbay 31 L

Highbay 31 L

Key data

Article high bay luminaire
Lighting effect direct rotationally symmetric distribution, 60°; direct rotationally symmetric distribution, 90°
Net luminous flux 20000lm to 28000lm
Colour temperature 4000K
Control ON/OFF; DALI 2
Cover PC
Protection rating IP65
Insulation class insulation class I (protective earthing)
Protection symbol D
Impact resistance IK08
IFS corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry

Special features

Long service life (up to 100,000 hours) and use at elevated ambient temperatures up to 45°C thanks to excellent thermal management of the LEDs and drivers
Efficient light control and visual comfort in narrow and wide distribution design via lens optic of robust UV-stabilised PC
Reflectors of aluminium and PC avaliable as accessory for optimisation of glare reduction
Suitable for demanding ambient conditions (IP65/IK08) and for the food industry (IFS)

Configuration & data sheets

Control

Beam angle

Light management

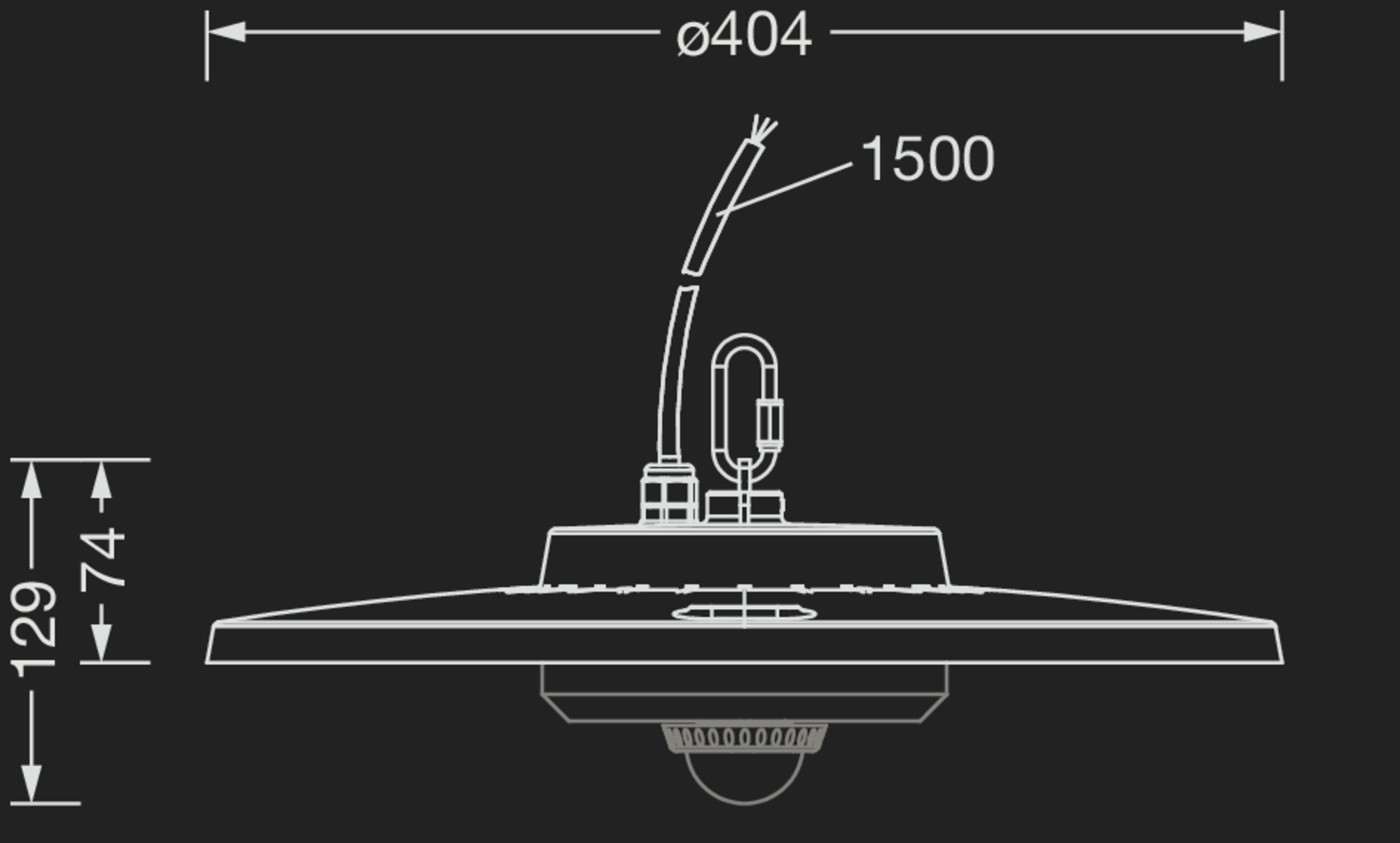

  • incl. connection cable (l= 1500mm) with free wire ends; please order system plug connection separately if required
  • includes suspension eyelet and screw carabiner of V2A; Fixing to on-site eyelet without further luminaire-specific installing accessories; for further installation methods: please order mounting accessory separately
  • please order photometric accessories separately if required

Results

Highbay 31-L, 60°

Order No.: 51HC41DA4JMB GTIN (EAN): 4058352700099
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8020000lm134W150lm/WDALI 23.7
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Highbay 31-L, 90°

Order No.: 51HC42DA4JMB GTIN (EAN): 4058352700273
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8020000lm134W150lm/WDALI 23.7
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Highbay 31-L, 90°, PIR sensor

Order No.: 51HC427A4MMB01 GTIN (EAN): 4058352700235
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8028000lm187W150lm/WON/OFF3.1
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Highbay 31-L, 90°

Order No.: 51HC42DA4MMB GTIN (EAN): 4058352700297
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8028000lm187W150lm/WDALI 23.8
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Highbay 31-L, 60°

Order No.: 51HC417A4MMC GTIN (EAN): 4069025251107
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8028000lm165W170lm/WON/OFF3.0
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Highbay 31-L, 90°

Order No.: 51HC427A4MMC GTIN (EAN): 4069025251183
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8028000lm165W170lm/WON/OFF3.0
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Highbay 31-L, 90°

Order No.: 51HC42DA4MMC GTIN (EAN): 4069025251220
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 8028000lm165W170lm/WDALI 23.8
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Highbay 31-L, 60°

Order No.: 51HC41DA4JMBGTIN (EAN): 4058352700099

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux20000lm
Connected load134W
Luminous efficacy150lm/W
ControlDALI 2
Wt. (kg)3.7
Show all details

Highbay 31-L, 90°

Order No.: 51HC42DA4JMBGTIN (EAN): 4058352700273

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux20000lm
Connected load134W
Luminous efficacy150lm/W
ControlDALI 2
Wt. (kg)3.7
Show all details

Highbay 31-L, 90°, PIR sensor

Order No.: 51HC427A4MMB01GTIN (EAN): 4058352700235

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux28000lm
Connected load187W
Luminous efficacy150lm/W
ControlON/OFF
Wt. (kg)3.1
Show all details

Highbay 31-L, 90°

Order No.: 51HC42DA4MMBGTIN (EAN): 4058352700297

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux28000lm
Connected load187W
Luminous efficacy150lm/W
ControlDALI 2
Wt. (kg)3.8
Show all details

Highbay 31-L, 60°

Order No.: 51HC417A4MMCGTIN (EAN): 4069025251107

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux28000lm
Connected load165W
Luminous efficacy170lm/W
ControlON/OFF
Wt. (kg)3.0
Show all details

Highbay 31-L, 90°

Order No.: 51HC427A4MMCGTIN (EAN): 4069025251183

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux28000lm
Connected load165W
Luminous efficacy170lm/W
ControlON/OFF
Wt. (kg)3.0
Show all details

Highbay 31-L, 90°

Order No.: 51HC42DA4MMCGTIN (EAN): 4069025251220

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux28000lm
Connected load165W
Luminous efficacy170lm/W
ControlDALI 2
Wt. (kg)3.8
Show all details

Optional accessories

Articlesystem connector: plug/socket, IP65, 3-pole, max. 2.5mm²PU1 pc.Wt. (kg)0.1Order No.: 5NX30003GTIN (EAN): 4058352143254Show all details
Articlesystem connector: plug/socket, IP65, 5-pole, max. 2.5mm²PU1 pc.Wt. (kg)0.1Order No.: 5NX30005GTIN (EAN): 4058352143391Show all details
Articlereflector, ø= 570mm, PC, transparent prismatic structure, rotationally symmetric narrow to wide distributionPU1 pc.Wt. (kg)1.7Order No.: 59HC91002GTIN (EAN): 4058352463208Show all details
Articlereflector, ø= 590mm, aluminium, Alu-Soft, rotationally symmetric narrow to wide distributionPU1 pc.Wt. (kg)1.5Order No.: 59HC91004GTIN (EAN): 4058352463222Show all details
Articlemounting bracketPU1 pc.Wt. (kg)1.2Order No.: 59HC92002GTIN (EAN): 4058352463260Show all details
