masts and brackets
Complete your road and city lighting with high-quality design masts or design brackets as well as standard masts in various designs and heights. You will also find important accessories such as cable junction boxes and reducers here.
The extra for road and city lighting
Product types

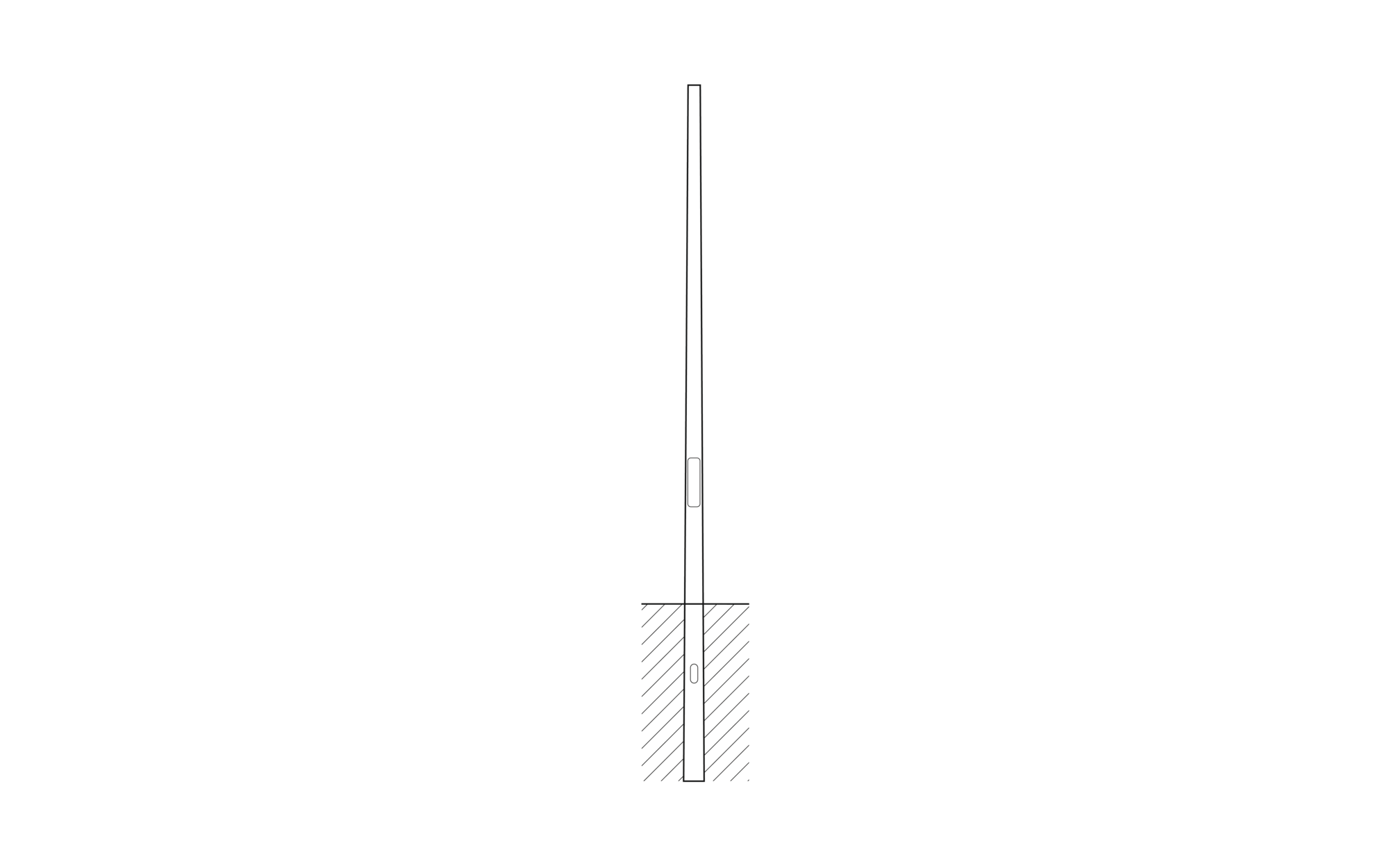

conical round masts

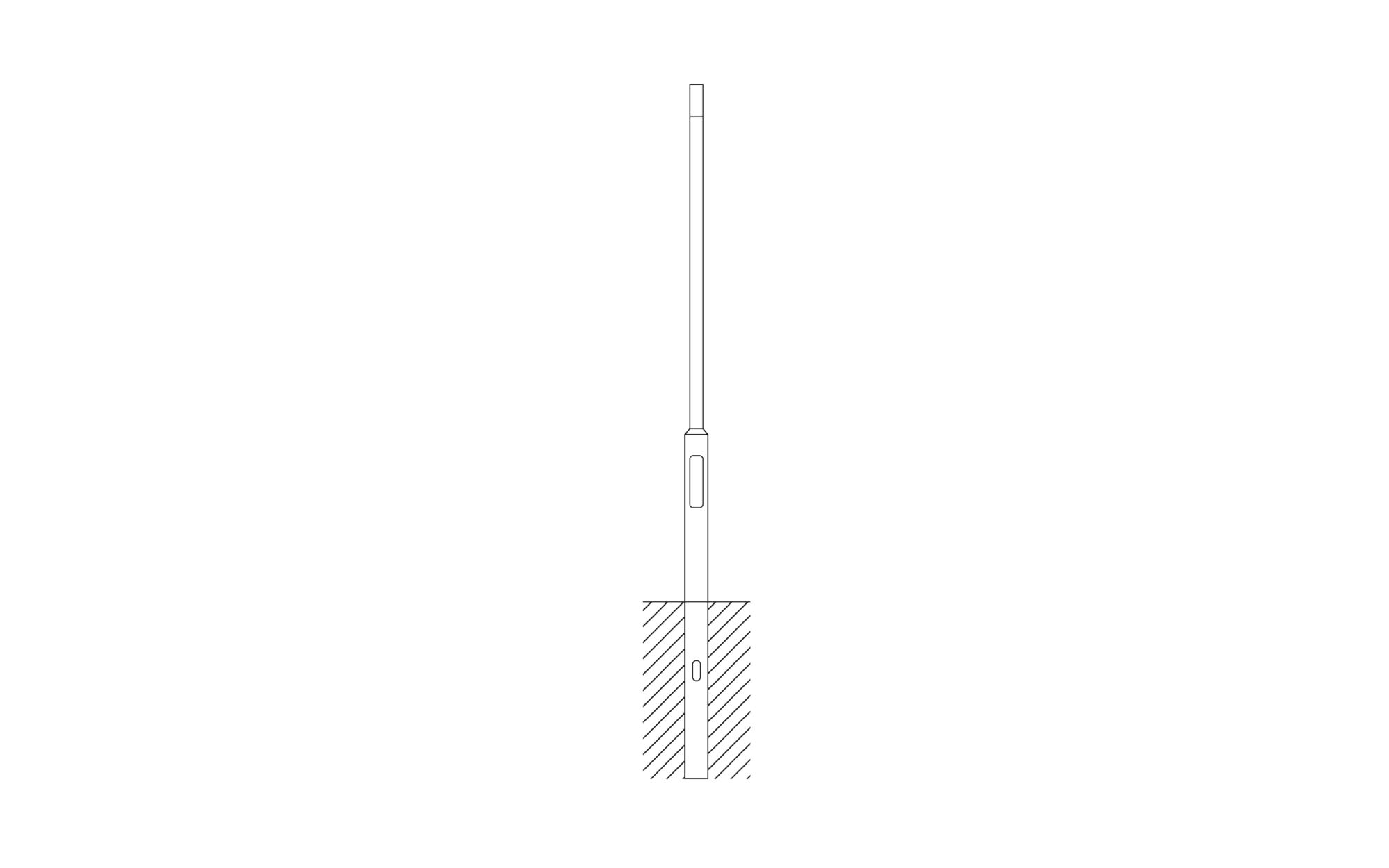

cylindrically offset masts

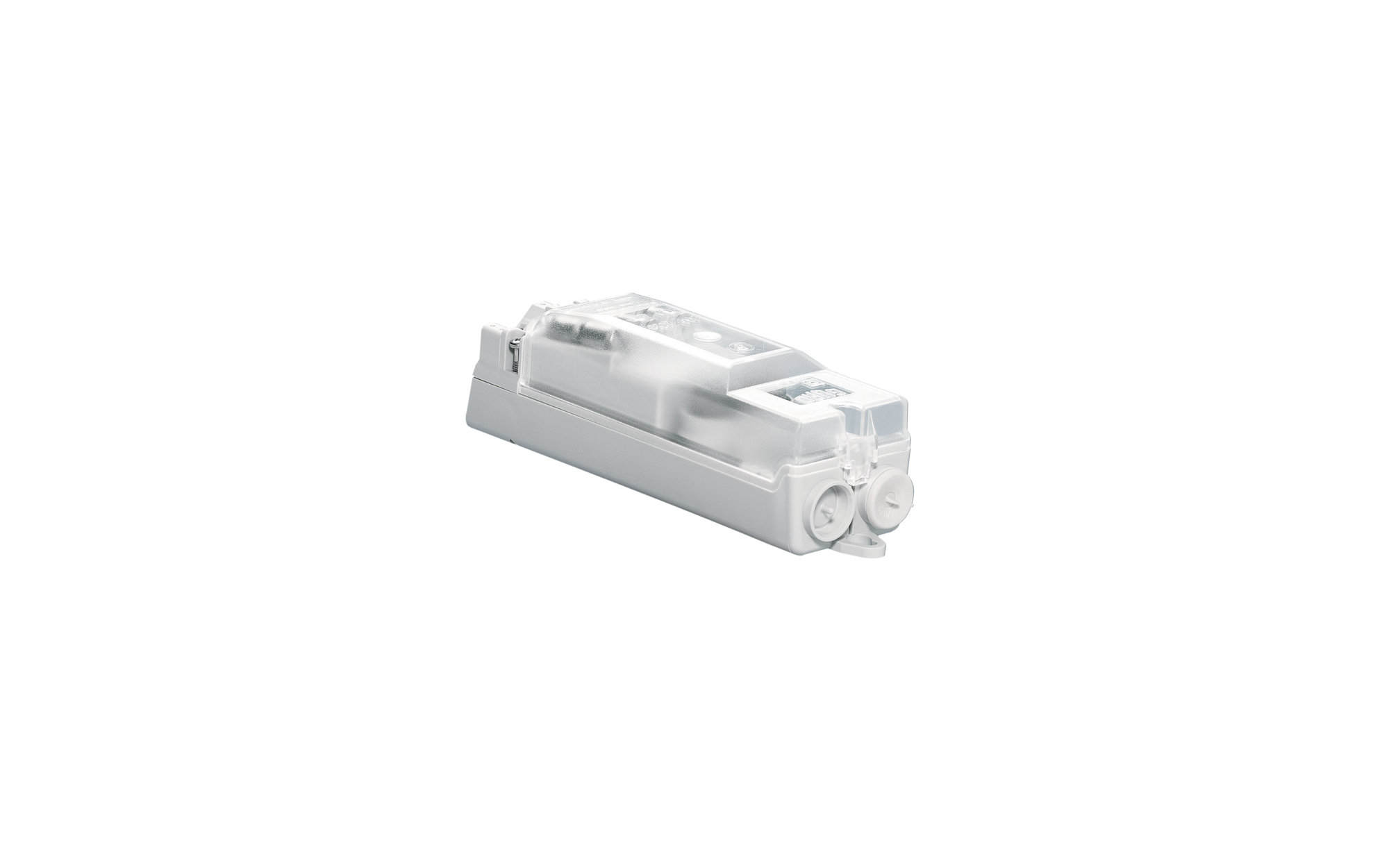

cable junction box for mast recessing

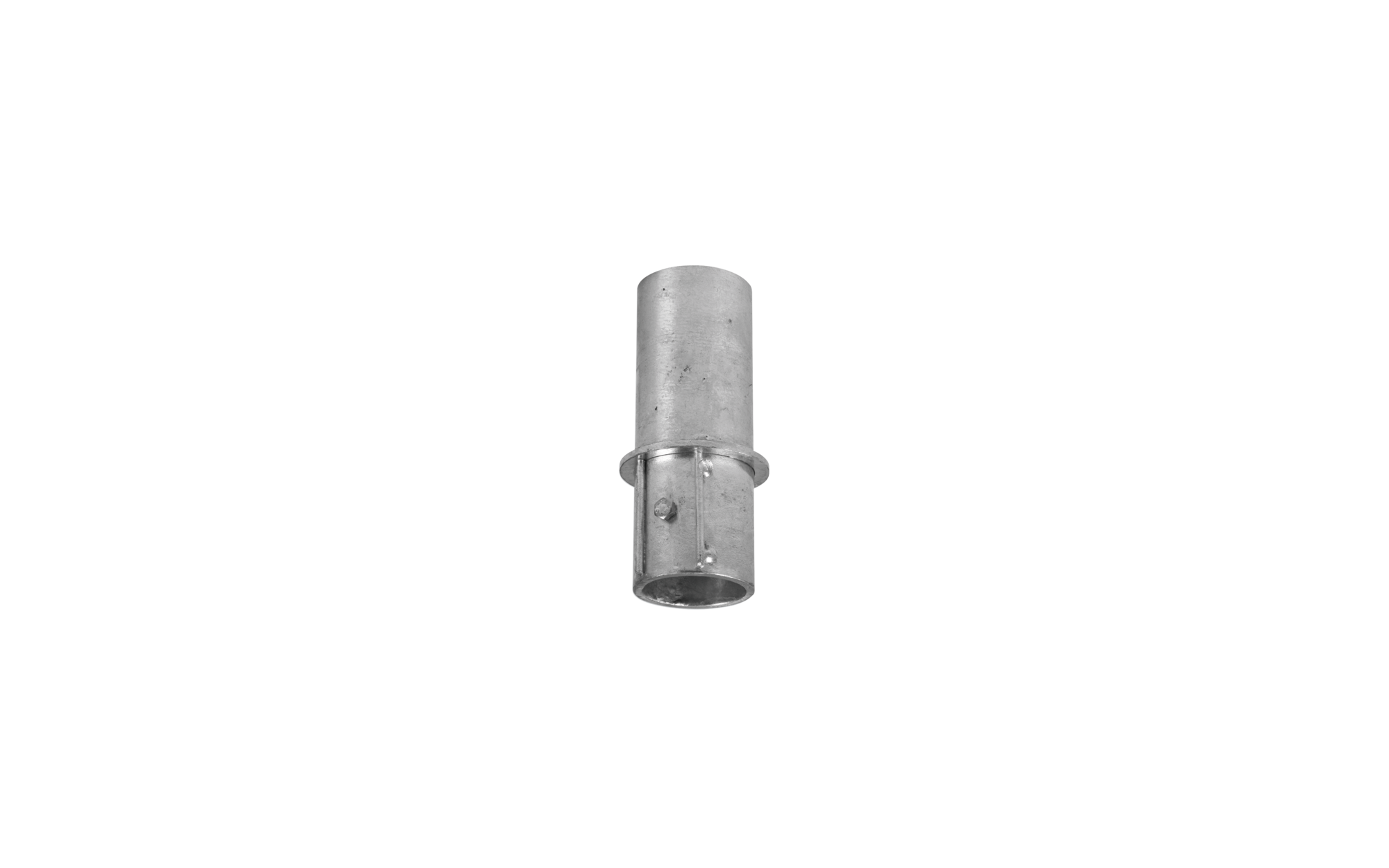

reducers for masts
mast bracket for post-top mounting of luminaires
mast bracket for side-entry mounting of luminaires

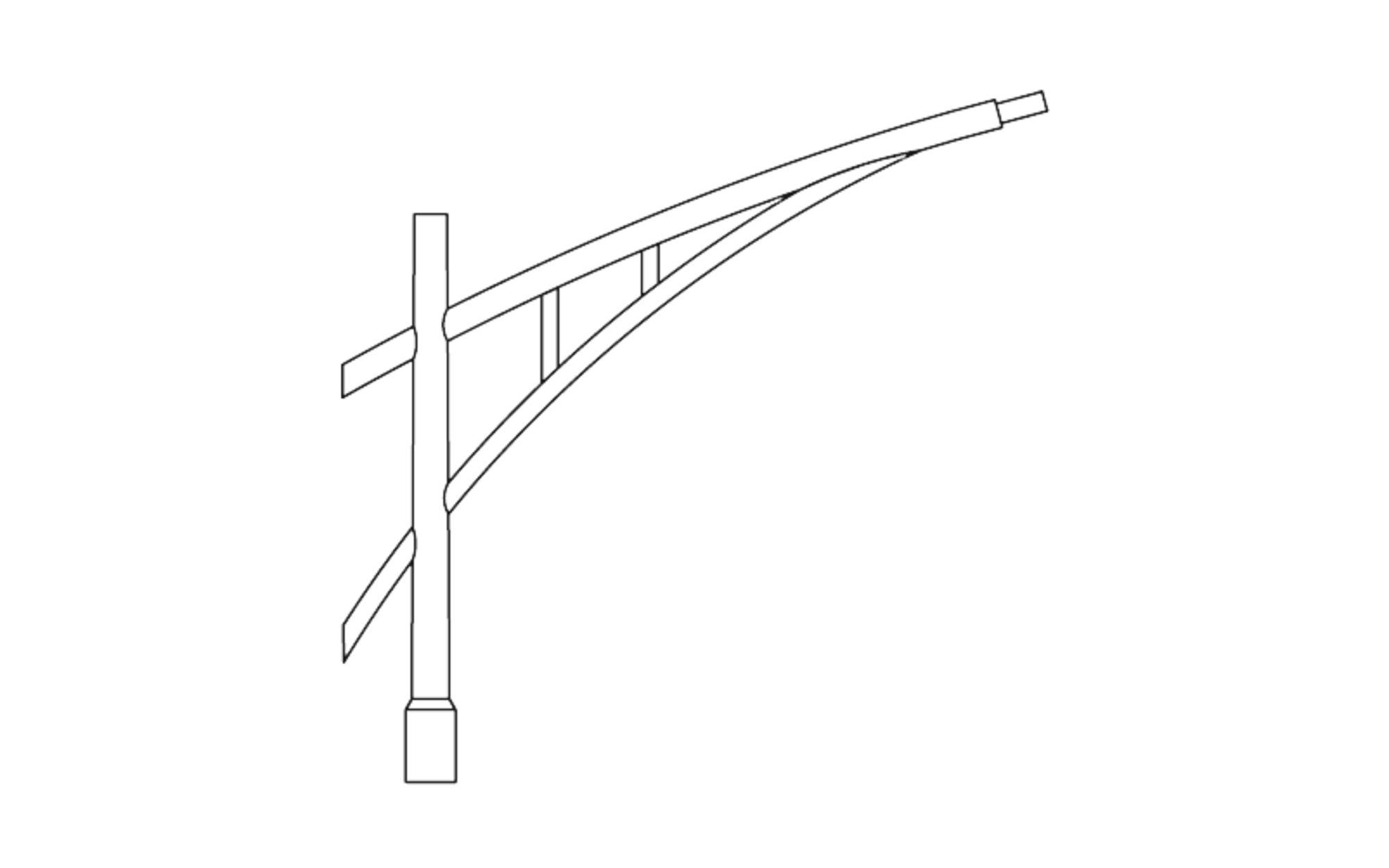

decorative mast brackets

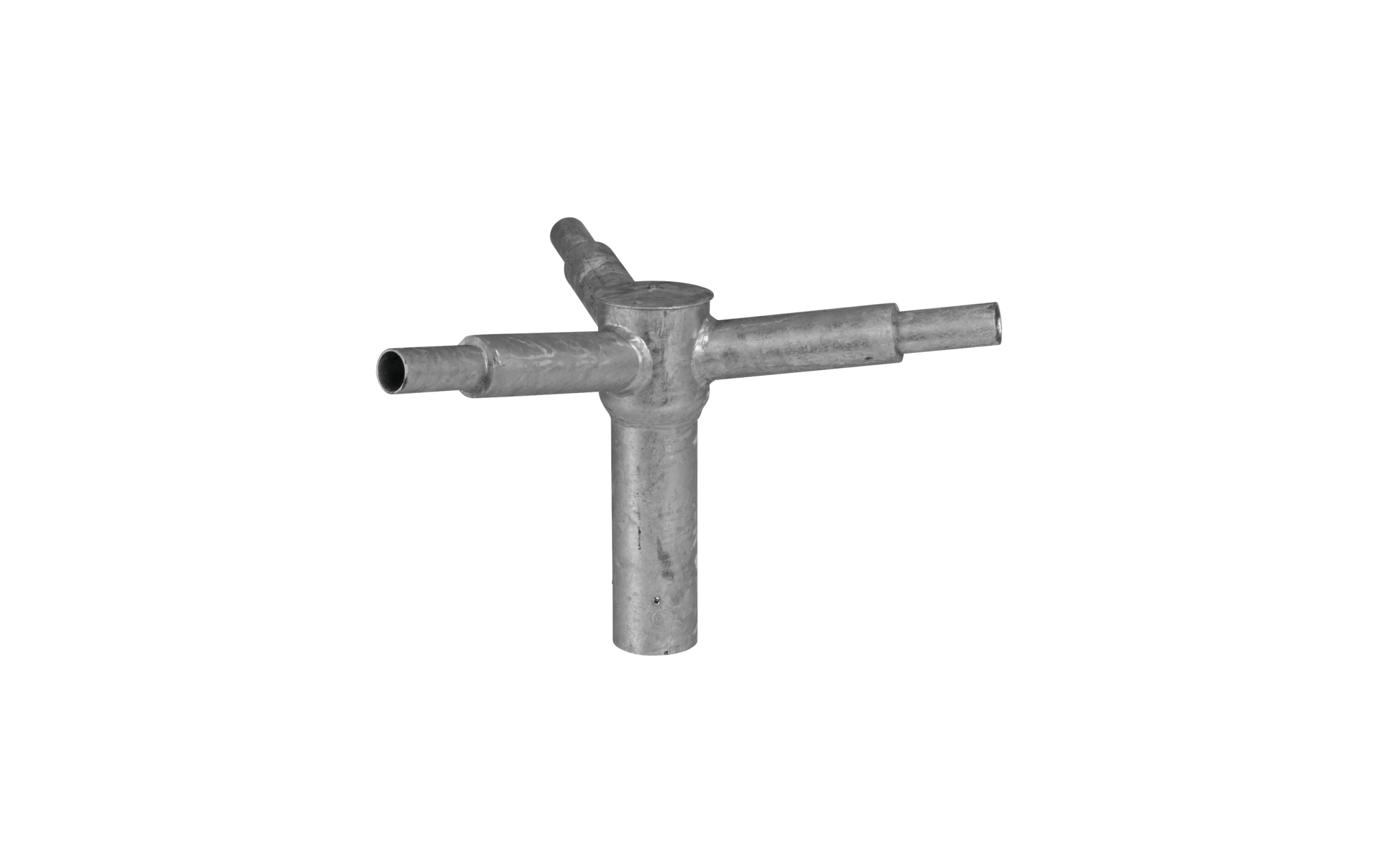

multiple bracket for masts
wall bracket for post-top mounting of luminaires

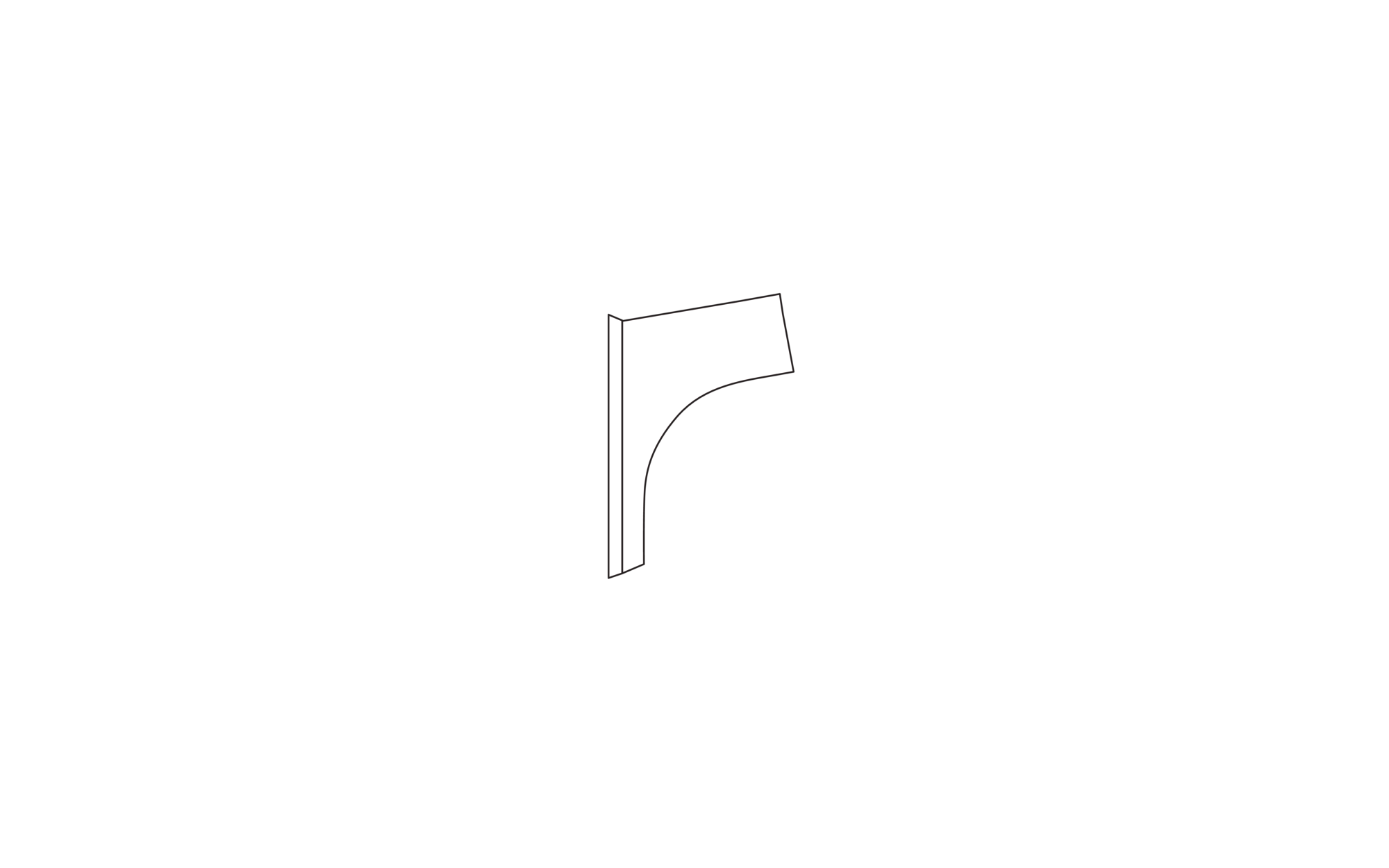

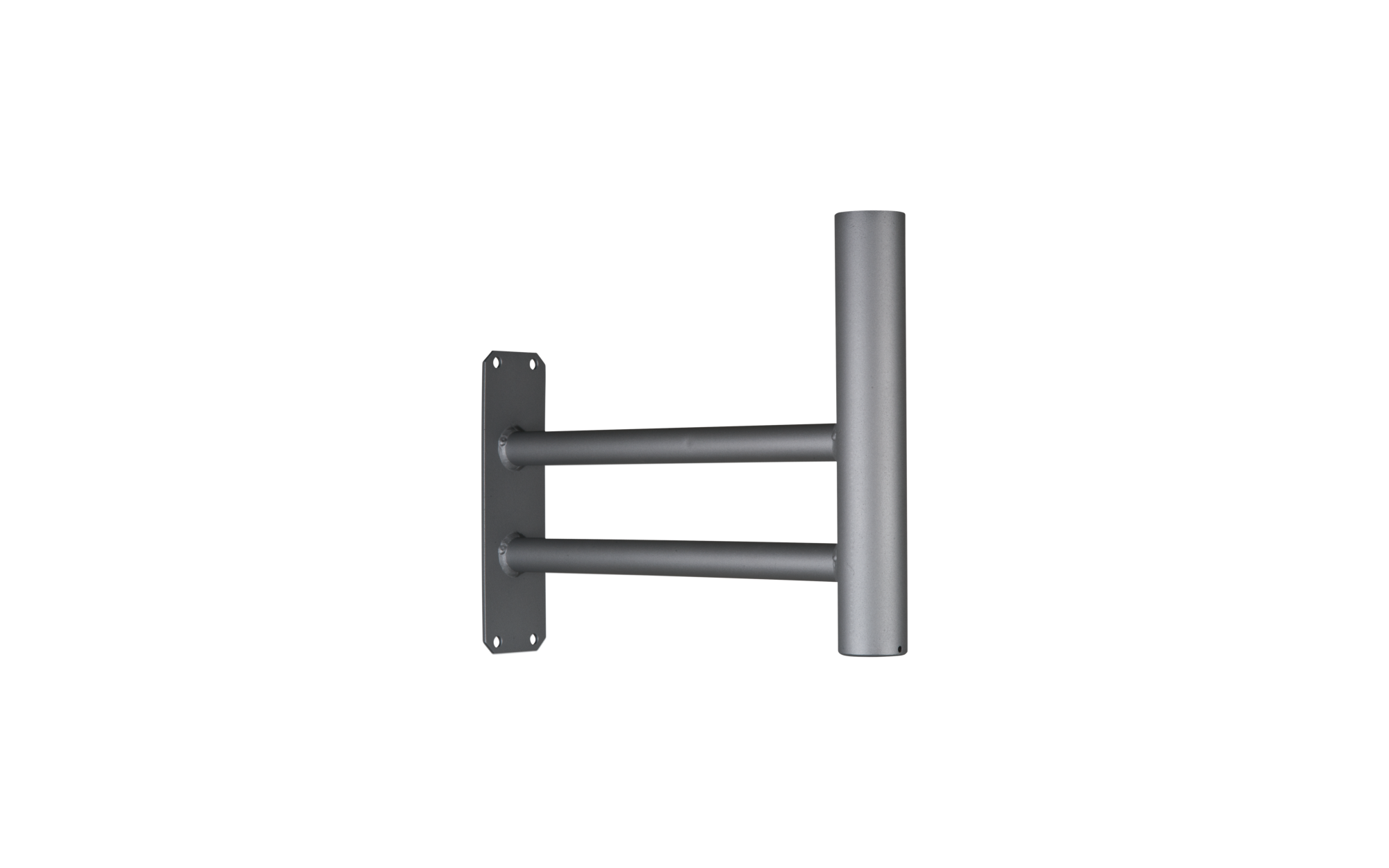

wall bracket for side-entry mounting of luminaires
Configuration & data sheets
- mast bracket suitable for cylindrical mast; mounting without any additional work on the mast
- when selecting the mast, the statics and permissible load limitation of the mast (windage area and weight of luminaires and brackets, wind speed according to wind zone, snow load, terrain category etc.) must be observed
Results
mast arm, rocker-type, single, DB 702S, spigot size: 76mm
| Article | Bracket arrangement | Bracket dimensions | Bracket spigot size | Spigot size | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|
| design arm | 1-arm | 600 | spigot size: 76mm | spigot size: 76mm | Siteco® metallic grey (DB 702S) | 9.5 |
mast arm, rocker-type, twin, DB 702S, spigot size: 76mm
| Article | Bracket arrangement | Bracket dimensions | Bracket spigot size | Spigot size | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|
| design arm | 2-arm | 600 | spigot size: 76mm | spigot size: 76mm | Siteco® metallic grey (DB 702S) | 13.8 |
mast arm, rail-type, single, DB 702S, spigot size: 76mm
| Article | Bracket arrangement | Bracket dimensions | Bracket spigot size | Spigot size | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|
| design arm | 1-arm | 600 | spigot size: 76mm | spigot size: 76mm | Siteco® metallic grey (DB 702S) | 9.8 |
mast arm, rail-type, twin, DB 702S, spigot size: 76mm
| Article | Bracket arrangement | Bracket dimensions | Bracket spigot size | Spigot size | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|
| design arm | 2-arm | 600 | spigot size: 76mm | spigot size: 76mm | Siteco® metallic grey (DB 702S) | 15.9 |
mast arm, rocker-type, single, DB 702S, spigot size: 76mm
Order No.: 5NY52650XG18GTIN (EAN): 4039806216694
| Article | design arm |
|---|---|
| Bracket arrangement | 1-arm |
| Bracket dimensions | 600 |
| Bracket spigot size | spigot size: 76mm |
| Spigot size | spigot size: 76mm |
| Colour | Siteco® metallic grey (DB 702S) |
| Wt. (kg) | 9.5 |

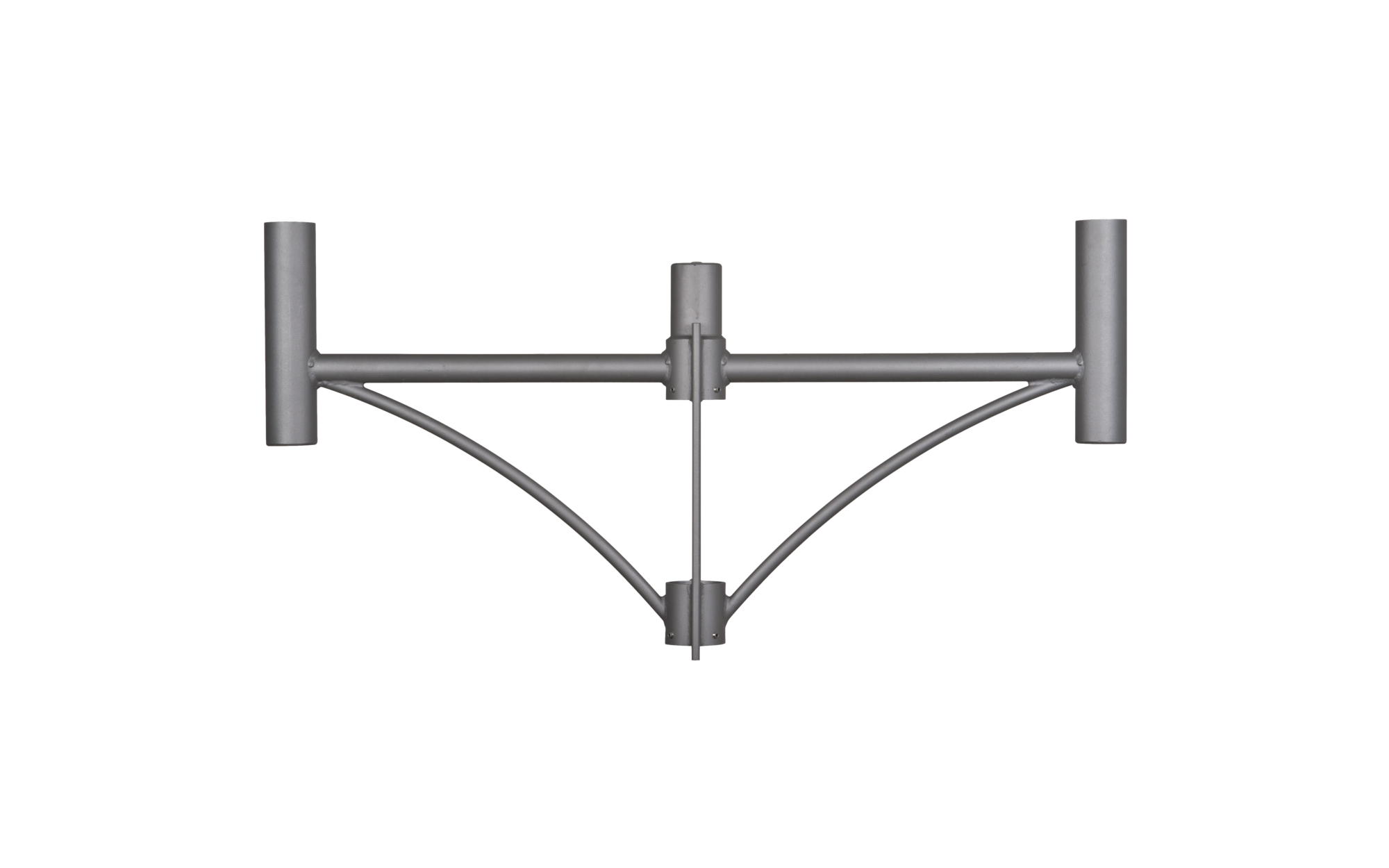

mast arm, rocker-type, twin, DB 702S, spigot size: 76mm
Order No.: 5NY52650XG28GTIN (EAN): 4039806215833
| Article | design arm |
|---|---|
| Bracket arrangement | 2-arm |
| Bracket dimensions | 600 |
| Bracket spigot size | spigot size: 76mm |
| Spigot size | spigot size: 76mm |
| Colour | Siteco® metallic grey (DB 702S) |
| Wt. (kg) | 13.8 |
mast arm, rail-type, single, DB 702S, spigot size: 76mm
Order No.: 5NY52650XN18GTIN (EAN): 4039806215857
| Article | design arm |
|---|---|
| Bracket arrangement | 1-arm |
| Bracket dimensions | 600 |
| Bracket spigot size | spigot size: 76mm |
| Spigot size | spigot size: 76mm |
| Colour | Siteco® metallic grey (DB 702S) |
| Wt. (kg) | 9.8 |
mast arm, rail-type, twin, DB 702S, spigot size: 76mm
Order No.: 5NY52650XN28GTIN (EAN): 4039806215895
| Article | design arm |
|---|---|
| Bracket arrangement | 2-arm |
| Bracket dimensions | 600 |
| Bracket spigot size | spigot size: 76mm |
| Spigot size | spigot size: 76mm |
| Colour | Siteco® metallic grey (DB 702S) |
| Wt. (kg) | 15.9 |
