Licross® 21
45 years of experience – trunking Made in Germany perfected in our Licross® trunking system. The one-for-all concept offers a variety of luminaire inserts and functional expansion options for maximum flexibility and future compatibility. With its unique 14 cores, the rail system becomes the backbone of the building infrastructure and is ready for a wide range of applications - today and tomorrow. The luminaire inserts offer outstanding lighting technology for low operating costs as well as SITECO-typical optics technology for the best viewing conditions. Various extensions from sensor to cameras and data transmission open up a broad horizon of applications far from lighting, which create additional added value.
Our core portfolio: Licross® 21 is our trunking system with the highest standards of efficiency (up to 190lm/W), service life (up to 75,000h) and flexibility for your project
Product types
trunking rails and accessories
Recessed luminaire insert IP40/IP54
Opal luminaire insert IP40/IP54
Protected luminaire insert IP54/IP64
Performance luminaire insert IP40/IP54
Silica® luminaire insert IP40
functional insert
emergency lighting luminaire insert IP40
Highbay 21 midi/maxi for Licross® trunking rail
Monsun® 31 for Licross®
Spot 31 for Licross®
Highbay 21 midi/maxi for Licross® trunking rail
Intro product family
Key data
Article high bay luminaire
Lighting effect direct symmetric narrow distribution; direct symmetric wide distribution
Net luminous flux 12810lm to 64000lm
Luminous efficacy up to 194lm/W
Colour temperature 3000K; 4000K; 5000K; 6500K
ta according to version/application in the range from -40°C to +55°C
Technology wired networking; wireless networking
Cover PMMA
Protection rating IP64
Impact resistance IK06
LABS LABS conformity tested according to VDMA 24364:2018-05
Halogen freeness internal wiring halogen-free
Special features

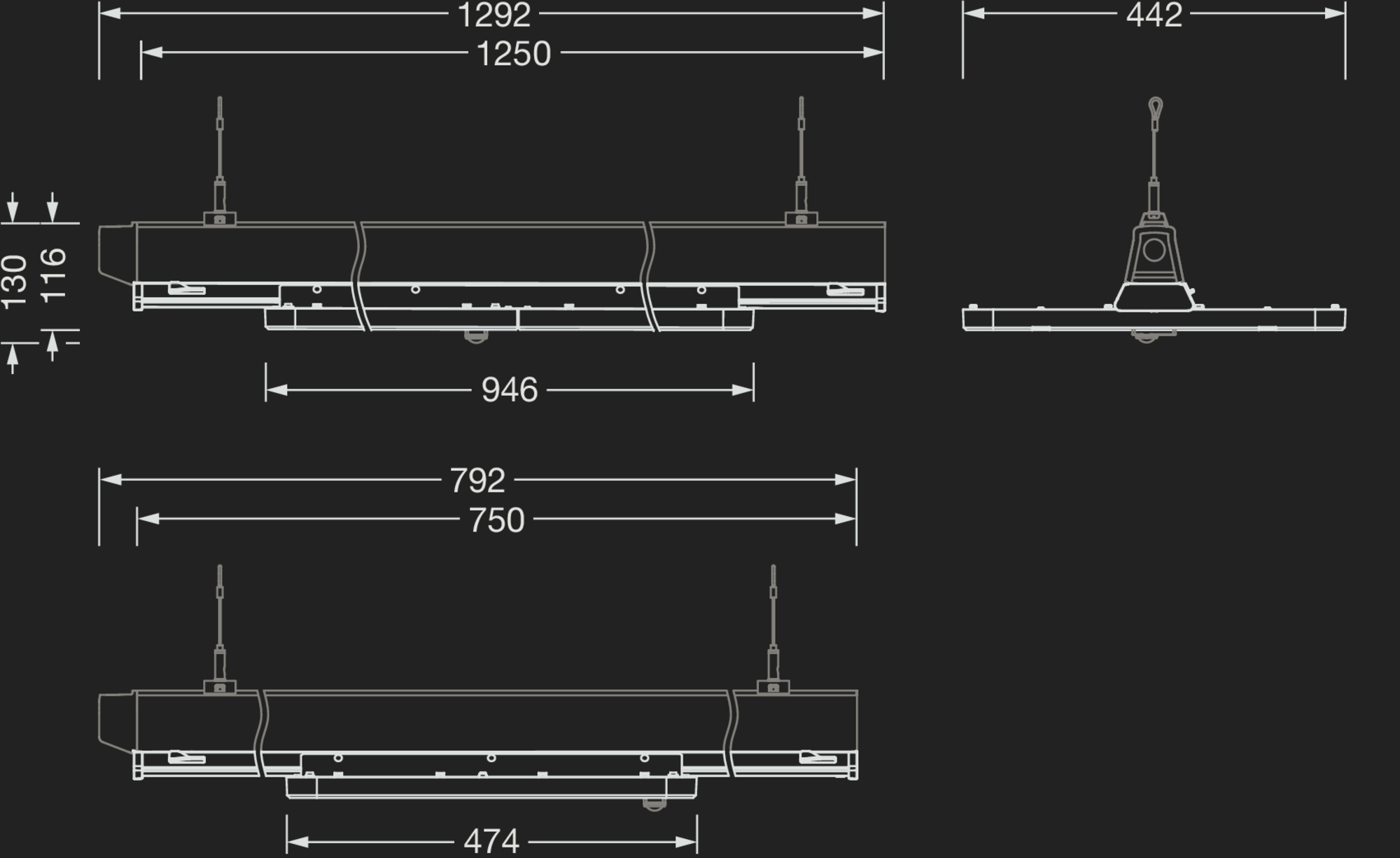

Luminaire in two different construction sizes
Defined light packages for different ambient temperatures in the range -40°C…+65°C
Design flexibility through various lighting packages and various light colours (3000K, 4000K, 5000K or 6500K)
Highly efficient lens optic in narrow and wide distribution design
For mounting to trunking rail of Licross® trunking system; in further versions also for ceiling surface or suspended mounting
Suitable for use in the food industry according to the specifications of IFS-Food, HACCP and/or BRC
Meets the high requirements of the automotive industry (Labs-free)
Configuration & data sheets
- please order Licross® trunking rail or trunking rail accessories separately
Results
Highbay 21 for Licross® trunking rail midi, wide distribution, 840
Order No.: 52HN12DA4FLA GTIN (EAN): 4069025284181
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 14000 | 72.1W | 194lm/W | DALI 2 | -40..+55°C | IP64 | 750 | 3.7 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840
Order No.: 52HN11DA4FLA GTIN (EAN): 4069025284150
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 14000 | 72.1W | 194lm/W | DALI 2 | -40..+55°C | IP64 | 750 | 3.7 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840
Order No.: 52HN12DA4LLA GTIN (EAN): 4069025284198
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 26500 | 142.6W | 186lm/W | DALI 2 | -40..+55°C | IP64 | 750 | 3.7 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840
Order No.: 52HN11DA4LLA GTIN (EAN): 4069025284167
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 26500 | 142.6W | 186lm/W | DALI 2 | -40..+55°C | IP64 | 750 | 3.7 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 840
Order No.: 52HN12DB4QLA GTIN (EAN): 4069025284204
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 38000 | 197.7W | 192lm/W | DALI 2 | -40..+55°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 840
Order No.: 52HN11DB4QLA GTIN (EAN): 4069025284174
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 38000 | 197.7W | 192lm/W | DALI 2 | -40..+55°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840
Order No.: 52HN11DA4HLA GTIN (EAN): 4069025394606
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 19000 | 98.9W | 192lm/W | DALI 2 | -40..+55°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840
Order No.: 52HN11DA4NLA GTIN (EAN): 4069025394620
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 32000 | 175.8W | 182lm/W | DALI 2 | -40..+50°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840
Order No.: 52HN12DA4HLA GTIN (EAN): 4069025394750
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 19000 | 98.9W | 192lm/W | DALI 2 | -40..+55°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840
Order No.: 52HN12DA4NLA GTIN (EAN): 4069025394774
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 32000 | 175.8W | 182lm/W | DALI 2 | -40..+50°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 840
Order No.: 52HN11DB4MLA GTIN (EAN): 4069025394651
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 28000 | 144W | 194lm/W | DALI 2 | -40..+55°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 840
Order No.: 52HN11DB4TLA GTIN (EAN): 4069025394705
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 53000 | 286.6W | 185lm/W | DALI 2 | -40..+55°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 840
Order No.: 52HN11DB4WLA GTIN (EAN): 4069025394736
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 64000 | 345W | 186lm/W | DALI 2 | -40..+50°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 840
Order No.: 52HN12DB4MLA GTIN (EAN): 4069025394804
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 28000 | 144W | 194lm/W | DALI 2 | -40..+55°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 840
Order No.: 52HN12DB4TLA GTIN (EAN): 4069025394859
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 53000 | 286.6W | 185lm/W | DALI 2 | -40..+55°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 840
Order No.: 52HN12DB4WLA GTIN (EAN): 4069025394880
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 64000 | 345W | 186lm/W | DALI 2 | -40..+50°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840, Node Multisensor PC11
Order No.: 52HN11DA4FLA01 GTIN (EAN): 4069025421180
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 14000 | 72.6W | 193lm/W | Bluetooth® Mesh | -20..+45°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840, Node
Order No.: 52HN11DA4FLA02 GTIN (EAN): 4069025421197
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 14000 | 72.6W | 193lm/W | Bluetooth® Mesh | -20..+45°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840, multi-sensor PC11
Order No.: 52HN11DA4FLA03 GTIN (EAN): 4069025421203
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 14000 | 72.1W | 194lm/W | DALI 2 | -20..+45°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840, Node Multisensor PC11
Order No.: 52HN11DA4HLA01 GTIN (EAN): 4069025421241
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 19000 | 99.4W | 191lm/W | Bluetooth® Mesh | -20..+40°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840, Node
Order No.: 52HN11DA4HLA02 GTIN (EAN): 4069025421258
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 19000 | 99.4W | 191lm/W | Bluetooth® Mesh | -20..+40°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840, multi-sensor PC11
Order No.: 52HN11DA4HLA03 GTIN (EAN): 4069025421265
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 19000 | 98.9W | 192lm/W | DALI 2 | -20..+40°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840, Node Multisensor PC11
Order No.: 52HN11DA4LLA01 GTIN (EAN): 4069025421302
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 26500 | 143.1W | 185lm/W | Bluetooth® Mesh | -20..+40°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840, Node
Order No.: 52HN11DA4LLA02 GTIN (EAN): 4069025421319
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 26500 | 143.1W | 185lm/W | Bluetooth® Mesh | -20..+40°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840, multi-sensor PC11
Order No.: 52HN11DA4LLA03 GTIN (EAN): 4069025421326
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 26500 | 142.6W | 186lm/W | DALI 2 | -20..+40°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840, Node Multisensor PC11
Order No.: 52HN11DA4NLA01 GTIN (EAN): 4069025421364
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 32000 | 176.3W | 182lm/W | Bluetooth® Mesh | -20..+35°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840, Node
Order No.: 52HN11DA4NLA02 GTIN (EAN): 4069025421371
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 32000 | 176.3W | 182lm/W | Bluetooth® Mesh | -20..+35°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840, multi-sensor PC11
Order No.: 52HN11DA4NLA03 GTIN (EAN): 4069025421388
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 32000 | 175.8W | 182lm/W | DALI 2 | -20..+35°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840, Node Multisensor PC11
Order No.: 52HN12DA4FLA01 GTIN (EAN): 4069025421562
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 14000 | 72.6W | 193lm/W | Bluetooth® Mesh | -20..+45°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840, Node
Order No.: 52HN12DA4FLA02 GTIN (EAN): 4069025421579
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 14000 | 72.6W | 193lm/W | Bluetooth® Mesh | -20..+45°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840, multi-sensor PC11
Order No.: 52HN12DA4FLA03 GTIN (EAN): 4069025421586
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 14000 | 72.1W | 194lm/W | DALI 2 | -20..+45°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840, Node Multisensor PC11
Order No.: 52HN12DA4HLA01 GTIN (EAN): 4069025421623
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 19000 | 99.4W | 191lm/W | Bluetooth® Mesh | -20..+40°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840, Node
Order No.: 52HN12DA4HLA02 GTIN (EAN): 4069025421630
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 19000 | 99.4W | 191lm/W | Bluetooth® Mesh | -20..+40°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840, multi-sensor PC11
Order No.: 52HN12DA4HLA03 GTIN (EAN): 4069025421647
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 19000 | 98.9W | 192lm/W | DALI 2 | -20..+40°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840, Node Multisensor PC11
Order No.: 52HN12DA4LLA01 GTIN (EAN): 4069025421685
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 26500 | 143.1W | 185lm/W | Bluetooth® Mesh | -20..+40°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840, Node
Order No.: 52HN12DA4LLA02 GTIN (EAN): 4069025421692
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 26500 | 143.1W | 185lm/W | Bluetooth® Mesh | -20..+40°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840, multi-sensor PC11
Order No.: 52HN12DA4LLA03 GTIN (EAN): 4069025421708
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 26500 | 142.6W | 186lm/W | DALI 2 | -20..+40°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840, Node Multisensor PC11
Order No.: 52HN12DA4NLA01 GTIN (EAN): 4069025421746
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 32000 | 176.3W | 182lm/W | Bluetooth® Mesh | -20..+35°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840, Node
Order No.: 52HN12DA4NLA02 GTIN (EAN): 4069025421753
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 32000 | 176.3W | 182lm/W | Bluetooth® Mesh | -20..+35°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840, multi-sensor PC11
Order No.: 52HN12DA4NLA03 GTIN (EAN): 4069025421760
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 32000 | 175.8W | 182lm/W | DALI 2 | -20..+35°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 840, Node Multisensor PC11
Order No.: 52HN11DB4MLA01 GTIN (EAN): 4069025421425
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 28000 | 144.5W | 194lm/W | Bluetooth® Mesh | -20..+45°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 840, Node
Order No.: 52HN11DB4MLA02 GTIN (EAN): 4069025421432
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 28000 | 144.5W | 194lm/W | Bluetooth® Mesh | -20..+45°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 840, multi-sensor PC11
Order No.: 52HN11DB4MLA03 GTIN (EAN): 4069025421449
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 28000 | 144W | 194lm/W | DALI 2 | -20..+45°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 840, Node Multisensor PC11
Order No.: 52HN11DB4QLA01 GTIN (EAN): 4069025421487
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 38000 | 198.2W | 192lm/W | Bluetooth® Mesh | -20..+40°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 840, Node
Order No.: 52HN11DB4QLA02 GTIN (EAN): 4069025421494
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 38000 | 198.2W | 192lm/W | Bluetooth® Mesh | -20..+40°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 840, multi-sensor PC11
Order No.: 52HN11DB4QLA03 GTIN (EAN): 4069025421500
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 38000 | 197.7W | 192lm/W | DALI 2 | -20..+40°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 840, Node Multisensor PC11
Order No.: 52HN12DB4MLA01 GTIN (EAN): 4069025421807
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 28000 | 144.5W | 194lm/W | Bluetooth® Mesh | -20..+45°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 840, Node
Order No.: 52HN12DB4MLA02 GTIN (EAN): 4069025421814
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 28000 | 144.5W | 194lm/W | Bluetooth® Mesh | -20..+45°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 840, multi-sensor PC11
Order No.: 52HN12DB4MLA03 GTIN (EAN): 4069025421821
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 28000 | 144W | 194lm/W | DALI 2 | -20..+45°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 840, Node Multisensor PC11
Order No.: 52HN12DB4QLA01 GTIN (EAN): 4069025421852
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 38000 | 198.2W | 192lm/W | Bluetooth® Mesh | -20..+40°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 840, Node
Order No.: 52HN12DB4QLA02 GTIN (EAN): 4069025421869
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 38000 | 198.2W | 192lm/W | Bluetooth® Mesh | -20..+40°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 840, multi-sensor PC11
Order No.: 52HN12DB4QLA03 GTIN (EAN): 4069025421876
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 38000 | 197.7W | 192lm/W | DALI 2 | -20..+40°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 830
Order No.: 52HN11DA3FLA GTIN (EAN): 4069025445001
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 12810 | 72.1W | 178lm/W | DALI 2 | -40..+55°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 830
Order No.: 52HN11DA3KLA GTIN (EAN): 4069025445032
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 24180 | 142.6W | 170lm/W | DALI 2 | -40..+55°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 850
Order No.: 52HN11DA5FLA GTIN (EAN): 4069025445063
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 13620 | 72.1W | 189lm/W | DALI 2 | -40..+55°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 850
Order No.: 52HN11DA5LLA GTIN (EAN): 4069025445094
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 25790 | 142.6W | 181lm/W | DALI 2 | -40..+55°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 865
Order No.: 52HN11DA6FLA GTIN (EAN): 4069025445124
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 13570 | 72.1W | 188lm/W | DALI 2 | -40..+55°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 865
Order No.: 52HN11DA6LLA GTIN (EAN): 4069025445155
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 25700 | 142.6W | 180lm/W | DALI 2 | -40..+55°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 830
Order No.: 52HN11DB3LLA GTIN (EAN): 4069025445186
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 25590 | 144W | 178lm/W | DALI 2 | -40..+55°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 830
Order No.: 52HN11DB3PLA GTIN (EAN): 4069025445216
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 34690 | 197.7W | 176lm/W | DALI 2 | -40..+55°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 850
Order No.: 52HN11DB5LLA GTIN (EAN): 4069025445247
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 27240 | 144W | 189lm/W | DALI 2 | -40..+55°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 850
Order No.: 52HN11DB5QLA GTIN (EAN): 4069025445278
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 36980 | 197.7W | 187lm/W | DALI 2 | -40..+55°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 865
Order No.: 52HN11DB6LLA GTIN (EAN): 4069025445308
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 27140 | 144W | 189lm/W | DALI 2 | -40..+55°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 865
Order No.: 52HN11DB6QLA GTIN (EAN): 4069025445339
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 36840 | 197.7W | 186lm/W | DALI 2 | -40..+55°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 830
Order No.: 52HN12DA3FLA GTIN (EAN): 4069025445360
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 12810 | 72.1W | 178lm/W | DALI 2 | -40..+55°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 830
Order No.: 52HN12DA3KLA GTIN (EAN): 4069025445391
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 24180 | 142.6W | 170lm/W | DALI 2 | -40..+55°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 850
Order No.: 52HN12DA5FLA GTIN (EAN): 4069025445421
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 13620 | 72.1W | 189lm/W | DALI 2 | -40..+55°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 850
Order No.: 52HN12DA5LLA GTIN (EAN): 4069025445452
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 25790 | 142.6W | 181lm/W | DALI 2 | -40..+55°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 865
Order No.: 52HN12DA6FLA GTIN (EAN): 4069025445483
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 13570 | 72.1W | 188lm/W | DALI 2 | -40..+55°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 865
Order No.: 52HN12DA6LLA GTIN (EAN): 4069025445513
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 25700 | 142.6W | 180lm/W | DALI 2 | -40..+55°C | IP64 | 750 | 3.5 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 830
Order No.: 52HN12DB3LLA GTIN (EAN): 4069025445544
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 25590 | 144W | 178lm/W | DALI 2 | -40..+55°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 830
Order No.: 52HN12DB3PLA GTIN (EAN): 4069025445575
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 34690 | 197.7W | 176lm/W | DALI 2 | -40..+55°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 850
Order No.: 52HN12DB5LLA GTIN (EAN): 4069025445605
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 27240 | 144W | 189lm/W | DALI 2 | -40..+55°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 850
Order No.: 52HN12DB5QLA GTIN (EAN): 4069025445636
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 5000K | CRI > 80 | 36980 | 197.7W | 187lm/W | DALI 2 | -40..+55°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 865
Order No.: 52HN12DB6LLA GTIN (EAN): 4069025445667
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 27140 | 144W | 189lm/W | DALI 2 | -40..+55°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 865
Order No.: 52HN12DB6QLA GTIN (EAN): 4069025445698
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 36840 | 197.7W | 186lm/W | DALI 2 | -40..+55°C | IP64 | 1250 | 7.0 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840
Order No.: 52HN12DA4FLAGTIN (EAN): 4069025284181
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 14000 |
| Connected load | 72.1W |
| Luminous efficacy | 194lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.7 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840
Order No.: 52HN11DA4FLAGTIN (EAN): 4069025284150
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 14000 |
| Connected load | 72.1W |
| Luminous efficacy | 194lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.7 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840
Order No.: 52HN12DA4LLAGTIN (EAN): 4069025284198
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 26500 |
| Connected load | 142.6W |
| Luminous efficacy | 186lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.7 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840
Order No.: 52HN11DA4LLAGTIN (EAN): 4069025284167
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 26500 |
| Connected load | 142.6W |
| Luminous efficacy | 186lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.7 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 840
Order No.: 52HN12DB4QLAGTIN (EAN): 4069025284204
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 38000 |
| Connected load | 197.7W |
| Luminous efficacy | 192lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 840
Order No.: 52HN11DB4QLAGTIN (EAN): 4069025284174
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 38000 |
| Connected load | 197.7W |
| Luminous efficacy | 192lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840
Order No.: 52HN11DA4HLAGTIN (EAN): 4069025394606
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 19000 |
| Connected load | 98.9W |
| Luminous efficacy | 192lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840
Order No.: 52HN11DA4NLAGTIN (EAN): 4069025394620
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 32000 |
| Connected load | 175.8W |
| Luminous efficacy | 182lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840
Order No.: 52HN12DA4HLAGTIN (EAN): 4069025394750
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 19000 |
| Connected load | 98.9W |
| Luminous efficacy | 192lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840
Order No.: 52HN12DA4NLAGTIN (EAN): 4069025394774
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 32000 |
| Connected load | 175.8W |
| Luminous efficacy | 182lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 840
Order No.: 52HN11DB4MLAGTIN (EAN): 4069025394651
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 28000 |
| Connected load | 144W |
| Luminous efficacy | 194lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 840
Order No.: 52HN11DB4TLAGTIN (EAN): 4069025394705
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 53000 |
| Connected load | 286.6W |
| Luminous efficacy | 185lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 840
Order No.: 52HN11DB4WLAGTIN (EAN): 4069025394736
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 64000 |
| Connected load | 345W |
| Luminous efficacy | 186lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 840
Order No.: 52HN12DB4MLAGTIN (EAN): 4069025394804
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 28000 |
| Connected load | 144W |
| Luminous efficacy | 194lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 840
Order No.: 52HN12DB4TLAGTIN (EAN): 4069025394859
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 53000 |
| Connected load | 286.6W |
| Luminous efficacy | 185lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 840
Order No.: 52HN12DB4WLAGTIN (EAN): 4069025394880
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 64000 |
| Connected load | 345W |
| Luminous efficacy | 186lm/W |
| Control | DALI 2 |
| ta | -40..+50°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840, Node Multisensor PC11
Order No.: 52HN11DA4FLA01GTIN (EAN): 4069025421180
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 14000 |
| Connected load | 72.6W |
| Luminous efficacy | 193lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+45°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840, Node
Order No.: 52HN11DA4FLA02GTIN (EAN): 4069025421197
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 14000 |
| Connected load | 72.6W |
| Luminous efficacy | 193lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+45°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840, multi-sensor PC11
Order No.: 52HN11DA4FLA03GTIN (EAN): 4069025421203
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 14000 |
| Connected load | 72.1W |
| Luminous efficacy | 194lm/W |
| Control | DALI 2 |
| ta | -20..+45°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840, Node Multisensor PC11
Order No.: 52HN11DA4HLA01GTIN (EAN): 4069025421241
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 19000 |
| Connected load | 99.4W |
| Luminous efficacy | 191lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+40°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840, Node
Order No.: 52HN11DA4HLA02GTIN (EAN): 4069025421258
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 19000 |
| Connected load | 99.4W |
| Luminous efficacy | 191lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+40°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840, multi-sensor PC11
Order No.: 52HN11DA4HLA03GTIN (EAN): 4069025421265
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 19000 |
| Connected load | 98.9W |
| Luminous efficacy | 192lm/W |
| Control | DALI 2 |
| ta | -20..+40°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840, Node Multisensor PC11
Order No.: 52HN11DA4LLA01GTIN (EAN): 4069025421302
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 26500 |
| Connected load | 143.1W |
| Luminous efficacy | 185lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+40°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840, Node
Order No.: 52HN11DA4LLA02GTIN (EAN): 4069025421319
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 26500 |
| Connected load | 143.1W |
| Luminous efficacy | 185lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+40°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840, multi-sensor PC11
Order No.: 52HN11DA4LLA03GTIN (EAN): 4069025421326
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 26500 |
| Connected load | 142.6W |
| Luminous efficacy | 186lm/W |
| Control | DALI 2 |
| ta | -20..+40°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840, Node Multisensor PC11
Order No.: 52HN11DA4NLA01GTIN (EAN): 4069025421364
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 32000 |
| Connected load | 176.3W |
| Luminous efficacy | 182lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+35°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840, Node
Order No.: 52HN11DA4NLA02GTIN (EAN): 4069025421371
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 32000 |
| Connected load | 176.3W |
| Luminous efficacy | 182lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+35°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 840, multi-sensor PC11
Order No.: 52HN11DA4NLA03GTIN (EAN): 4069025421388
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 32000 |
| Connected load | 175.8W |
| Luminous efficacy | 182lm/W |
| Control | DALI 2 |
| ta | -20..+35°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840, Node Multisensor PC11
Order No.: 52HN12DA4FLA01GTIN (EAN): 4069025421562
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 14000 |
| Connected load | 72.6W |
| Luminous efficacy | 193lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+45°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840, Node
Order No.: 52HN12DA4FLA02GTIN (EAN): 4069025421579
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 14000 |
| Connected load | 72.6W |
| Luminous efficacy | 193lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+45°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840, multi-sensor PC11
Order No.: 52HN12DA4FLA03GTIN (EAN): 4069025421586
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 14000 |
| Connected load | 72.1W |
| Luminous efficacy | 194lm/W |
| Control | DALI 2 |
| ta | -20..+45°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840, Node Multisensor PC11
Order No.: 52HN12DA4HLA01GTIN (EAN): 4069025421623
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 19000 |
| Connected load | 99.4W |
| Luminous efficacy | 191lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+40°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840, Node
Order No.: 52HN12DA4HLA02GTIN (EAN): 4069025421630
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 19000 |
| Connected load | 99.4W |
| Luminous efficacy | 191lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+40°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840, multi-sensor PC11
Order No.: 52HN12DA4HLA03GTIN (EAN): 4069025421647
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 19000 |
| Connected load | 98.9W |
| Luminous efficacy | 192lm/W |
| Control | DALI 2 |
| ta | -20..+40°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840, Node Multisensor PC11
Order No.: 52HN12DA4LLA01GTIN (EAN): 4069025421685
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 26500 |
| Connected load | 143.1W |
| Luminous efficacy | 185lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+40°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840, Node
Order No.: 52HN12DA4LLA02GTIN (EAN): 4069025421692
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 26500 |
| Connected load | 143.1W |
| Luminous efficacy | 185lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+40°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840, multi-sensor PC11
Order No.: 52HN12DA4LLA03GTIN (EAN): 4069025421708
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 26500 |
| Connected load | 142.6W |
| Luminous efficacy | 186lm/W |
| Control | DALI 2 |
| ta | -20..+40°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840, Node Multisensor PC11
Order No.: 52HN12DA4NLA01GTIN (EAN): 4069025421746
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 32000 |
| Connected load | 176.3W |
| Luminous efficacy | 182lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+35°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840, Node
Order No.: 52HN12DA4NLA02GTIN (EAN): 4069025421753
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 32000 |
| Connected load | 176.3W |
| Luminous efficacy | 182lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+35°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 840, multi-sensor PC11
Order No.: 52HN12DA4NLA03GTIN (EAN): 4069025421760
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 32000 |
| Connected load | 175.8W |
| Luminous efficacy | 182lm/W |
| Control | DALI 2 |
| ta | -20..+35°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 840, Node Multisensor PC11
Order No.: 52HN11DB4MLA01GTIN (EAN): 4069025421425
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 28000 |
| Connected load | 144.5W |
| Luminous efficacy | 194lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+45°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 840, Node
Order No.: 52HN11DB4MLA02GTIN (EAN): 4069025421432
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 28000 |
| Connected load | 144.5W |
| Luminous efficacy | 194lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+45°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 840, multi-sensor PC11
Order No.: 52HN11DB4MLA03GTIN (EAN): 4069025421449
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 28000 |
| Connected load | 144W |
| Luminous efficacy | 194lm/W |
| Control | DALI 2 |
| ta | -20..+45°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 840, Node Multisensor PC11
Order No.: 52HN11DB4QLA01GTIN (EAN): 4069025421487
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 38000 |
| Connected load | 198.2W |
| Luminous efficacy | 192lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+40°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 840, Node
Order No.: 52HN11DB4QLA02GTIN (EAN): 4069025421494
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 38000 |
| Connected load | 198.2W |
| Luminous efficacy | 192lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+40°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 840, multi-sensor PC11
Order No.: 52HN11DB4QLA03GTIN (EAN): 4069025421500
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 38000 |
| Connected load | 197.7W |
| Luminous efficacy | 192lm/W |
| Control | DALI 2 |
| ta | -20..+40°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 840, Node Multisensor PC11
Order No.: 52HN12DB4MLA01GTIN (EAN): 4069025421807
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 28000 |
| Connected load | 144.5W |
| Luminous efficacy | 194lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+45°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 840, Node
Order No.: 52HN12DB4MLA02GTIN (EAN): 4069025421814
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 28000 |
| Connected load | 144.5W |
| Luminous efficacy | 194lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+45°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 840, multi-sensor PC11
Order No.: 52HN12DB4MLA03GTIN (EAN): 4069025421821
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 28000 |
| Connected load | 144W |
| Luminous efficacy | 194lm/W |
| Control | DALI 2 |
| ta | -20..+45°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 840, Node Multisensor PC11
Order No.: 52HN12DB4QLA01GTIN (EAN): 4069025421852
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 38000 |
| Connected load | 198.2W |
| Luminous efficacy | 192lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+40°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 840, Node
Order No.: 52HN12DB4QLA02GTIN (EAN): 4069025421869
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 38000 |
| Connected load | 198.2W |
| Luminous efficacy | 192lm/W |
| Control | Bluetooth® Mesh |
| ta | -20..+40°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 840, multi-sensor PC11
Order No.: 52HN12DB4QLA03GTIN (EAN): 4069025421876
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 38000 |
| Connected load | 197.7W |
| Luminous efficacy | 192lm/W |
| Control | DALI 2 |
| ta | -20..+40°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 830
Order No.: 52HN11DA3FLAGTIN (EAN): 4069025445001
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 12810 |
| Connected load | 72.1W |
| Luminous efficacy | 178lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 830
Order No.: 52HN11DA3KLAGTIN (EAN): 4069025445032
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 24180 |
| Connected load | 142.6W |
| Luminous efficacy | 170lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 850
Order No.: 52HN11DA5FLAGTIN (EAN): 4069025445063
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 13620 |
| Connected load | 72.1W |
| Luminous efficacy | 189lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 850
Order No.: 52HN11DA5LLAGTIN (EAN): 4069025445094
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 25790 |
| Connected load | 142.6W |
| Luminous efficacy | 181lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 865
Order No.: 52HN11DA6FLAGTIN (EAN): 4069025445124
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 13570 |
| Connected load | 72.1W |
| Luminous efficacy | 188lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, narrow distribution, 865
Order No.: 52HN11DA6LLAGTIN (EAN): 4069025445155
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 25700 |
| Connected load | 142.6W |
| Luminous efficacy | 180lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 830
Order No.: 52HN11DB3LLAGTIN (EAN): 4069025445186
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 25590 |
| Connected load | 144W |
| Luminous efficacy | 178lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 830
Order No.: 52HN11DB3PLAGTIN (EAN): 4069025445216
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 34690 |
| Connected load | 197.7W |
| Luminous efficacy | 176lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 850
Order No.: 52HN11DB5LLAGTIN (EAN): 4069025445247
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 27240 |
| Connected load | 144W |
| Luminous efficacy | 189lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 850
Order No.: 52HN11DB5QLAGTIN (EAN): 4069025445278
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 36980 |
| Connected load | 197.7W |
| Luminous efficacy | 187lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 865
Order No.: 52HN11DB6LLAGTIN (EAN): 4069025445308
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 27140 |
| Connected load | 144W |
| Luminous efficacy | 189lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, narrow distribution, 865
Order No.: 52HN11DB6QLAGTIN (EAN): 4069025445339
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 36840 |
| Connected load | 197.7W |
| Luminous efficacy | 186lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 830
Order No.: 52HN12DA3FLAGTIN (EAN): 4069025445360
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 12810 |
| Connected load | 72.1W |
| Luminous efficacy | 178lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 830
Order No.: 52HN12DA3KLAGTIN (EAN): 4069025445391
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 24180 |
| Connected load | 142.6W |
| Luminous efficacy | 170lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 850
Order No.: 52HN12DA5FLAGTIN (EAN): 4069025445421
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 13620 |
| Connected load | 72.1W |
| Luminous efficacy | 189lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 850
Order No.: 52HN12DA5LLAGTIN (EAN): 4069025445452
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 25790 |
| Connected load | 142.6W |
| Luminous efficacy | 181lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 865
Order No.: 52HN12DA6FLAGTIN (EAN): 4069025445483
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 13570 |
| Connected load | 72.1W |
| Luminous efficacy | 188lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail midi, wide distribution, 865
Order No.: 52HN12DA6LLAGTIN (EAN): 4069025445513
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 25700 |
| Connected load | 142.6W |
| Luminous efficacy | 180lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 750 |
| Wt. (kg) | 3.5 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 830
Order No.: 52HN12DB3LLAGTIN (EAN): 4069025445544
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 25590 |
| Connected load | 144W |
| Luminous efficacy | 178lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 830
Order No.: 52HN12DB3PLAGTIN (EAN): 4069025445575
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 34690 |
| Connected load | 197.7W |
| Luminous efficacy | 176lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 850
Order No.: 52HN12DB5LLAGTIN (EAN): 4069025445605
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 27240 |
| Connected load | 144W |
| Luminous efficacy | 189lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 850
Order No.: 52HN12DB5QLAGTIN (EAN): 4069025445636
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 36980 |
| Connected load | 197.7W |
| Luminous efficacy | 187lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 865
Order No.: 52HN12DB6LLAGTIN (EAN): 4069025445667
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 27140 |
| Connected load | 144W |
| Luminous efficacy | 189lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
Highbay 21 for Licross® trunking rail maxi, wide distribution, 865
Order No.: 52HN12DB6QLAGTIN (EAN): 4069025445698
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 36840 |
| Connected load | 197.7W |
| Luminous efficacy | 186lm/W |
| Control | DALI 2 |
| ta | -40..+55°C |
| Protection rating | IP64 |
| L (mm) | 1250 |
| Wt. (kg) | 7.0 |
