Licross® 11/21 for local control

ProducttypesConfiguration & Datasheets

45 years of experience – trunking Made in Germany perfected in our Licross® trunking system. The one-for-all concept offers a variety of luminaire inserts and functional expansion options for maximum flexibility and future compatibility. With a unique 14 cores, the rail system becomes the backbone of the building infrastructure and is ready for a wide range of applications – both today and tomorrow. The luminaire inserts feature outstanding lighting technology with up to 200lm/W for low operating costs as well as SITECO-typical optic technology for top visual conditions. Various expansions from sensors to the UVC air disinfection unit open up a wide horizon of applications which exceed mere lighting and create even more added value.

system solution for production halls

Intro to Productfamily

Data

Equipment master
Article controller

Specials

Standalone controller for use in production halls enables multifunctional use with one solution product
Quick and tool-free installation in the Licross® trunking rail
Additional light sensor D1 required for daylight detection (for mounting heights between 4...12m)
Working range of the light sensor D1 can be precisely adjusted to local conditions
Daylight-dependent lighting control with averaging (between all light sensors) creates perfect lighting conditions with maximum energy efficiency
Optional repeater to increase the number of DALI ECGs in a local control solution
Optional push-button coupler enables the integration of on-site push-buttons from a wide variety of manufacturers/switch ranges. You can therefore react flexibly to the customer

Configuration & Datasheets

  • commissioning with app (Osram BT Config)

Results

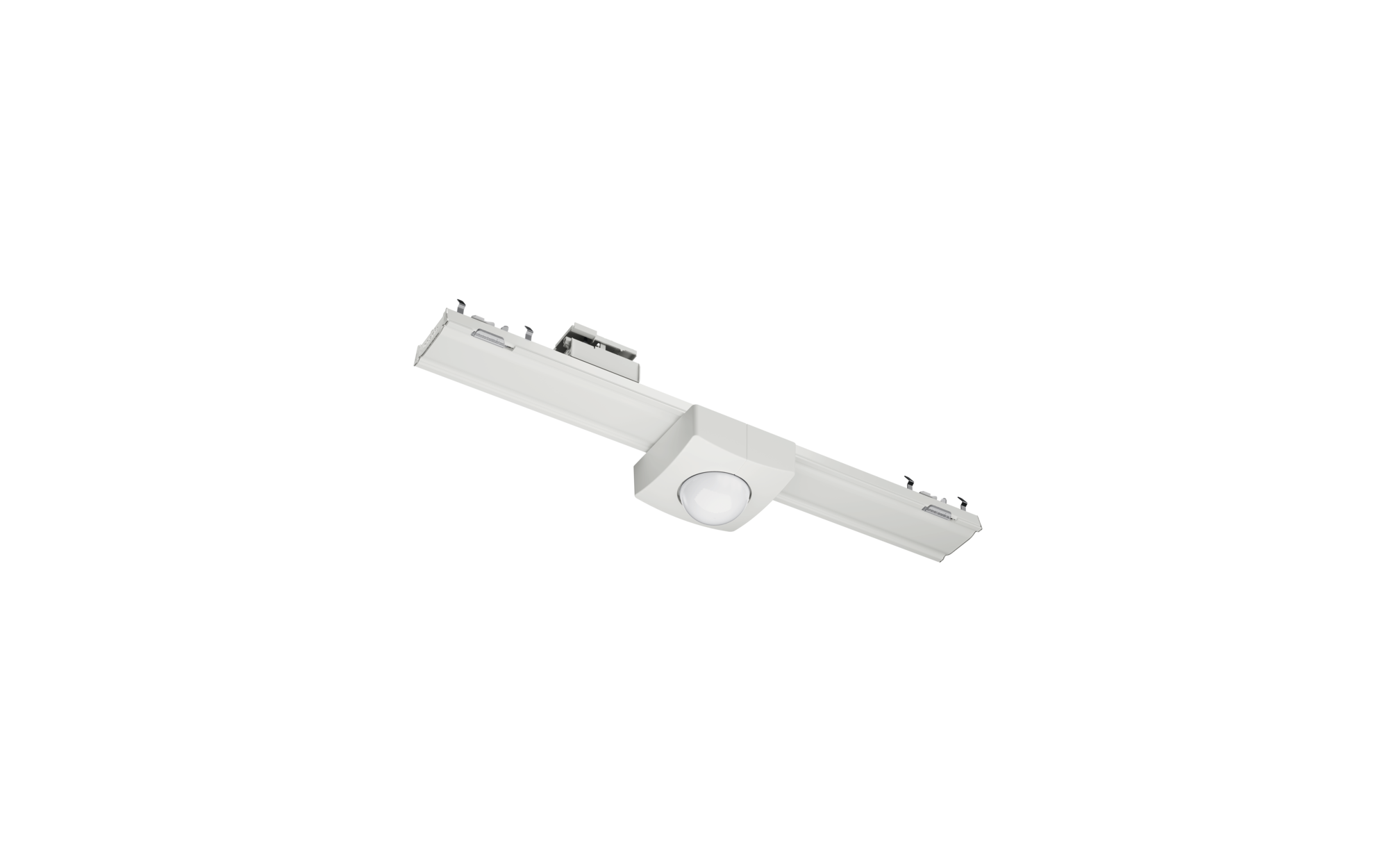

Licross®, master

Order No.: 56TL1CBM0BGTIN (EAN): 4058352579022
ArticleApplication areaWt. (kg)Price (EUR)
controllerproduction/manufacturing, for narrow rooms, e.g. corridors, for low rooms, i.e. car parks, for stairways0.3215.70

Licross®, master

Order No.: 56TL1CBM0BGTIN (EAN): 4058352579022

Articlecontroller
Application areaproduction/manufacturing, for narrow rooms, e.g. corridors, for low rooms, i.e. car parks, for stairways
Wt. (kg)0.3
Price (EUR)215.70

Mandatory accessory

ArticleSensor-Module D1, DALI 2, central control, local controlPU1 pc.Wt. (kg)0.5Price (EUR)282.90Order No.: 56TL1MDSD1BGTIN (EAN): 4058352542422Show details
Articlepush button interfacePU1 pc.Wt. (kg)0.1Price (EUR)141.50Order No.: 5LZ904731AGTIN (EAN): 4058352580318Show details

Optional accessory

Articlerepeater, masterPU1 pc.Wt. (kg)0.3Price (EUR)380.80Order No.: 56TL1CRM0BGTIN (EAN): 4058352595497Show details
