DL® 30

ProducttypesConfiguration & Datasheets

Winning efficiency with attractive conditions: state of the art LED technology for designing residential streets, intersections, plazas, shopping boulevards and green spaces. Perfectly matched components ensure high efficiency and a long service life. Due to its innovative light distribution, DL® 30 can literally shine around corners and is especially suitable for intersection areas where the light point is located directly in the apex of the intersection.

DL® 30
Fresh urban aesthetic

Producttypes

DL® 30

design mast for DL® 30

DL® 30

Intro to Productfamily

Data

Article mast luminaire
Net luminous flux 1400lm to 6990lm
Colour temperature 3000K; 4000K
Lighting effect direct asymmetric wide distribution, crossroads; direct asymmetric wide distribution; direct asymmetric extremely wide distribution; direct symmetric wide distribution
Light distribution ST1.2a; ST1.2c; P1.0a; PL1.2s
Protection rating IP66
Insulation class insulation class II (safety insulation)

Specials

Decorative luminaire with visual guidance along the road thanks to discreet display of the mast mounting element
Optionally available with an optic for 270° distribution especially developed for intersections
Modern lighting technology with customized light distributions and high quality specular reflectors for glare-free light with constant quality of light
Low maintenance requirements due to permanently clear, translucent PMMA cover
Various control options, intelligent dimming function, CLO 2.0 and Smart Interface (Zhaga & D4i) for smart city applications

Configuration & Datasheets

Lighting effect

Light distribution

Colour temperature

Control

Smart City

  • please order the 'mast cable set' for configuration of the Plus version with installed luminaire separately
  • please order Siteco® Service Box for configuration of Plus version separately if required
  • please order mast reducer separately if required

Results

DL® 30 LED, ST1.2c, direct asymmetric wide distribution, crossroads

Order No.: 5XA513271B08A5GTIN (EAN): 4058352058619
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 705540lmST1.2cPlus4951237.8
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 30 LED, ST1.2c, direct asymmetric wide distribution, crossroads

Order No.: 5XA513281B08A5GTIN (EAN): 4058352058688
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 804590lmST1.2cPlus4951227.8
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 30 LED, ST1.2a, direct asymmetric wide distribution

Order No.: 5XA5132E1B08A2GTIN (EAN): 4058352058817
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 801410lmST1.2aPlus151587.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 30 LED, ST1.2a, direct asymmetric wide distribution

Order No.: 5XA5132E1B08A4GTIN (EAN): 4058352058848
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 802400lmST1.2aPlus2323117.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

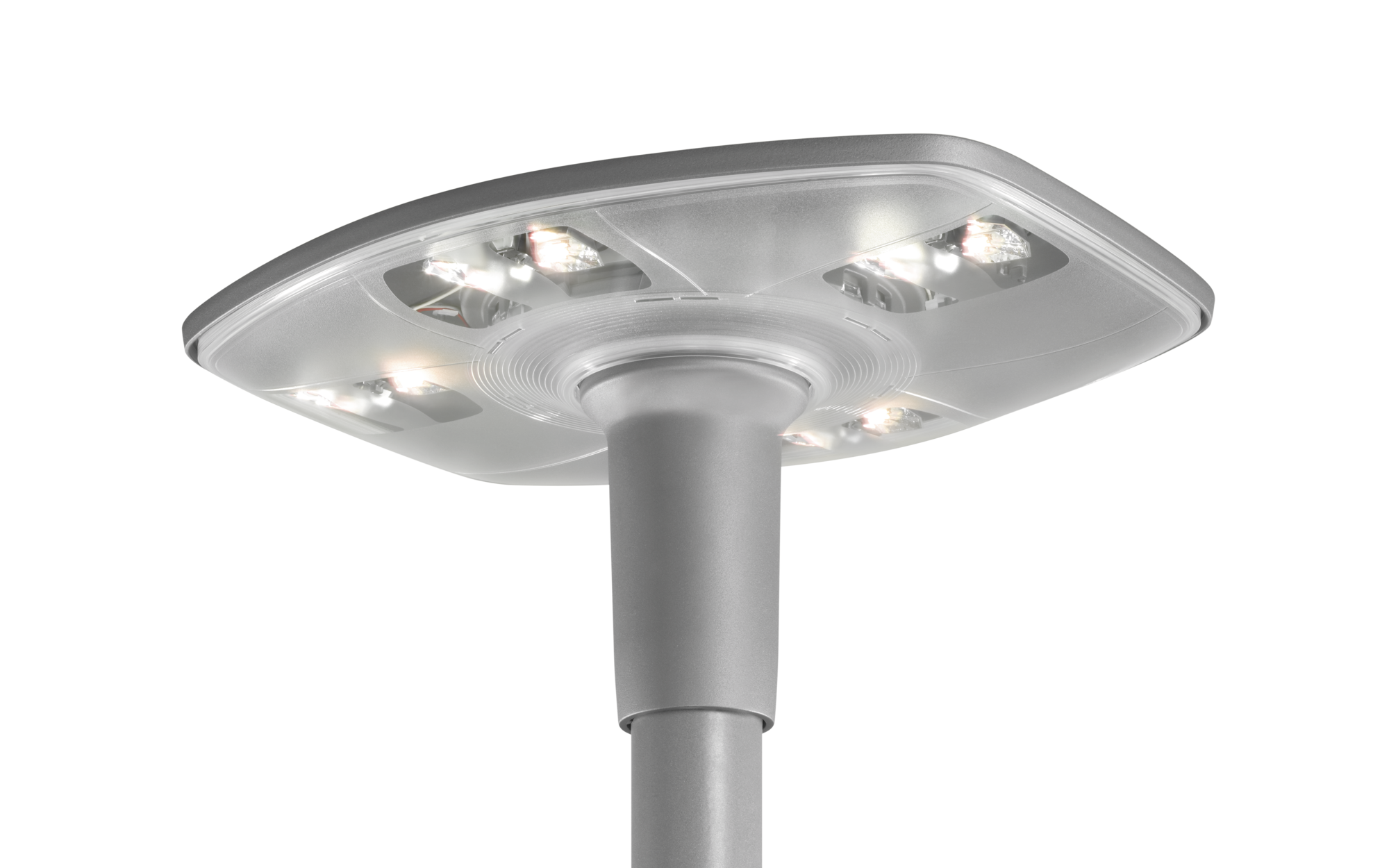

DL® 30 LED, ST1.2a, direct asymmetric wide distribution

Order No.: 5XA5132E1B08A5GTIN (EAN): 4058352058855
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 804680lmST1.2aPlus4345207.8
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 30 LED, PL1.2s, direct symmetric wide distribution

Order No.: 5XA5132J1B08A4GTIN (EAN): 4058352058992
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 803100lmPL1.2sPlus2930147.8
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 30 LED, PL1.2s, direct symmetric wide distribution

Order No.: 5XA5132J1B08A5GTIN (EAN): 4058352059012
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 805780lmPL1.2sPlus5254247.8
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 30 LED, ST1.2a, direct asymmetric wide distribution

Order No.: 5XA5132K1B08A2GTIN (EAN): 4058352059173
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 701610lmST1.2aPlus141587.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 30 LED, ST1.2a, direct asymmetric wide distribution

Order No.: 5XA5132K1B08A4GTIN (EAN): 4058352059197
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 702740lmST1.2aPlus2122117.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 30 LED, ST1.2a, direct asymmetric wide distribution

Order No.: 5XA5132K1B08A5GTIN (EAN): 4058352059210
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 705640lmST1.2aPlus4345217.8
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 30 LED, PL1.2s, direct symmetric wide distribution

Order No.: 5XA5132R1B08A4GTIN (EAN): 4058352059357
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 703540lmPL1.2sPlus2829147.8
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 30 LED, PL1.2s, direct symmetric wide distribution

Order No.: 5XA5132R1B08A5GTIN (EAN): 4058352059371
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 706990lmPL1.2sPlus5254247.8
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 30 LED, P1.0a, direct asymmetric wide distribution

Order No.: 5XA5132S1B08A1GTIN (EAN): 4058352059470
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 701600lmP1.0aPlus131377.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 30 LED, P1.0a, direct asymmetric extremely wide distribution

Order No.: 5XA5132S1B08A3GTIN (EAN): 4058352059494
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
4000KCRI > 702720lmP1.0aPlus2021117.8
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 30 LED, P1.0a, direct asymmetric wide distribution

Order No.: 5XA5132T1B08A1GTIN (EAN): 4058352059609
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 801400lmP1.0aPlus131477.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 30 LED, P1.0a, direct asymmetric extremely wide distribution

Order No.: 5XA5132T1B08A3GTIN (EAN): 4058352059616
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 802370lmP1.0aPlus2021107.8
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

DL® 30 LED, PL1.2s, direct symmetric wide distribution, with Smart Interface above

Order No.: 5XA5132J1ZS00095XXGTIN (EAN): 4058352448823
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 703100lmPL1.2sD4i2930 8.0
Show details
Tender textData sheet (PDF, full)All Downloads

DL® 30 LED, P1.0a, direct asymmetric extremely wide distribution, with Smart Interface above

Order No.: 5XA5132T1ZS00099XXGTIN (EAN): 4058352448830
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 702370lmP1.0aD4i2021 8.0
Show details
Tender textData sheet (PDF, full)All Downloads

DL® 30 LED, ST1.2a, direct asymmetric wide distribution, with Smart Interface below and above

Order No.: 5XA5132E1US54300GTIN (EAN): 4058352805107
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 801410lmST1.2aPlus, Smart Interface (Zhaga)151587.7
Show details
Tender textData sheet (PDF, full)All Downloads

DL® 30 LED, PL1.2s, direct symmetric wide distribution, with Smart Interface below and above

Order No.: 5XA5132J1US54301GTIN (EAN): 4058352805145
Colour temperatureColour renderingLuminous fluxLight distributionControlPnom begin service lifePnom end service lifePred at 50% lumin. fluxWt. (kg)
3000KCRI > 803100lmPL1.2sPlus, Smart Interface (Zhaga)2930147.8
Show details
Tender textData sheet (PDF, full)All Downloads

DL® 30 LED, ST1.2c, direct asymmetric wide distribution, crossroads

Order No.: 5XA513271B08A5GTIN (EAN): 4058352058619

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux5540lm
Light distributionST1.2c
ControlPlus
Pnom begin service life49
Pnom end service life51
Pred at 50% lumin. flux23
Wt. (kg)7.8
Show details

DL® 30 LED, ST1.2c, direct asymmetric wide distribution, crossroads

Order No.: 5XA513281B08A5GTIN (EAN): 4058352058688

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux4590lm
Light distributionST1.2c
ControlPlus
Pnom begin service life49
Pnom end service life51
Pred at 50% lumin. flux22
Wt. (kg)7.8
Show details

DL® 30 LED, ST1.2a, direct asymmetric wide distribution

Order No.: 5XA5132E1B08A2GTIN (EAN): 4058352058817

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux1410lm
Light distributionST1.2a
ControlPlus
Pnom begin service life15
Pnom end service life15
Pred at 50% lumin. flux8
Wt. (kg)7.7
Show details

DL® 30 LED, ST1.2a, direct asymmetric wide distribution

Order No.: 5XA5132E1B08A4GTIN (EAN): 4058352058848

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux2400lm
Light distributionST1.2a
ControlPlus
Pnom begin service life23
Pnom end service life23
Pred at 50% lumin. flux11
Wt. (kg)7.7
Show details

DL® 30 LED, ST1.2a, direct asymmetric wide distribution

Order No.: 5XA5132E1B08A5GTIN (EAN): 4058352058855

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux4680lm
Light distributionST1.2a
ControlPlus
Pnom begin service life43
Pnom end service life45
Pred at 50% lumin. flux20
Wt. (kg)7.8
Show details

DL® 30 LED, PL1.2s, direct symmetric wide distribution

Order No.: 5XA5132J1B08A4GTIN (EAN): 4058352058992

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux3100lm
Light distributionPL1.2s
ControlPlus
Pnom begin service life29
Pnom end service life30
Pred at 50% lumin. flux14
Wt. (kg)7.8
Show details

DL® 30 LED, PL1.2s, direct symmetric wide distribution

Order No.: 5XA5132J1B08A5GTIN (EAN): 4058352059012

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux5780lm
Light distributionPL1.2s
ControlPlus
Pnom begin service life52
Pnom end service life54
Pred at 50% lumin. flux24
Wt. (kg)7.8
Show details

DL® 30 LED, ST1.2a, direct asymmetric wide distribution

Order No.: 5XA5132K1B08A2GTIN (EAN): 4058352059173

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux1610lm
Light distributionST1.2a
ControlPlus
Pnom begin service life14
Pnom end service life15
Pred at 50% lumin. flux8
Wt. (kg)7.7
Show details

DL® 30 LED, ST1.2a, direct asymmetric wide distribution

Order No.: 5XA5132K1B08A4GTIN (EAN): 4058352059197

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux2740lm
Light distributionST1.2a
ControlPlus
Pnom begin service life21
Pnom end service life22
Pred at 50% lumin. flux11
Wt. (kg)7.7
Show details

DL® 30 LED, ST1.2a, direct asymmetric wide distribution

Order No.: 5XA5132K1B08A5GTIN (EAN): 4058352059210

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux5640lm
Light distributionST1.2a
ControlPlus
Pnom begin service life43
Pnom end service life45
Pred at 50% lumin. flux21
Wt. (kg)7.8
Show details

DL® 30 LED, PL1.2s, direct symmetric wide distribution

Order No.: 5XA5132R1B08A4GTIN (EAN): 4058352059357

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux3540lm
Light distributionPL1.2s
ControlPlus
Pnom begin service life28
Pnom end service life29
Pred at 50% lumin. flux14
Wt. (kg)7.8
Show details

DL® 30 LED, PL1.2s, direct symmetric wide distribution

Order No.: 5XA5132R1B08A5GTIN (EAN): 4058352059371

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux6990lm
Light distributionPL1.2s
ControlPlus
Pnom begin service life52
Pnom end service life54
Pred at 50% lumin. flux24
Wt. (kg)7.8
Show details

DL® 30 LED, P1.0a, direct asymmetric wide distribution

Order No.: 5XA5132S1B08A1GTIN (EAN): 4058352059470

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux1600lm
Light distributionP1.0a
ControlPlus
Pnom begin service life13
Pnom end service life13
Pred at 50% lumin. flux7
Wt. (kg)7.7
Show details

DL® 30 LED, P1.0a, direct asymmetric extremely wide distribution

Order No.: 5XA5132S1B08A3GTIN (EAN): 4058352059494

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux2720lm
Light distributionP1.0a
ControlPlus
Pnom begin service life20
Pnom end service life21
Pred at 50% lumin. flux11
Wt. (kg)7.8
Show details

DL® 30 LED, P1.0a, direct asymmetric wide distribution

Order No.: 5XA5132T1B08A1GTIN (EAN): 4058352059609

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux1400lm
Light distributionP1.0a
ControlPlus
Pnom begin service life13
Pnom end service life14
Pred at 50% lumin. flux7
Wt. (kg)7.7
Show details

DL® 30 LED, P1.0a, direct asymmetric extremely wide distribution

Order No.: 5XA5132T1B08A3GTIN (EAN): 4058352059616

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux2370lm
Light distributionP1.0a
ControlPlus
Pnom begin service life20
Pnom end service life21
Pred at 50% lumin. flux10
Wt. (kg)7.8
Show details

DL® 30 LED, PL1.2s, direct symmetric wide distribution, with Smart Interface above

Order No.: 5XA5132J1ZS00095XXGTIN (EAN): 4058352448823

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux3100lm
Light distributionPL1.2s
ControlD4i
Pnom begin service life29
Pnom end service life30
Pred at 50% lumin. flux
Wt. (kg)8.0
Show details

DL® 30 LED, P1.0a, direct asymmetric extremely wide distribution, with Smart Interface above

Order No.: 5XA5132T1ZS00099XXGTIN (EAN): 4058352448830

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux2370lm
Light distributionP1.0a
ControlD4i
Pnom begin service life20
Pnom end service life21
Pred at 50% lumin. flux
Wt. (kg)8.0
Show details

DL® 30 LED, ST1.2a, direct asymmetric wide distribution, with Smart Interface below and above

Order No.: 5XA5132E1US54300GTIN (EAN): 4058352805107

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux1410lm
Light distributionST1.2a
ControlPlus, Smart Interface (Zhaga)
Pnom begin service life15
Pnom end service life15
Pred at 50% lumin. flux8
Wt. (kg)7.7
Show details

DL® 30 LED, PL1.2s, direct symmetric wide distribution, with Smart Interface below and above

Order No.: 5XA5132J1US54301GTIN (EAN): 4058352805145

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux3100lm
Light distributionPL1.2s
ControlPlus, Smart Interface (Zhaga)
Pnom begin service life29
Pnom end service life30
Pred at 50% lumin. flux14
Wt. (kg)7.8
Show details

Optional accessory

Articlereducer, Siteco® metallic grey (DB 702S), spigot size: 76/60mmPU1 pc.Wt. (kg)0.1Order No.: 5NA24600XR2GTIN (EAN): 4050737978154Show details
Articleconnection cable, OZ-500, 5X 1.5mm², L= 4mPU1 pc.Wt. (kg)0.8Order No.: 5EA6Y00L02GTIN (EAN): 4050737028804Show details
Articleconnection cable, OZ-500, 5X 1.5mm², L= 5mPU1 pc.Wt. (kg)0.9Order No.: 5EA6Y00L03GTIN (EAN): 4050737028828Show details
Articleconnection cable, OZ-500, 5X 1.5mm², L= 6mPU1 pc.Wt. (kg)1.1Order No.: 5EA6Y00L08GTIN (EAN): 4050737056098Show details
Articlecable junction box, 2x E14, for 3 cables to 5x 16mm²PU1 pc.Wt. (kg)0.8Order No.: 5NY70062DKGTIN (EAN): 4058352552247Show details
