Apollon® 41

ProducttypesConfiguration & Datasheets

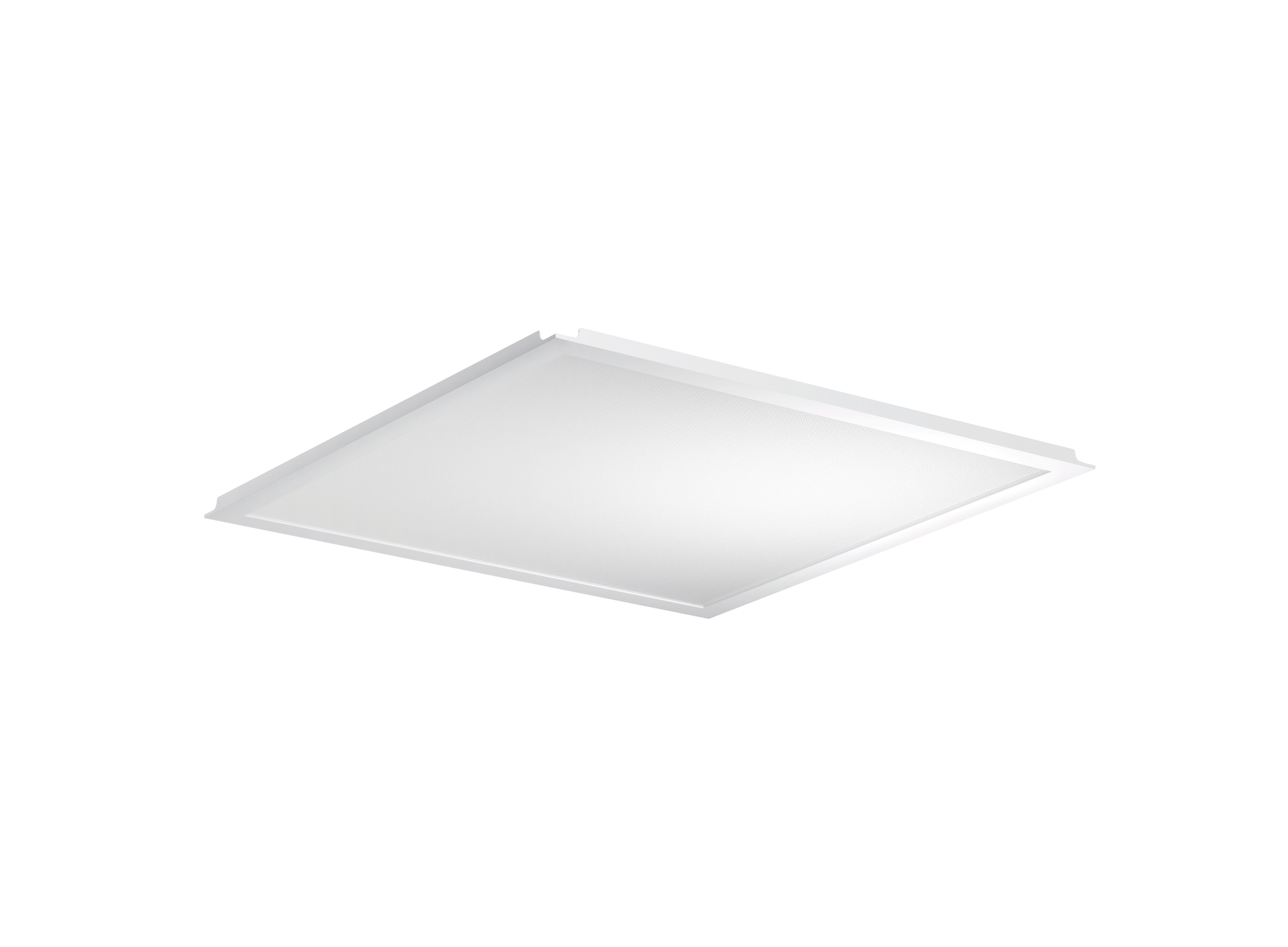

The lay-in panel is an economical lighting solution thanks to its cost-optimized design and high efficiency. The Apollon® 41 is a durable replacement for traditional recessed luminaires and provides a homogeneous and glare-free light distribution.

Our simple solution: Apollon® 41 is our surface-mounted luminaire with the simplest requirements in terms of efficiency and quality

Producttypes

Apollon® 41 with square housing

Apollon® 41 with square housing

Intro to Productfamily

Data

Article office luminaire
Lighting effect direct symmetric wide distribution, 90°
Net luminous flux 3500lm to 4375lm
Colour temperature 3000/4000K; 4000K
Control ON/OFF Multilumen; DALI 2
Protection rating IP20/IP40
Service life 50000h (L80/B50) at AT = 25°C; 60000h (L70/B50) at AT = 25°C

Specials

Apollon® 41 is suitable for most applications in offices and for general lighting in commercial buildings with system ceilings
Replacement for traditional louvre sulutions
Good colour rendering, with uniformly illuminated cover without dark spots
VDU-compliant in accordance with EN 12464-1 for computer screens with high luminance levels

Configuration & Datasheets

Colour temperature

Light colour

Rated luminous flux (lm)

Control

Ceiling system

Dimension (mm)

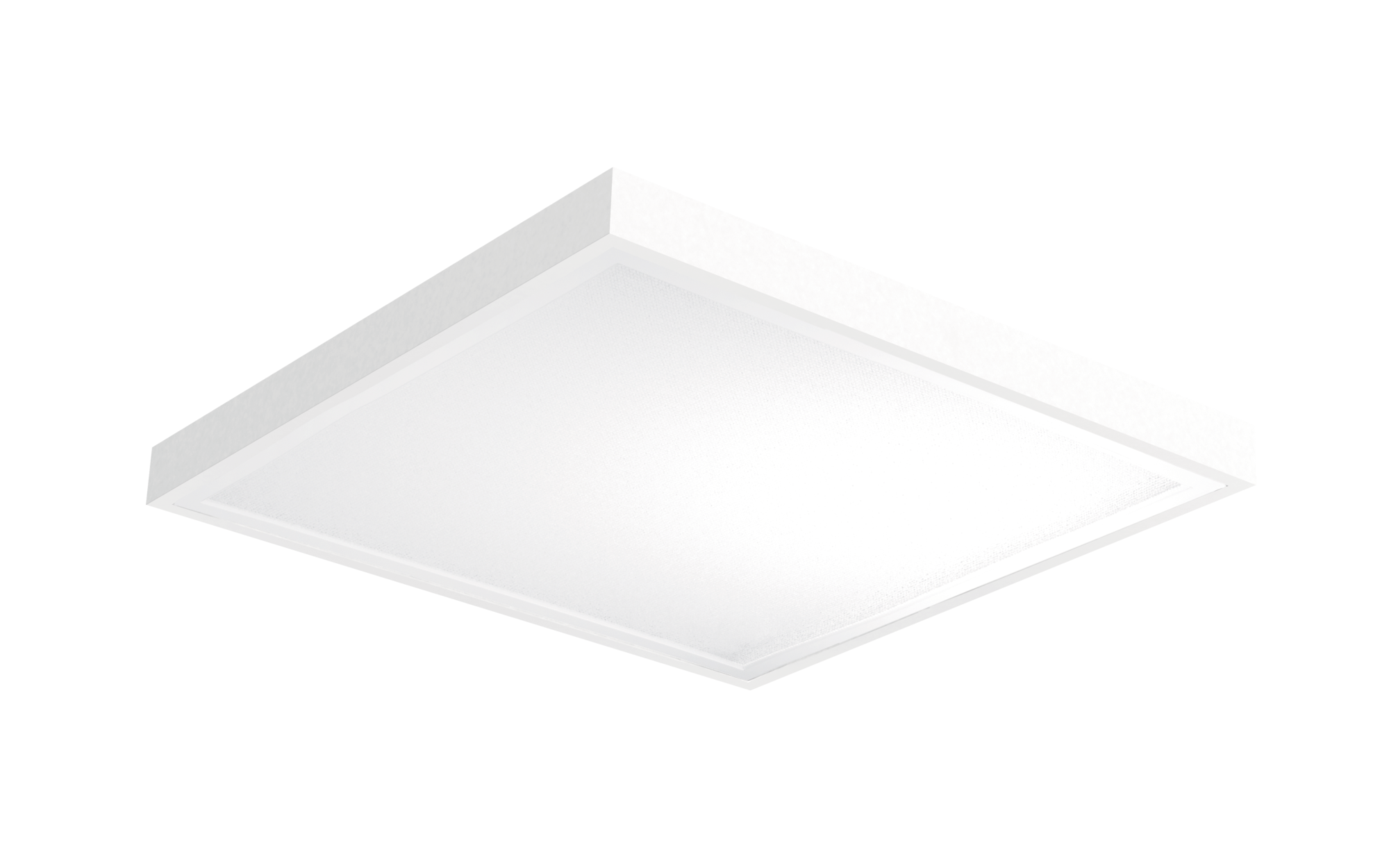

  • for ceiling surface-mounting: please order luminaire and surface-mount housing individually in the matching size

Results

Apollon® 41, Light colour 840, ON/OFF Multilumen, for M625

Order No.: 51MH11WM2443 GTIN (EAN): 4069025171405
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 804375lm35W125lm/WON/OFF Multilumen620x6201.9
Show details
Tender textTender text neutralData sheet (PDF, full)Photometric report / planning dataAll Downloads

Apollon® 41, Light colour 830/840, ON/OFF Multilumen, for M625

Order No.: 51MH11WM2M43 GTIN (EAN): 4069025171412
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
3000/4000KCRI > 804375lm35W125lm/WON/OFF Multilumen620x6201.9
Show details
Tender textTender text neutralData sheet (PDF, full)Photometric report / planning dataAll Downloads

Apollon® 41, Light colour 830/840, DALI 2, for M625

Order No.: 51MH11WD2M43 GTIN (EAN): 4069025185082
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
3000/4000KCRI > 803500lm28.5W123lm/WDALI 2620x6202.2
Show details
Tender textTender text neutralData sheet (PDF, full)All Downloads

Apollon® 41, Light colour 840, ON/OFF Multilumen, for M600

Order No.: 51MH12WM2443 GTIN (EAN): 4069025171436
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 804375lm35W125lm/WON/OFF Multilumen595x5951.9
Show details
Tender textTender text neutralData sheet (PDF, full)Photometric report / planning dataAll Downloads

Apollon® 41, Light colour 830/840, ON/OFF Multilumen, for M600

Order No.: 51MH12WM2M43 GTIN (EAN): 4069025171443
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
3000/4000KCRI > 804375lm35W125lm/WON/OFF Multilumen595x5951.9
Show details
Tender textTender text neutralData sheet (PDF, full)Photometric report / planning dataAll Downloads

Apollon® 41, Light colour 830/840, DALI 2, for M600

Order No.: 51MH12WD2M43 GTIN (EAN): 4069025234346
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
3000/4000KCRI > 803500lm28.5W123lm/WDALI 2595x5952.1
Show details
Tender textTender text neutralData sheet (PDF, full)All Downloads

Apollon® 41, Light colour 840, ON/OFF Multilumen, for M625

Order No.: 51MH11WM2443GTIN (EAN): 4069025171405

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4375lm
Connected load35W
Luminous efficacy125lm/W
ControlON/OFF Multilumen
Dimension (mm)620x620
Wt. (kg)1.9
Show details

Apollon® 41, Light colour 830/840, ON/OFF Multilumen, for M625

Order No.: 51MH11WM2M43GTIN (EAN): 4069025171412

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux4375lm
Connected load35W
Luminous efficacy125lm/W
ControlON/OFF Multilumen
Dimension (mm)620x620
Wt. (kg)1.9
Show details

Apollon® 41, Light colour 830/840, DALI 2, for M625

Order No.: 51MH11WD2M43GTIN (EAN): 4069025185082

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux3500lm
Connected load28.5W
Luminous efficacy123lm/W
ControlDALI 2
Dimension (mm)620x620
Wt. (kg)2.2
Show details

Apollon® 41, Light colour 840, ON/OFF Multilumen, for M600

Order No.: 51MH12WM2443GTIN (EAN): 4069025171436

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4375lm
Connected load35W
Luminous efficacy125lm/W
ControlON/OFF Multilumen
Dimension (mm)595x595
Wt. (kg)1.9
Show details

Apollon® 41, Light colour 830/840, ON/OFF Multilumen, for M600

Order No.: 51MH12WM2M43GTIN (EAN): 4069025171443

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux4375lm
Connected load35W
Luminous efficacy125lm/W
ControlON/OFF Multilumen
Dimension (mm)595x595
Wt. (kg)1.9
Show details

Apollon® 41, Light colour 830/840, DALI 2, for M600

Order No.: 51MH12WD2M43GTIN (EAN): 4069025234346

Colour temperature3000/4000K
Colour renderingCRI > 80
Luminous flux3500lm
Connected load28.5W
Luminous efficacy123lm/W
ControlDALI 2
Dimension (mm)595x595
Wt. (kg)2.1
Show details

Mandatory accessory

Articlesurface-mounted housing (premounted frame), white, for luminaire M625PU1 pc.Wt. (kg)1.4Order No.: 59MQ21004024GTIN (EAN): 4069025012227Show details
Articlesurface-mounted housing (premounted frame), white, for luminaire M600PU1 pc.Wt. (kg)1.4Order No.: 59MQ22005024GTIN (EAN): 4069025012210Show details
