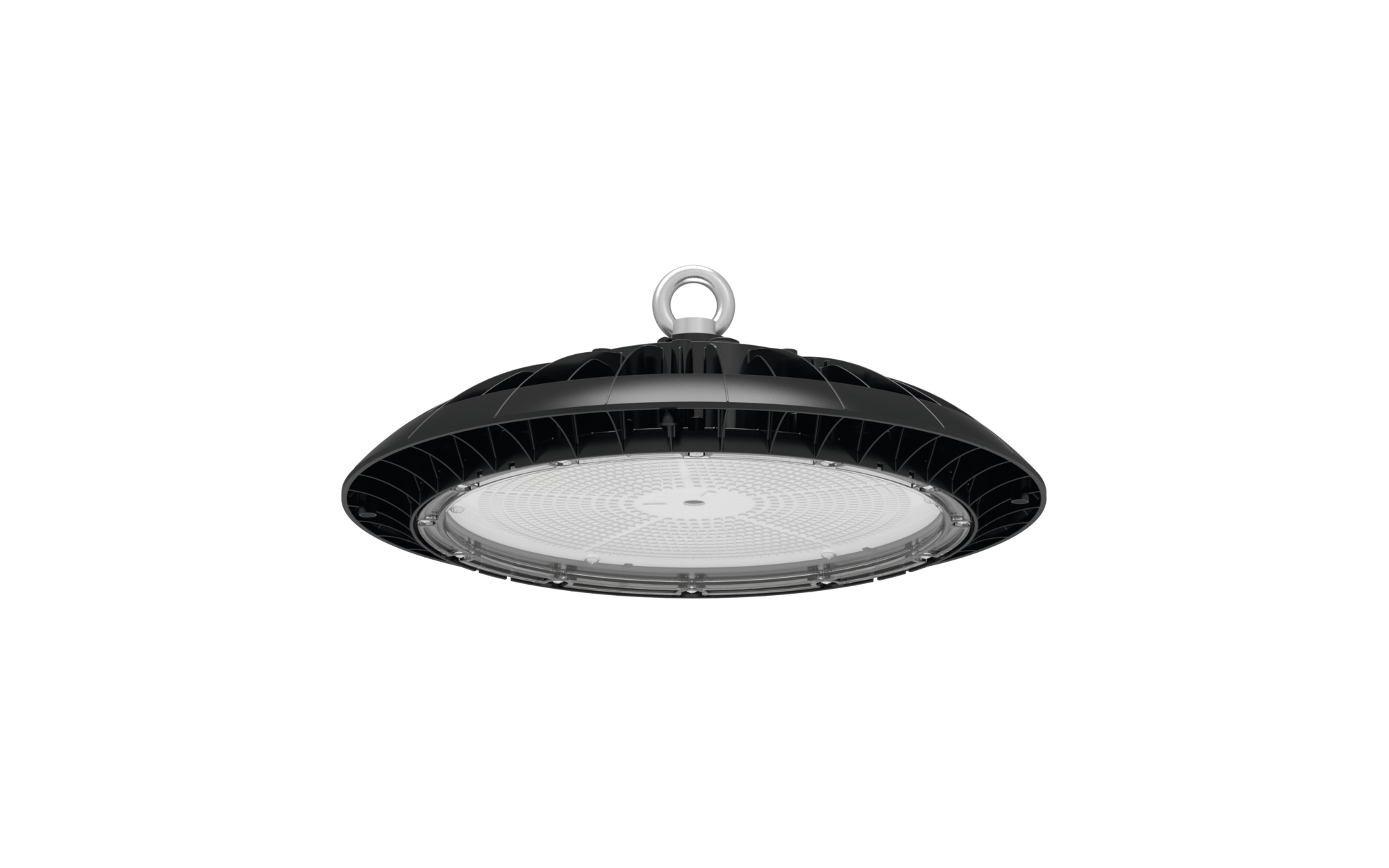

Highbay 42
Highbay 42 – the simple refurbishment solution for cost-effective lighting replacement. The high-quality, robust housing impresses in harsh environments. Variants with multilumen technology enable simple adjustments to the luminous flux. The luminaire impresses with its uncomplicated handling thanks to one-point mounting.
Our simple solution: Highbay 42 is our high bay luminaire with the simplest requirements in terms of efficiency and quality
Producttypes
Highbay 42
Intro to Productfamily
Data
Varetekst highbay-armatur LED
Lyseffekt direkte rotasjonssymmetrisk bredstrålende, 90°
Netto lysfluks 12800lm til 28000lm
Fargetemperatur 4000K; 5700K
Styring PÅ/AV; PÅ/AV multilumen
Deksel PC
Kapslingsklasse IP65
Isolasjonsklasse VK I (vernejording)
Vernemerking D
Slagfasthet IK08
IFS oppfyller kravene til IFS (International Featured Standards) når det gjelder sikkerhet og kvalitet i matvareindustrien
Specials
Configuration & Datasheets

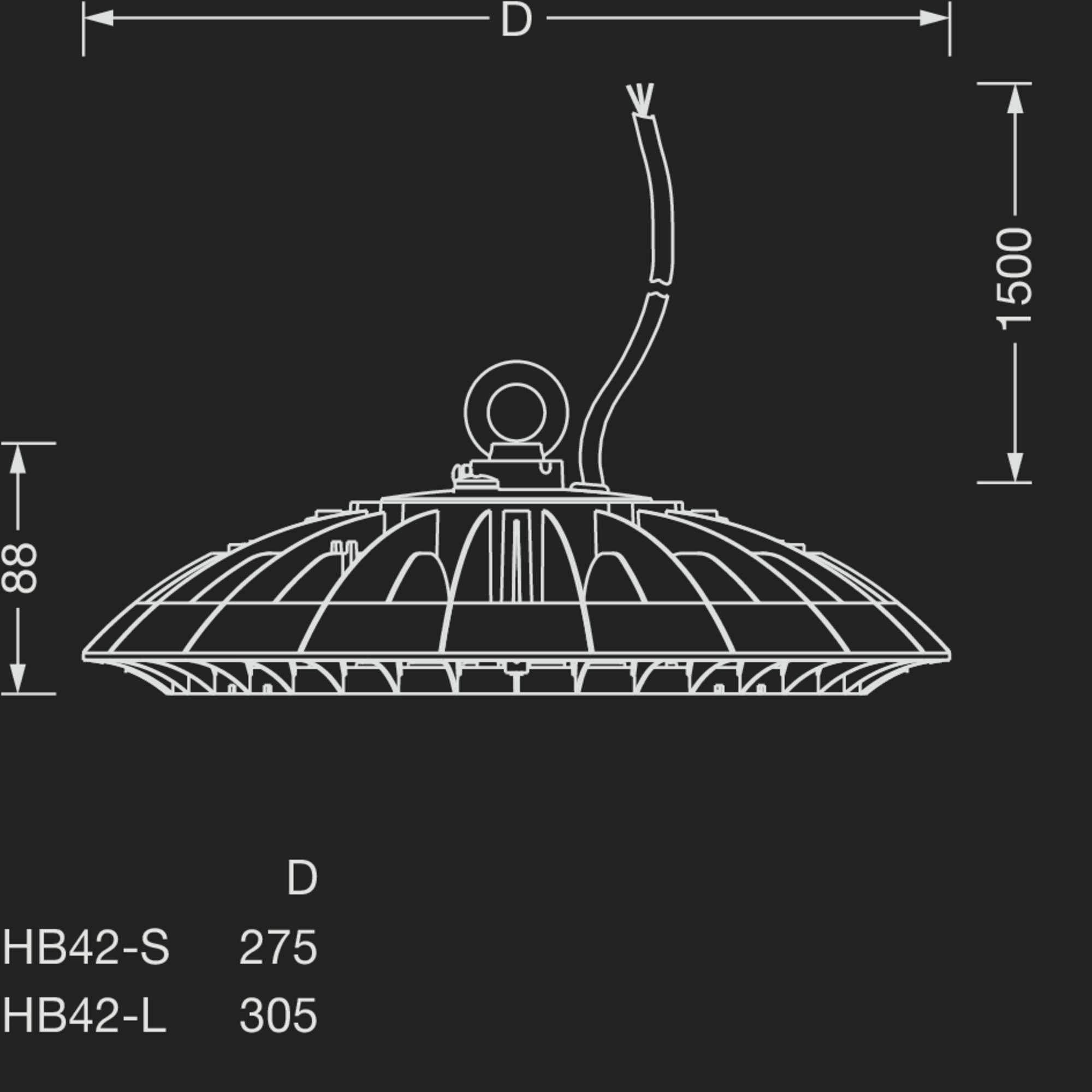

- inkl. tilkoblingsledning (l = 1500mm) med frie lederender
- incl. suspension eyelet and carabiner made of V2A; festes til montert takmalje uten ytterligere armaturspesifikt montasjetilbehør; for flere installasjonsmetoder: bestill monteringstilbehør separat
- lysteknisk tilbehør må bestilles separat ved behov
Results
Highbay 42-S, bredstrålende, 90°, 840, PÅ/AV, AC
Fargetemperatur | Fargegjengivelse | Lysfluks | Tilkoblingseffekt | Lysutbytte | Styring | Dimensjon (mm) | Vekt (kg) |
---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 12800lm | 80W | 160lm/W | PÅ/AV | Ø275 | 1,8 |
Highbay 42-S, bredstrålende, 90°, 840, PÅ/AV, AC
Fargetemperatur | Fargegjengivelse | Lysfluks | Tilkoblingseffekt | Lysutbytte | Styring | Dimensjon (mm) | Vekt (kg) |
---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 19200lm | 120W | 160lm/W | PÅ/AV | Ø275 | 1,8 |
Highbay 42-L, bredstrålende, 90°, 840, PÅ/AV multilumen, AC
Fargetemperatur | Fargegjengivelse | Lysfluks | Tilkoblingseffekt | Lysutbytte | Styring | Dimensjon (mm) | Vekt (kg) |
---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 28000lm | 175W | 160lm/W | PÅ/AV multilumen | Ø305 | 2,4 |
Highbay 42-L, bredstrålende, 90°, 857, PÅ/AV multilumen, AC
Fargetemperatur | Fargegjengivelse | Lysfluks | Tilkoblingseffekt | Lysutbytte | Styring | Dimensjon (mm) | Vekt (kg) |
---|---|---|---|---|---|---|---|
5700K | CRI > 80 | 28000lm | 175W | 160lm/W | PÅ/AV multilumen | Ø305 | 2,4 |
Highbay 42-S, bredstrålende, 90°, 840, PÅ/AV, AC
Bestillingsnummer: 51HP327A4FMAGTIN (EAN): 4058352475614
Fargetemperatur | 4000K |
---|---|
Fargegjengivelse | CRI > 80 |
Lysfluks | 12800lm |
Tilkoblingseffekt | 80W |
Lysutbytte | 160lm/W |
Styring | PÅ/AV |
Dimensjon (mm) | Ø275 |
Vekt (kg) | 1,8 |
Highbay 42-S, bredstrålende, 90°, 840, PÅ/AV, AC
Bestillingsnummer: 51HP327A4HMAGTIN (EAN): 4058352475621
Fargetemperatur | 4000K |
---|---|
Fargegjengivelse | CRI > 80 |
Lysfluks | 19200lm |
Tilkoblingseffekt | 120W |
Lysutbytte | 160lm/W |
Styring | PÅ/AV |
Dimensjon (mm) | Ø275 |
Vekt (kg) | 1,8 |
Highbay 42-L, bredstrålende, 90°, 840, PÅ/AV multilumen, AC
Bestillingsnummer: 51HP32MB4MMAGTIN (EAN): 4058352475652
Fargetemperatur | 4000K |
---|---|
Fargegjengivelse | CRI > 80 |
Lysfluks | 28000lm |
Tilkoblingseffekt | 175W |
Lysutbytte | 160lm/W |
Styring | PÅ/AV multilumen |
Dimensjon (mm) | Ø305 |
Vekt (kg) | 2,4 |
Highbay 42-L, bredstrålende, 90°, 857, PÅ/AV multilumen, AC
Bestillingsnummer: 51HP32MB7MMAGTIN (EAN): 4058352475669
Fargetemperatur | 5700K |
---|---|
Fargegjengivelse | CRI > 80 |
Lysfluks | 28000lm |
Tilkoblingseffekt | 175W |
Lysutbytte | 160lm/W |
Styring | PÅ/AV multilumen |
Dimensjon (mm) | Ø305 |
Vekt (kg) | 2,4 |
Optional accessory
Bestillingsnummer: 59HP91001GTIN (EAN): 4058352475829 | Show details |
Bestillingsnummer: 59HP91003GTIN (EAN): 4058352475843 | Show details |
Bestillingsnummer: 59HP92001GTIN (EAN): 4058352475867 | Show details |
Bestillingsnummer: 5LY9001GTIN (EAN): 4039806184290Elnummer: 3373950 | Show details |
Bestillingsnummer: 5LY9002GTIN (EAN): 4039806184313 | Show details |
