Floodlight FL 11

ProducttypesConfiguration & Datasheets

With the Floodlight FL 11 from SITECO you don't have to make any compromises. Regardless of whether it is a soccer field, sports arena, airport or logistics area, this floodlight offers completely new possibilities for illuminating areas down to the last detail and always reacting flexibly to all eventualities. With our power solution you save money, electricity and CO2. It manages with fewer floodlights than a comparable LED solution, but illuminates surfaces even more precisely thanks to new light distributions. Stay flexible in planning, installation, alignment and control. This also includes the flexible placement of the ECG, 360° rotatable LED modules and two construction sizes.

Our performance solution: Floodlight FL 11 is our innovative floodlight with maximum efficiency, service life and flexibility

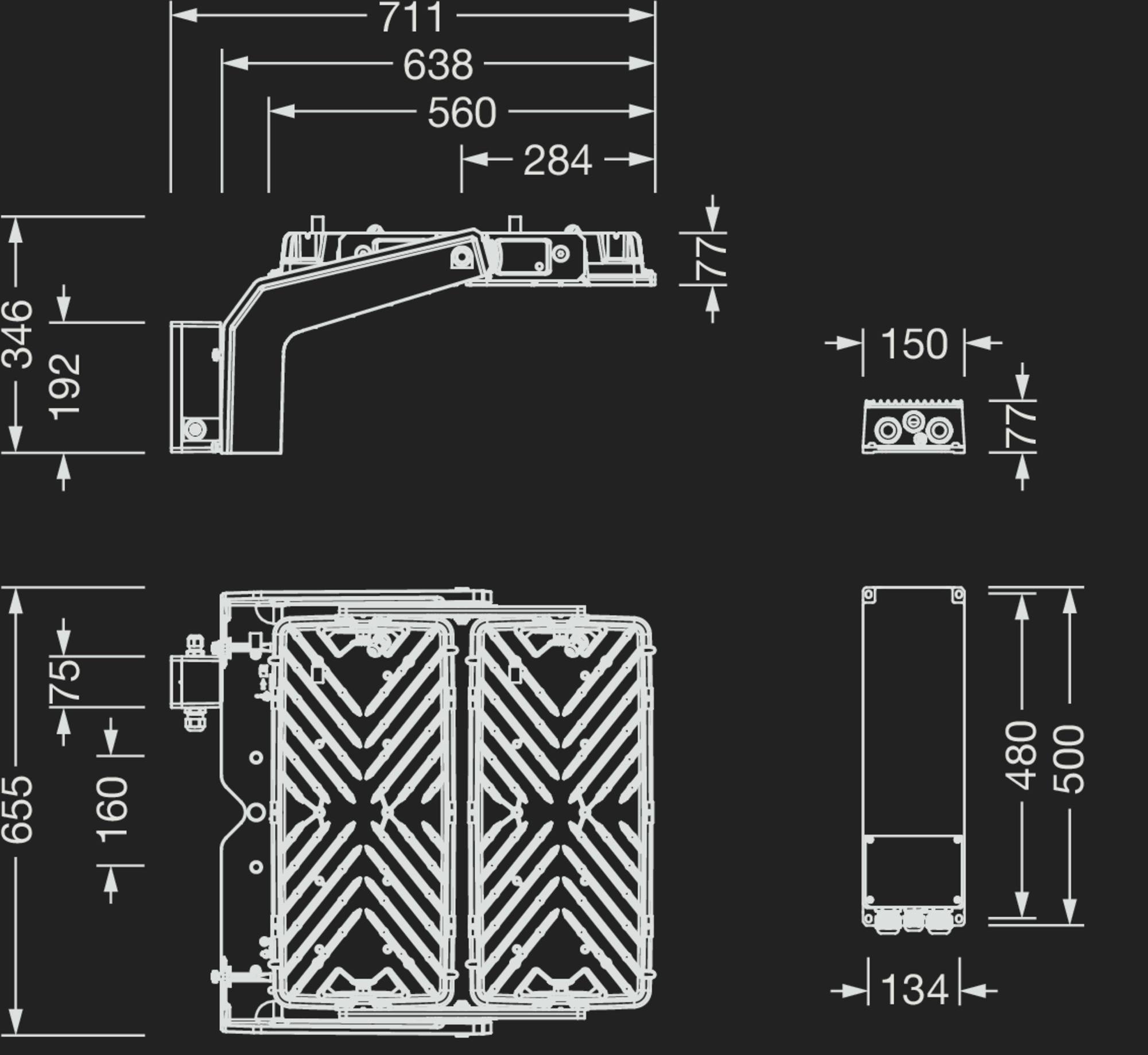

Floodlight FL 11 maxi Remote for remote ECG mounting

Intro to Productfamily

Data

Article floodlight
Lighting effect direct asymmetric distribution; direct rotationally symmetric distribution
Light distribution PL43; PL52; PL61; RS07; RS12; PL64; PL33T; PL33TBLC; PL64BLC
Net luminous flux 73350lm to 146930lm
Colour temperature 3000K; 4000K; 5000K; 5700K
Control DMX+RDM; DALI 2 (1 DALI address)

Specials

Avoidance of light spill and glare due to design as a wide beam floodlight with 0% light immission
Maximum flexibility in planning through individually adjustable, continuously adjustable single modules
Rear shielding by internal panels (BLC) and warm white light colours for insect-friendly lighting
Variable ECG for connection voltages from 230 to 400V
Detached ECG for installation e.g. in the control cabinet, possible cable lengths of up to 150m
Very long service life of up to 100,000 hours thanks to optimum heat dissipation via cooling ribs
Future security through ESD-protected, exchangeable LED modules and ECGs
Very robust due to IP66 protection rating and vibration stability with over 250,000 strokes as well as ESD-protected plug&play modules for simple maintenance and low maintenance costs

Configuration & Datasheets

Lighting effect

Light distribution

Colour temperature

Rated luminous flux (lm)

Control

Equipment

  • net luminous flux specification based on annual average ambient temperature of 10°C

Results

Floodlight FL 11 maxi Remote, floodlight, PL43, asymmetric distribution

Order No.: 5XA779415A01AA GTIN (EAN): 4058352607626
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
3000KCRI > 70111140lm917W121lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL43, asymmetric distribution

Order No.: 5XA779415A01BA GTIN (EAN): 4058352607640
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
3000KCRI > 7094450lm708W133lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL61, asymmetric distribution

Order No.: 5XA779415C01AA GTIN (EAN): 4058352607664
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
3000KCRI > 70111360lm917W122lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL61, asymmetric distribution

Order No.: 5XA779415C01BA GTIN (EAN): 4058352607695
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
3000KCRI > 7094640lm708W134lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL52, asymmetric distribution

Order No.: 5XA779415D01AA GTIN (EAN): 4058352607701
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
3000KCRI > 70108800lm917W119lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL52, asymmetric distribution

Order No.: 5XA779415D01BA GTIN (EAN): 4058352607725
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
3000KCRI > 7092460lm708W131lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL64, asymmetric distribution

Order No.: 5XA779415E01BA GTIN (EAN): 4058352607763
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
3000KCRI > 7093330lm708W132lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL33T, asymmetric distribution

Order No.: 5XA779415F01BA GTIN (EAN): 4058352894477
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
3000KCRI > 7091670lm708W130lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL33TBLC, asymmetric distribution

Order No.: 5XA779415H01AA GTIN (EAN): 4058352851227
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
3000KCRI > 7080050lm918W87lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL43, asymmetric distribution

Order No.: 5XA779416A01AA GTIN (EAN): 4058352607800
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 70117880lm947W125lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL43, asymmetric distribution

Order No.: 5XA779416A01BA GTIN (EAN): 4058352607831
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 70102380lm748W137lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL61, asymmetric distribution

Order No.: 5XA779416C01AA GTIN (EAN): 4058352597286
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 70118100lm947W125lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL61, asymmetric distribution

Order No.: 5XA779416C01BA GTIN (EAN): 4058352607848
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 70102580lm748W137lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL52, asymmetric distribution

Order No.: 5XA779416D01AA GTIN (EAN): 4058352597309
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 70115390lm947W122lm/WDALI 2 (1 DALI address)29.6

Floodlight FL 11 maxi Remote, floodlight, PL52, asymmetric distribution

Order No.: 5XA779416D01BA GTIN (EAN): 4058352607862
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 70100220lm748W134lm/WDALI 2 (1 DALI address)29.6

Floodlight FL 11 maxi Remote, floodlight, PL64, asymmetric distribution

Order No.: 5XA779416E01BA GTIN (EAN): 4058352607909
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 7092860lm664W140lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL33T, asymmetric distribution

Order No.: 5XA779416F01BA GTIN (EAN): 4058352851265
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 7091200lm664W137lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL33TBLC, asymmetric distribution

Order No.: 5XA779416H01AA GTIN (EAN): 4058352851289
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 7084900lm948W90lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL43, asymmetric distribution

Order No.: 5XA779417A01AA GTIN (EAN): 4058352607947
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5000KCRI > 70120710lm967W125lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL43, asymmetric distribution

Order No.: 5XA779417A01BA GTIN (EAN): 4058352607961
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5000KCRI > 70104660lm758W138lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL61, asymmetric distribution

Order No.: 5XA779417C01AA GTIN (EAN): 4058352607992
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5000KCRI > 70120940lm967W125lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL61, asymmetric distribution

Order No.: 5XA779417C01BA GTIN (EAN): 4058352608005
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5000KCRI > 70104860lm758W138lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL52, asymmetric distribution

Order No.: 5XA779417D01AA GTIN (EAN): 4058352608029
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5000KCRI > 70118160lm967W122lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL52, asymmetric distribution

Order No.: 5XA779417D01BA GTIN (EAN): 4058352608043
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5000KCRI > 70102450lm758W135lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL64, asymmetric distribution

Order No.: 5XA779417E01BA GTIN (EAN): 4058352608081
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5000KCRI > 7092980lm654W142lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL33TBLC, asymmetric distribution

Order No.: 5XA779417H01AA GTIN (EAN): 4069025017635
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5000KCRI > 7086950lm968W90lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL43, asymmetric distribution

Order No.: 5XA779514A01AA GTIN (EAN): 4058352574041
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5700KCRI > 9089050lm917W97lm/WDMX+RDM23.2

Floodlight FL 11 maxi Remote, floodlight, PL43, asymmetric distribution

Order No.: 5XA779514A01BA GTIN (EAN): 4058352574058
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5700KCRI > 9075700lm708W107lm/WDMX+RDM23.2

Floodlight FL 11 maxi Remote, floodlight, PL64, asymmetric distribution

Order No.: 5XA779514E01AA GTIN (EAN): 4058352574072
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5700KCRI > 9087990lm917W96lm/WDMX+RDM23.2

Floodlight FL 11 maxi Remote, floodlight, PL64, asymmetric distribution

Order No.: 5XA779514E01BA GTIN (EAN): 4058352574096
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5700KCRI > 9074800lm708W106lm/WDMX+RDM23.2

Floodlight FL 11 maxi Remote, floodlight, RS07, rotationally symmetric distribution

Order No.: 5XA779514K01AA GTIN (EAN): 4058352574119
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5700KCRI > 9088570lm917W97lm/WDMX+RDM23.2

Floodlight FL 11 maxi Remote, floodlight, RS07, rotationally symmetric distribution

Order No.: 5XA779514K01BA GTIN (EAN): 4058352574133
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5700KCRI > 9075300lm708W106lm/WDMX+RDM23.2

Floodlight FL 11 maxi Remote, floodlight, RS12, rotationally symmetric distribution

Order No.: 5XA779514M01AA GTIN (EAN): 4058352574157
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5700KCRI > 9090180lm917W98lm/WDMX+RDM23.2

Floodlight FL 11 maxi Remote, floodlight, RS12, rotationally symmetric distribution

Order No.: 5XA779514M01BA GTIN (EAN): 4058352574171
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5700KCRI > 9076660lm708W108lm/WDMX+RDM23.2

Floodlight FL 11 maxi Remote, floodlight, PL64BLC, asymmetric distribution

Order No.: 5XA779417W01AA GTIN (EAN): 4058352977644
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5000KCRI > 7095470lm1017W94lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL64BLC, asymmetric distribution

Order No.: 5XA779416W01AA GTIN (EAN): 4058352977606
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 7094090lm1017W93lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL64BLC, asymmetric distribution

Order No.: 5XA779415W01AA GTIN (EAN): 4058352977569
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
3000KCRI > 7090030lm1016W89lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL64BLC, asymmetric distribution

Order No.: 5XA779414W01AA GTIN (EAN): 4058352977521
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5700KCRI > 9073350lm1016W72lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL64BLC, asymmetric distribution

Order No.: 5XA779418W01AA GTIN (EAN): 4058352977699
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5700KCRI > 8085290lm1016W84lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL33T, asymmetric distribution

Order No.: 5XA779414T01AA GTIN (EAN): 4069025011848
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5700KCRI > 90110500lm1022W108lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL33T, asymmetric distribution

Order No.: 5XA779415T01AA GTIN (EAN): 4069025011831
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
3000KCRI > 70135620lm1022W133lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL33T, asymmetric distribution

Order No.: 5XA779416T01AA GTIN (EAN): 4069025017673
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 70141620lm1022W139lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL33T, asymmetric distribution

Order No.: 5XA779417T01AA GTIN (EAN): 4069025011817
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5000KCRI > 70143560lm1022W141lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL33T, asymmetric distribution

Order No.: 5XA779418T01AA GTIN (EAN): 4069025011800
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5700KCRI > 80128400lm1022W126lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL64, asymmetric distribution

Order No.: 5XA779414V01AA GTIN (EAN): 4058352977514
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5700KCRI > 90113100lm1022W111lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL64, asymmetric distribution

Order No.: 5XA779415V01AA GTIN (EAN): 4058352977545
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
3000KCRI > 70138810lm1022W136lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL64, asymmetric distribution

Order No.: 5XA779416V01AA GTIN (EAN): 4069025017659
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
4000KCRI > 70144940lm1022W142lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL64, asymmetric distribution

Order No.: 5XA779417V01AA GTIN (EAN): 4058352977620
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5000KCRI > 70146930lm1022W144lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL64, asymmetric distribution

Order No.: 5XA779418V01AA GTIN (EAN): 4058352977668
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlWt. (kg)
5700KCRI > 80131410lm1022W129lm/WDALI 2 (1 DALI address)23.2

Floodlight FL 11 maxi Remote, floodlight, PL43, asymmetric distribution

Order No.: 5XA779415A01AAGTIN (EAN): 4058352607626

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux111140lm
Connected load917W
Luminous efficacy121lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL43, asymmetric distribution

Order No.: 5XA779415A01BAGTIN (EAN): 4058352607640

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux94450lm
Connected load708W
Luminous efficacy133lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL61, asymmetric distribution

Order No.: 5XA779415C01AAGTIN (EAN): 4058352607664

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux111360lm
Connected load917W
Luminous efficacy122lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL61, asymmetric distribution

Order No.: 5XA779415C01BAGTIN (EAN): 4058352607695

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux94640lm
Connected load708W
Luminous efficacy134lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL52, asymmetric distribution

Order No.: 5XA779415D01AAGTIN (EAN): 4058352607701

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux108800lm
Connected load917W
Luminous efficacy119lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL52, asymmetric distribution

Order No.: 5XA779415D01BAGTIN (EAN): 4058352607725

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux92460lm
Connected load708W
Luminous efficacy131lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL64, asymmetric distribution

Order No.: 5XA779415E01BAGTIN (EAN): 4058352607763

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux93330lm
Connected load708W
Luminous efficacy132lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL33T, asymmetric distribution

Order No.: 5XA779415F01BAGTIN (EAN): 4058352894477

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux91670lm
Connected load708W
Luminous efficacy130lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL33TBLC, asymmetric distribution

Order No.: 5XA779415H01AAGTIN (EAN): 4058352851227

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux80050lm
Connected load918W
Luminous efficacy87lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL43, asymmetric distribution

Order No.: 5XA779416A01AAGTIN (EAN): 4058352607800

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux117880lm
Connected load947W
Luminous efficacy125lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL43, asymmetric distribution

Order No.: 5XA779416A01BAGTIN (EAN): 4058352607831

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux102380lm
Connected load748W
Luminous efficacy137lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL61, asymmetric distribution

Order No.: 5XA779416C01AAGTIN (EAN): 4058352597286

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux118100lm
Connected load947W
Luminous efficacy125lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL61, asymmetric distribution

Order No.: 5XA779416C01BAGTIN (EAN): 4058352607848

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux102580lm
Connected load748W
Luminous efficacy137lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL52, asymmetric distribution

Order No.: 5XA779416D01AAGTIN (EAN): 4058352597309

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux115390lm
Connected load947W
Luminous efficacy122lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)29.6

Floodlight FL 11 maxi Remote, floodlight, PL52, asymmetric distribution

Order No.: 5XA779416D01BAGTIN (EAN): 4058352607862

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux100220lm
Connected load748W
Luminous efficacy134lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)29.6

Floodlight FL 11 maxi Remote, floodlight, PL64, asymmetric distribution

Order No.: 5XA779416E01BAGTIN (EAN): 4058352607909

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux92860lm
Connected load664W
Luminous efficacy140lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL33T, asymmetric distribution

Order No.: 5XA779416F01BAGTIN (EAN): 4058352851265

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux91200lm
Connected load664W
Luminous efficacy137lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL33TBLC, asymmetric distribution

Order No.: 5XA779416H01AAGTIN (EAN): 4058352851289

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux84900lm
Connected load948W
Luminous efficacy90lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL43, asymmetric distribution

Order No.: 5XA779417A01AAGTIN (EAN): 4058352607947

Colour temperature5000K
Colour renderingCRI > 70
Luminous flux120710lm
Connected load967W
Luminous efficacy125lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL43, asymmetric distribution

Order No.: 5XA779417A01BAGTIN (EAN): 4058352607961

Colour temperature5000K
Colour renderingCRI > 70
Luminous flux104660lm
Connected load758W
Luminous efficacy138lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL61, asymmetric distribution

Order No.: 5XA779417C01AAGTIN (EAN): 4058352607992

Colour temperature5000K
Colour renderingCRI > 70
Luminous flux120940lm
Connected load967W
Luminous efficacy125lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL61, asymmetric distribution

Order No.: 5XA779417C01BAGTIN (EAN): 4058352608005

Colour temperature5000K
Colour renderingCRI > 70
Luminous flux104860lm
Connected load758W
Luminous efficacy138lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL52, asymmetric distribution

Order No.: 5XA779417D01AAGTIN (EAN): 4058352608029

Colour temperature5000K
Colour renderingCRI > 70
Luminous flux118160lm
Connected load967W
Luminous efficacy122lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL52, asymmetric distribution

Order No.: 5XA779417D01BAGTIN (EAN): 4058352608043

Colour temperature5000K
Colour renderingCRI > 70
Luminous flux102450lm
Connected load758W
Luminous efficacy135lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL64, asymmetric distribution

Order No.: 5XA779417E01BAGTIN (EAN): 4058352608081

Colour temperature5000K
Colour renderingCRI > 70
Luminous flux92980lm
Connected load654W
Luminous efficacy142lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL33TBLC, asymmetric distribution

Order No.: 5XA779417H01AAGTIN (EAN): 4069025017635

Colour temperature5000K
Colour renderingCRI > 70
Luminous flux86950lm
Connected load968W
Luminous efficacy90lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL43, asymmetric distribution

Order No.: 5XA779514A01AAGTIN (EAN): 4058352574041

Colour temperature5700K
Colour renderingCRI > 90
Luminous flux89050lm
Connected load917W
Luminous efficacy97lm/W
ControlDMX+RDM
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL43, asymmetric distribution

Order No.: 5XA779514A01BAGTIN (EAN): 4058352574058

Colour temperature5700K
Colour renderingCRI > 90
Luminous flux75700lm
Connected load708W
Luminous efficacy107lm/W
ControlDMX+RDM
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL64, asymmetric distribution

Order No.: 5XA779514E01AAGTIN (EAN): 4058352574072

Colour temperature5700K
Colour renderingCRI > 90
Luminous flux87990lm
Connected load917W
Luminous efficacy96lm/W
ControlDMX+RDM
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL64, asymmetric distribution

Order No.: 5XA779514E01BAGTIN (EAN): 4058352574096

Colour temperature5700K
Colour renderingCRI > 90
Luminous flux74800lm
Connected load708W
Luminous efficacy106lm/W
ControlDMX+RDM
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, RS07, rotationally symmetric distribution

Order No.: 5XA779514K01AAGTIN (EAN): 4058352574119

Colour temperature5700K
Colour renderingCRI > 90
Luminous flux88570lm
Connected load917W
Luminous efficacy97lm/W
ControlDMX+RDM
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, RS07, rotationally symmetric distribution

Order No.: 5XA779514K01BAGTIN (EAN): 4058352574133

Colour temperature5700K
Colour renderingCRI > 90
Luminous flux75300lm
Connected load708W
Luminous efficacy106lm/W
ControlDMX+RDM
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, RS12, rotationally symmetric distribution

Order No.: 5XA779514M01AAGTIN (EAN): 4058352574157

Colour temperature5700K
Colour renderingCRI > 90
Luminous flux90180lm
Connected load917W
Luminous efficacy98lm/W
ControlDMX+RDM
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, RS12, rotationally symmetric distribution

Order No.: 5XA779514M01BAGTIN (EAN): 4058352574171

Colour temperature5700K
Colour renderingCRI > 90
Luminous flux76660lm
Connected load708W
Luminous efficacy108lm/W
ControlDMX+RDM
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL64BLC, asymmetric distribution

Order No.: 5XA779417W01AAGTIN (EAN): 4058352977644

Colour temperature5000K
Colour renderingCRI > 70
Luminous flux95470lm
Connected load1017W
Luminous efficacy94lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL64BLC, asymmetric distribution

Order No.: 5XA779416W01AAGTIN (EAN): 4058352977606

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux94090lm
Connected load1017W
Luminous efficacy93lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL64BLC, asymmetric distribution

Order No.: 5XA779415W01AAGTIN (EAN): 4058352977569

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux90030lm
Connected load1016W
Luminous efficacy89lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL64BLC, asymmetric distribution

Order No.: 5XA779414W01AAGTIN (EAN): 4058352977521

Colour temperature5700K
Colour renderingCRI > 90
Luminous flux73350lm
Connected load1016W
Luminous efficacy72lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL64BLC, asymmetric distribution

Order No.: 5XA779418W01AAGTIN (EAN): 4058352977699

Colour temperature5700K
Colour renderingCRI > 80
Luminous flux85290lm
Connected load1016W
Luminous efficacy84lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL33T, asymmetric distribution

Order No.: 5XA779414T01AAGTIN (EAN): 4069025011848

Colour temperature5700K
Colour renderingCRI > 90
Luminous flux110500lm
Connected load1022W
Luminous efficacy108lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL33T, asymmetric distribution

Order No.: 5XA779415T01AAGTIN (EAN): 4069025011831

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux135620lm
Connected load1022W
Luminous efficacy133lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL33T, asymmetric distribution

Order No.: 5XA779416T01AAGTIN (EAN): 4069025017673

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux141620lm
Connected load1022W
Luminous efficacy139lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL33T, asymmetric distribution

Order No.: 5XA779417T01AAGTIN (EAN): 4069025011817

Colour temperature5000K
Colour renderingCRI > 70
Luminous flux143560lm
Connected load1022W
Luminous efficacy141lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL33T, asymmetric distribution

Order No.: 5XA779418T01AAGTIN (EAN): 4069025011800

Colour temperature5700K
Colour renderingCRI > 80
Luminous flux128400lm
Connected load1022W
Luminous efficacy126lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL64, asymmetric distribution

Order No.: 5XA779414V01AAGTIN (EAN): 4058352977514

Colour temperature5700K
Colour renderingCRI > 90
Luminous flux113100lm
Connected load1022W
Luminous efficacy111lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL64, asymmetric distribution

Order No.: 5XA779415V01AAGTIN (EAN): 4058352977545

Colour temperature3000K
Colour renderingCRI > 70
Luminous flux138810lm
Connected load1022W
Luminous efficacy136lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2

Floodlight FL 11 maxi Remote, floodlight, PL64, asymmetric distribution

Order No.: 5XA779416V01AAGTIN (EAN): 4069025017659

Colour temperature4000K
Colour renderingCRI > 70
Luminous flux144940lm
Connected load1022W
Luminous efficacy142lm/W
ControlDALI 2 (1 DALI address)
Wt. (kg)23.2
