Floodlight FL 20
The wide beam floodlight is characterized by outstanding asymmetry and individual light distributions. With its four sizes the high lumen-output Floodlight FL 20 is extremely flexible in application – from parking lots, loading ramps and container terminals to sports facilities and event arenas. The design as a wide beam floodlight with 0% light spill up to a 15° upward inclination guarantees maximum glare control and the avoidance of light immission. Optimized thermal management and the high protection rating (IP66) enable reliable operation even under adverse weather conditions.
Avoidance of light spill and glare due to design as a wide beam floodlight with 0% light immission up to an inclination of 15°
Producttypes
Floodlight FL 20 micro
Floodlight FL 20 micro | single components
Floodlight FL 20 mini
Floodlight FL 20 mini | single components
Floodlight FL 20 midi
Floodlight FL 20 midi | single components
Floodlight FL 20 midi power
Floodlight FL 20 midi power | single components
Floodlight FL 20 maxi power - Gen4
Floodlight FL 20 maxi power - Gen4 | single components
SITECO Connect Sport
Floodlight FL 20 midi
Intro to Productfamily
Data
Article floodlight
Lighting effect direct asymmetric distribution; direct rotationally symmetric distribution
Light distribution PL43; PL52; PL61; RS17
Net luminous flux 14130lm to 29600lm
Colour temperature 3000K; 4000K; 5000K
Control Basic; Plus
Specials
Avoidance of light spill and glare due to design as a wide beam floodlight with 0% light immission up to an inclination of 15°
Very long service life of up to 100,000 hours thanks to optimal heat dissipation via cooling ribs
Optimized thermal management due to decoupling of module and housing for minimum luminous flux degradation and reliable operation
Very robust due to IP66 protection rating and vibration stability with over 250,000 strokes as well as ESD-protected plug&play modules for simple maintenance and low maintenance costs
Configuration & Datasheets
- please order mast flange for luminaires with mast connection according to spigot diameter separately
Results
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7681D2A1ACGTIN (EAN): 4058352222256
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 19080lm | 142W | 134lm/W | Basic | 13.9 | 1358.40 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7681D2C1ACGTIN (EAN): 4058352222270
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 18200lm | 142W | 128lm/W | Basic | 13.9 | 1358.40 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7681D2D1ACGTIN (EAN): 4058352222300
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 17990lm | 142W | 127lm/W | Basic | 13.9 | 1358.40 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7681E2A1ACGTIN (EAN): 4058352222317
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 28460lm | 208W | 137lm/W | Basic | 14.7 | 1624.00 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7681E2C1ACGTIN (EAN): 4058352222331
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 27150lm | 208W | 131lm/W | Basic | 14.5 | 1624.00 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7681E2D1ACGTIN (EAN): 4058352222355
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 26840lm | 208W | 129lm/W | Basic | 14.5 | 1624.00 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D1A1ACGTIN (EAN): 4058352222379
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14980lm | 142W | 105lm/W | Plus/DALI | 13.9 | 1507.60 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D1A2ACGTIN (EAN): 4058352222393
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14980lm | 142W | 105lm/W | Plus/DALI | 14.1 | 1507.60 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D1A4ACGTIN (EAN): 4058352222416
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14980lm | 142W | 105lm/W | Plus/DALI | 15.9 | 1628.40 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with mounting bracket
Order No.: 5XA7682D1B1ACGTIN (EAN): 4058352222430
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 15350lm | 142W | 108lm/W | Plus/DALI | 13.9 | 1507.60 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with wall fastening
Order No.: 5XA7682D1B2ACGTIN (EAN): 4058352222461
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 15350lm | 142W | 108lm/W | Plus/DALI | 14.1 | 1374.00 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D1C1ACGTIN (EAN): 4058352222478
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14290lm | 142W | 101lm/W | Plus/DALI | 13.9 | 1507.60 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D1C2ACGTIN (EAN): 4058352222492
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14290lm | 142W | 101lm/W | Plus/DALI | 14.1 | 1507.60 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D1C4ACGTIN (EAN): 4058352222515
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14290lm | 142W | 101lm/W | Plus/DALI | 15.9 | 1484.00 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D1D1ACGTIN (EAN): 4058352222539
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14130lm | 142W | 100lm/W | Plus/DALI | 13.9 | 1507.60 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D1D2ACGTIN (EAN): 4058352222553
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14130lm | 142W | 100lm/W | Plus/DALI | 14.1 | 1507.60 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D1D4ACGTIN (EAN): 4058352222577
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14130lm | 142W | 100lm/W | Plus/DALI | 15.9 | 1484.00 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D2A1ACGTIN (EAN): 4058352222607
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 19080lm | 142W | 134lm/W | Plus/DALI | 13.9 | 1507.60 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D2A2ACGTIN (EAN): 4058352222614
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 19080lm | 142W | 134lm/W | Plus/DALI | 14.1 | 1507.60 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D2A4ACGTIN (EAN): 4058352222638
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 19080lm | 142W | 134lm/W | Plus/DALI | 15.9 | 1628.40 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with mounting bracket
Order No.: 5XA7682D2B1ACGTIN (EAN): 4058352222652
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 19540lm | 142W | 138lm/W | Plus/DALI | 13.9 | 1507.60 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with wall fastening
Order No.: 5XA7682D2B2ACGTIN (EAN): 4058352222676
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 19540lm | 142W | 138lm/W | Plus/DALI | 14.1 | 1507.60 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D2C1ACGTIN (EAN): 4058352222690
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 18200lm | 142W | 128lm/W | Plus/DALI | 13.9 | 1507.60 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D2C2ACGTIN (EAN): 4058352222713
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 18200lm | 142W | 128lm/W | Plus/DALI | 14.1 | 1507.60 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D2C4ACGTIN (EAN): 4058352222737
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 18200lm | 142W | 128lm/W | Plus/DALI | 15.9 | 1628.40 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D2D1ACGTIN (EAN): 4058352222768
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 17990lm | 142W | 127lm/W | Plus/DALI | 13.9 | 1507.60 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D2D2ACGTIN (EAN): 4058352270097
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 17990lm | 142W | 127lm/W | Plus/DALI | 14.1 | 1507.60 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D2D4ACGTIN (EAN): 4058352222775
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 17990lm | 142W | 127lm/W | Plus/DALI | 15.9 | 1628.40 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D3A1ACGTIN (EAN): 4058352222799
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 19360lm | 142W | 136lm/W | Plus/DALI | 13.9 | 1507.60 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D3A2ACGTIN (EAN): 4058352222812
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 19360lm | 142W | 136lm/W | Plus/DALI | 14.1 | 1374.00 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D3A4ACGTIN (EAN): 4058352222836
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 19360lm | 142W | 136lm/W | Plus/DALI | 15.9 | 1628.40 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with mounting bracket
Order No.: 5XA7682D3B1ACGTIN (EAN): 4058352222850
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 19830lm | 142W | 140lm/W | Plus/DALI | 13.9 | 1374.00 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with wall fastening
Order No.: 5XA7682D3B2ACGTIN (EAN): 4058352222874
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 19830lm | 142W | 140lm/W | Plus/DALI | 14.1 | 1374.00 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D3C1ACGTIN (EAN): 4058352222904
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 18470lm | 142W | 130lm/W | Plus/DALI | 13.9 | 1507.60 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D3C2ACGTIN (EAN): 4058352222911
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 18470lm | 142W | 130lm/W | Plus/DALI | 14.1 | 1374.00 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D3C4ACGTIN (EAN): 4058352222935
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 18470lm | 142W | 130lm/W | Plus/DALI | 15.9 | 1484.00 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D3D1ACGTIN (EAN): 4058352222959
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 18250lm | 142W | 129lm/W | Plus/DALI | 13.9 | 1507.60 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D3D2ACGTIN (EAN): 4058352222973
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 18250lm | 142W | 129lm/W | Plus/DALI | 14.1 | 1374.00 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D3D4ACGTIN (EAN): 4058352222997
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 18250lm | 142W | 129lm/W | Plus/DALI | 15.9 | 1628.40 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682E1A1ACGTIN (EAN): 4058352223017
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 22300lm | 208W | 107lm/W | Plus/DALI | 14.5 | 1773.20 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682E1A2ACGTIN (EAN): 4058352223031
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 22300lm | 208W | 107lm/W | Plus/DALI | 14.7 | 1773.20 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682E1A4ACGTIN (EAN): 4058352223062
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 22300lm | 208W | 107lm/W | Plus/DALI | 16.5 | 1893.90 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with mounting bracket
Order No.: 5XA7682E1B1ACGTIN (EAN): 4058352223079
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 22840lm | 208W | 110lm/W | Plus/DALI | 14.5 | 1773.20 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with wall fastening
Order No.: 5XA7682E1B2ACGTIN (EAN): 4058352223093
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 22840lm | 208W | 110lm/W | Plus/DALI | 14.7 | 1773.20 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682E1C1ACGTIN (EAN): 4058352223116
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 21280lm | 208W | 102lm/W | Plus/DALI | 14.5 | 1701.50 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682E1C2ACGTIN (EAN): 4058352223130
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 21280lm | 208W | 102lm/W | Plus/DALI | 14.7 | 1616.00 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682E1C4ACGTIN (EAN): 4058352223154
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 21280lm | 208W | 102lm/W | Plus/DALI | 16.5 | 1893.90 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682E1D1ACGTIN (EAN): 4058352223178
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 21030lm | 208W | 101lm/W | Plus/DALI | 14.5 | 1616.00 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682E1D2ACGTIN (EAN): 4058352223208
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 21030lm | 208W | 101lm/W | Plus/DALI | 14.7 | 1616.00 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682E1D4ACGTIN (EAN): 4058352223215
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 21030lm | 208W | 101lm/W | Plus/DALI | 16.5 | 1893.90 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682E2A1ACGTIN (EAN): 4058352223239
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 28460lm | 208W | 137lm/W | Plus/DALI | 14.7 | 1773.20 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682E2A2ACGTIN (EAN): 4058352223253
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 28460lm | 208W | 137lm/W | Plus/DALI | 14.9 | 1773.20 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682E2A4ACGTIN (EAN): 4058352223277
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 28460lm | 208W | 137lm/W | Plus/DALI | 16.7 | 1893.90 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with mounting bracket
Order No.: 5XA7682E2B1ACGTIN (EAN): 4058352223291
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 29150lm | 208W | 140lm/W | Plus/DALI | 14.5 | 1773.20 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with wall fastening
Order No.: 5XA7682E2B2ACGTIN (EAN): 4058352223314
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 29150lm | 208W | 140lm/W | Plus/DALI | 14.7 | 1616.00 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682E2C1ACGTIN (EAN): 4058352223338
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 27150lm | 208W | 131lm/W | Plus/DALI | 14.5 | 1773.20 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682E2C2ACGTIN (EAN): 4058352223369
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 27150lm | 208W | 131lm/W | Plus/DALI | 14.7 | 1773.20 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682E2C4ACGTIN (EAN): 4058352223376
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 27150lm | 208W | 131lm/W | Plus/DALI | 16.5 | 1893.90 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682E2D1ACGTIN (EAN): 4058352223390
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 26840lm | 208W | 129lm/W | Plus/DALI | 14.5 | 1773.20 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682E2D2ACGTIN (EAN): 4058352223413
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 26840lm | 208W | 129lm/W | Plus/DALI | 14.7 | 1773.20 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682E2D4ACGTIN (EAN): 4058352223437
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 26840lm | 208W | 129lm/W | Plus/DALI | 16.5 | 1893.90 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682E3A1ACGTIN (EAN): 4058352223451
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 28900lm | 208W | 139lm/W | Plus/DALI | 14.5 | 1773.20 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682E3A2ACGTIN (EAN): 4058352223475
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 28900lm | 208W | 139lm/W | Plus/DALI | 14.7 | 1773.20 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682E3A4ACGTIN (EAN): 4058352223505
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 28900lm | 208W | 139lm/W | Plus/DALI | 16.5 | 1893.90 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with mounting bracket
Order No.: 5XA7682E3B1ACGTIN (EAN): 4058352223512
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 29600lm | 208W | 142lm/W | Plus/DALI | 15.2 | 1773.20 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with wall fastening
Order No.: 5XA7682E3B2ACGTIN (EAN): 4058352223536
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 29600lm | 208W | 142lm/W | Plus/DALI | 15.5 | 1616.00 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682E3C1ACGTIN (EAN): 4058352223550
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 27570lm | 208W | 133lm/W | Plus/DALI | 14.5 | 1773.20 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682E3C2ACGTIN (EAN): 4058352223574
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 27570lm | 208W | 133lm/W | Plus/DALI | 14.7 | 1773.20 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682E3C4ACGTIN (EAN): 4058352223598
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 27570lm | 208W | 133lm/W | Plus/DALI | 16.5 | 1893.90 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682E3D1ACGTIN (EAN): 4058352223611
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 27250lm | 208W | 131lm/W | Plus/DALI | 14.5 | 1773.20 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682E3D2ACGTIN (EAN): 4058352223635
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 27250lm | 208W | 131lm/W | Plus/DALI | 14.7 | 1773.20 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682E3D4ACGTIN (EAN): 4058352223666
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 27250lm | 208W | 131lm/W | Plus/DALI | 16.5 | 1893.90 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7681D2A1ACGTIN (EAN): 4058352222256
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 19080lm |
| Connected load | 142W |
| Luminous efficacy | 134lm/W |
| Control | Basic |
| Wt. (kg) | 13.9 |
| Price (EUR) | 1358.40 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7681D2C1ACGTIN (EAN): 4058352222270
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 18200lm |
| Connected load | 142W |
| Luminous efficacy | 128lm/W |
| Control | Basic |
| Wt. (kg) | 13.9 |
| Price (EUR) | 1358.40 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7681D2D1ACGTIN (EAN): 4058352222300
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 17990lm |
| Connected load | 142W |
| Luminous efficacy | 127lm/W |
| Control | Basic |
| Wt. (kg) | 13.9 |
| Price (EUR) | 1358.40 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7681E2A1ACGTIN (EAN): 4058352222317
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 28460lm |
| Connected load | 208W |
| Luminous efficacy | 137lm/W |
| Control | Basic |
| Wt. (kg) | 14.7 |
| Price (EUR) | 1624.00 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7681E2C1ACGTIN (EAN): 4058352222331
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 27150lm |
| Connected load | 208W |
| Luminous efficacy | 131lm/W |
| Control | Basic |
| Wt. (kg) | 14.5 |
| Price (EUR) | 1624.00 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7681E2D1ACGTIN (EAN): 4058352222355
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 26840lm |
| Connected load | 208W |
| Luminous efficacy | 129lm/W |
| Control | Basic |
| Wt. (kg) | 14.5 |
| Price (EUR) | 1624.00 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D1A1ACGTIN (EAN): 4058352222379
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14980lm |
| Connected load | 142W |
| Luminous efficacy | 105lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 13.9 |
| Price (EUR) | 1507.60 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D1A2ACGTIN (EAN): 4058352222393
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14980lm |
| Connected load | 142W |
| Luminous efficacy | 105lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 14.1 |
| Price (EUR) | 1507.60 |

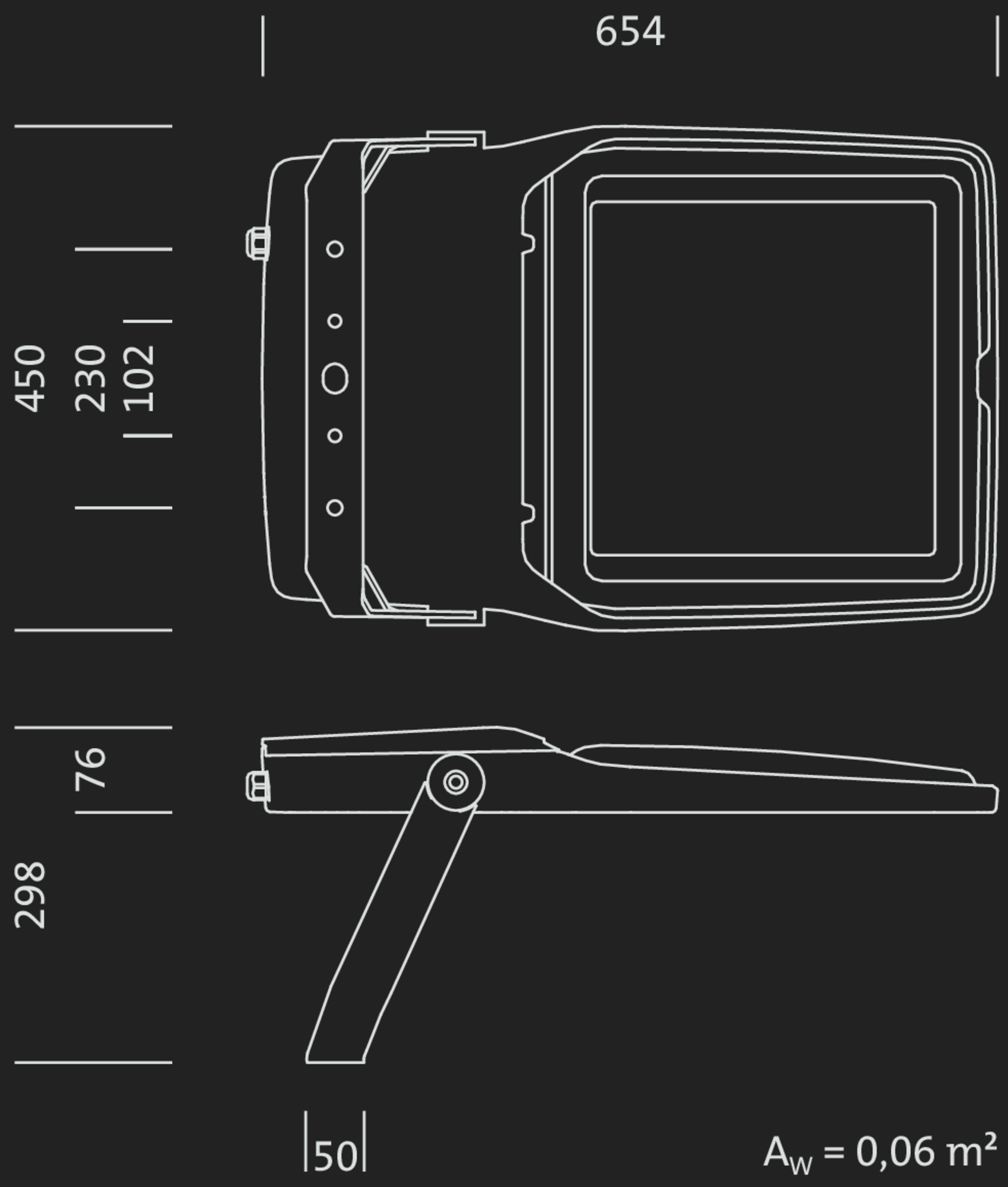

Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D1A4ACGTIN (EAN): 4058352222416
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14980lm |
| Connected load | 142W |
| Luminous efficacy | 105lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 15.9 |
| Price (EUR) | 1628.40 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with mounting bracket
Order No.: 5XA7682D1B1ACGTIN (EAN): 4058352222430
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 15350lm |
| Connected load | 142W |
| Luminous efficacy | 108lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 13.9 |
| Price (EUR) | 1507.60 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with wall fastening
Order No.: 5XA7682D1B2ACGTIN (EAN): 4058352222461
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 15350lm |
| Connected load | 142W |
| Luminous efficacy | 108lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 14.1 |
| Price (EUR) | 1374.00 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D1C1ACGTIN (EAN): 4058352222478
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14290lm |
| Connected load | 142W |
| Luminous efficacy | 101lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 13.9 |
| Price (EUR) | 1507.60 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D1C2ACGTIN (EAN): 4058352222492
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14290lm |
| Connected load | 142W |
| Luminous efficacy | 101lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 14.1 |
| Price (EUR) | 1507.60 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D1C4ACGTIN (EAN): 4058352222515
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14290lm |
| Connected load | 142W |
| Luminous efficacy | 101lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 15.9 |
| Price (EUR) | 1484.00 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D1D1ACGTIN (EAN): 4058352222539
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14130lm |
| Connected load | 142W |
| Luminous efficacy | 100lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 13.9 |
| Price (EUR) | 1507.60 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D1D2ACGTIN (EAN): 4058352222553
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14130lm |
| Connected load | 142W |
| Luminous efficacy | 100lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 14.1 |
| Price (EUR) | 1507.60 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D1D4ACGTIN (EAN): 4058352222577
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14130lm |
| Connected load | 142W |
| Luminous efficacy | 100lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 15.9 |
| Price (EUR) | 1484.00 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D2A1ACGTIN (EAN): 4058352222607
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 19080lm |
| Connected load | 142W |
| Luminous efficacy | 134lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 13.9 |
| Price (EUR) | 1507.60 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D2A2ACGTIN (EAN): 4058352222614
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 19080lm |
| Connected load | 142W |
| Luminous efficacy | 134lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 14.1 |
| Price (EUR) | 1507.60 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D2A4ACGTIN (EAN): 4058352222638
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 19080lm |
| Connected load | 142W |
| Luminous efficacy | 134lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 15.9 |
| Price (EUR) | 1628.40 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with mounting bracket
Order No.: 5XA7682D2B1ACGTIN (EAN): 4058352222652
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 19540lm |
| Connected load | 142W |
| Luminous efficacy | 138lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 13.9 |
| Price (EUR) | 1507.60 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with wall fastening
Order No.: 5XA7682D2B2ACGTIN (EAN): 4058352222676
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 19540lm |
| Connected load | 142W |
| Luminous efficacy | 138lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 14.1 |
| Price (EUR) | 1507.60 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D2C1ACGTIN (EAN): 4058352222690
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 18200lm |
| Connected load | 142W |
| Luminous efficacy | 128lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 13.9 |
| Price (EUR) | 1507.60 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D2C2ACGTIN (EAN): 4058352222713
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 18200lm |
| Connected load | 142W |
| Luminous efficacy | 128lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 14.1 |
| Price (EUR) | 1507.60 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D2C4ACGTIN (EAN): 4058352222737
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 18200lm |
| Connected load | 142W |
| Luminous efficacy | 128lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 15.9 |
| Price (EUR) | 1628.40 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D2D1ACGTIN (EAN): 4058352222768
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 17990lm |
| Connected load | 142W |
| Luminous efficacy | 127lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 13.9 |
| Price (EUR) | 1507.60 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D2D2ACGTIN (EAN): 4058352270097
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 17990lm |
| Connected load | 142W |
| Luminous efficacy | 127lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 14.1 |
| Price (EUR) | 1507.60 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D2D4ACGTIN (EAN): 4058352222775
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 17990lm |
| Connected load | 142W |
| Luminous efficacy | 127lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 15.9 |
| Price (EUR) | 1628.40 |
