Floodlight FL 20
With the planar floodlight, evenly illuminating large areas is easy thanks to excellent asymmetric light distribution. With four sizes, the powerful Floodlight FL 20 is extremely flexible in use - from parking lots, loading ramps and container terminals to sports facilities and event arenas. Due to the design as a flat surface radiator with 0% light immission up to an inclination of 15°, maximum glare control is guaranteed. Optimized thermal management and a high degree of protection enable reliable operation even under adverse weather conditions.
Our core portfolio: Floodlight FL 20 is our floodlight with the highest standards of efficiency, quality and flexibility for your project

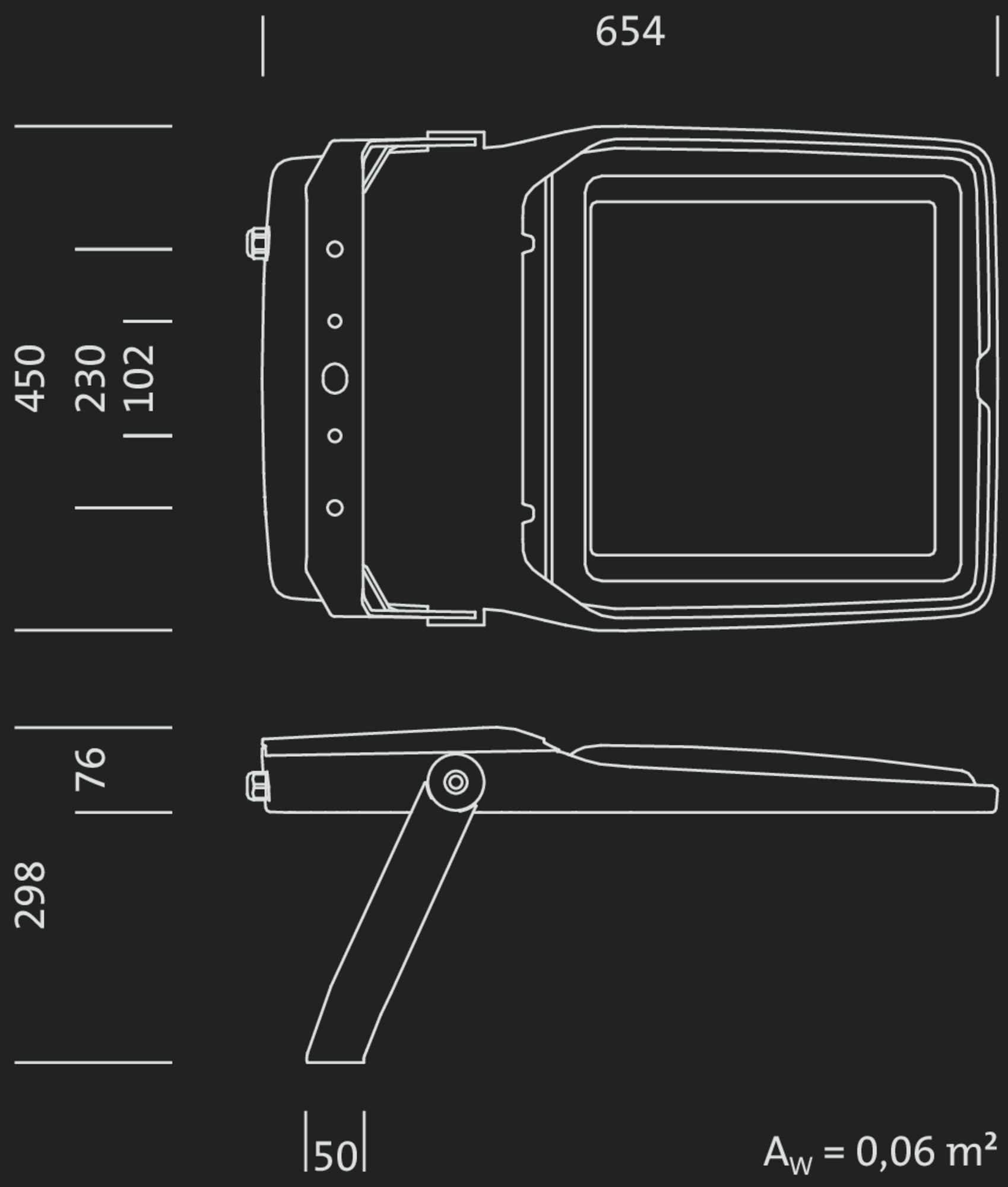

Floodlight FL 20 midi
Intro to Productfamily
Data
Article floodlight
Lighting effect direct asymmetric distribution; direct rotationally symmetric distribution
Light distribution PL43; PL52; PL61; RS17
Net luminous flux 14130lm to 29600lm
Colour temperature 3000K; 4000K; 5000K
Control Basic; Plus
Specials
Avoidance of light spill and glare due to design as a wide beam floodlight with 0% light immission up to an inclination of 15°
Very long service life of up to 100,000 hours thanks to optimal heat dissipation via cooling ribs
Optimized thermal management due to decoupling of module and housing for minimum luminous flux degradation and reliable operation
Very robust due to IP66 protection rating and vibration stability with over 250,000 strokes as well as ESD-protected plug&play modules for simple maintenance and low maintenance costs
Configuration & Datasheets
- please order mast flange for luminaires with mast connection according to spigot diameter separately
Results
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7681D2A1ACGTIN (EAN): 4058352222256
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 19080lm | 142W | 134lm/W | Basic | 13.9 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7681D2C1ACGTIN (EAN): 4058352222270
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 18200lm | 142W | 128lm/W | Basic | 13.9 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7681D2D1ACGTIN (EAN): 4058352222300
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 17990lm | 142W | 127lm/W | Basic | 13.9 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7681E2A1ACGTIN (EAN): 4058352222317
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 28460lm | 208W | 137lm/W | Basic | 14.7 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7681E2C1ACGTIN (EAN): 4058352222331
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 27150lm | 208W | 131lm/W | Basic | 14.5 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7681E2D1ACGTIN (EAN): 4058352222355
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 26840lm | 208W | 129lm/W | Basic | 14.5 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D1A1ACGTIN (EAN): 4058352222379
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14980lm | 142W | 105lm/W | Plus/DALI | 13.9 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D1A2ACGTIN (EAN): 4058352222393
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14980lm | 142W | 105lm/W | Plus/DALI | 14.1 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D1A4ACGTIN (EAN): 4058352222416
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14980lm | 142W | 105lm/W | Plus/DALI | 15.9 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with mounting bracket
Order No.: 5XA7682D1B1ACGTIN (EAN): 4058352222430
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 15350lm | 142W | 108lm/W | Plus/DALI | 13.9 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with wall fastening
Order No.: 5XA7682D1B2ACGTIN (EAN): 4058352222461
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 15350lm | 142W | 108lm/W | Plus/DALI | 14.1 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D1C1ACGTIN (EAN): 4058352222478
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14290lm | 142W | 101lm/W | Plus/DALI | 13.9 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D1C2ACGTIN (EAN): 4058352222492
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14290lm | 142W | 101lm/W | Plus/DALI | 14.1 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D1C4ACGTIN (EAN): 4058352222515
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14290lm | 142W | 101lm/W | Plus/DALI | 15.9 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D1D1ACGTIN (EAN): 4058352222539
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14130lm | 142W | 100lm/W | Plus/DALI | 13.9 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D1D2ACGTIN (EAN): 4058352222553
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14130lm | 142W | 100lm/W | Plus/DALI | 14.1 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D1D4ACGTIN (EAN): 4058352222577
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 14130lm | 142W | 100lm/W | Plus/DALI | 15.9 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D2A1ACGTIN (EAN): 4058352222607
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 19080lm | 142W | 134lm/W | Plus/DALI | 13.9 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D2A2ACGTIN (EAN): 4058352222614
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 19080lm | 142W | 134lm/W | Plus/DALI | 14.1 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D2A4ACGTIN (EAN): 4058352222638
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 19080lm | 142W | 134lm/W | Plus/DALI | 15.9 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with mounting bracket
Order No.: 5XA7682D2B1ACGTIN (EAN): 4058352222652
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 19540lm | 142W | 138lm/W | Plus/DALI | 13.9 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with wall fastening
Order No.: 5XA7682D2B2ACGTIN (EAN): 4058352222676
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 19540lm | 142W | 138lm/W | Plus/DALI | 14.1 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D2C1ACGTIN (EAN): 4058352222690
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 18200lm | 142W | 128lm/W | Plus/DALI | 13.9 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D2C2ACGTIN (EAN): 4058352222713
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 18200lm | 142W | 128lm/W | Plus/DALI | 14.1 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D2C4ACGTIN (EAN): 4058352222737
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 18200lm | 142W | 128lm/W | Plus/DALI | 15.9 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D2D1ACGTIN (EAN): 4058352222768
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 17990lm | 142W | 127lm/W | Plus/DALI | 13.9 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D2D2ACGTIN (EAN): 4058352270097
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 17990lm | 142W | 127lm/W | Plus/DALI | 14.1 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D2D4ACGTIN (EAN): 4058352222775
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 17990lm | 142W | 127lm/W | Plus/DALI | 15.9 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D3A1ACGTIN (EAN): 4058352222799
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 19360lm | 142W | 136lm/W | Plus/DALI | 13.9 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D3A2ACGTIN (EAN): 4058352222812
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 19360lm | 142W | 136lm/W | Plus/DALI | 14.1 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D3A4ACGTIN (EAN): 4058352222836
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 19360lm | 142W | 136lm/W | Plus/DALI | 15.9 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with mounting bracket
Order No.: 5XA7682D3B1ACGTIN (EAN): 4058352222850
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 19830lm | 142W | 140lm/W | Plus/DALI | 13.9 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with wall fastening
Order No.: 5XA7682D3B2ACGTIN (EAN): 4058352222874
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 19830lm | 142W | 140lm/W | Plus/DALI | 14.1 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D3C1ACGTIN (EAN): 4058352222904
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 18470lm | 142W | 130lm/W | Plus/DALI | 13.9 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D3C2ACGTIN (EAN): 4058352222911
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 18470lm | 142W | 130lm/W | Plus/DALI | 14.1 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D3C4ACGTIN (EAN): 4058352222935
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 18470lm | 142W | 130lm/W | Plus/DALI | 15.9 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D3D1ACGTIN (EAN): 4058352222959
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 18250lm | 142W | 129lm/W | Plus/DALI | 13.9 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D3D2ACGTIN (EAN): 4058352222973
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 18250lm | 142W | 129lm/W | Plus/DALI | 14.1 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D3D4ACGTIN (EAN): 4058352222997
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 18250lm | 142W | 129lm/W | Plus/DALI | 15.9 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682E1A1ACGTIN (EAN): 4058352223017
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 22300lm | 208W | 107lm/W | Plus/DALI | 14.5 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682E1A2ACGTIN (EAN): 4058352223031
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 22300lm | 208W | 107lm/W | Plus/DALI | 14.7 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682E1A4ACGTIN (EAN): 4058352223062
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 22300lm | 208W | 107lm/W | Plus/DALI | 16.5 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with mounting bracket
Order No.: 5XA7682E1B1ACGTIN (EAN): 4058352223079
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 22840lm | 208W | 110lm/W | Plus/DALI | 14.5 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with wall fastening
Order No.: 5XA7682E1B2ACGTIN (EAN): 4058352223093
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 22840lm | 208W | 110lm/W | Plus/DALI | 14.7 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682E1C1ACGTIN (EAN): 4058352223116
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 21280lm | 208W | 102lm/W | Plus/DALI | 14.5 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682E1C2ACGTIN (EAN): 4058352223130
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 21280lm | 208W | 102lm/W | Plus/DALI | 14.7 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682E1C4ACGTIN (EAN): 4058352223154
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 21280lm | 208W | 102lm/W | Plus/DALI | 16.5 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682E1D1ACGTIN (EAN): 4058352223178
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 21030lm | 208W | 101lm/W | Plus/DALI | 14.5 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682E1D2ACGTIN (EAN): 4058352223208
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 21030lm | 208W | 101lm/W | Plus/DALI | 14.7 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682E1D4ACGTIN (EAN): 4058352223215
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 21030lm | 208W | 101lm/W | Plus/DALI | 16.5 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682E2A1ACGTIN (EAN): 4058352223239
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 28460lm | 208W | 137lm/W | Plus/DALI | 14.7 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682E2A2ACGTIN (EAN): 4058352223253
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 28460lm | 208W | 137lm/W | Plus/DALI | 14.9 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682E2A4ACGTIN (EAN): 4058352223277
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 28460lm | 208W | 137lm/W | Plus/DALI | 16.7 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with mounting bracket
Order No.: 5XA7682E2B1ACGTIN (EAN): 4058352223291
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 29150lm | 208W | 140lm/W | Plus/DALI | 14.5 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with wall fastening
Order No.: 5XA7682E2B2ACGTIN (EAN): 4058352223314
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 29150lm | 208W | 140lm/W | Plus/DALI | 14.7 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682E2C1ACGTIN (EAN): 4058352223338
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 27150lm | 208W | 131lm/W | Plus/DALI | 14.5 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682E2C2ACGTIN (EAN): 4058352223369
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 27150lm | 208W | 131lm/W | Plus/DALI | 14.7 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682E2C4ACGTIN (EAN): 4058352223376
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 27150lm | 208W | 131lm/W | Plus/DALI | 16.5 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682E2D1ACGTIN (EAN): 4058352223390
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 26840lm | 208W | 129lm/W | Plus/DALI | 14.5 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682E2D2ACGTIN (EAN): 4058352223413
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 26840lm | 208W | 129lm/W | Plus/DALI | 14.7 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682E2D4ACGTIN (EAN): 4058352223437
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 26840lm | 208W | 129lm/W | Plus/DALI | 16.5 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682E3A1ACGTIN (EAN): 4058352223451
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 28900lm | 208W | 139lm/W | Plus/DALI | 14.5 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682E3A2ACGTIN (EAN): 4058352223475
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 28900lm | 208W | 139lm/W | Plus/DALI | 14.7 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682E3A4ACGTIN (EAN): 4058352223505
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 28900lm | 208W | 139lm/W | Plus/DALI | 16.5 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with mounting bracket
Order No.: 5XA7682E3B1ACGTIN (EAN): 4058352223512
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 29600lm | 208W | 142lm/W | Plus/DALI | 15.2 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with wall fastening
Order No.: 5XA7682E3B2ACGTIN (EAN): 4058352223536
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 29600lm | 208W | 142lm/W | Plus/DALI | 15.5 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682E3C1ACGTIN (EAN): 4058352223550
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 27570lm | 208W | 133lm/W | Plus/DALI | 14.5 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682E3C2ACGTIN (EAN): 4058352223574
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 27570lm | 208W | 133lm/W | Plus/DALI | 14.7 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682E3C4ACGTIN (EAN): 4058352223598
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 27570lm | 208W | 133lm/W | Plus/DALI | 16.5 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682E3D1ACGTIN (EAN): 4058352223611
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 27250lm | 208W | 131lm/W | Plus/DALI | 14.5 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682E3D2ACGTIN (EAN): 4058352223635
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 27250lm | 208W | 131lm/W | Plus/DALI | 14.7 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682E3D4ACGTIN (EAN): 4058352223666
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 5000K | CRI > 70 | 27250lm | 208W | 131lm/W | Plus/DALI | 16.5 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7681D2A1ACGTIN (EAN): 4058352222256
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 19080lm |
| Connected load | 142W |
| Luminous efficacy | 134lm/W |
| Control | Basic |
| Wt. (kg) | 13.9 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7681D2C1ACGTIN (EAN): 4058352222270
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 18200lm |
| Connected load | 142W |
| Luminous efficacy | 128lm/W |
| Control | Basic |
| Wt. (kg) | 13.9 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7681D2D1ACGTIN (EAN): 4058352222300
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 17990lm |
| Connected load | 142W |
| Luminous efficacy | 127lm/W |
| Control | Basic |
| Wt. (kg) | 13.9 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7681E2A1ACGTIN (EAN): 4058352222317
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 28460lm |
| Connected load | 208W |
| Luminous efficacy | 137lm/W |
| Control | Basic |
| Wt. (kg) | 14.7 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7681E2C1ACGTIN (EAN): 4058352222331
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 27150lm |
| Connected load | 208W |
| Luminous efficacy | 131lm/W |
| Control | Basic |
| Wt. (kg) | 14.5 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7681E2D1ACGTIN (EAN): 4058352222355
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 26840lm |
| Connected load | 208W |
| Luminous efficacy | 129lm/W |
| Control | Basic |
| Wt. (kg) | 14.5 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D1A1ACGTIN (EAN): 4058352222379
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14980lm |
| Connected load | 142W |
| Luminous efficacy | 105lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 13.9 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D1A2ACGTIN (EAN): 4058352222393
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14980lm |
| Connected load | 142W |
| Luminous efficacy | 105lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 14.1 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D1A4ACGTIN (EAN): 4058352222416
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14980lm |
| Connected load | 142W |
| Luminous efficacy | 105lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 15.9 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with mounting bracket
Order No.: 5XA7682D1B1ACGTIN (EAN): 4058352222430
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 15350lm |
| Connected load | 142W |
| Luminous efficacy | 108lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 13.9 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with wall fastening
Order No.: 5XA7682D1B2ACGTIN (EAN): 4058352222461
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 15350lm |
| Connected load | 142W |
| Luminous efficacy | 108lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 14.1 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D1C1ACGTIN (EAN): 4058352222478
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14290lm |
| Connected load | 142W |
| Luminous efficacy | 101lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 13.9 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D1C2ACGTIN (EAN): 4058352222492
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14290lm |
| Connected load | 142W |
| Luminous efficacy | 101lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 14.1 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D1C4ACGTIN (EAN): 4058352222515
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14290lm |
| Connected load | 142W |
| Luminous efficacy | 101lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 15.9 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D1D1ACGTIN (EAN): 4058352222539
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14130lm |
| Connected load | 142W |
| Luminous efficacy | 100lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 13.9 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D1D2ACGTIN (EAN): 4058352222553
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14130lm |
| Connected load | 142W |
| Luminous efficacy | 100lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 14.1 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D1D4ACGTIN (EAN): 4058352222577
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 14130lm |
| Connected load | 142W |
| Luminous efficacy | 100lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 15.9 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D2A1ACGTIN (EAN): 4058352222607
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 19080lm |
| Connected load | 142W |
| Luminous efficacy | 134lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 13.9 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D2A2ACGTIN (EAN): 4058352222614
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 19080lm |
| Connected load | 142W |
| Luminous efficacy | 134lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 14.1 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D2A4ACGTIN (EAN): 4058352222638
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 19080lm |
| Connected load | 142W |
| Luminous efficacy | 134lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 15.9 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with mounting bracket
Order No.: 5XA7682D2B1ACGTIN (EAN): 4058352222652
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 19540lm |
| Connected load | 142W |
| Luminous efficacy | 138lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 13.9 |
Floodlight FL 20 midi, RS17, direct rotationally symmetric distribution, with wall fastening
Order No.: 5XA7682D2B2ACGTIN (EAN): 4058352222676
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 19540lm |
| Connected load | 142W |
| Luminous efficacy | 138lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 14.1 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D2C1ACGTIN (EAN): 4058352222690
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 18200lm |
| Connected load | 142W |
| Luminous efficacy | 128lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 13.9 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D2C2ACGTIN (EAN): 4058352222713
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 18200lm |
| Connected load | 142W |
| Luminous efficacy | 128lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 14.1 |
Floodlight FL 20 midi, PL61, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D2C4ACGTIN (EAN): 4058352222737
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 18200lm |
| Connected load | 142W |
| Luminous efficacy | 128lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 15.9 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D2D1ACGTIN (EAN): 4058352222768
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 17990lm |
| Connected load | 142W |
| Luminous efficacy | 127lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 13.9 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D2D2ACGTIN (EAN): 4058352270097
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 17990lm |
| Connected load | 142W |
| Luminous efficacy | 127lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 14.1 |
Floodlight FL 20 midi, PL52, direct asymmetric distribution, with mast flange adapter
Order No.: 5XA7682D2D4ACGTIN (EAN): 4058352222775
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 17990lm |
| Connected load | 142W |
| Luminous efficacy | 127lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 15.9 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with mounting bracket
Order No.: 5XA7682D3A1ACGTIN (EAN): 4058352222799
| Colour temperature | 5000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 19360lm |
| Connected load | 142W |
| Luminous efficacy | 136lm/W |
| Control | Plus/DALI |
| Wt. (kg) | 13.9 |
Floodlight FL 20 midi, PL43, direct asymmetric distribution, with wall fastening
Order No.: 5XA7682D3A2ACGTIN (EAN): 4058352222812
| Colour temperature | 5000K |
|---|---|
| Col |
