Lunis 21

ProducttypesConfiguration & Datasheets

Clear design, precise light distribution and easy installation - that is Lunis 21. The universal downlight solution is available in various sizes as an efficient and flexible lighting solution for standard applications. It therefore represents an efficient refurbishment alternative to conventional downlights.

Our core portfolio: Lunis 21 is our downlight with the highest standards of efficiency, quality and flexibility for your project

Data

Article downlight
Lighting effect direct wide distribution
Net luminous flux 2180lm to 3560lm
Colour temperature 3000K; 4000K
Control ON/OFF; ON/OFF Multilumen; DALI 2
Emergency light with self-contained supply

Specials

Downlight family for all classic applications, also as a replacement for downlights with conventional equipment
Very easy to assemble due to low installation depth, suitable for concrete installation housing (KompaX® 3)
Also suitable for office lighting with UGR ≤ 19

Configuration & Datasheets

Colour temperature

Light colour

Luminous flux

Control

Emergency light

Results

Lunis 21 XL, wide distribution, Light colour 840, ON/OFF Multilumen

Order No.: 51DB15MF4D GTIN (EAN): 4058352555248
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationD (mm)HeightWt. (kg)
4000KCRI > 802280lm18W129lm/WON/OFF Multilumen 21366mm1.0

Lunis 21 XL, wide distribution, Light colour 830, ON/OFF Multilumen

Order No.: 51DB15MF3D GTIN (EAN): 4058352555217
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationD (mm)HeightWt. (kg)
3000KCRI > 802180lm19W114lm/WON/OFF Multilumen 21366mm1.0

Lunis 21 XL, wide distribution, Light colour 840, DALI 2

Order No.: 51DB15DF42 GTIN (EAN): 4058352555095
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationD (mm)HeightWt. (kg)
4000KCRI > 802280lm18W129lm/WDALI 2 21366mm1.0

Lunis 21 XL, wide distribution, Light colour 830, DALI 2

Order No.: 51DB15DF32 GTIN (EAN): 4058352555033
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationD (mm)HeightWt. (kg)
3000KCRI > 802180lm19W114lm/WDALI 2 21366mm1.0

Lunis 21 XL, wide distribution, Light colour 840, DALI 2

Order No.: 51DB15DF43 GTIN (EAN): 4058352555125
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationD (mm)HeightWt. (kg)
4000KCRI > 803560lm31W115lm/WDALI 2 21366mm1.0

Lunis 21 XL, wide distribution, Light colour 830, DALI 2

Order No.: 51DB15DF33 GTIN (EAN): 4058352555088
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationD (mm)HeightWt. (kg)
3000KCRI > 803360lm31W109lm/WDALI 2 21366mm1.0

Lunis 21 XL, wide distribution, Light colour 840, DALI 2, 3h

Order No.: 51DB15DF4301 GTIN (EAN): 4058352710883
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationD (mm)HeightWt. (kg)
4000KCRI > 803560lm31W115lm/WDALI 23h21366mm1.5

Lunis 21 XL, wide distribution, Light colour 830, ON/OFF

Order No.: 51DB157F33 GTIN (EAN): 4058352710869
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationD (mm)HeightWt. (kg)
3000KCRI > 803360lm31W109lm/WON/OFF 21366mm1.0

Lunis 21 XL, wide distribution, Light colour 830, ON/OFF, 3h

Order No.: 51DB157F333 GTIN (EAN): 4058352710876
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationD (mm)HeightWt. (kg)
3000KCRI > 803360lm31W109lm/WON/OFF3h21366mm1.5

Lunis 21 XL, wide distribution, Light colour 840, ON/OFF Multilumen

Order No.: 51DB15MF4DGTIN (EAN): 4058352555248

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux2280lm
Connected load18W
Luminous efficacy129lm/W
ControlON/OFF Multilumen
Battery duration

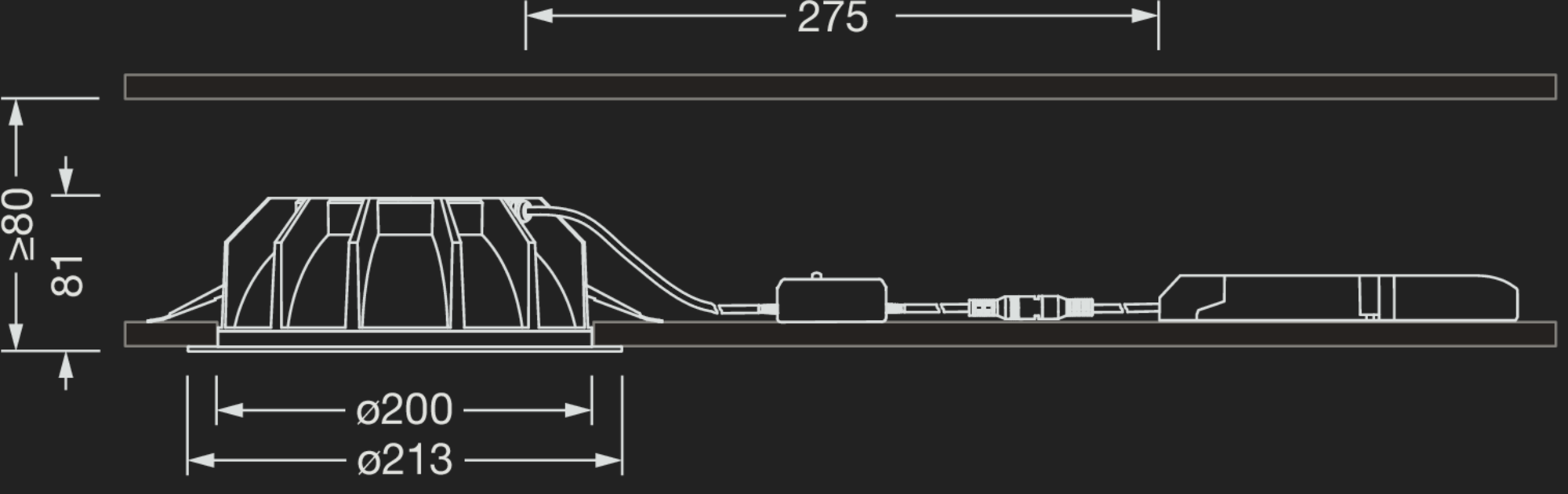

D (mm)213
Height66mm
Wt. (kg)1.0

Lunis 21 XL, wide distribution, Light colour 830, ON/OFF Multilumen

Order No.: 51DB15MF3DGTIN (EAN): 4058352555217

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux2180lm
Connected load19W
Luminous efficacy114lm/W
ControlON/OFF Multilumen
Battery duration
D (mm)213
Height66mm
Wt. (kg)1.0

Lunis 21 XL, wide distribution, Light colour 840, DALI 2

Order No.: 51DB15DF42GTIN (EAN): 4058352555095

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux2280lm
Connected load18W
Luminous efficacy129lm/W
ControlDALI 2
Battery duration
D (mm)213
Height66mm
Wt. (kg)1.0

Lunis 21 XL, wide distribution, Light colour 830, DALI 2

Order No.: 51DB15DF32GTIN (EAN): 4058352555033

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux2180lm
Connected load19W
Luminous efficacy114lm/W
ControlDALI 2
Battery duration
D (mm)213
Height66mm
Wt. (kg)1.0

Lunis 21 XL, wide distribution, Light colour 840, DALI 2

Order No.: 51DB15DF43GTIN (EAN): 4058352555125

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux3560lm
Connected load31W
Luminous efficacy115lm/W
ControlDALI 2
Battery duration
D (mm)213
Height66mm
Wt. (kg)1.0

Lunis 21 XL, wide distribution, Light colour 830, DALI 2

Order No.: 51DB15DF33GTIN (EAN): 4058352555088

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux3360lm
Connected load31W
Luminous efficacy109lm/W
ControlDALI 2
Battery duration
D (mm)213
Height66mm
Wt. (kg)1.0

Lunis 21 XL, wide distribution, Light colour 840, DALI 2, 3h

Order No.: 51DB15DF4301GTIN (EAN): 4058352710883

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux3560lm
Connected load31W
Luminous efficacy115lm/W
ControlDALI 2
Battery duration3h
D (mm)213
Height66mm
Wt. (kg)1.5

Lunis 21 XL, wide distribution, Light colour 830, ON/OFF

Order No.: 51DB157F33GTIN (EAN): 4058352710869

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux3360lm
Connected load31W
Luminous efficacy109lm/W
ControlON/OFF
Battery duration
D (mm)213
Height66mm
Wt. (kg)1.0

Lunis 21 XL, wide distribution, Light colour 830, ON/OFF, 3h

Order No.: 51DB157F333GTIN (EAN): 4058352710876

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux3360lm
Connected load31W
Luminous efficacy109lm/W
ControlON/OFF
Battery duration3h
D (mm)213
Height66mm
Wt. (kg)1.5
