Ecopack® 31

Product typesConfiguration & data sheets

The Ecopack® 31 adapts to all requirements with adjustable light colours and luminous flux. Additional variability is provided by DALI variants and optional motion sensors as well as an emergency light kit.

The variable light line

Product types

Ecopack® 31

Ecopack® 31

Intro product family

Key data

Article diffuser luminaire
Lighting effect direct symmetric extremely wide distribution
Net luminous flux 2600lm to 7000lm
Colour temperature 3000/4000/5000K; 4000K
Control ON/OFF; ON/OFF Multilumen; DALI 2
Cover PC
Protection rating IP20
Insulation class insulation class I (protective earthing)
Impact resistance IK06; IK02

Special features

Light colour and luminous flux adjustable via switch
DALI variants for problem-free lighting control
Motion detection by optional PIR sensor
3h emergency light kit turns any 1149mm or 1450mm long luminaire into an emergency luminaire

Configuration & data sheets

Colour temperature

Light colour

Rated luminous flux (lm)

Control

Impact resistance

Operating ambient temperature

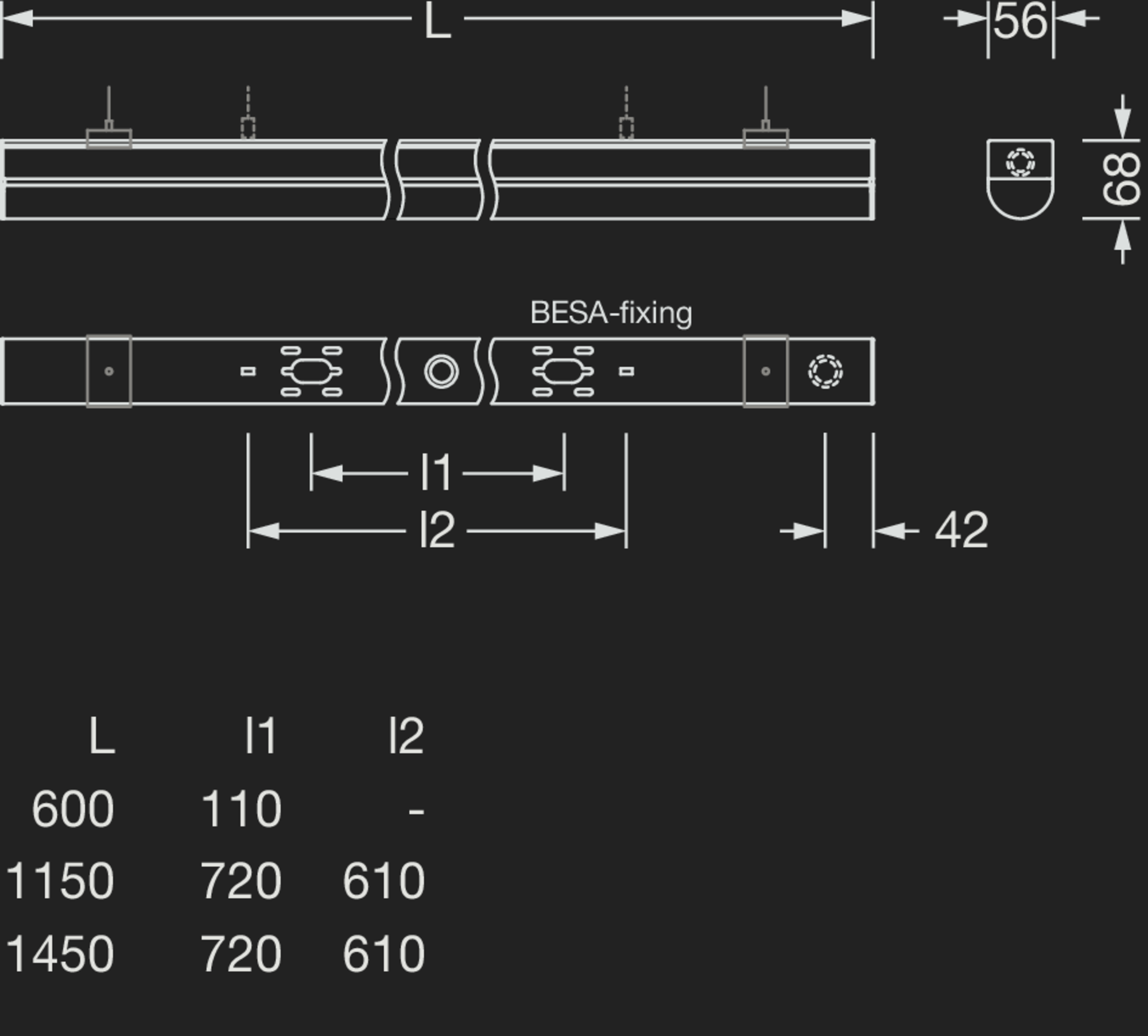

Length (mm)

  • emergency light kit only suitable for luminaire lengths 1149 and 1450mm

Results

Ecopack 31, extremely wide distribution, ON/OFF Multilumen, PC

Order No.: 51LJ12MDM20A GTIN (EAN): 4058352589533
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlL (mm)Wt. (kg)
3000/4000/5000KCRI > 802600lm20W130lm/WON/OFF Multilumen6000.8
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Ecopack 31, extremely wide distribution, ON/OFF Multilumen, PC

Order No.: 51LJ12MKM40A GTIN (EAN): 4058352589564
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlL (mm)Wt. (kg)
3000/4000/5000KCRI > 804800lm35W135lm/WON/OFF Multilumen11501.2
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Ecopack 31, extremely wide distribution, ON/OFF Multilumen, PC

Order No.: 51LJ12MNM70A GTIN (EAN): 4058352589595
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlL (mm)Wt. (kg)
3000/4000/5000KCRI > 807000lm50W140lm/WON/OFF Multilumen14501.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Ecopack 31, extremely wide distribution, DALI 2, PC

Order No.: 51LJ12DKM40A GTIN (EAN): 4058352589519
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlL (mm)Wt. (kg)
3000/4000/5000KCRI > 804300lm33W130lm/WDALI 211501.2
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Ecopack 31, extremely wide distribution, DALI 2, PC

Order No.: 51LJ12DNM80A GTIN (EAN): 4058352589526
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlL (mm)Wt. (kg)
3000/4000/5000KCRI > 807000lm52W135lm/WDALI 214501.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Ecopack 31, extremely wide distribution, ON/OFF, PC

Order No.: 51LJ127N430A GTIN (EAN): 4058352622483
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlL (mm)Wt. (kg)
4000KCRI > 803000lm21W140lm/WON/OFF14501.5
Show all details
Tender textData sheet (PDF, full)Complete download list

Ecopack 31, extremely wide distribution, ON/OFF, PC

Order No.: 51LJ127N430A3G GTIN (EAN): 4058352622513
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlL (mm)Wt. (kg)
4000KCRI > 803000lm23W133lm/WON/OFF14601.8
Show all details
Tender textData sheet (PDF, full)Complete download list

Ecopack 31, extremely wide distribution, ON/OFF Multilumen, PC

Order No.: 51LJ12MKM40A3G GTIN (EAN): 4058352671085
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlL (mm)Wt. (kg)
3000/4000/5000KCRI > 804800lm35W135lm/WON/OFF Multilumen11491.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Ecopack 31, extremely wide distribution, ON/OFF Multilumen, PC

Order No.: 51LJ12MNM70A3G GTIN (EAN): 4058352671115
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlL (mm)Wt. (kg)
3000/4000/5000KCRI > 807000lm50W140lm/WON/OFF Multilumen14501.8
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Ecopack 31, extremely wide distribution, ON/OFF Multilumen, PC

Order No.: 51LJ12MDM20AGTIN (EAN): 4058352589533

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux2600lm
Connected load20W
Luminous efficacy130lm/W
ControlON/OFF Multilumen
L (mm)600
Wt. (kg)0.8
Show all details

Ecopack 31, extremely wide distribution, ON/OFF Multilumen, PC

Order No.: 51LJ12MKM40AGTIN (EAN): 4058352589564

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux4800lm
Connected load35W
Luminous efficacy135lm/W
ControlON/OFF Multilumen
L (mm)1150
Wt. (kg)1.2
Show all details

Ecopack 31, extremely wide distribution, ON/OFF Multilumen, PC

Order No.: 51LJ12MNM70AGTIN (EAN): 4058352589595

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux7000lm
Connected load50W
Luminous efficacy140lm/W
ControlON/OFF Multilumen
L (mm)1450
Wt. (kg)1.5
Show all details

Ecopack 31, extremely wide distribution, DALI 2, PC

Order No.: 51LJ12DKM40AGTIN (EAN): 4058352589519

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux4300lm
Connected load33W
Luminous efficacy130lm/W
ControlDALI 2
L (mm)1150
Wt. (kg)1.2
Show all details

Ecopack 31, extremely wide distribution, DALI 2, PC

Order No.: 51LJ12DNM80AGTIN (EAN): 4058352589526

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux7000lm
Connected load52W
Luminous efficacy135lm/W
ControlDALI 2
L (mm)1450
Wt. (kg)1.5
Show all details

Ecopack 31, extremely wide distribution, ON/OFF, PC

Order No.: 51LJ127N430AGTIN (EAN): 4058352622483

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux3000lm
Connected load21W
Luminous efficacy140lm/W
ControlON/OFF
L (mm)1450
Wt. (kg)1.5
Show all details

Ecopack 31, extremely wide distribution, ON/OFF, PC

Order No.: 51LJ127N430A3GGTIN (EAN): 4058352622513

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux3000lm
Connected load23W
Luminous efficacy133lm/W
ControlON/OFF
L (mm)1460
Wt. (kg)1.8
Show all details

Ecopack 31, extremely wide distribution, ON/OFF Multilumen, PC

Order No.: 51LJ12MKM40A3GGTIN (EAN): 4058352671085

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux4800lm
Connected load35W
Luminous efficacy135lm/W
ControlON/OFF Multilumen
L (mm)1149
Wt. (kg)1.5
Show all details

Ecopack 31, extremely wide distribution, ON/OFF Multilumen, PC

Order No.: 51LJ12MNM70A3GGTIN (EAN): 4058352671115

Colour temperature3000/4000/5000K
Colour renderingCRI > 80
Luminous flux7000lm
Connected load50W
Luminous efficacy140lm/W
ControlON/OFF Multilumen
L (mm)1450
Wt. (kg)1.8
Show all details

Optional accessories

Articleceiling mountingPU2 pcs.Wt. (kg)0.1Order No.: 59LJ101GTIN (EAN): 4058352612309Show all details
Articlewire suspension with ceiling canopy, suspension height up to 2.0mPU2 pcs.Wt. (kg)0.1Order No.: 59LJ102GTIN (EAN): 4058352612330Show all details
Articlemulti-sensor, traffic white (RAL 9016)PU1 pc.Wt. (kg)0.1Order No.: 59LJ201GTIN (EAN): 4058352612361Show all details
Articleremote controlPU1 pc.Wt. (kg)0.1Order No.: 59LJ202GTIN (EAN): 4058352612415Show all details
Articleemergency light elementPU1 pc.Wt. (kg)0.3Order No.: 59LJ203GTIN (EAN): 4058352612422Show all details
