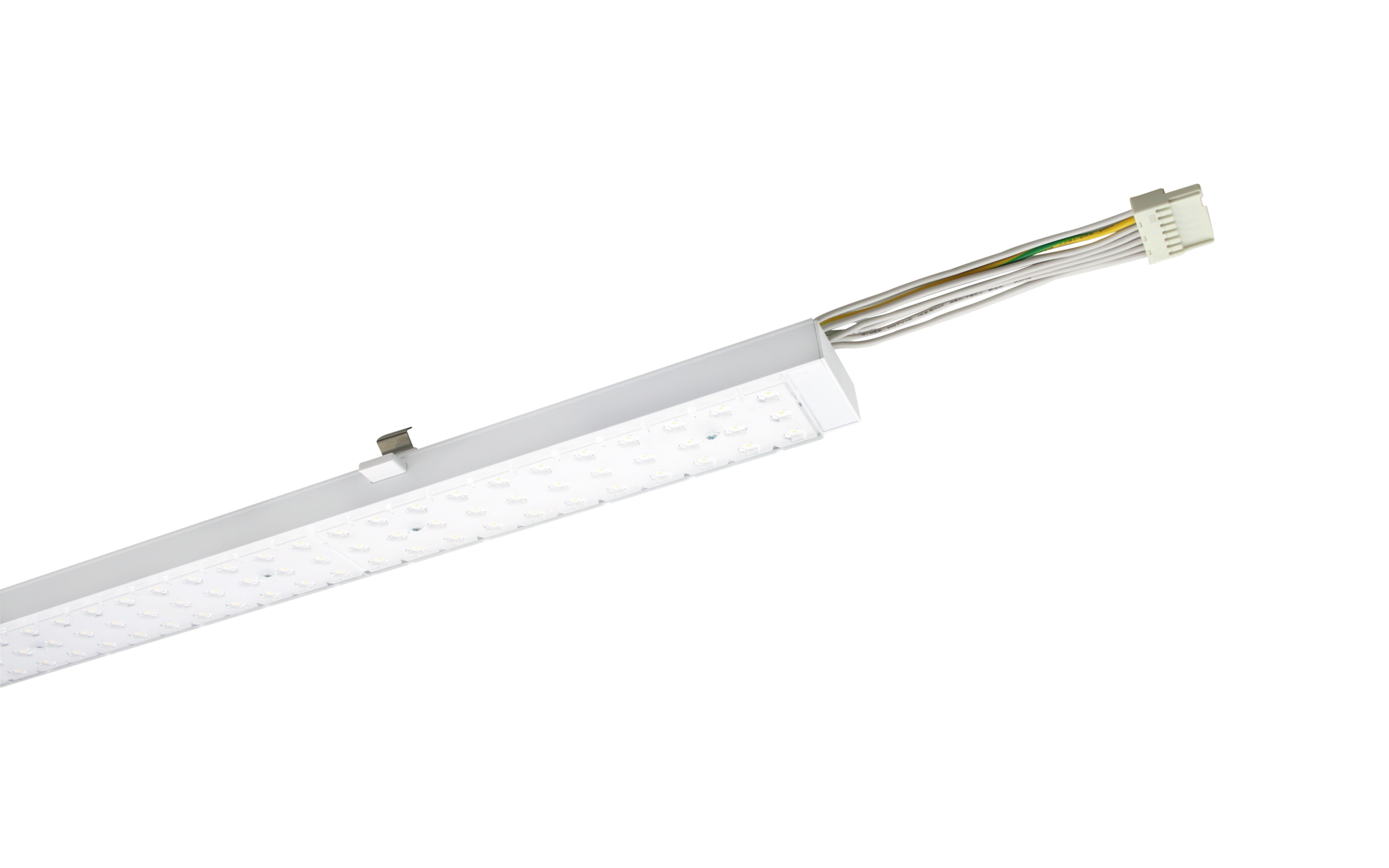

Trunking Flex 31 refurbishment luminaire insert
The universal light carrier is available with different light distributions and light colours and can be adapted to existing trunkings with the appropriate accessories. The length is adjusted by individual end caps for butt-to-butt assembly. The electrical contact is made with separately available plugs including the supply cable.
Light carrier for refurbishment
Trunking Flex 31 refurbishment luminaire insert with through-wiring
Intro product family
Key data
Article luminaire insert
Protection rating IP20
Colour temperature 4000K
Lighting effect direct wide distribution
Special features
Simple refurbishment of all standard continuous-row trunking systems: Always suitable and secure thanks to solid universal spring catch with automatic earthing of the existing track
Maximum cost-effectiveness: rapid amortisation thanks to simple refurbishment and luminous efficacy > 180lm/W
Refurbishment independent of the wiring of the existing system: thanks to integrated through-wiring
Flexible in use: with optimised light distribution and multi-lumen function
Can be integrated into modern lighting control systems: through DALI-2 versions
Eligible: fulfils all requirements for BEG funding
Configuration & data sheets
- Multilumen on/off ECG with six luminous flux levels
- housing overhang (20mm) at the joints
Results
Trunking Flex 31, wide distribution, IP20, AC, with Through-wiring 7x 2.5mm²
Order No.: 51RF12DB49XG5007 GTIN (EAN): 4069025487803
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 9000 | 49W | 182lm/W | DALI 2 | -25..+45°C | IP20 | 1475 | 1.6 |
Trunking Flex 31, wide distribution, IP20, AC, with Through-wiring 7x 2.5mm²
Order No.: 51RF12MB49XG5007 GTIN (EAN): 4069025487827
| Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 9100 | 51W | 180lm/W | ON/OFF Multilumen | -25..+45°C | IP20 | 1475 | 1.9 |
Trunking Flex 31, wide distribution, IP20, AC, with Through-wiring 7x 2.5mm²
Order No.: 51RF12DB49XG5007GTIN (EAN): 4069025487803
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 9000 |
| Connected load | 49W |
| Luminous efficacy | 182lm/W |
| Control | DALI 2 |
| ta | -25..+45°C |
| Protection rating | IP20 |

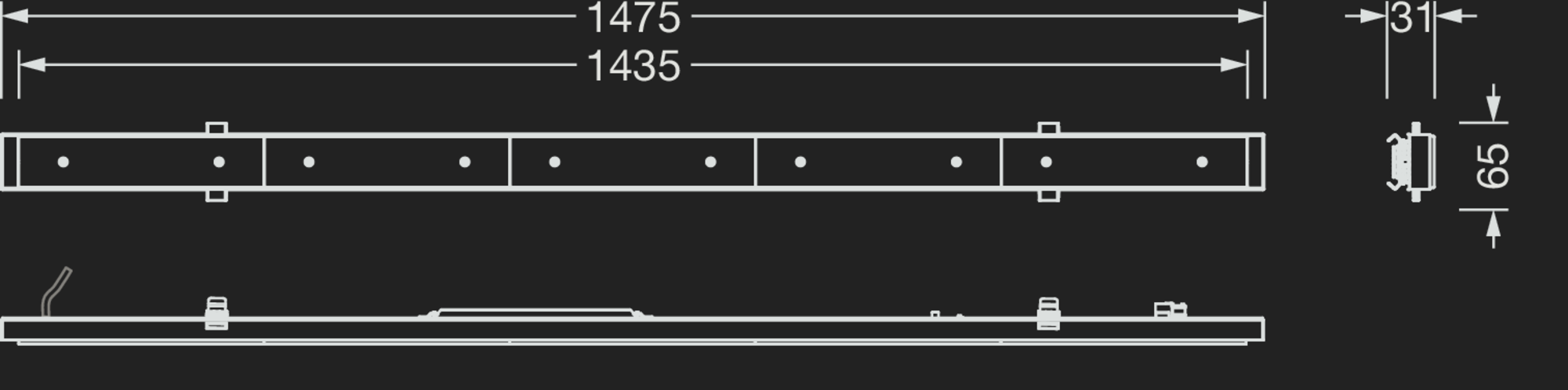

| L (mm) | 1475 |
| Wt. (kg) | 1.6 |
Trunking Flex 31, wide distribution, IP20, AC, with Through-wiring 7x 2.5mm²
Order No.: 51RF12MB49XG5007GTIN (EAN): 4069025487827
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Net luminous flux (lm) | 9100 |
| Connected load | 51W |
| Luminous efficacy | 180lm/W |
| Control | ON/OFF Multilumen |
| ta | -25..+45°C |
| Protection rating | IP20 |
| L (mm) | 1475 |
| Wt. (kg) | 1.9 |
Optional accessories
| Order No.: 59RT007GTIN (EAN): 4058352765173 | Show all details |
| Order No.: 59RF1FNKGTIN (EAN): 4069025327550 | Show all details |
| Order No.: 59RF1FTKGTIN (EAN): 4069025327604 | Show all details |
| Order No.: 59RE10AGTIN (EAN): 4058352777169 | Show all details |
| Order No.: 59RE10BGTIN (EAN): 4058352777183 | Show all details |
