Silica® 21 Floor R

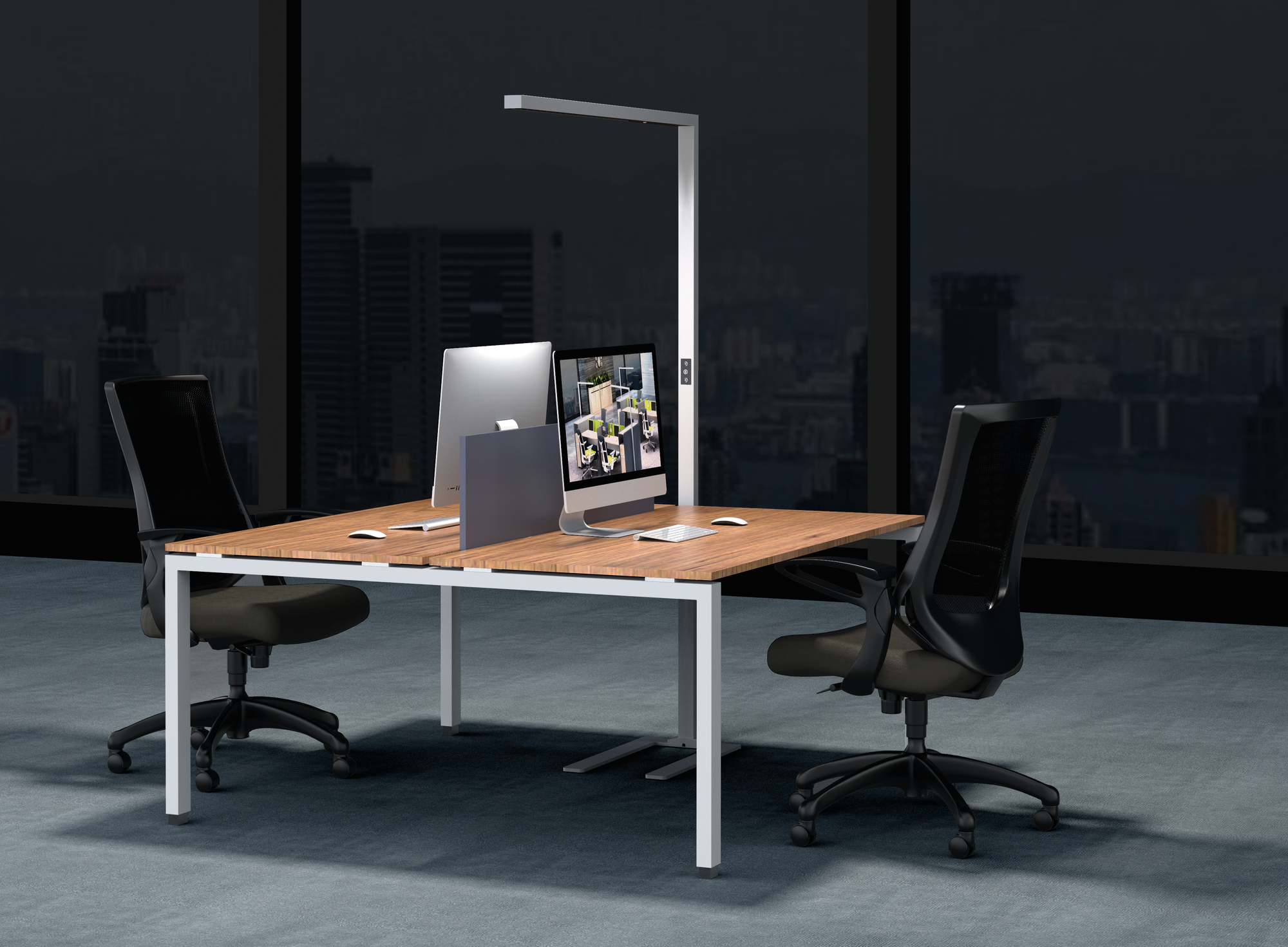

The timeless floorstanding luminaire is the ideal basis for a smart office through flexible expansion with intelligent sensors, for example for room data collection with an open interface. According to DIN EN 12464-1, two workplaces can be illuminated very homogeneously and in accordance with standards. The Silica® 21 Floor R creates a pleasant room atmosphere through very wide ceiling illumination. Maintenance and expansion is easy thanks to the gear tray principle and access to the electronics compartment.
Unser Kernportfolio: So flexibel wie moderne Arbeitskonzepte
Producttypes
Silica® 21 Floor R
Intro to Productfamily
Data
Article floorstanding luminaire
Lighting effect indirect/direct symmetric wide distribution
Net luminous flux 15000lm
Colour temperature 4000K
Control DALI 2
Supplement with ambient light and presence detector
Specials
Configuration & Datasheets
- luminaires with intelligent sensors (spatial data acquisition) on request
- App for operating and controlling the full range of functions on request
- luminaire for four workstations on request
- luminaire partly premounted, luminaire head with electrical plug connector
Results
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 15000lm | 106.4W | 141lm/W | DALI 2 | traffic white (RAL 9016) | 15.0 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 15000lm | 106.4W | 141lm/W | DALI 2 | jet black (RAL 9005) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 15000lm | 106.4W | 141lm/W | DALI 2 | metallic grey (RAL 9006) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control
Order No.: 51MX53SG4DWGTIN (EAN): 4058352602362
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 15000lm |
| Connected load | 106.4W |
| Luminous efficacy | 141lm/W |
| Control | DALI 2 |

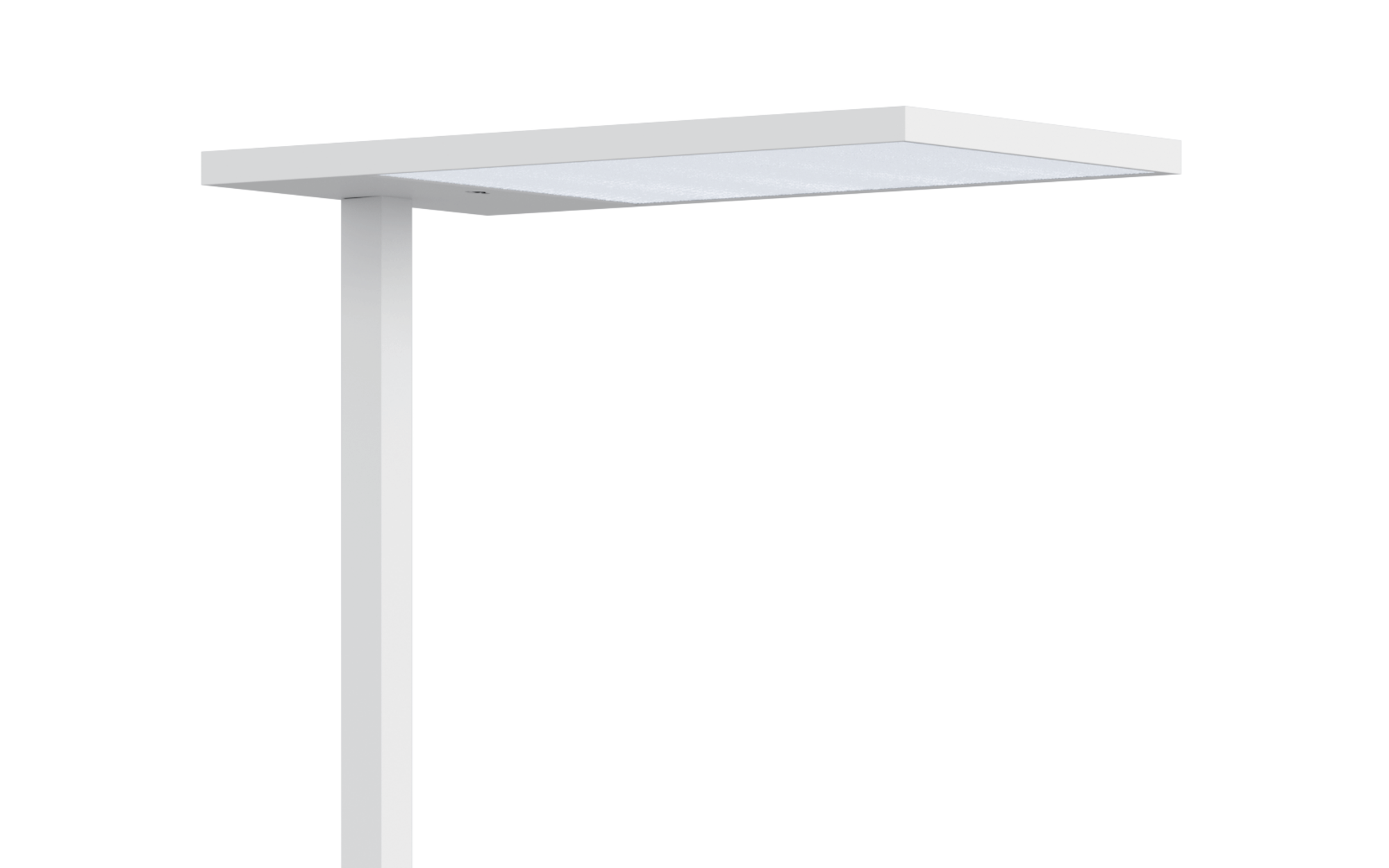

| Colour | traffic white (RAL 9016) |
| Wt. (kg) | 15.0 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control
Order No.: 51MX53SG4DBGTIN (EAN): 4058352602324
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 15000lm |
| Connected load | 106.4W |
| Luminous efficacy | 141lm/W |
| Control | DALI 2 |

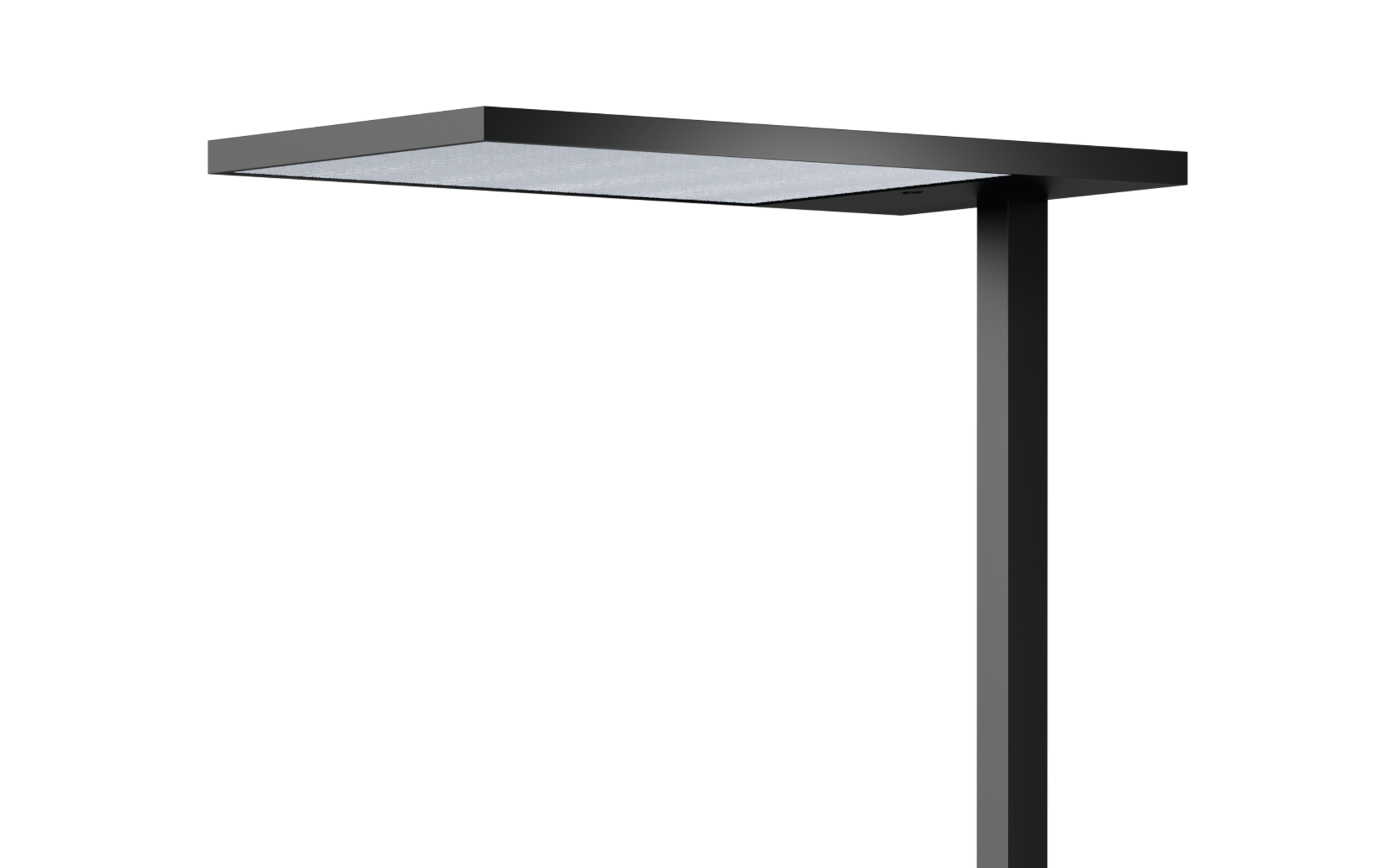

| Colour | jet black (RAL 9005) |
| Wt. (kg) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control
Order No.: 51MX53SG4DSGTIN (EAN): 4058352602348
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 15000lm |
| Connected load | 106.4W |
| Luminous efficacy | 141lm/W |
| Control | DALI 2 |
| Colour | metallic grey (RAL 9006) |
| Wt. (kg) | 15.1 |
