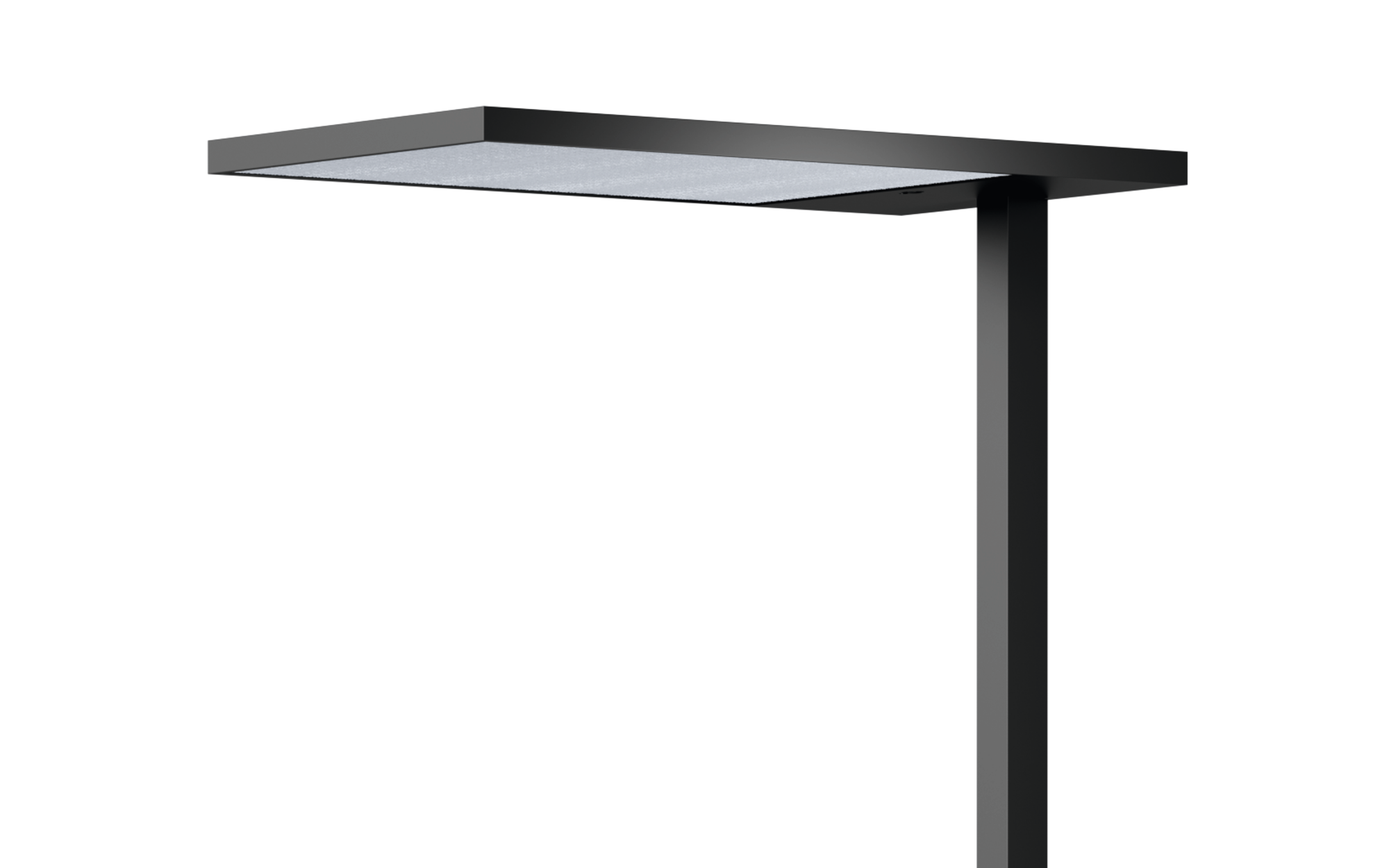

Silica® 21 Floor R
This timeless floorstanding luminaire is the ideal basis for a pleasant office atmosphere. According to DIN EN 12464-1, two workstations can be illuminated very evenly and in compliance with standards. The Silica® 21 Floor R creates a pleasant room atmosphere through its very broad ceiling illumination.
Our core portfolio: As flexible as modern work concepts
Product types
Silica® 21 Floor R
Intro product family
Key data
Article floorstanding luminaire
Lighting effect indirect/direct symmetric wide distribution
Net luminous flux 13750lm to 15000lm
Colour temperature 3000K; 4000K
Control DALI 2
Supplement with ambient light and presence detector
Special features
Very homogeneous and standard-compliant illumination of two workplaces in accordance with DIN EN 12464-1
Pleasant room atmosphere due to very wide ceiling illumination
Simple intuitive operation via rocker push button
Variants with separately dimmable direct and indirect components available
Configuration & data sheets
- luminaires with intelligent sensors (spatial data acquisition) on request
- App for operating and controlling the full range of functions on request
- luminaire for four workstations on request
- luminaire partly premounted, luminaire head with electrical plug connector
Results
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control, dimmable
Order No.: 51MX53SG4DW GTIN (EAN): 4058352602362
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 15000lm | 106.4W | 141lm/W | DALI 2 | traffic white (RAL 9016) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control, dimmable
Order No.: 51MX53SG4DB GTIN (EAN): 4058352602324
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 15000lm | 106.4W | 141lm/W | DALI 2 | jet black (RAL 9005) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control, dimmable
Order No.: 51MX53SG4DS GTIN (EAN): 4058352602348
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 15000lm | 106.4W | 141lm/W | DALI 2 | metallic grey (RAL 9006) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control, direct and indirect component separately switchable
Order No.: 51MX53SG4EW GTIN (EAN): 4058352986073
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 15000lm | 106.4W | 141lm/W | DALI 2 | traffic white (RAL 9016) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control, direct and indirect component separately switchable
Order No.: 51MX53SG4EB GTIN (EAN): 4058352986059
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 15000lm | 106.4W | 141lm/W | DALI 2 | jet black (RAL 9005) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control, direct and indirect component separately switchable
Order No.: 51MX53SG4ES GTIN (EAN): 4069025195906
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 15000lm | 106.4W | 141lm/W | DALI 2 | metallic grey (RAL 9006) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control, dimmable
Order No.: 51MX53SG3DB GTIN (EAN): 4058352602263
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 13750lm | 106W | 130lm/W | DALI 2 | jet black (RAL 9005) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control, dimmable
Order No.: 51MX53SG3DS GTIN (EAN): 4058352602294
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 13750lm | 106W | 130lm/W | DALI 2 | metallic grey (RAL 9006) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control, dimmable
Order No.: 51MX53SG3DW GTIN (EAN): 4058352602300
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 13750lm | 106W | 130lm/W | DALI 2 | traffic white (RAL 9016) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control, direct and indirect component separately switchable
Order No.: 51MX53SG3EB GTIN (EAN): 4069025311269
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 13750lm | 106W | 130lm/W | DALI 2 | jet black (RAL 9005) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control, direct and indirect component separately switchable
Order No.: 51MX53SG3ES GTIN (EAN): 4069025311283
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 13750lm | 106W | 130lm/W | DALI 2 | metallic grey (RAL 9006) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control, direct and indirect component separately switchable
Order No.: 51MX53SG3EW GTIN (EAN): 4069025311306
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Colour | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 13750lm | 106W | 130lm/W | DALI 2 | traffic white (RAL 9016) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control, dimmable
Order No.: 51MX53SG4DWGTIN (EAN): 4058352602362
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 15000lm |
| Connected load | 106.4W |
| Luminous efficacy | 141lm/W |
| Control | DALI 2 |
| Colour | traffic white (RAL 9016) |
| Wt. (kg) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control, dimmable
Order No.: 51MX53SG4DBGTIN (EAN): 4058352602324
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 15000lm |
| Connected load | 106.4W |
| Luminous efficacy | 141lm/W |
| Control | DALI 2 |
| Colour | jet black (RAL 9005) |
| Wt. (kg) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control, dimmable
Order No.: 51MX53SG4DSGTIN (EAN): 4058352602348
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 15000lm |
| Connected load | 106.4W |
| Luminous efficacy | 141lm/W |
| Control | DALI 2 |
| Colour | metallic grey (RAL 9006) |
| Wt. (kg) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control, direct and indirect component separately switchable
Order No.: 51MX53SG4EWGTIN (EAN): 4058352986073
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 15000lm |
| Connected load | 106.4W |
| Luminous efficacy | 141lm/W |
| Control | DALI 2 |
| Colour | traffic white (RAL 9016) |
| Wt. (kg) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control, direct and indirect component separately switchable
Order No.: 51MX53SG4EBGTIN (EAN): 4058352986059
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 15000lm |
| Connected load | 106.4W |
| Luminous efficacy | 141lm/W |
| Control | DALI 2 |
| Colour | jet black (RAL 9005) |
| Wt. (kg) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control, direct and indirect component separately switchable
Order No.: 51MX53SG4ESGTIN (EAN): 4069025195906
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 15000lm |
| Connected load | 106.4W |
| Luminous efficacy | 141lm/W |
| Control | DALI 2 |
| Colour | metallic grey (RAL 9006) |
| Wt. (kg) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control, dimmable
Order No.: 51MX53SG3DBGTIN (EAN): 4058352602263
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 13750lm |
| Connected load | 106W |
| Luminous efficacy | 130lm/W |
| Control | DALI 2 |
| Colour | jet black (RAL 9005) |
| Wt. (kg) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control, dimmable
Order No.: 51MX53SG3DSGTIN (EAN): 4058352602294
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 13750lm |
| Connected load | 106W |
| Luminous efficacy | 130lm/W |
| Control | DALI 2 |
| Colour | metallic grey (RAL 9006) |
| Wt. (kg) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control, dimmable
Order No.: 51MX53SG3DWGTIN (EAN): 4058352602300
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 13750lm |
| Connected load | 106W |
| Luminous efficacy | 130lm/W |
| Control | DALI 2 |
| Colour | traffic white (RAL 9016) |
| Wt. (kg) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control, direct and indirect component separately switchable
Order No.: 51MX53SG3EBGTIN (EAN): 4069025311269
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 13750lm |
| Connected load | 106W |
| Luminous efficacy | 130lm/W |
| Control | DALI 2 |
| Colour | jet black (RAL 9005) |
| Wt. (kg) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control, direct and indirect component separately switchable
Order No.: 51MX53SG3ESGTIN (EAN): 4069025311283
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 13750lm |
| Connected load | 106W |
| Luminous efficacy | 130lm/W |
| Control | DALI 2 |
| Colour | metallic grey (RAL 9006) |
| Wt. (kg) | 15.1 |
Silica® 21 Floor R, with ambient light and presence detector, for daylight-dependent control, direct and indirect component separately switchable
Order No.: 51MX53SG3EWGTIN (EAN): 4069025311306
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 13750lm |
| Connected load | 106W |
| Luminous efficacy | 130lm/W |
| Control | DALI 2 |
| Colour | traffic white (RAL 9016) |
| Wt. (kg) | 15.1 |
