Batten 41
The Batten 41 is the light line solution for all areas of life. The universally usable LED batten luminaire is designed both for single arrangements and for uninterrupted, continuous lines of light. Thanks to its compact design, it also fits into cramped installation conditions and is suitable for angled arrangements.
Simple, functional, linear
Product types
Siluette 41
Intro product family
Key data
Article batten luminaire
Lighting effect direct symmetric diffuse distribution
Net luminous flux 1000lm to 2000lm
Colour temperature 3000/4000/5000K
Control ON/OFF
Cover PC
Protection rating IP20
Insulation class insulation class II (safety insulation)
Special features
Universally usable LED batten luminaire with integrated operating device

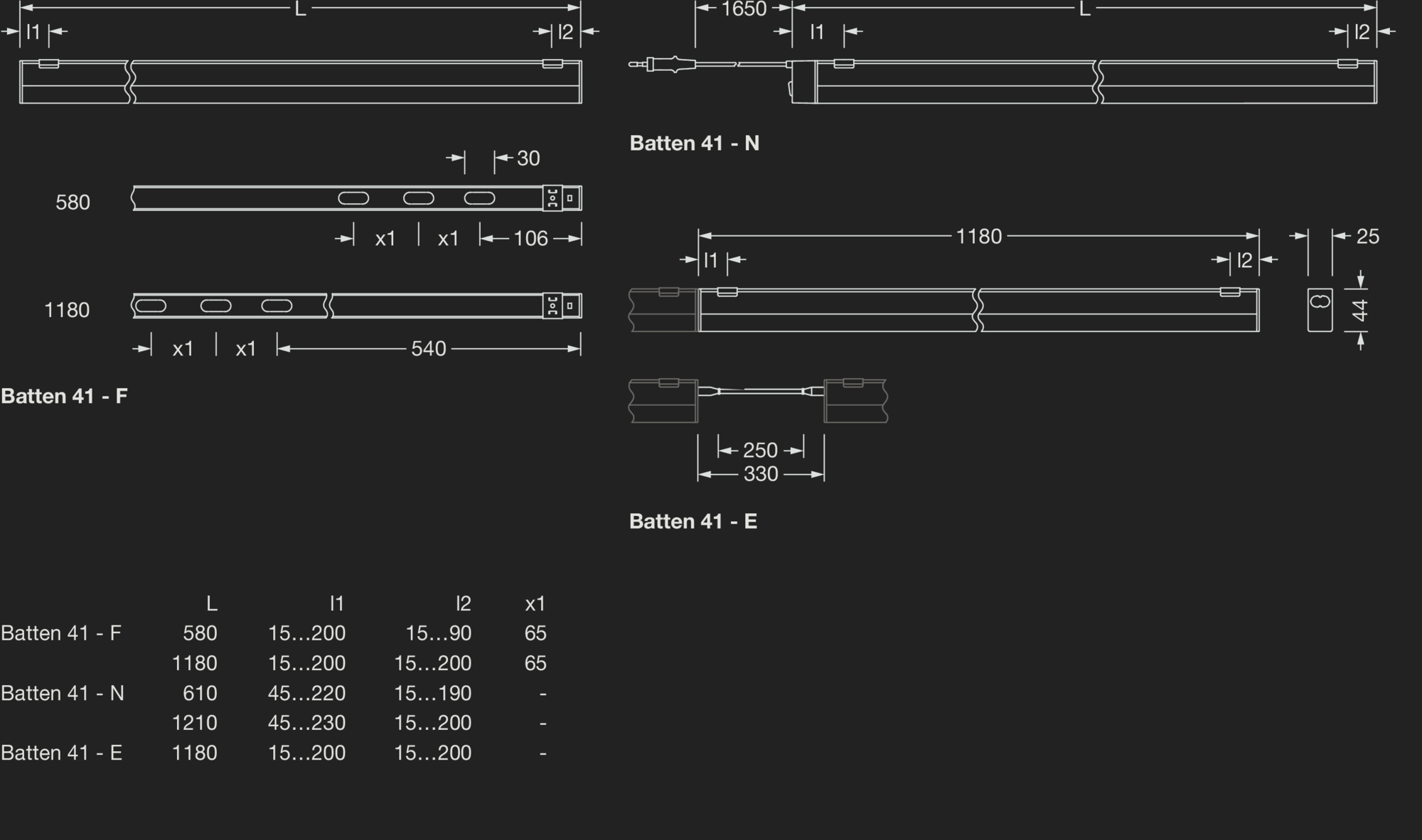

Also suitable for tight installation spaces thanks to compact luminaire cross-section (25 x 44mm)
Non-interrupted, continuous light lines without dark spots up to 15 metres in length
Angled arrangements possible with flexible connection cable
Pleasant spatial atmosphere and good visual comfort due to glare-free, uniformly wide light distribution
Permissible ambient temperature range to 40°C
Simple, time-saving mounting also in tight installation spaces due to mounting clips and electrical plug connector
Mounting material and plug connector included in the scope of supply of the corresponding luminaire
Configuration & data sheets
- includes mounting clips
- Siluette 41-N: including connection cable with Euro flat plug (l = 1.65m)
- Silhouette 41-F: with terminal for fixed connection
- Siluette 41-E: including system connector (plug-in adapter, connecting cable (l = 250mm) for continuous row arrangement (up to max. 13 luminaires)
- For each trunking, one 'Siluette 41-N' (with mains plug) or one 'Siluette 41-F' (for fixed connection) and the desired number of 'Siluette 41-E' (extension luminaire) are required; (max. 15 luminaires are permitted for each trunking system)
Results
Siluette® 41-F, Light colour 830/840/850, ON/OFF, terminal, 2-pole
Order No.: 51LP327DM10AF GTIN (EAN): 4058352704936
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000/4000/5000K | CRI > 80 | 1000lm | 8.3W | 120lm/W | ON/OFF | 580 | 0.3 |
Siluette® 41-F, Light colour 830/840/850, ON/OFF, terminal, 2-pole
Order No.: 51LP327KM20AF GTIN (EAN): 4058352705025
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000/4000/5000K | CRI > 80 | 2000lm | 16W | 125lm/W | ON/OFF | 1180 | 0.5 |

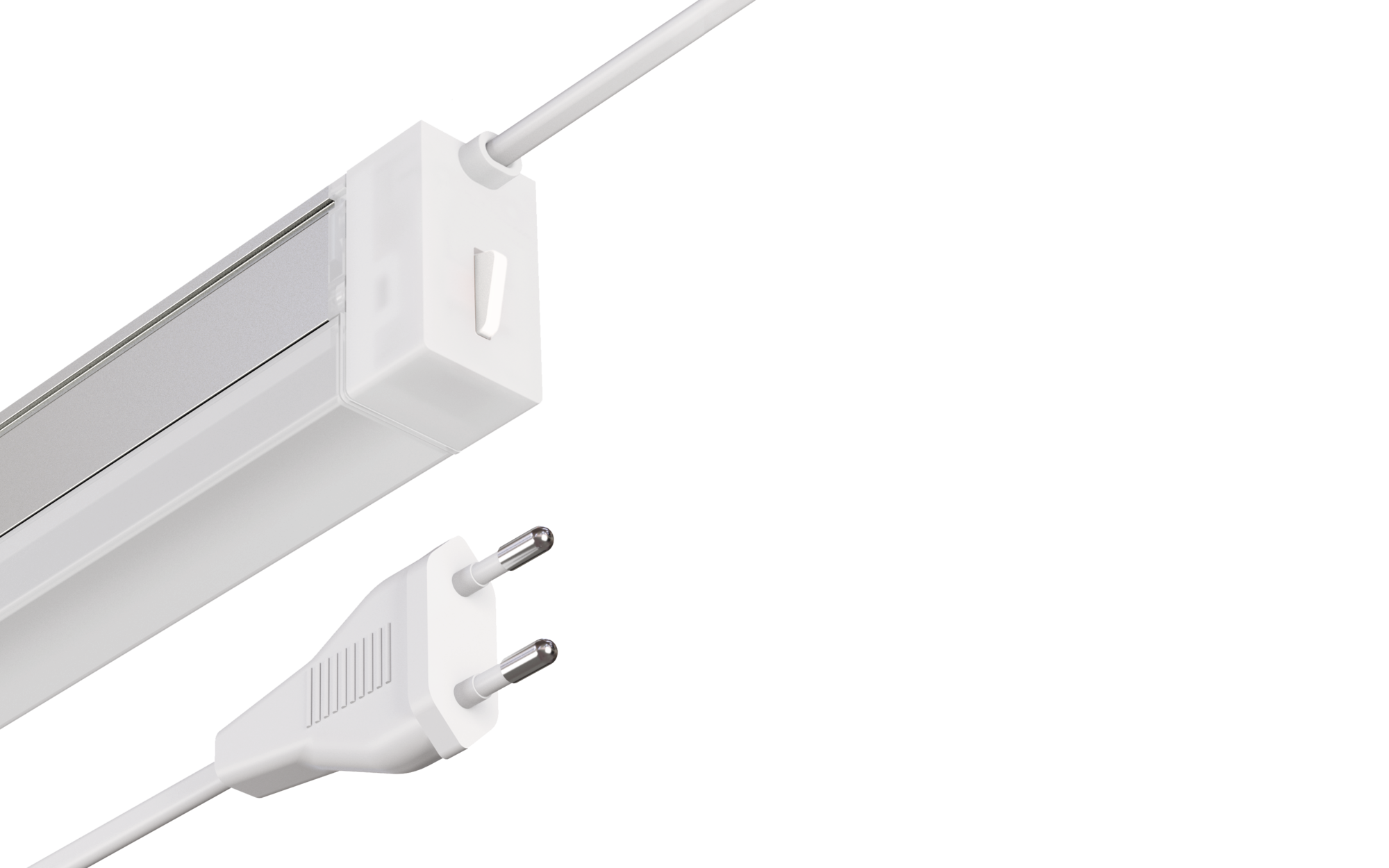

Siluette® 41-N, Light colour 830/840/850, ON/OFF, cable with plug, with switch
Order No.: 51LP327DM10AN GTIN (EAN): 4058352704967
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000/4000/5000K | CRI > 80 | 1000lm | 8.3W | 120lm/W | ON/OFF | 610 | 0.4 |
Siluette® 41-N, Light colour 830/840/850, ON/OFF, cable with plug, with switch
Order No.: 51LP327KM20AN GTIN (EAN): 4058352705070
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000/4000/5000K | CRI > 80 | 2000lm | 16W | 125lm/W | ON/OFF | 1210 | 0.6 |
Siluette® 41-E, Light colour 830/840/850, ON/OFF, system connector: socket
Order No.: 51LP327KM20AE GTIN (EAN): 4058352704998
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|
| 3000/4000/5000K | CRI > 80 | 2000lm | 16W | 125lm/W | ON/OFF | 1180 | 0.5 |
Siluette® 41-F, Light colour 830/840/850, ON/OFF, terminal, 2-pole
Order No.: 51LP327DM10AFGTIN (EAN): 4058352704936
| Colour temperature | 3000/4000/5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1000lm |
| Connected load | 8.3W |
| Luminous efficacy | 120lm/W |
| Control | ON/OFF |
| L (mm) | 580 |
| Wt. (kg) | 0.3 |
Siluette® 41-F, Light colour 830/840/850, ON/OFF, terminal, 2-pole
Order No.: 51LP327KM20AFGTIN (EAN): 4058352705025
| Colour temperature | 3000/4000/5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2000lm |
| Connected load | 16W |
| Luminous efficacy | 125lm/W |
| Control | ON/OFF |
| L (mm) | 1180 |
| Wt. (kg) | 0.5 |
Siluette® 41-N, Light colour 830/840/850, ON/OFF, cable with plug, with switch
Order No.: 51LP327DM10ANGTIN (EAN): 4058352704967
| Colour temperature | 3000/4000/5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1000lm |
| Connected load | 8.3W |
| Luminous efficacy | 120lm/W |
| Control | ON/OFF |
| L (mm) | 610 |
| Wt. (kg) | 0.4 |
Siluette® 41-N, Light colour 830/840/850, ON/OFF, cable with plug, with switch
Order No.: 51LP327KM20ANGTIN (EAN): 4058352705070
| Colour temperature | 3000/4000/5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2000lm |
| Connected load | 16W |
| Luminous efficacy | 125lm/W |
| Control | ON/OFF |
| L (mm) | 1210 |
| Wt. (kg) | 0.6 |
Siluette® 41-E, Light colour 830/840/850, ON/OFF, system connector: socket
Order No.: 51LP327KM20AEGTIN (EAN): 4058352704998
| Colour temperature | 3000/4000/5000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2000lm |
| Connected load | 16W |
| Luminous efficacy | 125lm/W |
| Control | ON/OFF |
| L (mm) | 1180 |
| Wt. (kg) | 0.5 |
