Monsun® 11

ProducttypesConfiguration & Datasheets

Reliable, robust and with retrofittable sensors. The Monsun® 11 is well prepared for harsh environments. It impresses with standard-compliant lighting and low operating costs, even with On/Off types, thanks to the intelligent CLOi luminous flux control. Thanks to multilumen technology and a large number of different equipment options, the luminaire family enables the necessary adaptability and is ready for a wide variety of lighting tasks - today and tomorrow.

Our performance solution: Monsun® 11 is our innovative luminaire with higher protection rating with maximum efficiency, service life and flexibility

Producttypes

Monsun® 11 | 1590mm | 70,000h at 35°C

Monsun® 11 | 1590mm | 100,000h at 25°C

Monsun® 11 Xtreme | 1590mm | 70,000h at up to 60°C

Monsun® 11 Emergency | 1590mm

Monsun® 11 Parking | 1590mm

Monsun® 11 Facade | 1590mm

Monsun® 11 | 1590mm - for livestock farming

mounting rail for Monsun® 11/21 | 1590mm

Monsun® 11 Parking | 1590mm

Intro to Productfamily

Data

Article damp-proof luminaire
Lighting effect direct symmetric wide distribution
Net luminous flux 4820lm to 4840lm
Colour temperature 4000K
Control ON/OFF; DALI 2
Cover PC
Protection rating IP66
Insulation class insulation class I (protective earthing)
Protection symbol D
Impact resistance IK08
Halogen freeness internal wiring halogen-free
IFS corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry

Specials

Multilumen technology with luminous fluxes up to 12,000lm for maximum adaptability
Very robust with IP66 protection rating and suitable for outdoor use
in ambient temperatures up to 50°C
Simple maintenance and easy upgrading of sensors due to tool-free opening of the luminaire

Configuration & Datasheets

Rated luminous flux (lm)

Control

Through-wiring

Operating ambient temperature

  • includes ceiling fixing element and chain hanger of V2A; surface-mounting to ceilings without further luminaire-specific mounting accessories; for further installation methods: please order mounting accessory separately
  • for chain suspension: please order chain separately
  • for wall mounting: please order anti-theft/wall mounting protection separately
  • for further installation methods: please order mounting accessory separately
  • for greater anti-theft safety for all types of installation: if required, please order anti-theft/wall mounting protection separately
  • Some luminaires with through-wiring as standard; for other luminaires: please order through-wiring separately if required

Results

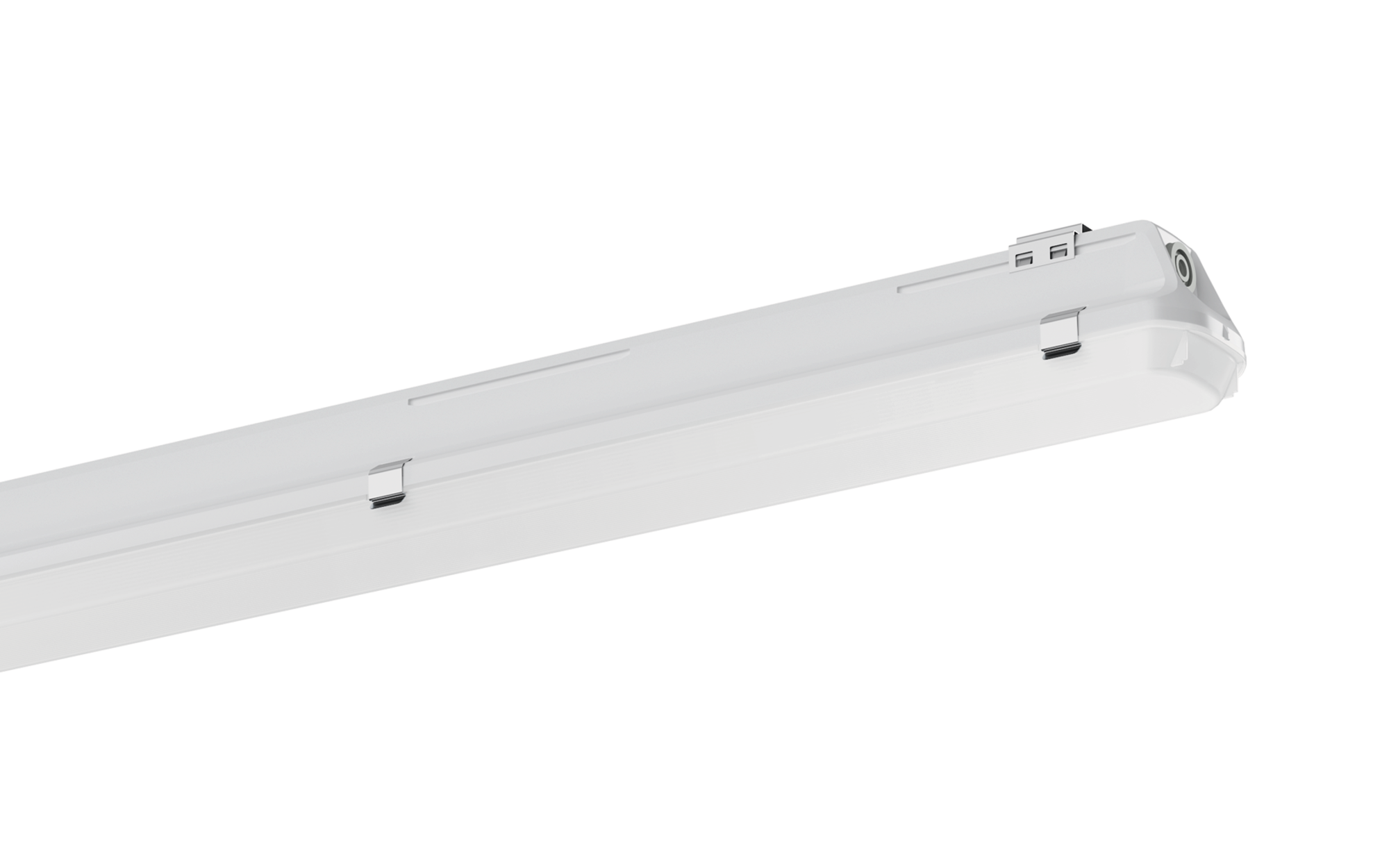

Monsun® 11 parking, wide distribution, ON/OFF, PC

Order No.: 51FG207P440H GTIN (EAN): 4058352391341
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlThrough-wiringtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 804820lm29W165lm/WON/OFF -35..+40°CIK0815902.5
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Monsun® 11 parking, wide distribution, DALI 2, PC

Order No.: 51FG20DP440L GTIN (EAN): 4069025268631
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlThrough-wiringtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 804840lm28W172lm/WDALI 2 -25..+40°CIK0815902.5
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Monsun® 11 parking, wide distribution, DALI 2, PC

Order No.: 51FG20DP440L007 GTIN (EAN): 4069025268655
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlThrough-wiringtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 804840lm28W172lm/WDALI 27x 2.5mm²-25..+40°CIK0815902.8
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Monsun® 11 parking, wide distribution, ON/OFF, PC

Order No.: 51FG207P440HGTIN (EAN): 4058352391341

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4820lm
Connected load29W
Luminous efficacy165lm/W
ControlON/OFF
Through-wiring
ta-35..+40°C
Impact resistanceIK08
L (mm)1590
Wt. (kg)2.5
Show details

Monsun® 11 parking, wide distribution, DALI 2, PC

Order No.: 51FG20DP440LGTIN (EAN): 4069025268631

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4840lm
Connected load28W
Luminous efficacy172lm/W
ControlDALI 2
Through-wiring
ta-25..+40°C
Impact resistanceIK08
L (mm)1590
Wt. (kg)2.5
Show details

Monsun® 11 parking, wide distribution, DALI 2, PC

Order No.: 51FG20DP440L007GTIN (EAN): 4069025268655

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4840lm
Connected load28W
Luminous efficacy172lm/W
ControlDALI 2
Through-wiring7x 2.5mm²
ta-25..+40°C
Impact resistanceIK08
L (mm)1590
Wt. (kg)2.8
Show details

Optional accessory

Articlethrough-wiring, 3-core, 2.5mm², L= 1.4m, with terminal, for interrupted trunkingPU1 pc.Wt. (kg)0.1Order No.: 58FV003GTIN (EAN): 4058352409473Show details
Articlethrough-wiring, 5-core, 2.5mm², L= 1.4m, with terminal, for interrupted trunkingPU1 pc.Wt. (kg)0.1Order No.: 58FV005GTIN (EAN): 4058352409503Show details
Articlethrough-wiring, 7-core, 2.5mm², L= 1.4m, with terminal, for interrupted trunkingPU1 pc.Wt. (kg)0.3Order No.: 58FV007GTIN (EAN): 4058352409510Show details
Articlethrough-wiring, 5-core, 2.5mm², L= 1.7m, with terminal, for continuous trunkingPU1 pc.Wt. (kg)0.2Order No.: 58FV009GTIN (EAN): 4058352409534Show details
Articletwin cable gland, M25, rubber, for cables, Ø 8.4..12mmPU1 pc.Wt. (kg)0.1Order No.: 58FV00DGTIN (EAN): 4058352409558Show details
Articlecable gland with climate membrane, M20, PA / EPDM / ePTFE / silicone, for cables, Ø 6..13mmPU1 pc.Wt. (kg)0.1Order No.: 58FT003GTIN (EAN): 4058352410332Show details
Articlecable gland, M25, PA / silicone, for cables, Ø 9..17mmPU1 pc.Wt. (kg)0.1Order No.: 58FT004GTIN (EAN): 4058352410356Show details
Articlecable gland with climate membrane, M25, PA / EPDM / ePTFE / silicone, for cables, Ø 9..17mmPU1 pc.Wt. (kg)0.1Order No.: 58FT005GTIN (EAN): 4058352410370Show details
Articlelink chain, steel, galvanisedPUrun. m.Wt. (kg)0.1Order No.: 5LY9001GTIN (EAN): 4039806184290Show details
Articlelink chain, stainless steel (V2A)PUrun. m.Wt. (kg)0.1Order No.: 5LY9002GTIN (EAN): 4039806184313Show details
Articlequick-release link, stainless steel (V2A)PU1 pc.Wt. (kg)0.1Order No.: 5LY9004GTIN (EAN): 4039806184368Show details
Articlewall fastening, inclinablePU2 pcs.Wt. (kg)0.2Order No.: 58FM002GTIN (EAN): 4058352410257Show details
Articlepipe clip fixing, for pipe diameter 1.5"PU2 pcs.Wt. (kg)0.2Order No.: 58FM003GTIN (EAN): 4058352426500Show details
Articlepipe clip fixing, for pipe diameter 2"PU2 pcs.Wt. (kg)0.2Order No.: 58FM004GTIN (EAN): 4058352426524Show details
Articlewall fastening, horizontal mounting, vertical mountingPU2 pcs.Wt. (kg)0.1Order No.: 58FM007GTIN (EAN): 4058352410295Show details
Articlefixing reinforcementPU2 pcs.Wt. (kg)0.1Order No.: 58FM006GTIN (EAN): 4058352410271Show details
Articlespring clip, surface-mounted to the Licross® mounting railPU2 pcs.Wt. (kg)0.1Order No.: 58FM001GTIN (EAN): 4058352410233Show details
Articlespring clip, surface-mounted to the DUS® mounting railPU2 pcs.Wt. (kg)0.1Order No.: 58FM008GTIN (EAN): 4058352426548Show details
Articlecable infeed, M20, rubber, for cables, Ø 6..13mmPU1 pc.Wt. (kg)0.1Order No.: 59FT001GTIN (EAN): 4058352410394Show details
Articlecable infeed, M25, rubber, for cables, Ø 9..17mmPU1 pc.Wt. (kg)0.1Order No.: 58FT002GTIN (EAN): 4058352410318Show details
Articlemounting rail, for suspended mounting, surface-mounted, L= 1590mmPU1 pc.Wt. (kg)1.7Order No.: 58FS001GTIN (EAN): 4058352474945Show details
Articlemounting rail, for suspended mounting, surface-mounted, L= 3180mmPU1 pc.Wt. (kg)3.5Order No.: 58FS002GTIN (EAN): 4058352474976Show details

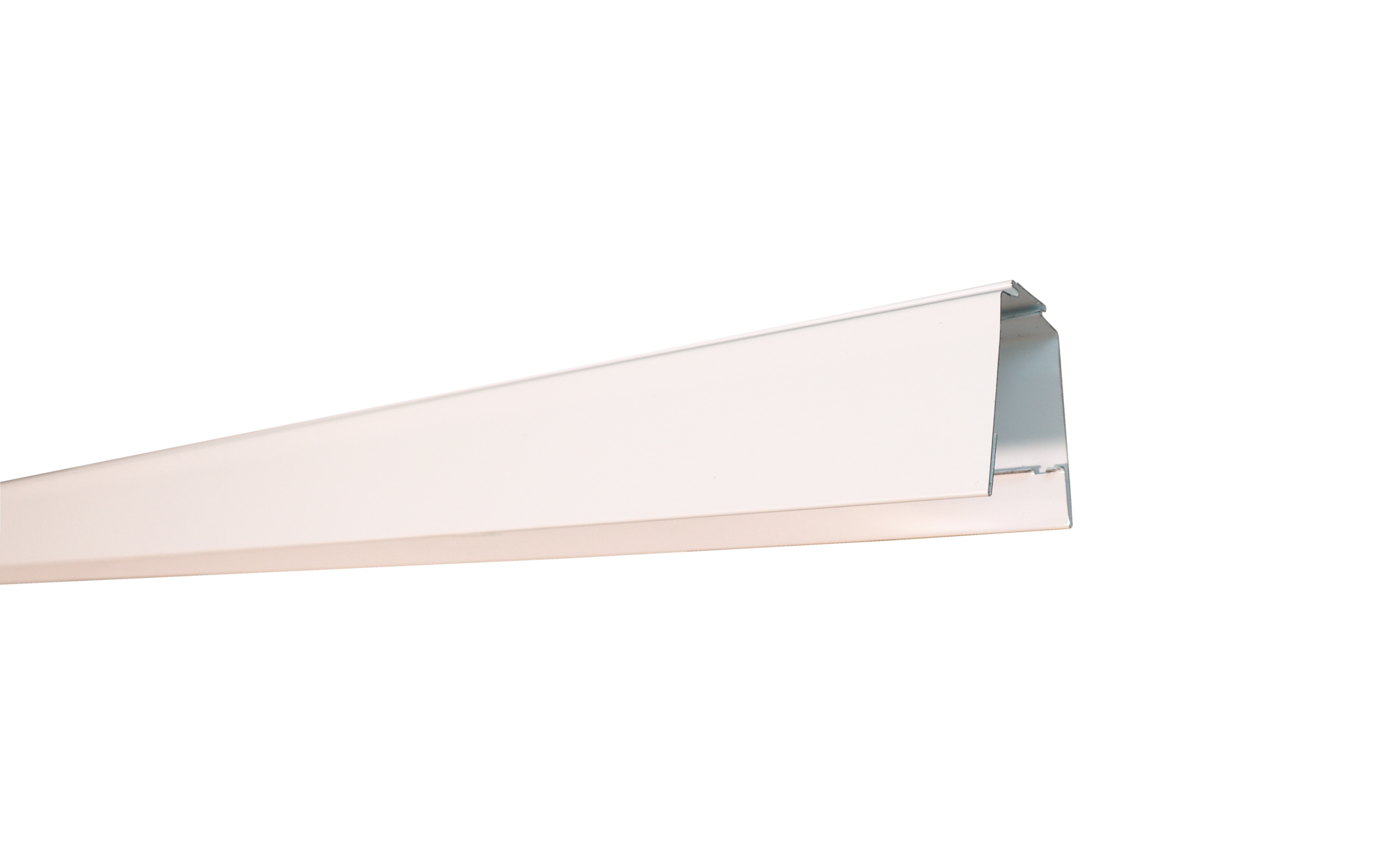

Articlemounting rail, for suspended mounting, surface-mounted, L= 4770mmPU1 pc.Wt. (kg)5.2Order No.: 58FS003GTIN (EAN): 4058352475799Show details
Articleconnector, steel, galvanisedPU1 pc.Wt. (kg)0.3Order No.: 58FS005GTIN (EAN): 4058352477052Show details
Articlecable holder, for supplementary wiring in the trunking railPU10 pcs.Wt. (kg)0.1Order No.: 59TR1HGTIN (EAN): 4058352476222Show details
Articleend cap for rail, white, for IP20 protection ratingPU2 pcs.Wt. (kg)0.1Order No.: 59TL1SGTIN (EAN): 4058352272589Show details
Articleblank cover, white, for IP20/IP40 protection ratingPU1 pc.Wt. (kg)0.2Order No.: 58FS006GTIN (EAN): 4058352466605Show details
Articleenclosure, PC, UV-stabilised, L= 1590mmPU1 pc.Wt. (kg)0.5Order No.: 59FW002GTIN (EAN): 4058352409596Show details
