Silica® 11

ProducttypesConfiguration & Datasheets

Silica® 11 combines simplicity and elegance in a high quality, linear housing. The appearance as a continuous row is made possible by the integrated ECG and, together with a large number of customization options, creates architectural integration in sophisticated environments. Silica® stands for lighting technology at the highest level: the hybrid optics system with optimal glare control creates the ideal conditions for comfortable working at computer workstations. Thanks to the optional Tunable White function, all variants are ideally suited for SITECO HCLlive applications to increase well-being and motivation.

office lighting in a new light: compact, simple, well thought out

Producttypes

Silica® 11

Silica® 11

Intro to Productfamily

Data

Article office luminaire
Lighting effect direct symmetric wide distribution; wallwasher - direct asymmetric wide distribution
Net luminous flux 3010lm to 9910lm
Colour temperature 4000K
Control DALI 2

Specials

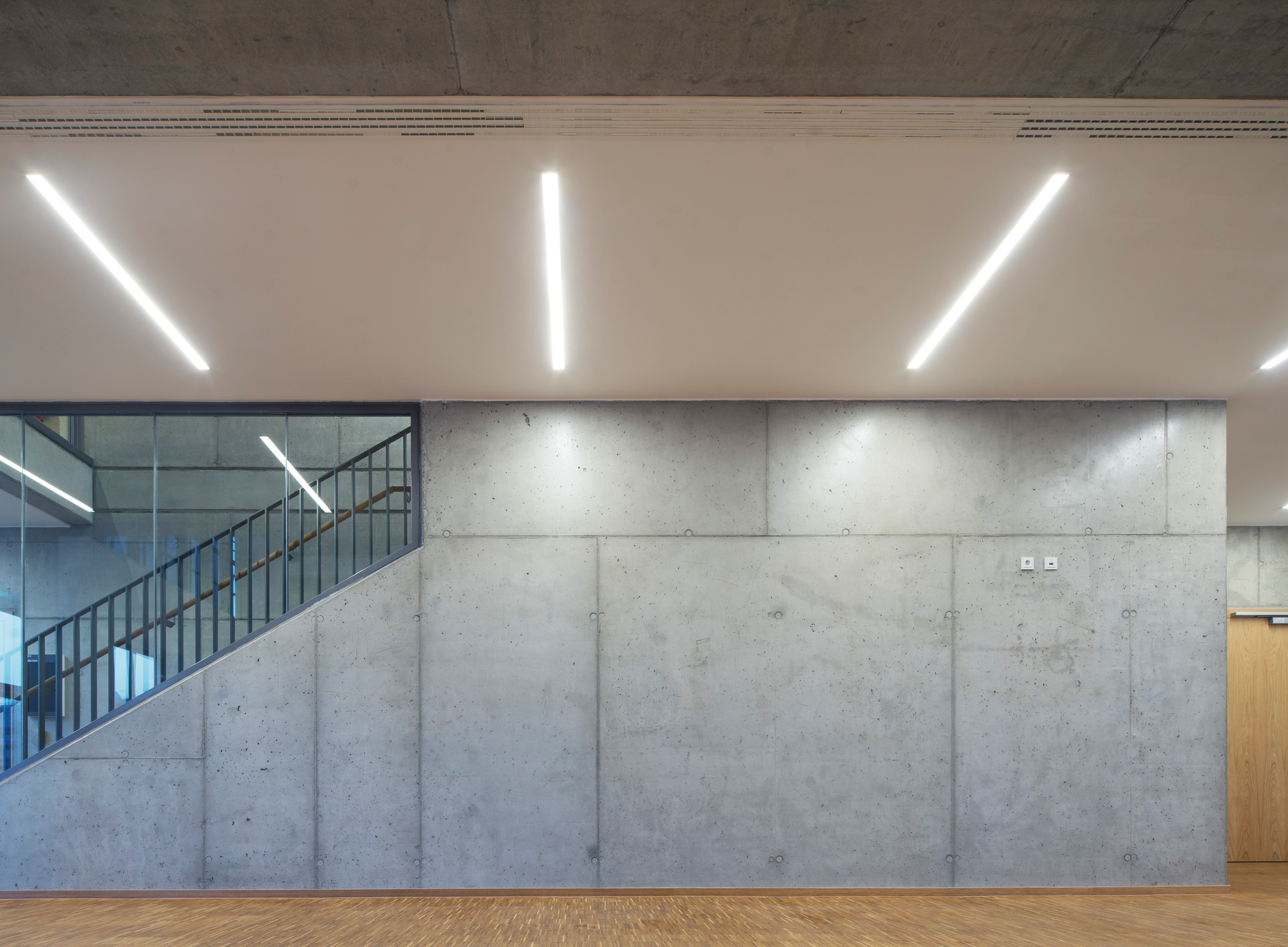

Ceiling surface mounting as the simplest way to modern, stylish office lighting

Configuration & Datasheets

Colour

Lighting effect

Surface

Rated luminous flux (lm)

UGR

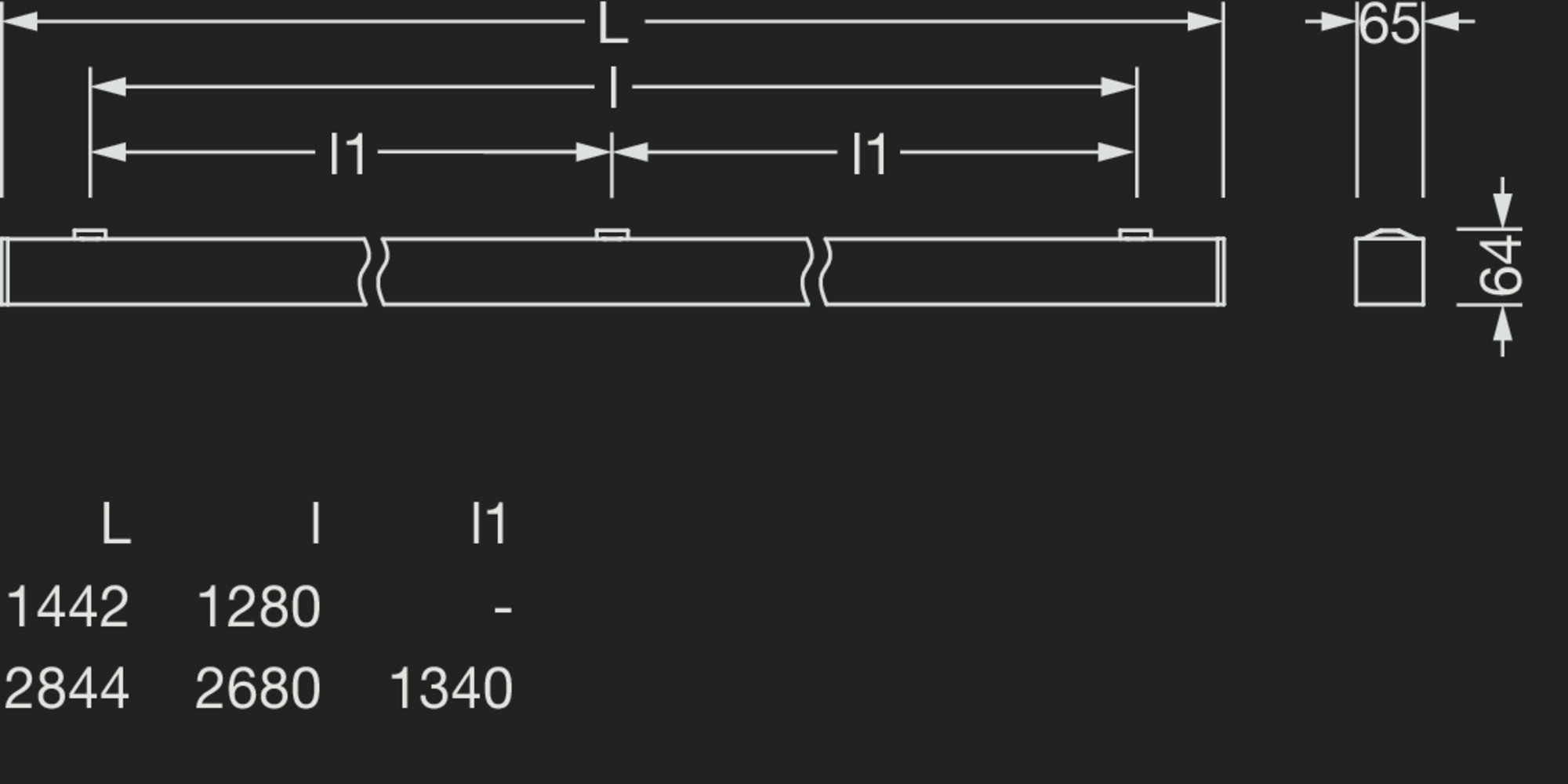

Length (mm)

  • incl. quick-fit mounting brackets; surface-mounting to ceilings without further luminaire-specific mounting accessories

Results

Silica®, direct distribution, ≤ 19, Light colour 840, DALI 2, silver

Order No.: 5MX21BD1E4A GTIN (EAN): 4058352305331
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlL (mm)Wt. (kg)
4000KCRI > 804950lm29W169lm/WDALI 214423.6
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Silica®, direct distribution, ≤ 19, Light colour 840, DALI 2, traffic white (RAL 9016)

Order No.: 5MX21BD1W4A GTIN (EAN): 4058352305348
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlL (mm)Wt. (kg)
4000KCRI > 804950lm29W169lm/WDALI 214423.6
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Silica®, direct distribution, ≤ 19, Light colour 840, DALI 2, silver

Order No.: 5MX21BD2E4A GTIN (EAN): 4058352305355
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlL (mm)Wt. (kg)
4000KCRI > 809910lm60W165lm/WDALI 228447.2
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Silica®, direct distribution, ≤ 19, Light colour 840, DALI 2, traffic white (RAL 9016)

Order No.: 5MX21BD2W4A GTIN (EAN): 4058352305362
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlL (mm)Wt. (kg)
4000KCRI > 809910lm60W165lm/WDALI 228447.2
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Silica®, direct distribution, opal, ≤ 25, Light colour 840, DALI 2, traffic white (RAL 9016)

Order No.: 5MX21DD1W4A GTIN (EAN): 4058352305386
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlL (mm)Wt. (kg)
4000KCRI > 803010lm24W123lm/WDALI 214423.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Silica®, direct distribution, wallwasher, Light colour 840, DALI 2, silver

Order No.: 5MX22WD1E4A GTIN (EAN): 4058352305416
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlL (mm)Wt. (kg)
4000KCRI > 804680lm29W160lm/WDALI 214423.6
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Silica®, direct distribution, wallwasher, Light colour 840, DALI 2, traffic white (RAL 9016)

Order No.: 5MX22WD1W4A GTIN (EAN): 4058352305423
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlL (mm)Wt. (kg)
4000KCRI > 804680lm29W160lm/WDALI 214423.6
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Silica®, direct distribution, ≤ 19, Light colour 840, DALI 2, silver

Order No.: 5MX21BD1E4AGTIN (EAN): 4058352305331

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4950lm
Connected load29W
Luminous efficacy169lm/W
ControlDALI 2
L (mm)1442
Wt. (kg)3.6
Show details

Silica®, direct distribution, ≤ 19, Light colour 840, DALI 2, traffic white (RAL 9016)

Order No.: 5MX21BD1W4AGTIN (EAN): 4058352305348

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4950lm
Connected load29W
Luminous efficacy169lm/W
ControlDALI 2
L (mm)1442
Wt. (kg)3.6
Show details

Silica®, direct distribution, ≤ 19, Light colour 840, DALI 2, silver

Order No.: 5MX21BD2E4AGTIN (EAN): 4058352305355

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux9910lm
Connected load60W
Luminous efficacy165lm/W
ControlDALI 2
L (mm)2844
Wt. (kg)7.2
Show details

Silica®, direct distribution, ≤ 19, Light colour 840, DALI 2, traffic white (RAL 9016)

Order No.: 5MX21BD2W4AGTIN (EAN): 4058352305362

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux9910lm
Connected load60W
Luminous efficacy165lm/W
ControlDALI 2
L (mm)2844
Wt. (kg)7.2
Show details

Silica®, direct distribution, opal, ≤ 25, Light colour 840, DALI 2, traffic white (RAL 9016)

Order No.: 5MX21DD1W4AGTIN (EAN): 4058352305386

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux3010lm
Connected load24W
Luminous efficacy123lm/W
ControlDALI 2
L (mm)1442
Wt. (kg)3.3
Show details

Silica®, direct distribution, wallwasher, Light colour 840, DALI 2, silver

Order No.: 5MX22WD1E4AGTIN (EAN): 4058352305416

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4680lm
Connected load29W
Luminous efficacy160lm/W
ControlDALI 2
L (mm)1442
Wt. (kg)3.6
Show details

Silica®, direct distribution, wallwasher, Light colour 840, DALI 2, traffic white (RAL 9016)

Order No.: 5MX22WD1W4AGTIN (EAN): 4058352305423

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4680lm
Connected load29W
Luminous efficacy160lm/W
ControlDALI 2
L (mm)1442
Wt. (kg)3.6
Show details
