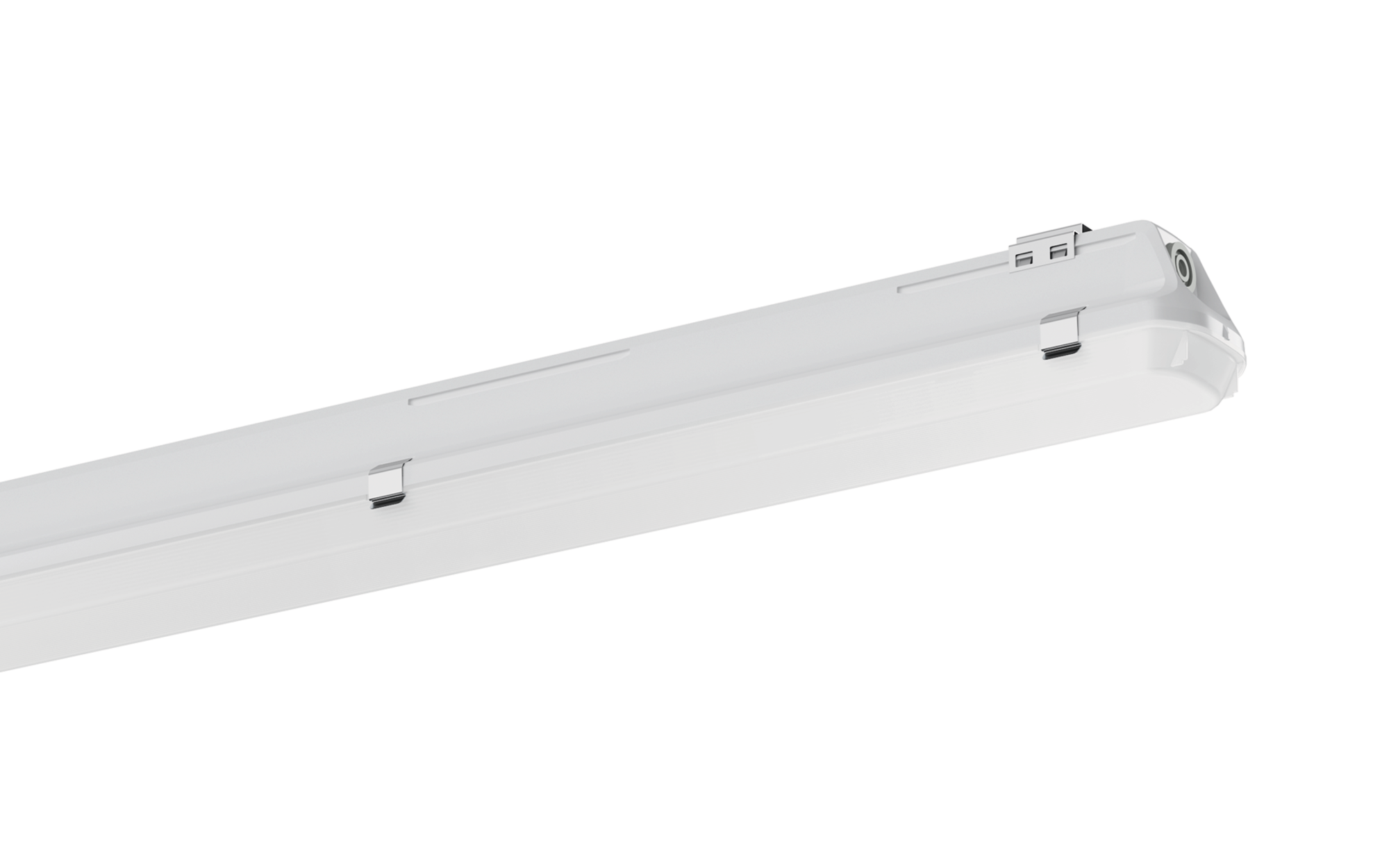

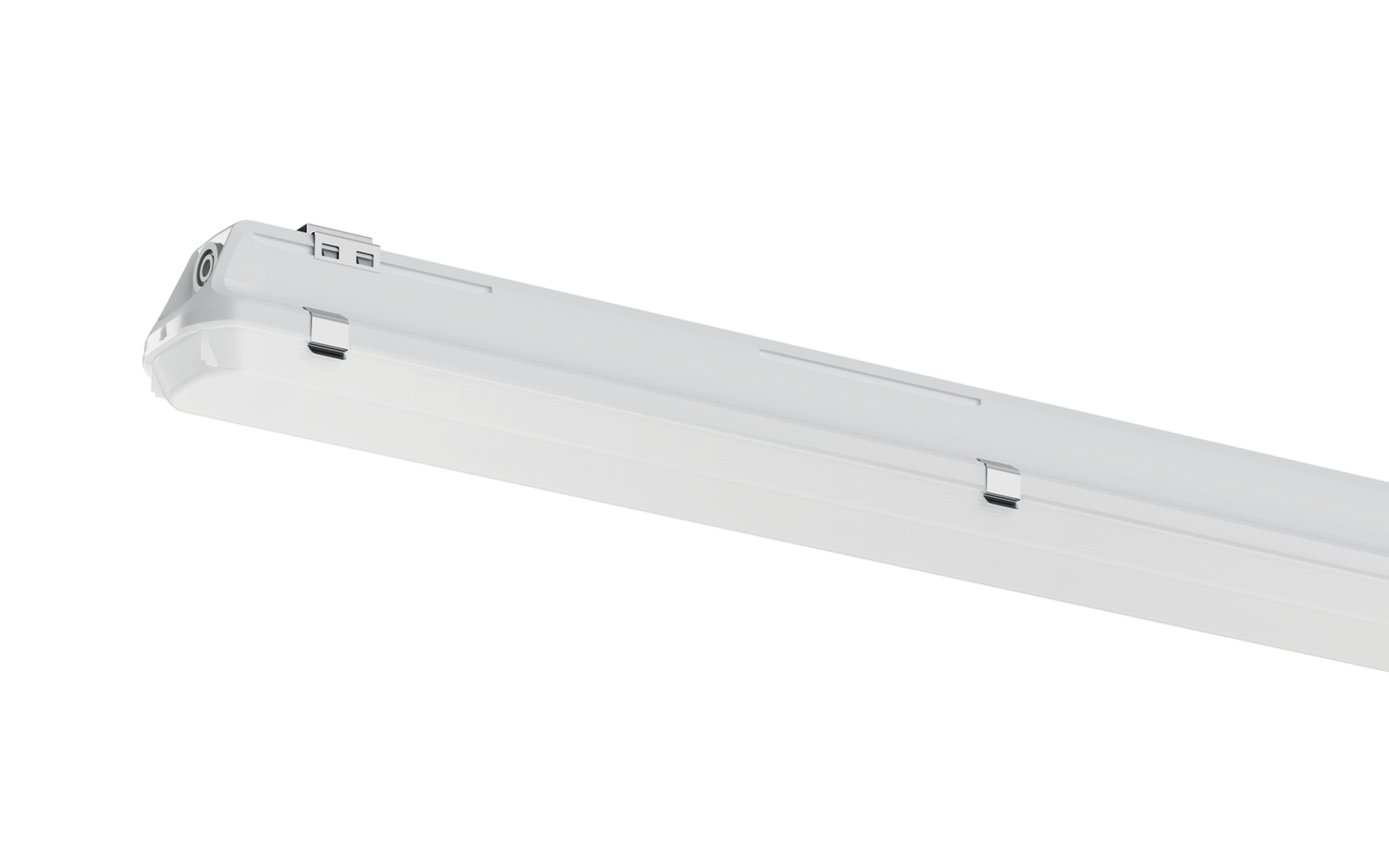

Monsun® 21
Reliable, robust and with sensors that can be retrofitted for flexible control: That is Monsun® 21. The moisture-proof luminaire is prepared for use in exposed outdoor areas and in harsh environments such as in industry and multi-storey car parks. Thanks to excellent glare limitation, Monsun® 21 is also an optimal lighting solution for industrial and manual work.
Our core portfolio: Monsun® 21 is our luminaire with higher protection rating with the highest standards of efficiency, quality and flexibility for your project
Monsun® 21 | 50,000h at 25°C
Intro product family
Key data
Article damp-proof luminaire
Lighting effect direct symmetric wide distribution
Net luminous flux 2580lm to 8550lm
Colour temperature 3000K; 4000K; 6500K
Control ON/OFF; ON/OFF Multilumen; DALI 2; DALI, CLO
Cover PMMA; PC
Protection rating IP66
Insulation class insulation class I (protective earthing)
Protection symbol D
Impact resistance IK08; IK04
Halogen freeness internal wiring halogen-free
IFS corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry
Special features
Multilumen technology with luminous fluxes up to 12,000lm for maximum adaptability
Very robust with IP66 protection rating and suitable for outdoor use
in ambient temperatures up to 50°C
Simple maintenance and easy upgrading of sensors due to tool-free opening of the luminaire
CLOi also with On/Off models for standard-compliant lighting over the complete service life without over-planning and for optimised energy consumption
Configuration & data sheets
- Some luminaires with through-wiring as standard; for other luminaires: please order through-wiring separately if required

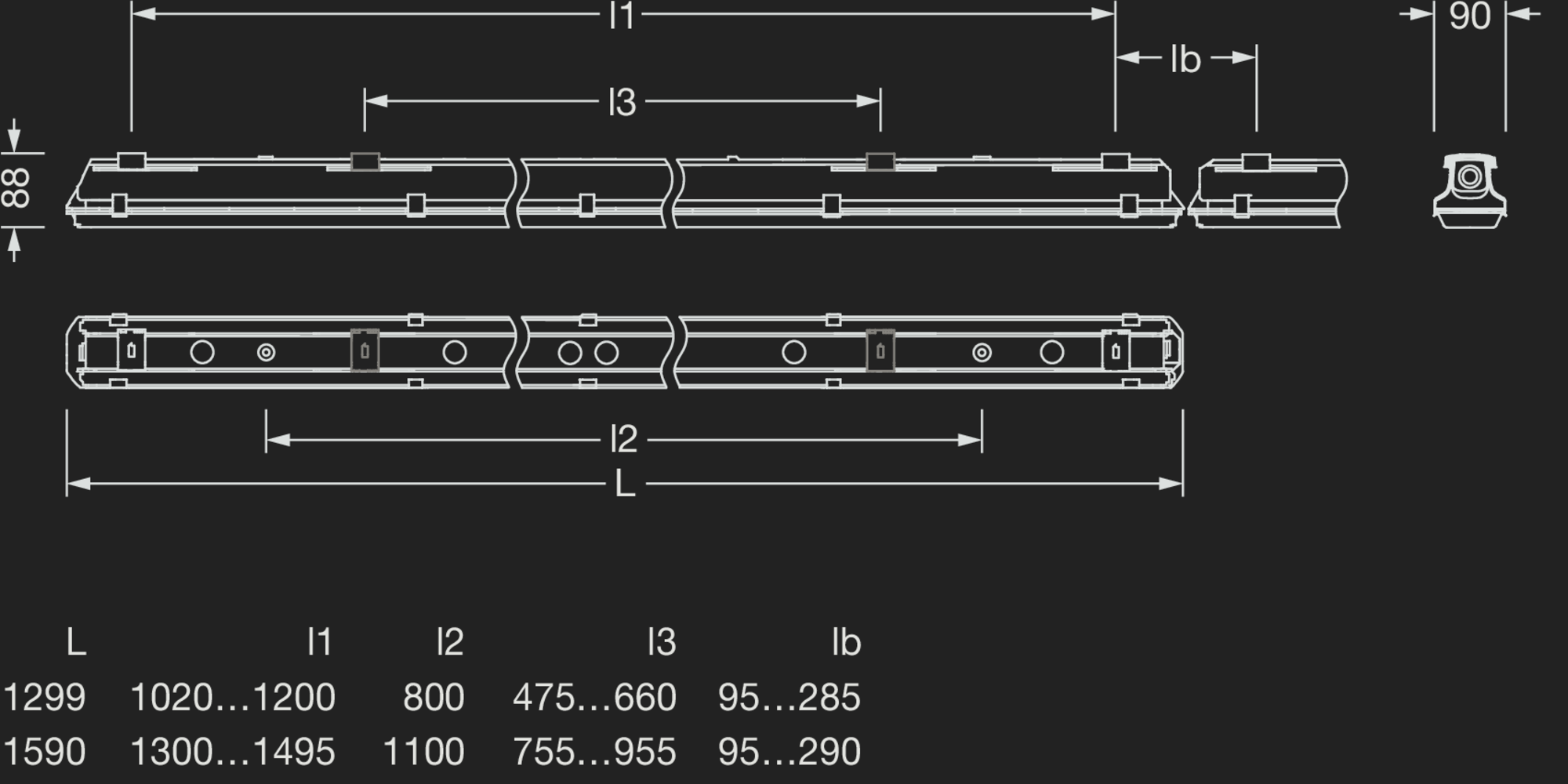

- supplementary through-wiring suitable for luminaire length 1590mm (form loop for luminaire length 1299mm)
- includes ceiling fixing element and chain hanger of V2A; surface-mounting to ceilings without further luminaire-specific mounting accessories; for further installation methods: please order mounting accessory separately
- for chain suspension: please order chain separately
- for wall mounting: please order anti-theft/wall mounting protection separately
- for mounting to mounting rail: please order rail, rail connector and end caps and suspension for mounting rail in required quantities separately; (for suspension/ceiling fixing for mounting rail please see Licross® 21 trunking rail)
- for further installation methods: please order mounting accessory separately
- for greater anti-theft safety for all types of installation: if required, please order anti-theft/wall mounting protection separately
Results
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DP360B GTIN (EAN): 4058352788004
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 6060lm | 39W | 154lm/W | DALI 2 | -25..+35°C | IK04 | 1590 | 2.5 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DP430B GTIN (EAN): 4058352519929
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3860lm | 25W | 156lm/W | DALI 2 | -25..+35°C | IK04 | 1590 | 2.5 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DP660B GTIN (EAN): 4058352520055
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 6060lm | 39W | 154lm/W | DALI 2 | -25..+35°C | IK04 | 1590 | 2.5 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107L440K GTIN (EAN): 4069025131461
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4350lm | 25W | 176lm/W | ON/OFF | -25..+35°C | IK04 | 1299 | 2.1 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107L440K005 GTIN (EAN): 4069025131485
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4350lm | 25W | 176lm/W | ON/OFF | 5x 2.5mm² | -25..+35°C | IK04 | 1299 | 2.2 |
Monsun® 21, wide distribution, ON/OFF Multilumen, PMMA
Order No.: 51FB10ML460K GTIN (EAN): 4069025131584
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 6010lm | 33W | 181lm/W | ON/OFF Multilumen | -25..+35°C | IK04 | 1299 | 2.1 |
Monsun® 21, wide distribution, ON/OFF, PC
Order No.: 51FB207L440K GTIN (EAN): 4069025131645
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4330lm | 27W | 159lm/W | ON/OFF | -25..+35°C | IK08 | 1299 | 2.1 |
Monsun® 21, wide distribution, ON/OFF, PC
Order No.: 51FB207L440K005 GTIN (EAN): 4069025131669
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4330lm | 27W | 159lm/W | ON/OFF | 5x 2.5mm² | -25..+35°C | IK08 | 1299 | 2.2 |
Monsun® 21, wide distribution, ON/OFF Multilumen, PC
Order No.: 51FB20ML460K GTIN (EAN): 4069025131768
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 6030lm | 37W | 163lm/W | ON/OFF Multilumen | -25..+35°C | IK04 | 1299 | 2.1 |
Monsun® 21, wide distribution, ON/OFF Multilumen, PMMA
Order No.: 51FB10ML660K GTIN (EAN): 4069025131607
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 5960lm | 34W | 175lm/W | ON/OFF Multilumen | -25..+35°C | IK04 | 1299 | 2.1 |
Monsun® 21, wide distribution, DALI 2, PC
Order No.: 51FB20DL440K GTIN (EAN): 4069025131720
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4320lm | 27W | 162lm/W | DALI 2 | -25..+35°C | IK08 | 1299 | 2.1 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107L420K GTIN (EAN): 4069025131423
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 2590lm | 16W | 166lm/W | ON/OFF | -25..+35°C | IK04 | 1299 | 2.1 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107L420K005 GTIN (EAN): 4069025131447
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 2590lm | 16W | 166lm/W | ON/OFF | 5x 2.5mm² | -25..+35°C | IK04 | 1299 | 2.2 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DL420K GTIN (EAN): 4069025131522
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 2630lm | 15W | 171lm/W | DALI 2 | -25..+35°C | IK04 | 1299 | 2.1 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DL440K GTIN (EAN): 4069025131546
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4330lm | 25W | 178lm/W | DALI 2 | -25..+35°C | IK04 | 1299 | 2.1 |
Monsun® 21, wide distribution, ON/OFF, PC
Order No.: 51FB207L420K GTIN (EAN): 4069025131638
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 2620lm | 17W | 153lm/W | ON/OFF | -25..+35°C | IK08 | 1299 | 2.1 |
Monsun® 21, wide distribution, DALI 2, PC
Order No.: 51FB20DL420K GTIN (EAN): 4069025131706
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 2660lm | 17W | 156lm/W | DALI 2 | -25..+35°C | IK08 | 1299 | 2.1 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107P430K GTIN (EAN): 4069025177728
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3940lm | 22W | 178lm/W | ON/OFF | -25..+35°C | IK04 | 1590 | 2.5 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107P430K005 GTIN (EAN): 4069025177742
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3940lm | 22W | 178lm/W | ON/OFF | 5x 2.5mm² | -25..+35°C | IK04 | 1590 | 3.0 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107P440K GTIN (EAN): 4069025177780
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4400lm | 25W | 177lm/W | ON/OFF | -25..+35°C | IK04 | 1590 | 2.5 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107P660C GTIN (EAN): 4069025177926
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 6010lm | 35W | 172lm/W | ON/OFF | -25..+35°C | IK04 | 1590 | 2.5 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DP360C GTIN (EAN): 4069025177940
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 6060lm | 35W | 174lm/W | DALI 2 | -25..+35°C | IK04 | 1590 | 2.5 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DP660C GTIN (EAN): 4069025178169
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 6060lm | 34W | 180lm/W | DALI 2 | -25..+35°C | IK04 | 1590 | 2.5 |
Monsun® 21, wide distribution, ON/OFF Multilumen, PMMA
Order No.: 51FB10MP380C GTIN (EAN): 4069025178183
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 8490lm | 49W | 173lm/W | ON/OFF Multilumen | -25..+35°C | IK04 | 1590 | 2.5 |
Monsun® 21, wide distribution, ON/OFF Multilumen, PMMA
Order No.: 51FB10MP680C GTIN (EAN): 4069025178220
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 8200lm | 47W | 175lm/W | ON/OFF Multilumen | -25..+35°C | IK04 | 1590 | 2.5 |
Monsun® 21, wide distribution, ON/OFF, PC
Order No.: 51FB207P430K GTIN (EAN): 4069025178268
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3550lm | 22W | 161lm/W | ON/OFF | -25..+35°C | IK08 | 1590 | 2.5 |
Monsun® 21, wide distribution, ON/OFF, PC
Order No.: 51FB207P660C005 GTIN (EAN): 4069025178381
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 5410lm | 35W | 155lm/W | ON/OFF | 5x 2.5mm² | -25..+35°C | IK08 | 1590 | 2.8 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107P420C GTIN (EAN): 4069025177704
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 2580lm | 15W | 168lm/W | ON/OFF | -25..+35°C | IK04 | 1590 | 2.5 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107P460C GTIN (EAN): 4069025177803
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 6200lm | 35W | 178lm/W | ON/OFF | -25..+35°C | IK04 | 1590 | 2.5 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107P460C005 GTIN (EAN): 4069025177827
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 6200lm | 35W | 178lm/W | ON/OFF | 5x 2.5mm² | -25..+35°C | IK04 | 1590 | 2.8 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107P480C GTIN (EAN): 4069025177865
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 8070lm | 45W | 181lm/W | ON/OFF | -25..+35°C | IK04 | 1590 | 2.5 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107P480C005 GTIN (EAN): 4069025177889
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 8070lm | 45W | 181lm/W | ON/OFF | 5x 2.5mm² | -25..+35°C | IK04 | 1590 | 2.8 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DP430C GTIN (EAN): 4069025177964
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3980lm | 22W | 179lm/W | DALI 2 | -25..+35°C | IK04 | 1590 | 2.5 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DP440C GTIN (EAN): 4069025178008
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4360lm | 24W | 180lm/W | DALI 2 | -25..+35°C | IK04 | 1590 | 2.5 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DP460C GTIN (EAN): 4069025178022
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 6060lm | 33W | 185lm/W | DALI 2 | -25..+35°C | IK04 | 1590 | 2.5 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DP460C007 GTIN (EAN): 4069025178046
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 6060lm | 33W | 185lm/W | DALI 2 | 7x 2.5mm² | -25..+35°C | IK04 | 1590 | 2.8 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DP480C GTIN (EAN): 4069025178114
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 8090lm | 46W | 176lm/W | DALI 2 | -25..+35°C | IK04 | 1590 | 2.5 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DP480C007 GTIN (EAN): 4069025178121
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 8090lm | 46W | 176lm/W | DALI 2 | 7x 2.5mm² | -25..+35°C | IK04 | 1590 | 2.8 |
Monsun® 21, wide distribution, ON/OFF Multilumen, PMMA
Order No.: 51FB10MP480C GTIN (EAN): 4069025178206
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 8550lm | 46W | 188lm/W | ON/OFF Multilumen | -25..+35°C | IK04 | 1590 | 2.5 |
Monsun® 21, wide distribution, ON/OFF Multilumen, PMMA
Order No.: 51FB12MP480C GTIN (EAN): 4069025178244
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 8380lm | 45W | 185lm/W | ON/OFF Multilumen | -25..+35°C | IK04 | 1590 | 2.5 |
Monsun® 21, wide distribution, ON/OFF, PC
Order No.: 51FB207P460C GTIN (EAN): 4069025178312
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5580lm | 35W | 160lm/W | ON/OFF | -25..+35°C | IK08 | 1590 | 2.5 |
Monsun® 21, wide distribution, ON/OFF, PC
Order No.: 51FB207P460C005 GTIN (EAN): 4069025178329
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5580lm | 35W | 160lm/W | ON/OFF | 5x 2.5mm² | -25..+35°C | IK08 | 1590 | 2.8 |
Monsun® 21, wide distribution, ON/OFF, PC
Order No.: 51FB207P480C GTIN (EAN): 4069025178367
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 7270lm | 45W | 163lm/W | ON/OFF | -25..+35°C | IK08 | 1590 | 2.5 |
Monsun® 21, wide distribution, DALI 2, PC
Order No.: 51FB20DP460C GTIN (EAN): 4069025178404
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5460lm | 33W | 167lm/W | DALI 2 | -25..+35°C | IK08 | 1590 | 2.5 |
Monsun® 21, wide distribution, DALI 2, PC
Order No.: 51FB20DP460C007 GTIN (EAN): 4069025178428
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5460lm | 33W | 167lm/W | DALI 2 | 7x 2.5mm² | -25..+35°C | IK08 | 1590 | 2.8 |
Monsun® 21, wide distribution, DALI, CLO, PC
Order No.: 51FB20FP430C GTIN (EAN): 4069025178466
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3000lm | 19W | 159lm/W | DALI, CLO | -25..+35°C | IK08 | 1590 | 2.5 |
Monsun® 21, wide distribution, DALI, CLO, PC
Order No.: 51FB20FP450C GTIN (EAN): 4069025178480
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5010lm | 30W | 166lm/W | DALI, CLO | -25..+35°C | IK08 | 1590 | 2.5 |
Monsun® 21, wide distribution, ON/OFF Multilumen, PC
Order No.: 51FB20MP480C GTIN (EAN): 4069025178510
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Through-wiring | ta | Impact resistance | L (mm) | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 7370lm | 45W | 163lm/W | ON/OFF Multilumen | -25..+35°C | IK08 | 1590 | 2.5 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DP360BGTIN (EAN): 4058352788004
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 6060lm |
| Connected load | 39W |
| Luminous efficacy | 154lm/W |
| Control | DALI 2 |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DP430BGTIN (EAN): 4058352519929
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3860lm |
| Connected load | 25W |
| Luminous efficacy | 156lm/W |
| Control | DALI 2 |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DP660BGTIN (EAN): 4058352520055
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 6060lm |
| Connected load | 39W |
| Luminous efficacy | 154lm/W |
| Control | DALI 2 |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107L440KGTIN (EAN): 4069025131461
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4350lm |
| Connected load | 25W |
| Luminous efficacy | 176lm/W |
| Control | ON/OFF |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1299 |
| Wt. (kg) | 2.1 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107L440K005GTIN (EAN): 4069025131485
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4350lm |
| Connected load | 25W |
| Luminous efficacy | 176lm/W |
| Control | ON/OFF |
| Through-wiring | 5x 2.5mm² |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1299 |
| Wt. (kg) | 2.2 |
Monsun® 21, wide distribution, ON/OFF Multilumen, PMMA
Order No.: 51FB10ML460KGTIN (EAN): 4069025131584
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 6010lm |
| Connected load | 33W |
| Luminous efficacy | 181lm/W |
| Control | ON/OFF Multilumen |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1299 |
| Wt. (kg) | 2.1 |
Monsun® 21, wide distribution, ON/OFF, PC
Order No.: 51FB207L440KGTIN (EAN): 4069025131645
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4330lm |
| Connected load | 27W |
| Luminous efficacy | 159lm/W |
| Control | ON/OFF |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK08 |
| L (mm) | 1299 |
| Wt. (kg) | 2.1 |
Monsun® 21, wide distribution, ON/OFF, PC
Order No.: 51FB207L440K005GTIN (EAN): 4069025131669
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4330lm |
| Connected load | 27W |
| Luminous efficacy | 159lm/W |
| Control | ON/OFF |
| Through-wiring | 5x 2.5mm² |
| ta | -25..+35°C |
| Impact resistance | IK08 |
| L (mm) | 1299 |
| Wt. (kg) | 2.2 |
Monsun® 21, wide distribution, ON/OFF Multilumen, PC
Order No.: 51FB20ML460KGTIN (EAN): 4069025131768
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 6030lm |
| Connected load | 37W |
| Luminous efficacy | 163lm/W |
| Control | ON/OFF Multilumen |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1299 |
| Wt. (kg) | 2.1 |
Monsun® 21, wide distribution, ON/OFF Multilumen, PMMA
Order No.: 51FB10ML660KGTIN (EAN): 4069025131607
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5960lm |
| Connected load | 34W |
| Luminous efficacy | 175lm/W |
| Control | ON/OFF Multilumen |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1299 |
| Wt. (kg) | 2.1 |
Monsun® 21, wide distribution, DALI 2, PC
Order No.: 51FB20DL440KGTIN (EAN): 4069025131720
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4320lm |
| Connected load | 27W |
| Luminous efficacy | 162lm/W |
| Control | DALI 2 |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK08 |
| L (mm) | 1299 |
| Wt. (kg) | 2.1 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107L420KGTIN (EAN): 4069025131423
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2590lm |
| Connected load | 16W |
| Luminous efficacy | 166lm/W |
| Control | ON/OFF |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1299 |
| Wt. (kg) | 2.1 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107L420K005GTIN (EAN): 4069025131447
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2590lm |
| Connected load | 16W |
| Luminous efficacy | 166lm/W |
| Control | ON/OFF |
| Through-wiring | 5x 2.5mm² |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1299 |
| Wt. (kg) | 2.2 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DL420KGTIN (EAN): 4069025131522
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2630lm |
| Connected load | 15W |
| Luminous efficacy | 171lm/W |
| Control | DALI 2 |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1299 |
| Wt. (kg) | 2.1 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DL440KGTIN (EAN): 4069025131546
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4330lm |
| Connected load | 25W |
| Luminous efficacy | 178lm/W |
| Control | DALI 2 |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1299 |
| Wt. (kg) | 2.1 |
Monsun® 21, wide distribution, ON/OFF, PC
Order No.: 51FB207L420KGTIN (EAN): 4069025131638
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2620lm |
| Connected load | 17W |
| Luminous efficacy | 153lm/W |
| Control | ON/OFF |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK08 |
| L (mm) | 1299 |
| Wt. (kg) | 2.1 |
Monsun® 21, wide distribution, DALI 2, PC
Order No.: 51FB20DL420KGTIN (EAN): 4069025131706
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2660lm |
| Connected load | 17W |
| Luminous efficacy | 156lm/W |
| Control | DALI 2 |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK08 |
| L (mm) | 1299 |
| Wt. (kg) | 2.1 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107P430KGTIN (EAN): 4069025177728
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3940lm |
| Connected load | 22W |
| Luminous efficacy | 178lm/W |
| Control | ON/OFF |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107P430K005GTIN (EAN): 4069025177742
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3940lm |
| Connected load | 22W |
| Luminous efficacy | 178lm/W |
| Control | ON/OFF |
| Through-wiring | 5x 2.5mm² |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1590 |
| Wt. (kg) | 3.0 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107P440KGTIN (EAN): 4069025177780
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4400lm |
| Connected load | 25W |
| Luminous efficacy | 177lm/W |
| Control | ON/OFF |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107P660CGTIN (EAN): 4069025177926
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 6010lm |
| Connected load | 35W |
| Luminous efficacy | 172lm/W |
| Control | ON/OFF |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DP360CGTIN (EAN): 4069025177940
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 6060lm |
| Connected load | 35W |
| Luminous efficacy | 174lm/W |
| Control | DALI 2 |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DP660CGTIN (EAN): 4069025178169
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 6060lm |
| Connected load | 34W |
| Luminous efficacy | 180lm/W |
| Control | DALI 2 |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, ON/OFF Multilumen, PMMA
Order No.: 51FB10MP380CGTIN (EAN): 4069025178183
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 8490lm |
| Connected load | 49W |
| Luminous efficacy | 173lm/W |
| Control | ON/OFF Multilumen |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, ON/OFF Multilumen, PMMA
Order No.: 51FB10MP680CGTIN (EAN): 4069025178220
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 8200lm |
| Connected load | 47W |
| Luminous efficacy | 175lm/W |
| Control | ON/OFF Multilumen |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, ON/OFF, PC
Order No.: 51FB207P430KGTIN (EAN): 4069025178268
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3550lm |
| Connected load | 22W |
| Luminous efficacy | 161lm/W |
| Control | ON/OFF |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK08 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, ON/OFF, PC
Order No.: 51FB207P660C005GTIN (EAN): 4069025178381
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5410lm |
| Connected load | 35W |
| Luminous efficacy | 155lm/W |
| Control | ON/OFF |
| Through-wiring | 5x 2.5mm² |
| ta | -25..+35°C |
| Impact resistance | IK08 |
| L (mm) | 1590 |
| Wt. (kg) | 2.8 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107P420CGTIN (EAN): 4069025177704
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2580lm |
| Connected load | 15W |
| Luminous efficacy | 168lm/W |
| Control | ON/OFF |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107P460CGTIN (EAN): 4069025177803
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 6200lm |
| Connected load | 35W |
| Luminous efficacy | 178lm/W |
| Control | ON/OFF |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107P460C005GTIN (EAN): 4069025177827
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 6200lm |
| Connected load | 35W |
| Luminous efficacy | 178lm/W |
| Control | ON/OFF |
| Through-wiring | 5x 2.5mm² |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1590 |
| Wt. (kg) | 2.8 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107P480CGTIN (EAN): 4069025177865
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 8070lm |
| Connected load | 45W |
| Luminous efficacy | 181lm/W |
| Control | ON/OFF |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, ON/OFF, PMMA
Order No.: 51FB107P480C005GTIN (EAN): 4069025177889
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 8070lm |
| Connected load | 45W |
| Luminous efficacy | 181lm/W |
| Control | ON/OFF |
| Through-wiring | 5x 2.5mm² |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1590 |
| Wt. (kg) | 2.8 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DP430CGTIN (EAN): 4069025177964
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3980lm |
| Connected load | 22W |
| Luminous efficacy | 179lm/W |
| Control | DALI 2 |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DP440CGTIN (EAN): 4069025178008
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4360lm |
| Connected load | 24W |
| Luminous efficacy | 180lm/W |
| Control | DALI 2 |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DP460CGTIN (EAN): 4069025178022
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 6060lm |
| Connected load | 33W |
| Luminous efficacy | 185lm/W |
| Control | DALI 2 |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DP460C007GTIN (EAN): 4069025178046
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 6060lm |
| Connected load | 33W |
| Luminous efficacy | 185lm/W |
| Control | DALI 2 |
| Through-wiring | 7x 2.5mm² |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1590 |
| Wt. (kg) | 2.8 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DP480CGTIN (EAN): 4069025178114
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 8090lm |
| Connected load | 46W |
| Luminous efficacy | 176lm/W |
| Control | DALI 2 |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, DALI 2, PMMA
Order No.: 51FB10DP480C007GTIN (EAN): 4069025178121
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 8090lm |
| Connected load | 46W |
| Luminous efficacy | 176lm/W |
| Control | DALI 2 |
| Through-wiring | 7x 2.5mm² |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1590 |
| Wt. (kg) | 2.8 |
Monsun® 21, wide distribution, ON/OFF Multilumen, PMMA
Order No.: 51FB10MP480CGTIN (EAN): 4069025178206
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 8550lm |
| Connected load | 46W |
| Luminous efficacy | 188lm/W |
| Control | ON/OFF Multilumen |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, ON/OFF Multilumen, PMMA
Order No.: 51FB12MP480CGTIN (EAN): 4069025178244
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 8380lm |
| Connected load | 45W |
| Luminous efficacy | 185lm/W |
| Control | ON/OFF Multilumen |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK04 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, ON/OFF, PC
Order No.: 51FB207P460CGTIN (EAN): 4069025178312
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5580lm |
| Connected load | 35W |
| Luminous efficacy | 160lm/W |
| Control | ON/OFF |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK08 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, ON/OFF, PC
Order No.: 51FB207P460C005GTIN (EAN): 4069025178329
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5580lm |
| Connected load | 35W |
| Luminous efficacy | 160lm/W |
| Control | ON/OFF |
| Through-wiring | 5x 2.5mm² |
| ta | -25..+35°C |
| Impact resistance | IK08 |
| L (mm) | 1590 |
| Wt. (kg) | 2.8 |
Monsun® 21, wide distribution, ON/OFF, PC
Order No.: 51FB207P480CGTIN (EAN): 4069025178367
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7270lm |
| Connected load | 45W |
| Luminous efficacy | 163lm/W |
| Control | ON/OFF |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK08 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, DALI 2, PC
Order No.: 51FB20DP460CGTIN (EAN): 4069025178404
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5460lm |
| Connected load | 33W |
| Luminous efficacy | 167lm/W |
| Control | DALI 2 |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK08 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, DALI 2, PC
Order No.: 51FB20DP460C007GTIN (EAN): 4069025178428
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5460lm |
| Connected load | 33W |
| Luminous efficacy | 167lm/W |
| Control | DALI 2 |
| Through-wiring | 7x 2.5mm² |
| ta | -25..+35°C |
| Impact resistance | IK08 |
| L (mm) | 1590 |
| Wt. (kg) | 2.8 |
Monsun® 21, wide distribution, DALI, CLO, PC
Order No.: 51FB20FP430CGTIN (EAN): 4069025178466
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3000lm |
| Connected load | 19W |
| Luminous efficacy | 159lm/W |
| Control | DALI, CLO |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK08 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, DALI, CLO, PC
Order No.: 51FB20FP450CGTIN (EAN): 4069025178480
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5010lm |
| Connected load | 30W |
| Luminous efficacy | 166lm/W |
| Control | DALI, CLO |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK08 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Monsun® 21, wide distribution, ON/OFF Multilumen, PC
Order No.: 51FB20MP480CGTIN (EAN): 4069025178510
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7370lm |
| Connected load | 45W |
| Luminous efficacy | 163lm/W |
| Control | ON/OFF Multilumen |
| Through-wiring | |
| ta | -25..+35°C |
| Impact resistance | IK08 |
| L (mm) | 1590 |
| Wt. (kg) | 2.5 |
Optional accessories
| Order No.: 58FV003GTIN (EAN): 4058352409473 | Show all details |
| Order No.: 58FV005GTIN (EAN): 4058352409503 | Show all details |
| Order No.: 58FV007GTIN (EAN): 4058352409510 | Show all details |
| Order No.: 58FV009GTIN (EAN): 4058352409534 | Show all details |
| Order No.: 58FV00DGTIN (EAN): 4058352409558 | Show all details |
| Order No.: 58FT003GTIN (EAN): 4058352410332 | Show all details |
| Order No.: 58FT004GTIN (EAN): 4058352410356 | Show all details |
| Order No.: 58FT005GTIN (EAN): 4058352410370 | Show all details |
| Order No.: 5LY9001GTIN (EAN): 4039806184290 | Show all details |
| Order No.: 5LY9002GTIN (EAN): 4039806184313 | Show all details |
| Order No.: 5LY9004GTIN (EAN): 4039806184368 | Show all details |
| Order No.: 58FM002GTIN (EAN): 4058352410257 | Show all details |
| Order No.: 58FM012GTIN (EAN): 4069025193957 | Show all details |
| Order No.: 58FM003GTIN (EAN): 4058352426500 | Show all details |
| Order No.: 58FM004GTIN (EAN): 4058352426524 | Show all details |
| Order No.: 58FM007GTIN (EAN): 4058352410295 | Show all details |
| Order No.: 58FM006GTIN (EAN): 4058352410271 | Show all details |
| Order No.: 58FM001GTIN (EAN): 4058352410233 | Show all details |
| Order No.: 58FM008GTIN (EAN): 4058352426548 | Show all details |
| Order No.: 59FT001GTIN (EAN): 4058352410394 | Show all details |
| Order No.: 58FT002GTIN (EAN): 4058352410318 | Show all details |
| Order No.: 58FS001GTIN (EAN): 4058352474945 | Show all details |
| Order No.: 58FS002GTIN (EAN): 4058352474976 | Show all details |
| Order No.: 58FS003GTIN (EAN): 4058352475799 | Show all details |
| Order No.: 58FS005GTIN (EAN): 4058352477052 | Show all details |
| Order No.: 59TR1HGTIN (EAN): 4058352476222 | Show all details |
| Order No.: 59TL1SGTIN (EAN): 4058352272589 | Show all details |
| Order No.: 58FS006GTIN (EAN): 4058352466605 | Show all details |
