Monsun® 21

Product typesConfiguration & data sheets

Reliable, robust and with sensors that can be retrofitted for flexible control: That is Monsun® 21. The moisture-proof luminaire is prepared for use in exposed outdoor areas and in harsh environments such as in industry and multi-storey car parks. Thanks to excellent glare limitation, Monsun® 21 is also an optimal lighting solution for industrial and manual work.

Our core portfolio: Monsun® 21 is our luminaire with higher protection rating with the highest standards of efficiency, quality and flexibility for your project

Product types

Monsun® 21 | 50,000h at 25°C

Monsun® 21 Emergency

Monsun® 21 Parking

mounting rail for Monsun® 11/21 | 1590mm

Monsun® 21 Emergency

Intro product family

Key data

Article damp-proof luminaire
Lighting effect direct symmetric wide distribution
Net luminous flux 3620lm to 8090lm
Colour temperature 4000K
Control ON/OFF; DALI 2
Cover PMMA; PC
Protection rating IP66
Insulation class insulation class I (protective earthing)
Protection symbol D
Impact resistance IK08; IK04
Emergency light operation on group/central battery; with self-contained supply
Halogen freeness internal wiring halogen-free
IFS corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry

Special features

Multilumen technology with luminous fluxes up to 12,000lm for maximum adaptability
Very robust with IP66 protection rating and suitable for outdoor use
in ambient temperatures up to 50°C
Simple maintenance and easy upgrading of sensors due to tool-free opening of the luminaire
CLOi also with On/Off models for standard-compliant lighting over the complete service life without over-planning and for optimised energy consumption

Configuration & data sheets

Rated luminous flux (lm)

Control

Cover

Impact resistance

Operating ambient temperature

Emergency light

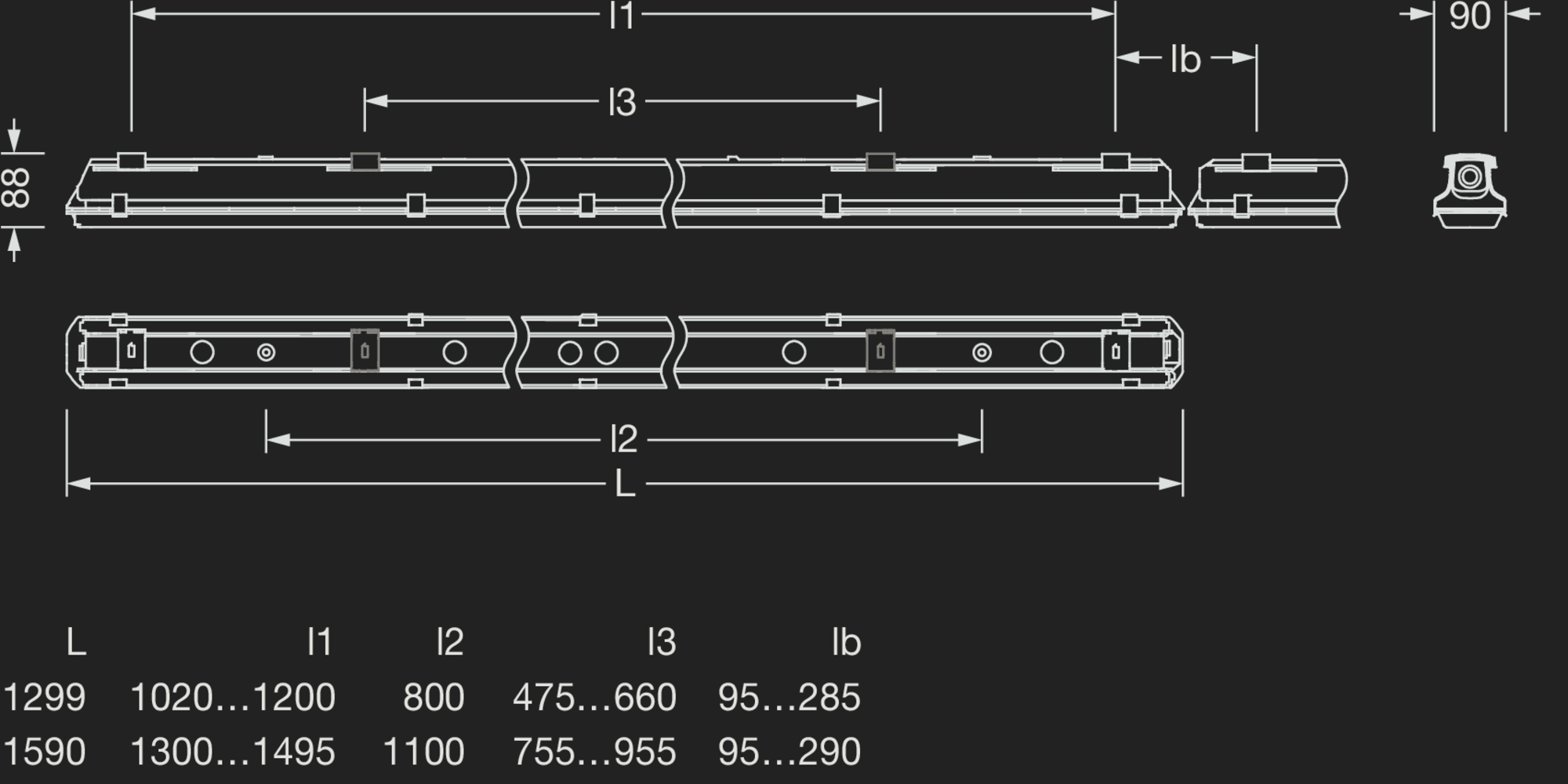

Length (mm)

  • Some luminaires with through-wiring as standard; for other luminaires: please order through-wiring separately if required
  • supplementary through-wiring suitable for luminaire length 1590mm (form loop for luminaire length 1299mm)
  • includes ceiling fixing element and chain hanger of V2A; surface-mounting to ceilings without further luminaire-specific mounting accessories; for further installation methods: please order mounting accessory separately
  • for chain suspension: please order chain separately
  • for wall mounting: please order anti-theft/wall mounting protection separately
  • for mounting to mounting rail: please order rail, rail connector and end caps and suspension for mounting rail in required quantities separately; (for suspension/ceiling fixing for mounting rail please see Licross® 21 trunking rail)
  • for further installation methods: please order mounting accessory separately
  • for greater anti-theft safety for all types of installation: if required, please order anti-theft/wall mounting protection separately

Results

Monsun® 21 emergency, wide distribution, ON/OFF, 3h, PMMA

Order No.: 51FB107L447K3G GTIN (EAN): 4069025131508
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 804330lm29W173lm/WON/OFF3h+5..+25°CIK0412992.6
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Monsun® 21 emergency, wide distribution, ON/OFF, 3h, PMMA

Order No.: 51FB107P437C3G GTIN (EAN): 4069025177766
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 803860lm26W175lm/WON/OFF3h+5..+25°CIK0415903.3
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Monsun® 21 emergency, wide distribution, ON/OFF, 3h, PMMA

Order No.: 51FB107P467C3G GTIN (EAN): 4069025177841
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 806060lm38W178lm/WON/OFF3h+5..+25°CIK0415903.3
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Monsun® 21 emergency, wide distribution, ON/OFF, 3h, PMMA

Order No.: 51FB107P487C3G GTIN (EAN): 4069025177919
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 808090lm51W173lm/WON/OFF3h+5..+25°CIK0415903.3
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Monsun® 21 emergency, wide distribution, DALI 2, 3h, PMMA

Order No.: 51FB10DL447K3H GTIN (EAN): 4069025131560
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 804330lm28W178lm/WDALI 23h+5..+25°CIK0412992.7
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Monsun® 21 emergency, wide distribution, DALI 2, 3h, PMMA

Order No.: 51FB10DP437C3H GTIN (EAN): 4069025177988
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 803860lm26W178lm/WDALI 23h+5..+25°CIK0415903.3
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Monsun® 21 emergency, wide distribution, DALI 2, 3h, PMMA

Order No.: 51FB10DP467C3H GTIN (EAN): 4069025178060
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 806060lm37W185lm/WDALI 23h+5..+25°CIK0415903.3
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Monsun® 21 emergency, wide distribution, DALI 2, 3h, PMMA

Order No.: 51FB10DP487C3H GTIN (EAN): 4069025178145
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 808090lm50W176lm/WDALI 23h+5..+25°CIK0415903.3
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Monsun® 21 emergency, wide distribution, ON/OFF, 3h, PC

Order No.: 51FB207L447K3G GTIN (EAN): 4069025131683
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 804320lm31W157lm/WON/OFF3h+5..+25°CIK0812992.6
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Monsun® 21 emergency, wide distribution, ON/OFF, 3h, PC

Order No.: 51FB207P437C3G GTIN (EAN): 4069025178282
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 803620lm27W157lm/WON/OFF3h+5..+25°CIK0815903.3
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Monsun® 21 emergency, wide distribution, ON/OFF, 3h, PC

Order No.: 51FB207P467C3G GTIN (EAN): 4069025178343
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 805460lm38W160lm/WON/OFF3h+5..+25°CIK0815903.3
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Monsun® 21 emergency, wide distribution, DALI 2, 3h, PC

Order No.: 51FB20DL447K3H GTIN (EAN): 4069025131744
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 804320lm30W162lm/WDALI 23h+5..+25°CIK0812992.7
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Monsun® 21 emergency, wide distribution, DALI 2, 3h, PC

Order No.: 51FB20DP467C3H GTIN (EAN): 4069025178442
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 805460lm37W167lm/WDALI 23h+5..+25°CIK0815903.3
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Monsun® 21 emergency, wide distribution, DALI 2, PMMA

Order No.: 51FB10DP468C2 GTIN (EAN): 4069025178084
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlBattery durationtaImpact resistanceL (mm)Wt. (kg)
4000KCRI > 806060lm33W185lm/WDALI 2 -25..+35°CIK0415902.5
Show all details
Tender textData sheet (PDF, full)Photometric report / planning dataComplete download list

Monsun® 21 emergency, wide distribution, ON/OFF, 3h, PMMA

Order No.: 51FB107L447K3GGTIN (EAN): 4069025131508

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4330lm
Connected load29W
Luminous efficacy173lm/W
ControlON/OFF
Battery duration3h
ta+5..+25°C
Impact resistanceIK04
L (mm)1299
Wt. (kg)2.6
Show all details

Monsun® 21 emergency, wide distribution, ON/OFF, 3h, PMMA

Order No.: 51FB107P437C3GGTIN (EAN): 4069025177766

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux3860lm
Connected load26W
Luminous efficacy175lm/W
ControlON/OFF
Battery duration3h
ta+5..+25°C
Impact resistanceIK04
L (mm)1590
Wt. (kg)3.3
Show all details

Monsun® 21 emergency, wide distribution, ON/OFF, 3h, PMMA

Order No.: 51FB107P467C3GGTIN (EAN): 4069025177841

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux6060lm
Connected load38W
Luminous efficacy178lm/W
ControlON/OFF
Battery duration3h
ta+5..+25°C
Impact resistanceIK04
L (mm)1590
Wt. (kg)3.3
Show all details

Monsun® 21 emergency, wide distribution, ON/OFF, 3h, PMMA

Order No.: 51FB107P487C3GGTIN (EAN): 4069025177919

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux8090lm
Connected load51W
Luminous efficacy173lm/W
ControlON/OFF
Battery duration3h
ta+5..+25°C
Impact resistanceIK04
L (mm)1590
Wt. (kg)3.3
Show all details

Monsun® 21 emergency, wide distribution, DALI 2, 3h, PMMA

Order No.: 51FB10DL447K3HGTIN (EAN): 4069025131560

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4330lm
Connected load28W
Luminous efficacy178lm/W
ControlDALI 2
Battery duration3h
ta+5..+25°C
Impact resistanceIK04
L (mm)1299
Wt. (kg)2.7
Show all details

Monsun® 21 emergency, wide distribution, DALI 2, 3h, PMMA

Order No.: 51FB10DP437C3HGTIN (EAN): 4069025177988

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux3860lm
Connected load26W
Luminous efficacy178lm/W
ControlDALI 2
Battery duration3h
ta+5..+25°C
Impact resistanceIK04
L (mm)1590
Wt. (kg)3.3
Show all details

Monsun® 21 emergency, wide distribution, DALI 2, 3h, PMMA

Order No.: 51FB10DP467C3HGTIN (EAN): 4069025178060

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux6060lm
Connected load37W
Luminous efficacy185lm/W
ControlDALI 2
Battery duration3h
ta+5..+25°C
Impact resistanceIK04
L (mm)1590
Wt. (kg)3.3
Show all details

Monsun® 21 emergency, wide distribution, DALI 2, 3h, PMMA

Order No.: 51FB10DP487C3HGTIN (EAN): 4069025178145

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux8090lm
Connected load50W
Luminous efficacy176lm/W
ControlDALI 2
Battery duration3h
ta+5..+25°C
Impact resistanceIK04
L (mm)1590
Wt. (kg)3.3
Show all details

Monsun® 21 emergency, wide distribution, ON/OFF, 3h, PC

Order No.: 51FB207L447K3GGTIN (EAN): 4069025131683

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4320lm
Connected load31W
Luminous efficacy157lm/W
ControlON/OFF
Battery duration3h
ta+5..+25°C
Impact resistanceIK08
L (mm)1299
Wt. (kg)2.6
Show all details

Monsun® 21 emergency, wide distribution, ON/OFF, 3h, PC

Order No.: 51FB207P437C3GGTIN (EAN): 4069025178282

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux3620lm
Connected load27W
Luminous efficacy157lm/W
ControlON/OFF
Battery duration3h
ta+5..+25°C
Impact resistanceIK08
L (mm)1590
Wt. (kg)3.3
Show all details

Monsun® 21 emergency, wide distribution, ON/OFF, 3h, PC

Order No.: 51FB207P467C3GGTIN (EAN): 4069025178343

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux5460lm
Connected load38W
Luminous efficacy160lm/W
ControlON/OFF
Battery duration3h
ta+5..+25°C
Impact resistanceIK08
L (mm)1590
Wt. (kg)3.3
Show all details

Monsun® 21 emergency, wide distribution, DALI 2, 3h, PC

Order No.: 51FB20DL447K3HGTIN (EAN): 4069025131744

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4320lm
Connected load30W
Luminous efficacy162lm/W
ControlDALI 2
Battery duration3h
ta+5..+25°C
Impact resistanceIK08
L (mm)1299
Wt. (kg)2.7
Show all details

Monsun® 21 emergency, wide distribution, DALI 2, 3h, PC

Order No.: 51FB20DP467C3HGTIN (EAN): 4069025178442

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux5460lm
Connected load37W
Luminous efficacy167lm/W
ControlDALI 2
Battery duration3h
ta+5..+25°C
Impact resistanceIK08
L (mm)1590
Wt. (kg)3.3
Show all details

Monsun® 21 emergency, wide distribution, DALI 2, PMMA

Order No.: 51FB10DP468C2GTIN (EAN): 4069025178084

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux6060lm
Connected load33W
Luminous efficacy185lm/W
ControlDALI 2
Battery duration
ta-25..+35°C
Impact resistanceIK04
L (mm)1590
Wt. (kg)2.5
Show all details

Optional accessories

Articlethrough-wiring, 3-core, 2.5mm², L= 1.4m, with terminal, for interrupted trunkingPU1 pc.Wt. (kg)0.1Order No.: 58FV003GTIN (EAN): 4058352409473Show all details
Articlethrough-wiring, 5-core, 2.5mm², L= 1.4m, with terminal, for interrupted trunkingPU1 pc.Wt. (kg)0.1Order No.: 58FV005GTIN (EAN): 4058352409503Show all details
Articlethrough-wiring, 7-core, 2.5mm², L= 1.4m, with terminal, for interrupted trunkingPU1 pc.Wt. (kg)0.3Order No.: 58FV007GTIN (EAN): 4058352409510Show all details
Articlethrough-wiring, 5-core, 2.5mm², L= 1.7m, with terminal, for continuous trunkingPU1 pc.Wt. (kg)0.2Order No.: 58FV009GTIN (EAN): 4058352409534Show all details
Articletwin cable gland, M25, rubber, for cables, Ø 8.4..12mmPU1 pc.Wt. (kg)0.1Order No.: 58FV00DGTIN (EAN): 4058352409558Show all details
Articlecable gland with climate membrane, M20, PA / EPDM / ePTFE / silicone, for cables, Ø 6..13mmPU1 pc.Wt. (kg)0.1Order No.: 58FT003GTIN (EAN): 4058352410332Show all details
Articlecable gland, M25, PA / silicone, for cables, Ø 9..17mmPU1 pc.Wt. (kg)0.1Order No.: 58FT004GTIN (EAN): 4058352410356Show all details
Articlecable gland with climate membrane, M25, PA / EPDM / ePTFE / silicone, for cables, Ø 9..17mmPU1 pc.Wt. (kg)0.1Order No.: 58FT005GTIN (EAN): 4058352410370Show all details
Articlelink chain, steel, galvanisedPUrun. m.Wt. (kg)0.1Order No.: 5LY9001GTIN (EAN): 4039806184290Show all details
Articlelink chain, stainless steel (V2A)PUrun. m.Wt. (kg)0.1Order No.: 5LY9002GTIN (EAN): 4039806184313Show all details
Articlequick-release link, stainless steel (V2A)PU1 pc.Wt. (kg)0.1Order No.: 5LY9004GTIN (EAN): 4039806184368Show all details
Articlewall fastening, inclinablePU2 pcs.Wt. (kg)0.2Order No.: 58FM002GTIN (EAN): 4058352410257Show all details
Articleceiling mountingPU2 pcs.Wt. (kg)0.1Order No.: 58FM012GTIN (EAN): 4069025193957Show all details
Articlepipe clip fixing, for pipe diameter 1.5"PU2 pcs.Wt. (kg)0.2Order No.: 58FM003GTIN (EAN): 4058352426500Show all details
Articlepipe clip fixing, for pipe diameter 2"PU2 pcs.Wt. (kg)0.2Order No.: 58FM004GTIN (EAN): 4058352426524Show all details
Articlewall fastening, horizontal mounting, vertical mountingPU2 pcs.Wt. (kg)0.1Order No.: 58FM007GTIN (EAN): 4058352410295Show all details
Articlefixing reinforcementPU2 pcs.Wt. (kg)0.1Order No.: 58FM006GTIN (EAN): 4058352410271Show all details
Articlespring clip, surface-mounted to the Licross® mounting railPU2 pcs.Wt. (kg)0.1Order No.: 58FM001GTIN (EAN): 4058352410233Show all details
Articlespring clip, surface-mounted to the DUS® mounting railPU2 pcs.Wt. (kg)0.1Order No.: 58FM008GTIN (EAN): 4058352426548Show all details
Articlecable infeed, M20, rubber, for cables, Ø 6..13mmPU1 pc.Wt. (kg)0.1Order No.: 59FT001GTIN (EAN): 4058352410394Show all details
Articlecable infeed, M25, rubber, for cables, Ø 9..17mmPU1 pc.Wt. (kg)0.1Order No.: 58FT002GTIN (EAN): 4058352410318Show all details
Articlemounting rail, for suspended mounting, surface-mounted, L= 1590mmPU1 pc.Wt. (kg)1.7Order No.: 58FS001GTIN (EAN): 4058352474945Show all details
Articlemounting rail, for suspended mounting, surface-mounted, L= 3180mmPU1 pc.Wt. (kg)3.5Order No.: 58FS002GTIN (EAN): 4058352474976Show all details
Articlemounting rail, for suspended mounting, surface-mounted, L= 4770mmPU1 pc.Wt. (kg)5.2Order No.: 58FS003GTIN (EAN): 4058352475799Show all details
Articleconnector, steel, galvanisedPU1 pc.Wt. (kg)0.3Order No.: 58FS005GTIN (EAN): 4058352477052Show all details
Articlecable holder, for supplementary wiring in the trunking railPU10 pcs.Wt. (kg)0.1Order No.: 59TR1HGTIN (EAN): 4058352476222Show all details
Articleend cap for rail, white, for IP20 protection ratingPU2 pcs.Wt. (kg)0.1Order No.: 59TL1SGTIN (EAN): 4058352272589Show all details
Articleblank cover, white, for IP20/IP40 protection ratingPU1 pc.Wt. (kg)0.2Order No.: 58FS006GTIN (EAN): 4058352466605Show all details
