The Apollon® range scores with an integrative design, uniform illumination and advanced technology. The flat, purist housing shape integrates itself into any environment and creates uniform illumination due to its appearance as a light window. Thanks to the optional Tunable White function, Apollon® is ideally suited for SITECO HCLlive applications for improving well-being and motivation. With efficient lighting technology and availability in standard panel dimensions, high energy savings and thus short payback times are achieved in the simplest way in refurbishment projects.

The intelligent luminaire range for office and general lighting.

Producttypes

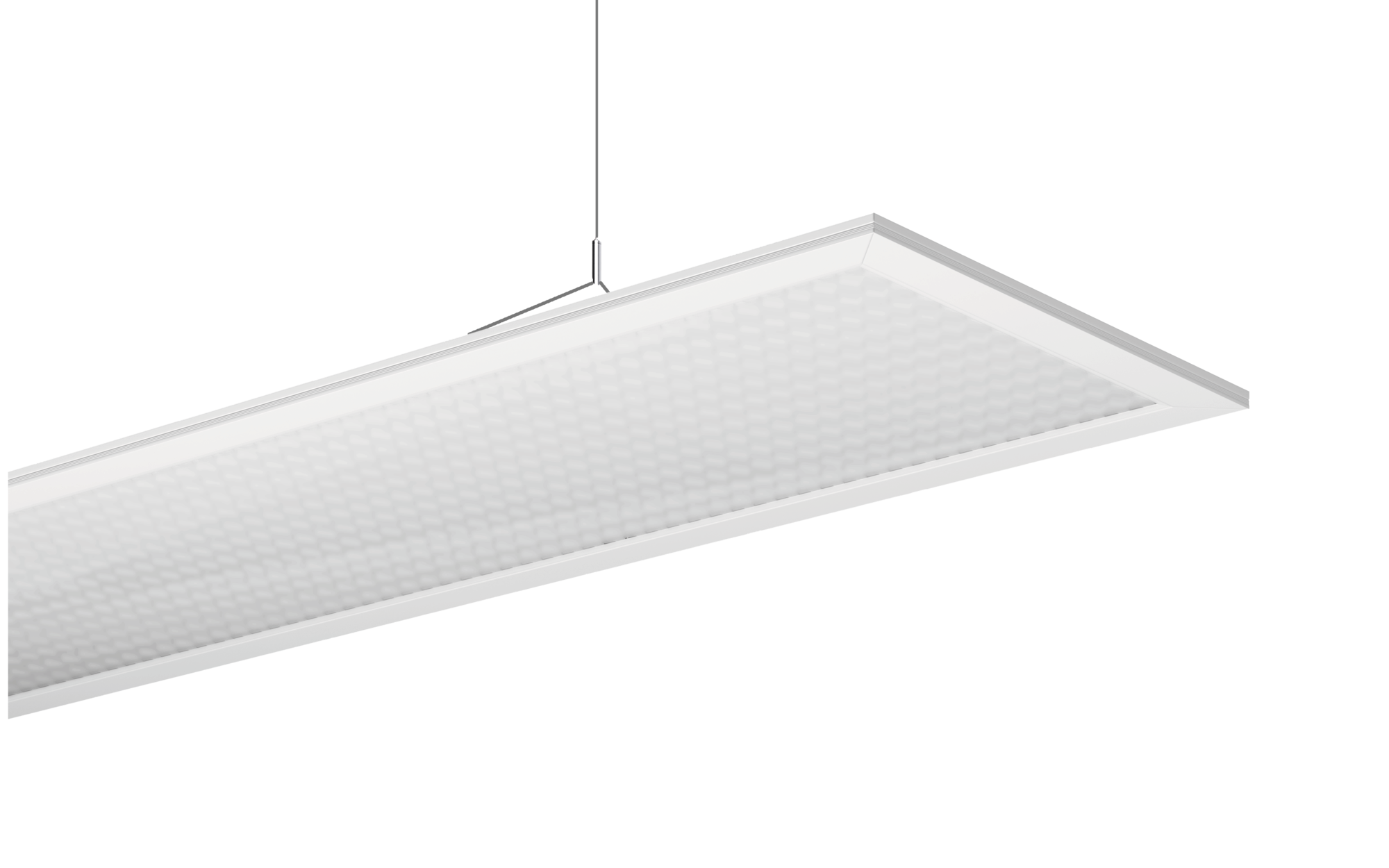

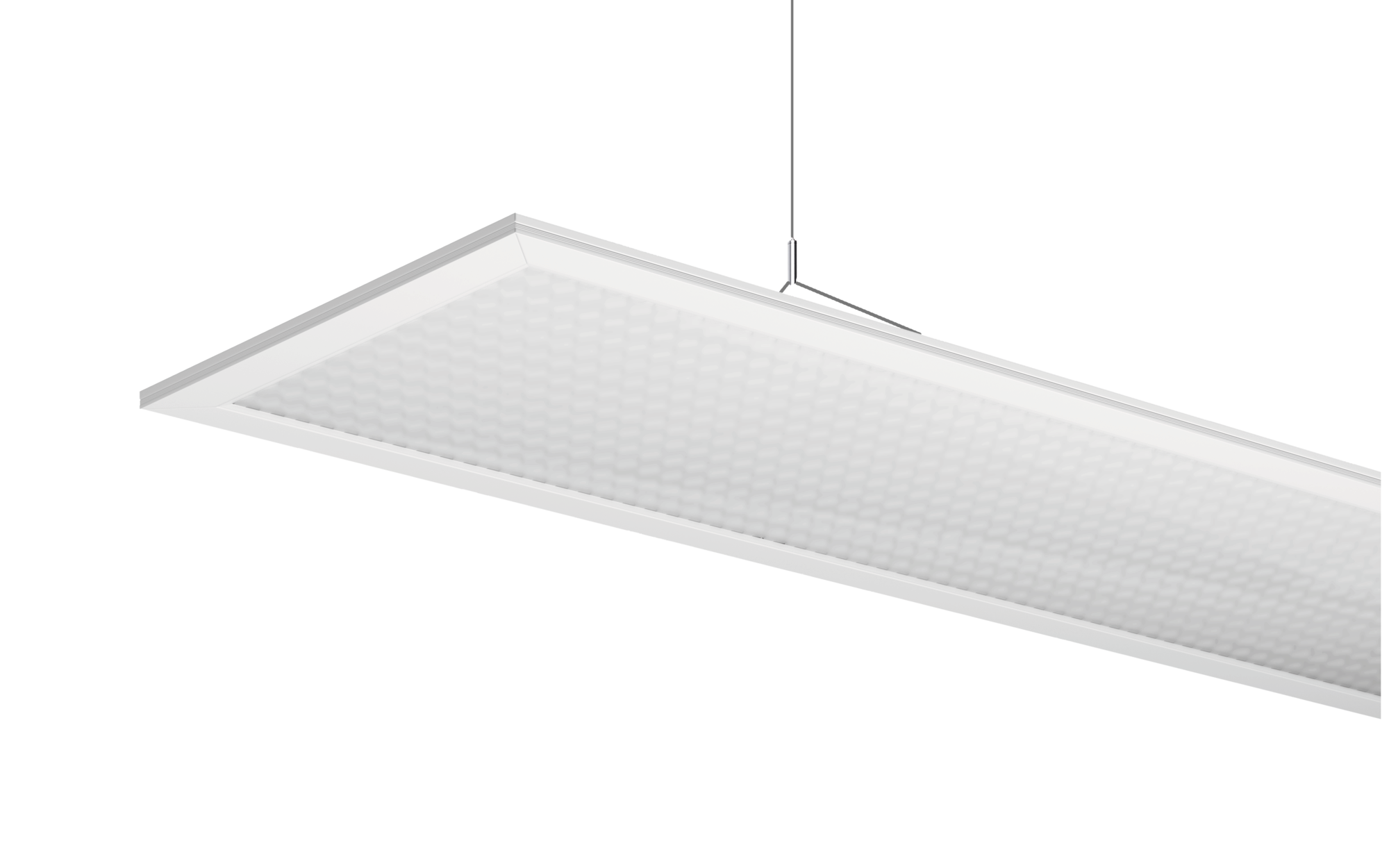

Apollon® with rectangular housing

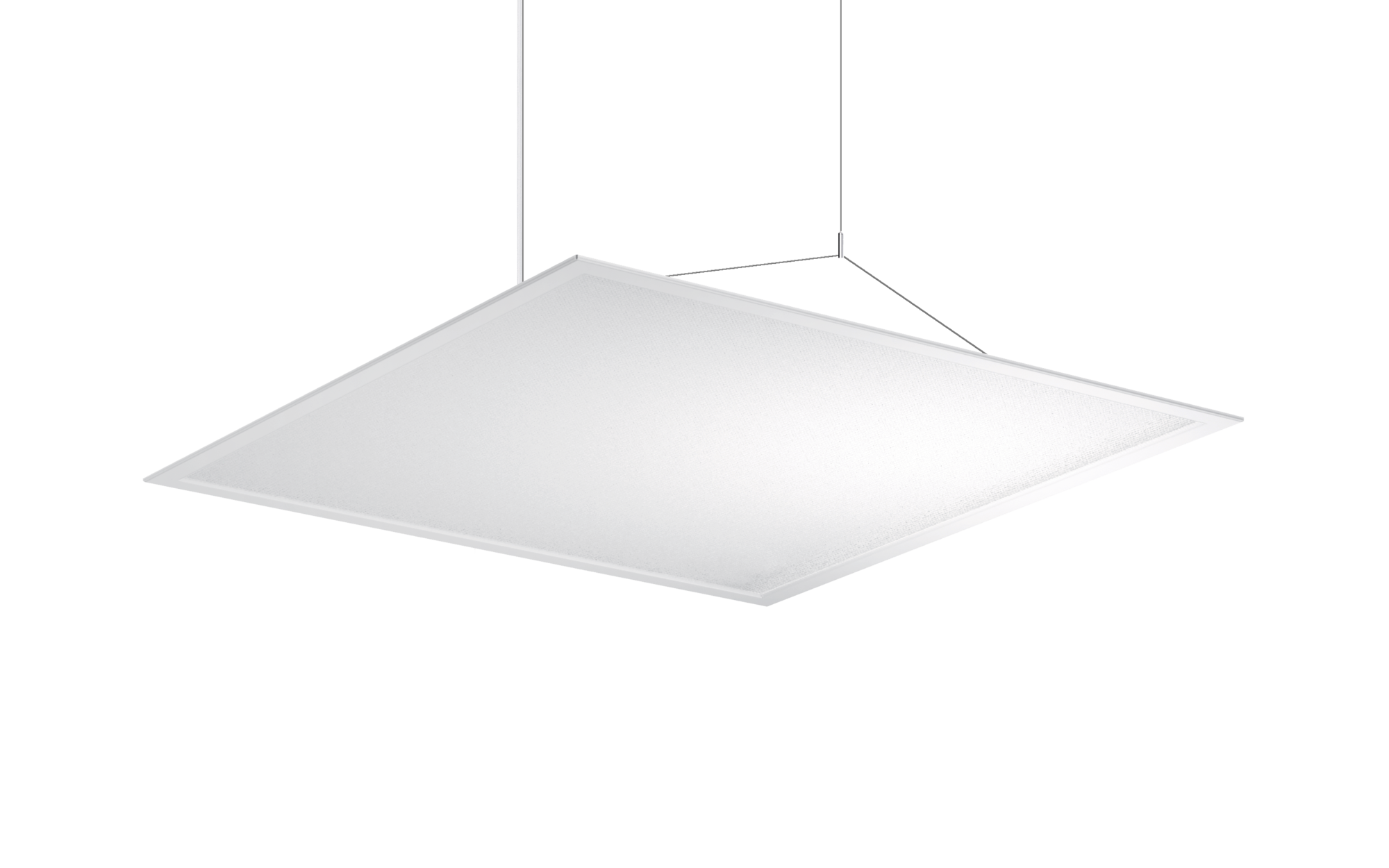

Apollon® with square housing

Apollon® package WORK

Apollon® package MEET

Apollon® with square housing

Intro to Productfamily

Data

Article office luminaire
Lighting effect direct symmetric wide distribution, 90°
Net luminous flux 1800lm to 4180lm
Colour temperature 2700…6500K; 3000K; 4000K; 6500K
Control ON/OFF; DALI; ON/OFF Multilumen; DALI DT8; DALI, CLO
Protection rating IP20/IP50; IP20/IP54
Service life 50000h (L80/B50) at AT = 25°C; 50000h (L100/B50) at AT = 25°C

Specials

Highly efficient for low energy consumption – with refurbishment projects (T5/T8), feasible energy savings are up to 55 %
Durability in application due to high protection ratings of up to IP54 – also suitable for more adverse environments and clean rooms
Available with Tunable White function as the ideal basis for HCLlive applications – for greater well-being and motivation
Very high color rendering value (CRI ≥ 90), ideal for demanding visual tasks and wellbeing

Configuration & Datasheets

Colour temperature

Light colour

UGR

Rated luminous flux (lm)

Control

Connection

Ceiling system

Dimension (mm)

Protection rating (on room side)

  • lay-in mounting in system ceilings without recessing accessories; for installation in ceiling cutout and for other types of installation: please order mounting accessories separately
  • recessing into cut ceiling aperture not possible with luminaire 0MQ11723W1
  • installing in ceiling cutout is only possible with the Module 625 luminaire; please order installation accessories matching the luminaire separately
  • for ceiling surface-mounting: please order luminaire and surface-mount housing individually in the matching size
  • for suspended mounting: please order suspension accessories separately (1 set per luminaire) including the required connection cable (3- or 5-wire connection cable included with the respective wire suspension)
  • push button interface and multi-sensor only usable in combination with controller

Results

Apollon® 21 square, direct distribution, Light colour 840, ON/OFF, for M625

Order No.: 51MQ11W72412GTIN (EAN): 4058352318775
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlConnectionProtection ratingDimension (mm)Wt. (kg)
4000KCRI > 804180lm38W110lm/WON/OFF IP20/IP50622x6223.0
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Apollon® 21 square, direct distribution, Light colour 840, DALI, CLO, for M625

Order No.: 51MQ11WC2412GTIN (EAN): 4058352327555
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlConnectionProtection ratingDimension (mm)Wt. (kg)
4000KCRI > 804100lm40W103lm/WDALI, CLO IP20/IP50622x6223.1
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Apollon® 21 square, direct distribution, Light colour 940, DALI, for M625

Order No.: 51MQ11WD2112GTIN (EAN): 4058352327586
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlConnectionProtection ratingDimension (mm)Wt. (kg)
4000KCRI > 903950lm40W99lm/WDALI IP20/IP50622x6223.0
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Apollon® 21 square, direct distribution, Light colour 840, DALI, for M625

Order No.: 51MQ11WD2412GTIN (EAN): 4058352318799
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlConnectionProtection ratingDimension (mm)Wt. (kg)
4000KCRI > 804000lm38W105lm/WDALI IP20/IP50622x6223.0
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Apollon® 21 square, direct distribution, Light colour 840, DALI, for M625

Order No.: 51MQ11WD2452GTIN (EAN): 4058352327814
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlConnectionProtection ratingDimension (mm)Wt. (kg)
4000KCRI > 804180lm38W110lm/WDALI IP20/IP54622x6222.4
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Apollon® 21 square, direct distribution, DALI, for M625

Order No.: 51MQ11WD2612GTIN (EAN): 4058352327845
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlConnectionProtection ratingDimension (mm)Wt. (kg)
6500KCRI > 804000lm38W105lm/WDALI IP20/IP50622x6223.0
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Apollon® 21 square, direct distribution, 2700..6500K, DALI DT8, for M625

Order No.: 51MQ11WD2T12GTIN (EAN): 4058352331842
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlConnectionProtection ratingDimension (mm)Wt. (kg)
2700..6500KCRI > 804000lm45W89lm/WDALI DT8 IP20/IP50622x6223.9
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Apollon® 21 square, direct distribution, Light colour 840, DALI, for M625, with Linect®

Order No.: 51MQ11WD3412GTIN (EAN): 4058352379295
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlConnectionProtection ratingDimension (mm)Wt. (kg)
4000KCRI > 804000lm38W105lm/WDALILinect®IP20/IP50622x6221.9
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Apollon® 21 square, direct distribution, Light colour 840, ON/OFF Multilumen, for M625

Order No.: 51MQ11WM2412GTIN (EAN): 4058352321102
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlConnectionProtection ratingDimension (mm)Wt. (kg)
4000KCRI > 804180lm40W105lm/WON/OFF Multilumen IP20/IP50622x6222.5
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Apollon® 21 square, direct distribution, Light colour 830, ON/OFF, for M600

Order No.: 51MQ12W72312GTIN (EAN): 4058352318720
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlConnectionProtection ratingDimension (mm)Wt. (kg)
3000KCRI > 804000lm38W105lm/WON/OFF IP20/IP50597x5973.4
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Apollon® 21 square, direct distribution, Light colour 840, ON/OFF, for M600

Order No.: 51MQ12W72412GTIN (EAN): 4058352318737
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlConnectionProtection ratingDimension (mm)Wt. (kg)
4000KCRI > 804180lm38W110lm/WON/OFF IP20/IP50597x5973.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Apollon® 21 square, direct distribution, Light colour 940, DALI, for M600

Order No.: 51MQ12WD2112GTIN (EAN): 4058352321119
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlConnectionProtection ratingDimension (mm)Wt. (kg)
4000KCRI > 903950lm40W99lm/WDALI IP20/IP50597x5973.0
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Apollon® 21 square, direct distribution, Light colour 830, DALI, for M600

Order No.: 51MQ12WD2312GTIN (EAN): 4058352318904
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlConnectionProtection ratingDimension (mm)Wt. (kg)
3000KCRI > 803800lm38W100lm/WDALI IP20/IP50597x5973.0
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Apollon® 21 square, direct distribution, Light colour 840, DALI, for M600

Order No.: 51MQ12WD2412GTIN (EAN): 4058352318911
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlConnectionProtection ratingDimension (mm)Wt. (kg)
4000KCRI > 804000lm38W105lm/WDALI IP20/IP50597x5973.5
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Apollon® 21 square, direct distribution, Light colour 840, DALI, for M600

Order No.: 51MQ12WD2452GTIN (EAN): 4058352327913
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlConnectionProtection ratingDimension (mm)Wt. (kg)
4000KCRI > 804180lm38W110lm/WDALI IP20/IP54597x5973.8
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Apollon® 21 square, direct distribution, 2700..6500K, DALI DT8, for M600

Order No.: 51MQ12WD2T12GTIN (EAN): 4058352331903
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlConnectionProtection ratingDimension (mm)Wt. (kg)
2700..6500KCRI > 804000lm45W89lm/WDALI DT8 IP20/IP50597x5973.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Apollon® 21 square, direct distribution, Light colour 840, DALI, for M600, with Linect®

Order No.: 51MQ12WD3412GTIN (EAN): 4058352327975
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlConnectionProtection ratingDimension (mm)Wt. (kg)
4000KCRI > 804000lm38W105lm/WDALILinect®IP20/IP50597x5973.2
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Apollon® 21 square, direct distribution, Light colour 840, DALI

Order No.: 51MQ13WD2412GTIN (EAN): 4058352387603
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlConnectionProtection ratingDimension (mm)Wt. (kg)
4000KCRI > 801800lm18W100lm/WDALI IP20/IP50297x2971.0
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Apollon® 21 square, direct distribution, Light colour 830, DALI, for M625

Order No.: 51MQ11WD2312GTIN (EAN): 4058352318782
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlConnectionProtection ratingDimension (mm)Wt. (kg)
3000KCRI > 803800lm38W100lm/WDALI IP20/IP50622x6222.4
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Apollon® 21 square, direct distribution, Light colour 840, ON/OFF, for M625

Order No.: 51MQ11W72412GTIN (EAN): 4058352318775

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4180lm
Connected load38W
Luminous efficacy110lm/W
ControlON/OFF
Connection
Protection ratingIP20/IP50
Dimension (mm)622x622
Wt. (kg)3.0
Show details

Apollon® 21 square, direct distribution, Light colour 840, DALI, CLO, for M625

Order No.: 51MQ11WC2412GTIN (EAN): 4058352327555

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4100lm
Connected load40W
Luminous efficacy103lm/W
ControlDALI, CLO
Connection
Protection ratingIP20/IP50
Dimension (mm)622x622
Wt. (kg)3.1
Show details

Apollon® 21 square, direct distribution, Light colour 940, DALI, for M625

Order No.: 51MQ11WD2112GTIN (EAN): 4058352327586

Colour temperature4000K
Colour renderingCRI > 90
Luminous flux3950lm
Connected load40W
Luminous efficacy99lm/W
ControlDALI
Connection
Protection ratingIP20/IP50
Dimension (mm)622x622
Wt. (kg)3.0
Show details

Apollon® 21 square, direct distribution, Light colour 840, DALI, for M625

Order No.: 51MQ11WD2412GTIN (EAN): 4058352318799

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4000lm
Connected load38W
Luminous efficacy105lm/W
ControlDALI
Connection
Protection ratingIP20/IP50
Dimension (mm)622x622
Wt. (kg)3.0
Show details

Apollon® 21 square, direct distribution, Light colour 840, DALI, for M625

Order No.: 51MQ11WD2452GTIN (EAN): 4058352327814

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4180lm
Connected load38W
Luminous efficacy110lm/W
ControlDALI
Connection
Protection ratingIP20/IP54
Dimension (mm)622x622
Wt. (kg)2.4
Show details

Apollon® 21 square, direct distribution, DALI, for M625

Order No.: 51MQ11WD2612GTIN (EAN): 4058352327845

Colour temperature6500K
Colour renderingCRI > 80
Luminous flux4000lm
Connected load38W
Luminous efficacy105lm/W
ControlDALI
Connection
Protection ratingIP20/IP50
Dimension (mm)622x622
Wt. (kg)3.0
Show details

Apollon® 21 square, direct distribution, 2700..6500K, DALI DT8, for M625

Order No.: 51MQ11WD2T12GTIN (EAN): 4058352331842

Colour temperature2700..6500K
Colour renderingCRI > 80
Luminous flux4000lm
Connected load45W
Luminous efficacy89lm/W
ControlDALI DT8
Connection
Protection ratingIP20/IP50
Dimension (mm)622x622
Wt. (kg)3.9
Show details

Apollon® 21 square, direct distribution, Light colour 840, DALI, for M625, with Linect®

Order No.: 51MQ11WD3412GTIN (EAN): 4058352379295

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4000lm
Connected load38W
Luminous efficacy105lm/W
ControlDALI
ConnectionLinect®
Protection ratingIP20/IP50
Dimension (mm)622x622
Wt. (kg)1.9
Show details

Apollon® 21 square, direct distribution, Light colour 840, ON/OFF Multilumen, for M625

Order No.: 51MQ11WM2412GTIN (EAN): 4058352321102

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4180lm
Connected load40W
Luminous efficacy105lm/W
ControlON/OFF Multilumen
Connection
Protection ratingIP20/IP50
Dimension (mm)622x622
Wt. (kg)2.5
Show details

Apollon® 21 square, direct distribution, Light colour 830, ON/OFF, for M600

Order No.: 51MQ12W72312GTIN (EAN): 4058352318720

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux4000lm
Connected load38W
Luminous efficacy105lm/W
ControlON/OFF
Connection
Protection ratingIP20/IP50
Dimension (mm)597x597
Wt. (kg)3.4
Show details

Apollon® 21 square, direct distribution, Light colour 840, ON/OFF, for M600

Order No.: 51MQ12W72412GTIN (EAN): 4058352318737

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4180lm
Connected load38W
Luminous efficacy110lm/W
ControlON/OFF
Connection
Protection ratingIP20/IP50
Dimension (mm)597x597
Wt. (kg)3.3
Show details

Apollon® 21 square, direct distribution, Light colour 940, DALI, for M600

Order No.: 51MQ12WD2112GTIN (EAN): 4058352321119

Colour temperature4000K
Colour renderingCRI > 90
Luminous flux3950lm
Connected load40W
Luminous efficacy99lm/W
ControlDALI
Connection
Protection ratingIP20/IP50
Dimension (mm)597x597
Wt. (kg)3.0
Show details

Apollon® 21 square, direct distribution, Light colour 830, DALI, for M600

Order No.: 51MQ12WD2312GTIN (EAN): 4058352318904

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux3800lm
Connected load38W
Luminous efficacy100lm/W
ControlDALI
Connection
Protection ratingIP20/IP50
Dimension (mm)597x597
Wt. (kg)3.0
Show details

Apollon® 21 square, direct distribution, Light colour 840, DALI, for M600

Order No.: 51MQ12WD2412GTIN (EAN): 4058352318911

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4000lm
Connected load38W
Luminous efficacy105lm/W
ControlDALI
Connection
Protection ratingIP20/IP50
Dimension (mm)597x597
Wt. (kg)3.5
Show details

Apollon® 21 square, direct distribution, Light colour 840, DALI, for M600

Order No.: 51MQ12WD2452GTIN (EAN): 4058352327913

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4180lm
Connected load38W
Luminous efficacy110lm/W
ControlDALI
Connection
Protection ratingIP20/IP54
Dimension (mm)597x597
Wt. (kg)3.8
Show details

Apollon® 21 square, direct distribution, 2700..6500K, DALI DT8, for M600

Order No.: 51MQ12WD2T12GTIN (EAN): 4058352331903

Colour temperature2700..6500K
Colour renderingCRI > 80
Luminous flux4000lm
Connected load45W
Luminous efficacy89lm/W
ControlDALI DT8
Connection
Protection ratingIP20/IP50
Dimension (mm)597x597
Wt. (kg)3.3
Show details

Apollon® 21 square, direct distribution, Light colour 840, DALI, for M600, with Linect®

Order No.: 51MQ12WD3412GTIN (EAN): 4058352327975

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4000lm
Connected load38W
Luminous efficacy105lm/W
ControlDALI
ConnectionLinect®
Protection ratingIP20/IP50
Dimension (mm)597x597
Wt. (kg)3.2
Show details

Apollon® 21 square, direct distribution, Light colour 840, DALI

Order No.: 51MQ13WD2412GTIN (EAN): 4058352387603

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux1800lm
Connected load18W
Luminous efficacy100lm/W
ControlDALI
Connection
Protection ratingIP20/IP50
Dimension (mm)297x297
Wt. (kg)1.0
Show details

Apollon® 21 square, direct distribution, Light colour 830, DALI, for M625

Order No.: 51MQ11WD2312GTIN (EAN): 4058352318782

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux3800lm
Connected load38W
Luminous efficacy100lm/W
ControlDALI
Connection
Protection ratingIP20/IP50
Dimension (mm)622x622
Wt. (kg)2.4
Show details

Optional accessory

ArticleY-wire suspension, with ceiling rose, with fixing bracket, for ON/OFF versionPU1 pc.Wt. (kg)0.3Order No.: 59MQ31000021GTIN (EAN): 4058352347867Show details
ArticleY-wire suspension, with ceiling rose, with fixing bracket, for DALI versionPU1 pc.Wt. (kg)0.3Order No.: 59MQ32000021GTIN (EAN): 4058352347881Show details
Articlesurface mounted housing, white, for luminaire M600PU1 pc.Wt. (kg)1.2Order No.: 5MQ90111XCGTIN (EAN): 4058352261958Show details
Articlesurface mounted housing, white, for luminaire M625PU1 pc.Wt. (kg)1.3Order No.: 5MQ90121XCGTIN (EAN): 4058352261965Show details
Articlesurface mounted housing, white, for luminaire Lx B= 297 x 297mmPU1 pc.Wt. (kg)0.7Order No.: 5MQ90131XCGTIN (EAN): 4058352261972Show details
Articlerapid mounting bracket, for cut ceiling aperturesPU4 pcs.Wt. (kg)0.7Order No.: 5MQ90040XCGTIN (EAN): 4058352261927Show details
Articlepresence detector, multi-sensor, master, DALI, recessedPU1 pc.Wt. (kg)0.1Order No.: 5LZ925600GTIN (EAN): 4058352364048Show details
Articlepresence detector, multi-sensor, slave, DALI-2, recessedPU1 pc.Wt. (kg)0.2Order No.: 5LZ925601GTIN (EAN): 4058352362020Show details
Articlesurface mounted housingPU1 pc.Wt. (kg)0.1Order No.: 5LZ925APGTIN (EAN): 4050737767505Show details
Articlepresence detector, multi-sensor, master, DALI, surface-mountedPU1 pc.Wt. (kg)0.3Order No.: 5LZ925602GTIN (EAN): 4058352364062Show details
Articlecontroller, central control, wiredPU1 pc.Wt. (kg)1.0Order No.: 5LZ904712GTIN (EAN): 4008321710871Show details
Articlepush button interfacePU1 pc.Wt. (kg)0.1Order No.: 5LZ904731GTIN (EAN): 4008321496461Show details
ArticleSmart RemotePU1 pc.Wt. (kg)0.1Order No.: 59UC3RCAGTIN (EAN): 4058352363713Show details
Articlerotary dimmer, local control, recessed in the switch boxPU1 pc.Wt. (kg)0.1Order No.: 5LZ902050TWGTIN (EAN): 4058352145807Show details
