Apollon® 21
The Apollon® family impresses with its integrative design, homogeneous illumination and advanced technology. Thanks to the different geometries and installation variants, the versatile family of luminaires is perfect for the entire office building. Thanks to the optional Tunable White function, the Apollon® 21 is ideally suited for SITECO HCLlive applications. Efficient lighting technology and the availability of standard panel sizes mean that high energy savings and thus short amortization times can be achieved in the simplest way during renovations.

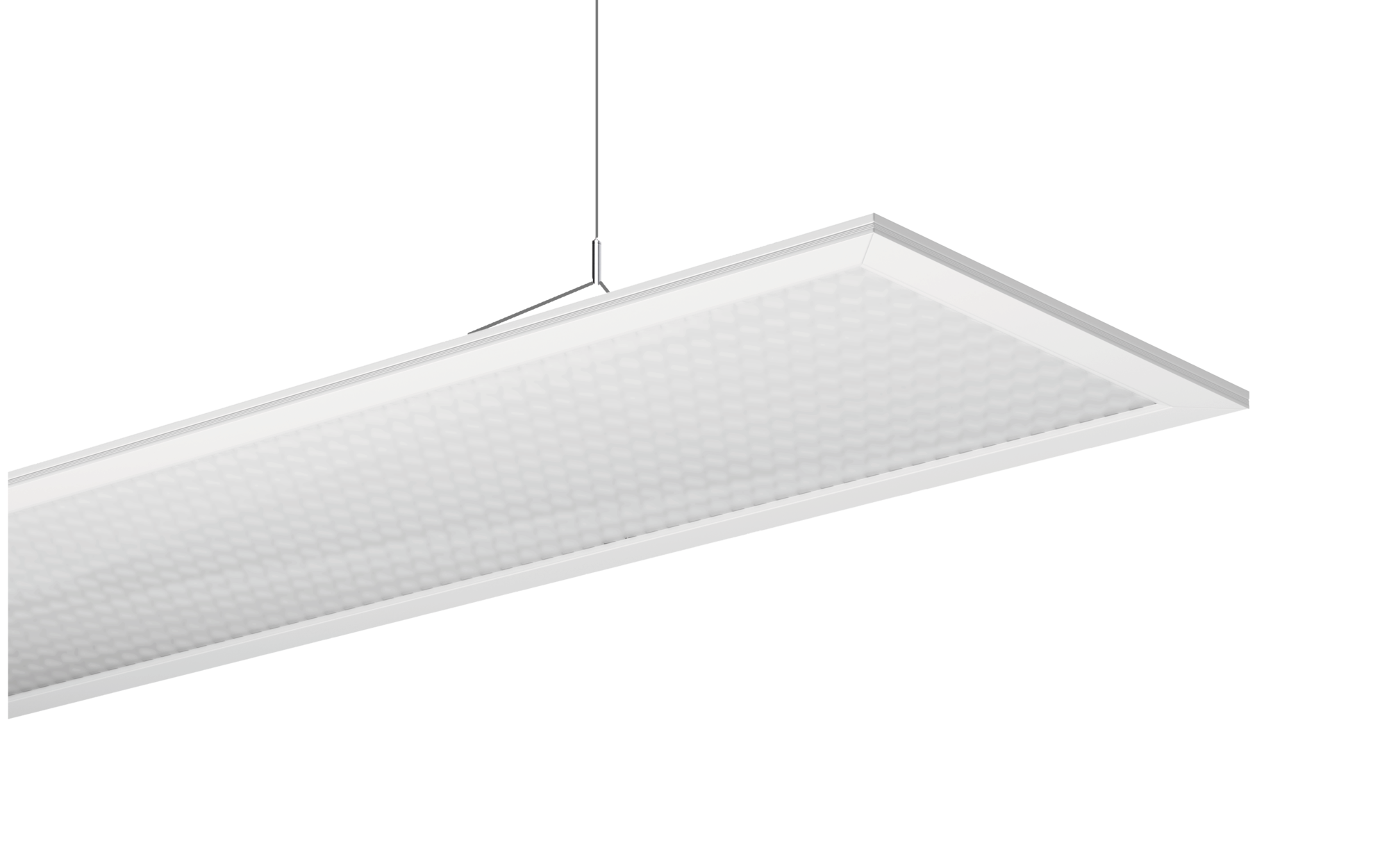

Our core portfolio: Apollon® 21 is our suspended luminaire with the highest standards of efficiency, quality and flexibility for your project

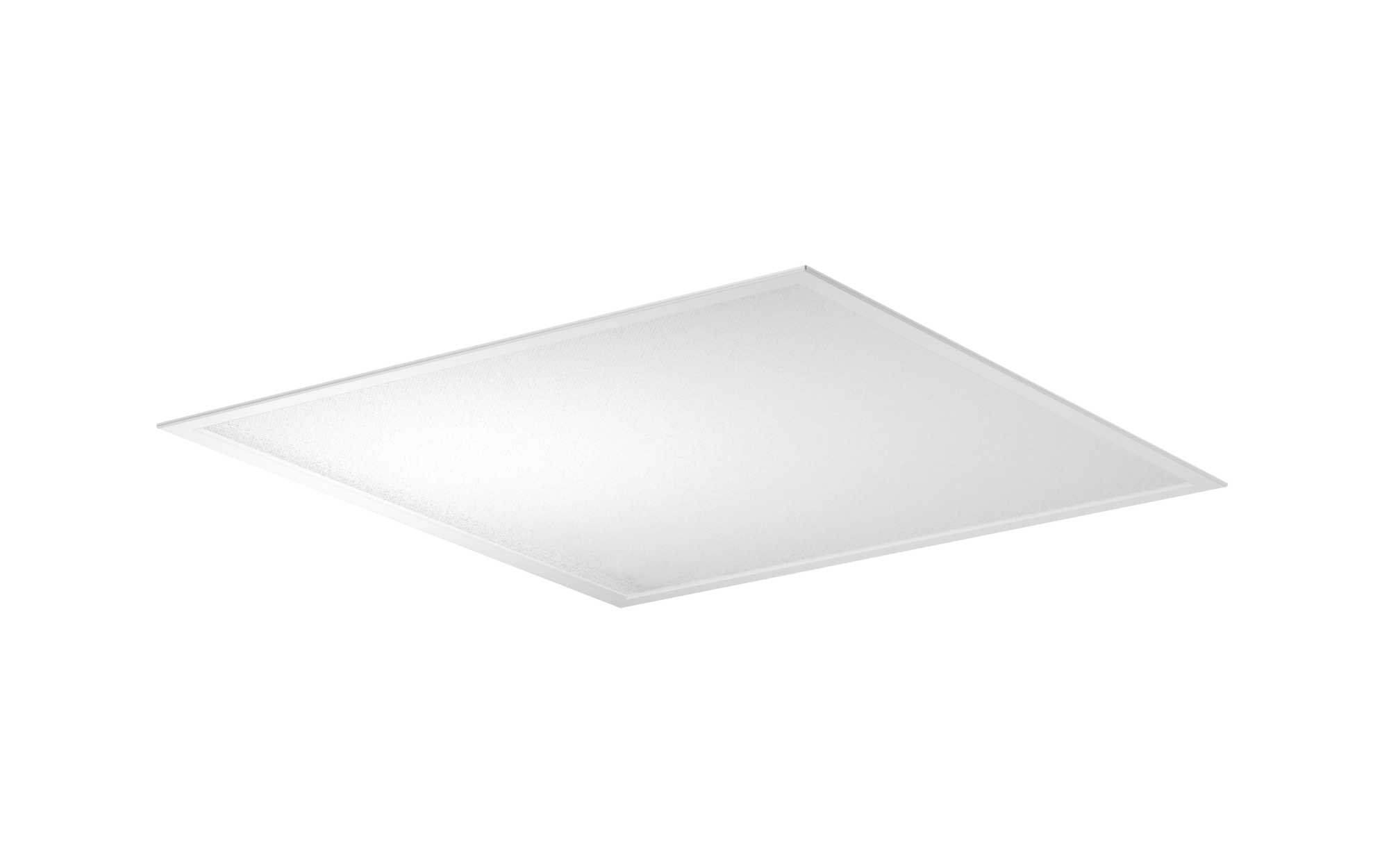

Apollon® 21 with square housing (Back LED)
Intro product family
Key data
Article office luminaire
Lighting effect direct symmetric wide distribution, 90°
Net luminous flux 4100lm to 7400lm
Colour temperature 2700…6500K; 3000/4000K; 3000K; 4000K; 6500K
Control ON/OFF; ON/OFF Multilumen; DALI 2, CLO; DALI-2 DT8; DALI 2, Multilumen
Protection rating IP20/IP50; IP20/IP54
Service life 100000h (L80) at AT = 25°C; 100000h (L100) at AT = 25°C
Special features
Highly efficient for low energy consumption – with refurbishment projects (T5/T8), feasible energy savings are up to 55 %
Durability in application due to high protection ratings of up to IP54 – also suitable for more adverse environments and clean rooms
Available with tunable white function as an ideal basis for HCLlive applications – for more well-being and motivation
Very high colour rendering value (CRI ≥ 90), ideal for demanding visual tasks and wellbeing
Configuration & data sheets
- for suspended mounting: please order suspension accessories separately (1 set per luminaire) including the required connection cable (3- or 5-wire connection cable included with the respective wire suspension)
- push button interface and multi-sensor only usable in combination with controller
Results
Apollon 21 square, direct distribution, Light colour 830, ON/OFF, for M625 and for cut ceiling aperture
Order No.: 51MQ11W72314 GTIN (EAN): 4058352928059
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4100lm | 23.3W | 176lm/W | ON/OFF | IP20/IP50 | 620x620 | 1 piece | 2.1 |
Apollon 21 square, direct distribution, Light colour 840, ON/OFF, for M625 and for cut ceiling aperture
Order No.: 51MQ11W72414 GTIN (EAN): 4058352928066
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4200lm | 23.3W | 180lm/W | ON/OFF | IP20/IP50 | 620x620 | 1 piece | 2.1 |
Apollon 21 square, direct distribution, Light colour 840, DALI 2, Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11WC2454 GTIN (EAN): 4058352928097
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4200lm | 24.7W | 170lm/W | DALI 2, Multilumen | IP20/IP54 | 620x620 | 1 piece | 2.1 |
Apollon 21 square, direct distribution, Light colour 940, DALI 2, Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11WD2114 GTIN (EAN): 4058352928103
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 90 | 4100lm | 24.7W | 166lm/W | DALI 2, Multilumen | IP20/IP50 | 620x620 | 1 piece | 2.1 |
Apollon 21 square, direct distribution, Light colour 840, DALI 2, Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11WD2454 GTIN (EAN): 4058352928141
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4200lm | 24.7W | 170lm/W | DALI 2, Multilumen | IP20/IP54 | 620x620 | 1 piece | 2.1 |
Apollon 21 square, direct distribution, Light colour 865, DALI 2, Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11WD2614 GTIN (EAN): 4058352928158
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 6500K | CRI > 80 | 4150lm | 24.7W | 168lm/W | DALI 2, Multilumen | IP20/IP50 | 620x620 | 1 piece | 2.1 |
Apollon 21 square, direct distribution, Light colour 830/840, DALI 2, Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11WD2M14 GTIN (EAN): 4058352928165
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000/4000K | CRI > 80 | 4200lm | 26W | 162lm/W | DALI 2, Multilumen | IP20/IP50 | 620x620 | 1 piece | 2.1 |
Apollon 21 square, direct distribution, Light colour 840, ON/OFF, for M600 and for cut ceiling aperture
Order No.: 51MQ12W72414 GTIN (EAN): 4058352928202
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4200lm | 23W | 180lm/W | ON/OFF | IP20/IP50 | 595x595 | 1 piece | 1.8 |
Apollon 21 square, direct distribution, Light colour 830/840, ON/OFF, for M600 and for cut ceiling aperture
Order No.: 51MQ12W72M14 GTIN (EAN): 4058352928219
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000/4000K | CRI > 80 | 4200lm | 24.2W | 174lm/W | ON/OFF | IP20/IP50 | 595x595 | 1 piece | 1.8 |
Apollon 21 square, direct distribution, Light colour 840, DALI 2, Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12WC2454 GTIN (EAN): 4058352928226
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4200lm | 24.7W | 170lm/W | DALI 2, Multilumen | IP20/IP54 | 595x595 | 1 piece | 1.8 |
Apollon 21 square, direct distribution, Light colour 940, DALI 2, Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12WD2114 GTIN (EAN): 4058352928233
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 90 | 4100lm | 24.7W | 166lm/W | DALI 2, Multilumen | IP20/IP50 | 595x595 | 1 piece | 1.8 |
Apollon 21 square, direct distribution, Light colour 840, DALI 2, Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12WD2414 GTIN (EAN): 4058352928240
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4200lm | 24.7W | 170lm/W | DALI 2, Multilumen | IP20/IP50 | 595x595 | 1 piece | 1.8 |
Apollon 21 square, direct distribution, Light colour 840, DALI 2, Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12WD2454 GTIN (EAN): 4058352928264
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4200lm | 24.7W | 170lm/W | DALI 2, Multilumen | IP20/IP54 | 595x595 | 1 piece | 1.8 |
Apollon 21 square, direct distribution, Light colour 830/840, DALI 2, Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12WD2M14 GTIN (EAN): 4058352928288
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000/4000K | CRI > 80 | 4200lm | 26W | 162lm/W | DALI 2, Multilumen | IP20/IP50 | 595x595 | 1 piece | 1.8 |
Apollon 21 square, direct distribution, Light colour 840, DALI 2, CLO, for M625 and for cut ceiling aperture
Order No.: 51MQ11HC2415 GTIN (EAN): 4069025329523
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 6000lm | 164lm/W | DALI 2, CLO | IP20/IP50 | 620x620 | 1 piece | 3.1 |
Apollon 21 square, direct distribution, Light colour 840, DALI 2, Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11WD2415 GTIN (EAN): 4069025329745
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5000lm | 30.5W | 164lm/W | DALI 2, Multilumen | IP20/IP50 | 620x620 | 1 piece | 3.1 |
Apollon 21 square, direct distribution, Light colour 830, DALI 2, CLO, for M625 and for cut ceiling aperture
Order No.: 51MQ11HC2315 GTIN (EAN): 4069025329509
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 5700lm | 156lm/W | DALI 2, CLO | IP20/IP50 | 620x620 | 1 piece | 3.1 |
Apollon 21 square, direct distribution, Light colour 830, DALI 2, Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11WD2315 GTIN (EAN): 4069025329721
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4800lm | 30.5W | 156lm/W | DALI 2, Multilumen | IP20/IP50 | 620x620 | 1 piece | 3.1 |
Apollon 21 square, direct distribution, Light colour 830, ON/OFF Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11HM2315 GTIN (EAN): 4069025329585
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 7000lm | 43W | 163lm/W | ON/OFF Multilumen | IP20/IP50 | 620x620 | 1 piece | 3.1 |
Apollon 21 square, direct distribution, Light colour 840, DALI 2, Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11HD2415 GTIN (EAN): 4069025365224
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 7400lm | 45W | 164lm/W | DALI 2, Multilumen | IP20/IP50 | 620x620 | 1 piece | 3.1 |
Apollon 21 square, direct distribution, Light colour 830, DALI 2, Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11HD2315 GTIN (EAN): 4069025365200
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 7000lm | 45W | 156lm/W | DALI 2, Multilumen | IP20/IP50 | 620x620 | 1 piece | 3.1 |
Apollon 21 square, direct distribution, Light colour 840, ON/OFF Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11HM2415 GTIN (EAN): 4069025329608
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 7400lm | 43W | 172lm/W | ON/OFF Multilumen | IP20/IP50 | 620x620 | 1 piece | 3.1 |
Apollon 21 square, direct distribution, Light colour 830, DALI 2, Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12WD2315 GTIN (EAN): 4069025330062
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4600lm | 30.5W | 155lm/W | DALI 2, Multilumen | IP20/IP50 | 595x595 | 1 piece | 3.0 |
Apollon 21 square, direct distribution, Light colour 830, DALI 2, CLO, for M600 and for cut ceiling aperture
Order No.: 51MQ12HC2315 GTIN (EAN): 4069025329882
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 5700lm | 155lm/W | DALI 2, CLO | IP20/IP50 | 595x595 | 1 piece | 3.0 |
Apollon 21 square, direct distribution, Light colour 830, DALI 2, Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12HD2315 GTIN (EAN): 4069025365286
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 7000lm | 45W | 156lm/W | DALI 2, Multilumen | IP20/IP50 | 595x595 | 1 piece | 3.0 |
Apollon 21 square, direct distribution, Light colour 830, ON/OFF Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12HM2315 GTIN (EAN): 4069025329943
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 7000lm | 43W | 161lm/W | ON/OFF Multilumen | IP20/IP50 | 595x595 | 1 piece | 3.0 |
Apollon 21 square, direct distribution, Light colour 930/940, DALI 2, Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11HC2L55 GTIN (EAN): 4069025336156
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000/4000K | CRI > 90 | 5000lm | 32W | 156lm/W | DALI 2, Multilumen | IP20/IP54 | 620x620 | 1 piece | 3.1 |
Apollon 21 square, direct distribution, Light colour 930/940, ON/OFF Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11HM2L55 GTIN (EAN): 4069025336194
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000/4000K | CRI > 90 | 5000lm | 31W | 163lm/W | ON/OFF Multilumen | IP20/IP54 | 620x620 | 1 piece | 3.1 |
Apollon 21 square, direct distribution, Light colour 9tw, DALI-2 DT8, for M625 and for cut ceiling aperture
Order No.: 51MQ11WD2W55 GTIN (EAN): 4069025336293
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 2700..6500K | CRI > 90 | 4900lm | 30W | 164lm/W | DALI-2 DT8 | IP20/IP54 | 620x620 | 1 piece | 2.3 |
Apollon 21 square, direct distribution, Light colour 830, ON/OFF Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11WM2315 GTIN (EAN): 4069025329813
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4800lm | 28W | 170lm/W | ON/OFF Multilumen | IP20/IP50 | 620x620 | 1 piece | 3.1 |
Apollon 21 square, direct distribution, Light colour 840, ON/OFF Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11WM2415 GTIN (EAN): 4069025329820
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5000lm | 28W | 180lm/W | ON/OFF Multilumen | IP20/IP50 | 620x620 | 1 piece | 3.1 |
Apollon 21 square, direct distribution, Light colour 840, DALI 2, CLO, for M600 and for cut ceiling aperture
Order No.: 51MQ12HC2415 GTIN (EAN): 4069025329905
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5900lm | 162lm/W | DALI 2, CLO | IP20/IP50 | 595x595 | 1 piece | 3.0 |
Apollon 21 square, direct distribution, Light colour 930/940, DALI 2, Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12HC2L55 GTIN (EAN): 4069025336347
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000/4000K | CRI > 90 | 4700lm | 32W | 149lm/W | DALI 2, Multilumen | IP20/IP54 | 595x595 | 1 piece | 3.1 |
Apollon 21 square, direct distribution, Light colour 840, DALI 2, Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12HD2415 GTIN (EAN): 4069025365316
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 7300lm | 45W | 162lm/W | DALI 2, Multilumen | IP20/IP50 | 595x595 | 1 piece | 3.0 |
Apollon 21 square, direct distribution, Light colour 840, ON/OFF Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12HM2415 GTIN (EAN): 4069025329967
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 7300lm | 43W | 170lm/W | ON/OFF Multilumen | IP20/IP50 | 595x595 | 1 piece | 3.0 |
Apollon 21 square, direct distribution, Light colour 930/940, ON/OFF Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12HM2L55 GTIN (EAN): 4069025336385
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000/4000K | CRI > 90 | 4800lm | 31W | 159lm/W | ON/OFF Multilumen | IP20/IP54 | 595x595 | 1 piece | 3.1 |
Apollon 21 square, direct distribution, Light colour 840, DALI 2, Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12WD2415 GTIN (EAN): 4069025330086
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5000lm | 30.5W | 162lm/W | DALI 2, Multilumen | IP20/IP50 | 595x595 | 1 piece | 3.0 |
Apollon 21 square, direct distribution, Light colour 830, ON/OFF Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12WM2315 GTIN (EAN): 4069025330123
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4700lm | 28W | 168lm/W | ON/OFF Multilumen | IP20/IP50 | 595x595 | 1 piece | 3.0 |
Apollon 21 square, direct distribution, Light colour 840, ON/OFF Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12WM2415 GTIN (EAN): 4069025330154
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Protection rating | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5000lm | 28W | 177lm/W | ON/OFF Multilumen | IP20/IP50 | 595x595 | 1 piece | 3.0 |
Apollon 21 square, direct distribution, Light colour 830, ON/OFF, for M625 and for cut ceiling aperture
Order No.: 51MQ11W72314GTIN (EAN): 4058352928059
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4100lm |
| Connected load | 23.3W |
| Luminous efficacy | 176lm/W |
| Control | ON/OFF |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 2.1 |
Apollon 21 square, direct distribution, Light colour 840, ON/OFF, for M625 and for cut ceiling aperture
Order No.: 51MQ11W72414GTIN (EAN): 4058352928066
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4200lm |
| Connected load | 23.3W |
| Luminous efficacy | 180lm/W |
| Control | ON/OFF |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 2.1 |
Apollon 21 square, direct distribution, Light colour 840, DALI 2, Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11WC2454GTIN (EAN): 4058352928097
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4200lm |
| Connected load | 24.7W |
| Luminous efficacy | 170lm/W |
| Control | DALI 2, Multilumen |
| Protection rating | IP20/IP54 |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 2.1 |
Apollon 21 square, direct distribution, Light colour 940, DALI 2, Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11WD2114GTIN (EAN): 4058352928103
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 90 |
| Luminous flux | 4100lm |
| Connected load | 24.7W |
| Luminous efficacy | 166lm/W |
| Control | DALI 2, Multilumen |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 2.1 |
Apollon 21 square, direct distribution, Light colour 840, DALI 2, Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11WD2454GTIN (EAN): 4058352928141
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4200lm |
| Connected load | 24.7W |
| Luminous efficacy | 170lm/W |
| Control | DALI 2, Multilumen |
| Protection rating | IP20/IP54 |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 2.1 |
Apollon 21 square, direct distribution, Light colour 865, DALI 2, Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11WD2614GTIN (EAN): 4058352928158
| Colour temperature | 6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4150lm |
| Connected load | 24.7W |
| Luminous efficacy | 168lm/W |
| Control | DALI 2, Multilumen |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 2.1 |
Apollon 21 square, direct distribution, Light colour 830/840, DALI 2, Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11WD2M14GTIN (EAN): 4058352928165
| Colour temperature | 3000/4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4200lm |
| Connected load | 26W |
| Luminous efficacy | 162lm/W |
| Control | DALI 2, Multilumen |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 2.1 |
Apollon 21 square, direct distribution, Light colour 840, ON/OFF, for M600 and for cut ceiling aperture
Order No.: 51MQ12W72414GTIN (EAN): 4058352928202
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4200lm |
| Connected load | 23W |
| Luminous efficacy | 180lm/W |
| Control | ON/OFF |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 1.8 |
Apollon 21 square, direct distribution, Light colour 830/840, ON/OFF, for M600 and for cut ceiling aperture
Order No.: 51MQ12W72M14GTIN (EAN): 4058352928219
| Colour temperature | 3000/4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4200lm |
| Connected load | 24.2W |
| Luminous efficacy | 174lm/W |
| Control | ON/OFF |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 1.8 |
Apollon 21 square, direct distribution, Light colour 840, DALI 2, Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12WC2454GTIN (EAN): 4058352928226
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4200lm |
| Connected load | 24.7W |
| Luminous efficacy | 170lm/W |
| Control | DALI 2, Multilumen |
| Protection rating | IP20/IP54 |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 1.8 |
Apollon 21 square, direct distribution, Light colour 940, DALI 2, Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12WD2114GTIN (EAN): 4058352928233
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 90 |
| Luminous flux | 4100lm |
| Connected load | 24.7W |
| Luminous efficacy | 166lm/W |
| Control | DALI 2, Multilumen |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 1.8 |
Apollon 21 square, direct distribution, Light colour 840, DALI 2, Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12WD2414GTIN (EAN): 4058352928240
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4200lm |
| Connected load | 24.7W |
| Luminous efficacy | 170lm/W |
| Control | DALI 2, Multilumen |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 1.8 |
Apollon 21 square, direct distribution, Light colour 840, DALI 2, Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12WD2454GTIN (EAN): 4058352928264
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4200lm |
| Connected load | 24.7W |
| Luminous efficacy | 170lm/W |
| Control | DALI 2, Multilumen |
| Protection rating | IP20/IP54 |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 1.8 |
Apollon 21 square, direct distribution, Light colour 830/840, DALI 2, Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12WD2M14GTIN (EAN): 4058352928288
| Colour temperature | 3000/4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4200lm |
| Connected load | 26W |
| Luminous efficacy | 162lm/W |
| Control | DALI 2, Multilumen |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 1.8 |
Apollon 21 square, direct distribution, Light colour 840, DALI 2, CLO, for M625 and for cut ceiling aperture
Order No.: 51MQ11HC2415GTIN (EAN): 4069025329523
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 6000lm |
| Connected load | |
| Luminous efficacy | 164lm/W |
| Control | DALI 2, CLO |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 3.1 |
Apollon 21 square, direct distribution, Light colour 840, DALI 2, Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11WD2415GTIN (EAN): 4069025329745
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5000lm |
| Connected load | 30.5W |
| Luminous efficacy | 164lm/W |
| Control | DALI 2, Multilumen |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 3.1 |
Apollon 21 square, direct distribution, Light colour 830, DALI 2, CLO, for M625 and for cut ceiling aperture
Order No.: 51MQ11HC2315GTIN (EAN): 4069025329509
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5700lm |
| Connected load | |
| Luminous efficacy | 156lm/W |
| Control | DALI 2, CLO |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 3.1 |
Apollon 21 square, direct distribution, Light colour 830, DALI 2, Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11WD2315GTIN (EAN): 4069025329721
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4800lm |
| Connected load | 30.5W |
| Luminous efficacy | 156lm/W |
| Control | DALI 2, Multilumen |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 3.1 |
Apollon 21 square, direct distribution, Light colour 830, ON/OFF Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11HM2315GTIN (EAN): 4069025329585
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7000lm |
| Connected load | 43W |
| Luminous efficacy | 163lm/W |
| Control | ON/OFF Multilumen |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 3.1 |
Apollon 21 square, direct distribution, Light colour 840, DALI 2, Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11HD2415GTIN (EAN): 4069025365224
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7400lm |
| Connected load | 45W |
| Luminous efficacy | 164lm/W |
| Control | DALI 2, Multilumen |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 3.1 |
Apollon 21 square, direct distribution, Light colour 830, DALI 2, Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11HD2315GTIN (EAN): 4069025365200
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7000lm |
| Connected load | 45W |
| Luminous efficacy | 156lm/W |
| Control | DALI 2, Multilumen |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 3.1 |
Apollon 21 square, direct distribution, Light colour 840, ON/OFF Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11HM2415GTIN (EAN): 4069025329608
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7400lm |
| Connected load | 43W |
| Luminous efficacy | 172lm/W |
| Control | ON/OFF Multilumen |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 3.1 |
Apollon 21 square, direct distribution, Light colour 830, DALI 2, Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12WD2315GTIN (EAN): 4069025330062
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4600lm |
| Connected load | 30.5W |
| Luminous efficacy | 155lm/W |
| Control | DALI 2, Multilumen |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 3.0 |
Apollon 21 square, direct distribution, Light colour 830, DALI 2, CLO, for M600 and for cut ceiling aperture
Order No.: 51MQ12HC2315GTIN (EAN): 4069025329882
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5700lm |
| Connected load | |
| Luminous efficacy | 155lm/W |
| Control | DALI 2, CLO |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 3.0 |
Apollon 21 square, direct distribution, Light colour 830, DALI 2, Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12HD2315GTIN (EAN): 4069025365286
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7000lm |
| Connected load | 45W |
| Luminous efficacy | 156lm/W |
| Control | DALI 2, Multilumen |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 3.0 |
Apollon 21 square, direct distribution, Light colour 830, ON/OFF Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12HM2315GTIN (EAN): 4069025329943
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7000lm |
| Connected load | 43W |
| Luminous efficacy | 161lm/W |
| Control | ON/OFF Multilumen |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 3.0 |
Apollon 21 square, direct distribution, Light colour 930/940, DALI 2, Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11HC2L55GTIN (EAN): 4069025336156
| Colour temperature | 3000/4000K |
|---|---|
| Colour rendering | CRI > 90 |
| Luminous flux | 5000lm |
| Connected load | 32W |
| Luminous efficacy | 156lm/W |
| Control | DALI 2, Multilumen |
| Protection rating | IP20/IP54 |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 3.1 |
Apollon 21 square, direct distribution, Light colour 930/940, ON/OFF Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11HM2L55GTIN (EAN): 4069025336194
| Colour temperature | 3000/4000K |
|---|---|
| Colour rendering | CRI > 90 |
| Luminous flux | 5000lm |
| Connected load | 31W |
| Luminous efficacy | 163lm/W |
| Control | ON/OFF Multilumen |
| Protection rating | IP20/IP54 |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 3.1 |
Apollon 21 square, direct distribution, Light colour 9tw, DALI-2 DT8, for M625 and for cut ceiling aperture
Order No.: 51MQ11WD2W55GTIN (EAN): 4069025336293
| Colour temperature | 2700..6500K |
|---|---|
| Colour rendering | CRI > 90 |
| Luminous flux | 4900lm |
| Connected load | 30W |
| Luminous efficacy | 164lm/W |
| Control | DALI-2 DT8 |
| Protection rating | IP20/IP54 |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 2.3 |
Apollon 21 square, direct distribution, Light colour 830, ON/OFF Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11WM2315GTIN (EAN): 4069025329813
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4800lm |
| Connected load | 28W |
| Luminous efficacy | 170lm/W |
| Control | ON/OFF Multilumen |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 3.1 |
Apollon 21 square, direct distribution, Light colour 840, ON/OFF Multilumen, for M625 and for cut ceiling aperture
Order No.: 51MQ11WM2415GTIN (EAN): 4069025329820
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5000lm |
| Connected load | 28W |
| Luminous efficacy | 180lm/W |
| Control | ON/OFF Multilumen |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 3.1 |
Apollon 21 square, direct distribution, Light colour 840, DALI 2, CLO, for M600 and for cut ceiling aperture
Order No.: 51MQ12HC2415GTIN (EAN): 4069025329905
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5900lm |
| Connected load | |
| Luminous efficacy | 162lm/W |
| Control | DALI 2, CLO |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 3.0 |
Apollon 21 square, direct distribution, Light colour 930/940, DALI 2, Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12HC2L55GTIN (EAN): 4069025336347
| Colour temperature | 3000/4000K |
|---|---|
| Colour rendering | CRI > 90 |
| Luminous flux | 4700lm |
| Connected load | 32W |
| Luminous efficacy | 149lm/W |
| Control | DALI 2, Multilumen |
| Protection rating | IP20/IP54 |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 3.1 |
Apollon 21 square, direct distribution, Light colour 840, DALI 2, Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12HD2415GTIN (EAN): 4069025365316
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7300lm |
| Connected load | 45W |
| Luminous efficacy | 162lm/W |
| Control | DALI 2, Multilumen |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 3.0 |
Apollon 21 square, direct distribution, Light colour 840, ON/OFF Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12HM2415GTIN (EAN): 4069025329967
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 7300lm |
| Connected load | 43W |
| Luminous efficacy | 170lm/W |
| Control | ON/OFF Multilumen |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 3.0 |
Apollon 21 square, direct distribution, Light colour 930/940, ON/OFF Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12HM2L55GTIN (EAN): 4069025336385
| Colour temperature | 3000/4000K |
|---|---|
| Colour rendering | CRI > 90 |
| Luminous flux | 4800lm |
| Connected load | 31W |
| Luminous efficacy | 159lm/W |
| Control | ON/OFF Multilumen |
| Protection rating | IP20/IP54 |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 3.1 |
Apollon 21 square, direct distribution, Light colour 840, DALI 2, Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12WD2415GTIN (EAN): 4069025330086
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5000lm |
| Connected load | 30.5W |
| Luminous efficacy | 162lm/W |
| Control | DALI 2, Multilumen |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 3.0 |
Apollon 21 square, direct distribution, Light colour 830, ON/OFF Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12WM2315GTIN (EAN): 4069025330123
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4700lm |
| Connected load | 28W |
| Luminous efficacy | 168lm/W |
| Control | ON/OFF Multilumen |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 3.0 |
Apollon 21 square, direct distribution, Light colour 840, ON/OFF Multilumen, for M600 and for cut ceiling aperture
Order No.: 51MQ12WM2415GTIN (EAN): 4069025330154
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5000lm |
| Connected load | 28W |
| Luminous efficacy | 177lm/W |
| Control | ON/OFF Multilumen |
| Protection rating | IP20/IP50 |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 3.0 |
Mandatory accessories
| Order No.: 59MQ31000024GTIN (EAN): 4069025012128 | Show all details |
| Order No.: 59MQ32000024GTIN (EAN): 4069025012111 | Show all details |
Optional accessories
| Order No.: 5LZ925600GTIN (EAN): 4058352364048 | Show all details |
| Order No.: 5LZ925601GTIN (EAN): 4058352362020 | Show all details |
| Order No.: 58DB00B013AGTIN (EAN): 4069025012647 | Show all details |
