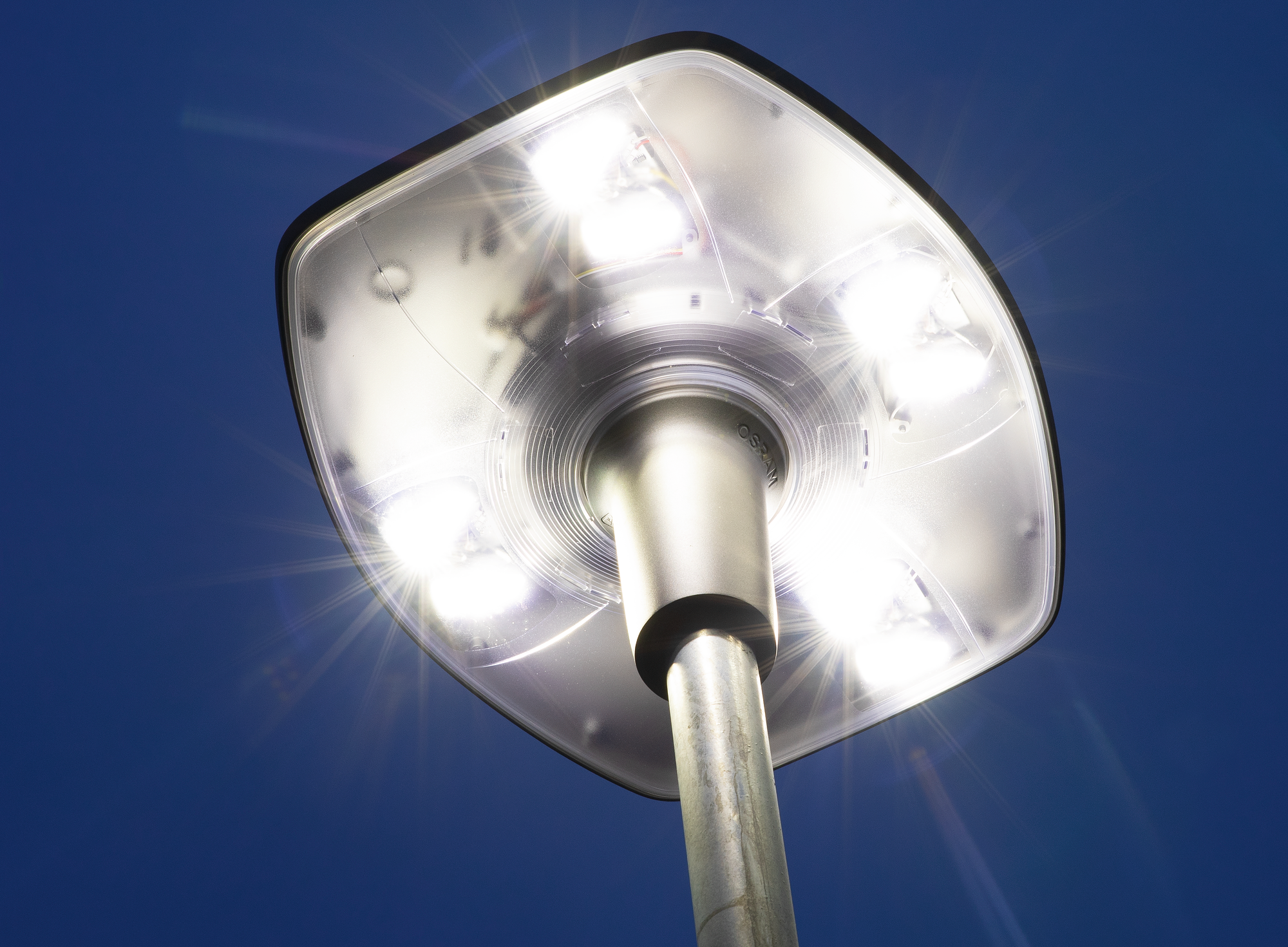

DL® 30
Winning efficiency with attractive conditions: state of the art LED technology for designing residential streets, intersections, plazas, shopping boulevards and green spaces. Perfectly matched components ensure high efficiency and a long service life. Due to its innovative light distribution, DL® 30 can literally shine around corners and is especially suitable for intersection areas where the light point is located directly in the apex of the intersection.
Fresh aesthetics for the urban space
Producttypes
DL® 30
Intro to Productfamily
Data
Article mast luminaire
Net luminous flux 1400lm to 6990lm
Colour temperature 3000K; 4000K
Lighting effect direct asymmetric wide distribution, crossroads; direct asymmetric wide distribution; direct asymmetric extremely wide distribution; direct symmetric wide distribution
Light distribution ST1.2a; ST1.2c; P1.0a; PL1.2s
Protection rating IP66
Insulation class insulation class II (safety insulation)
Specials
Decorative luminaire with visual guidance along the road thanks to discreet display of the mast mounting element
Optionally available with an optic for 270° distribution especially developed for intersections
Modern lighting technology with customized light distributions and high quality specular reflectors for glare-free light with constant quality of light
Low maintenance requirements due to permanently clear, translucent PMMA cover
Various control options, intelligent dimming function, CLO 2.0 and Smart Interface (Zhaga & D4i) for smart city applications
Configuration & Datasheets
- please order the 'mast cable set' for configuration of the Plus version with installed luminaire separately
- please order Siteco® Service Box for configuration of Plus version separately if required
- please order mast reducer separately if required
Results
DL® 30 LED, direct asymmetric wide distribution, crossroads, ST1.2c
Order No.: 5XA513271B08A5 GTIN (EAN): 4058352058619
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 5540lm | ST1.2c | Plus | 49 | 51 | 23 | 7.8 |
DL® 30 LED, direct asymmetric wide distribution, crossroads, ST1.2c
Order No.: 5XA513281B08A5 GTIN (EAN): 4058352058688
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4590lm | ST1.2c | Plus | 49 | 51 | 22 | 7.8 |
DL® 30 LED, direct asymmetric wide distribution, ST1.2a
Order No.: 5XA5132E1B08A2 GTIN (EAN): 4058352058817
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 1410lm | ST1.2a | Plus | 15 | 15 | 8 | 7.7 |
DL® 30 LED, direct asymmetric wide distribution, ST1.2a
Order No.: 5XA5132E1B08A4 GTIN (EAN): 4058352058848
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 2400lm | ST1.2a | Plus | 23 | 23 | 11 | 7.7 |
DL® 30 LED, direct asymmetric wide distribution, ST1.2a
Order No.: 5XA5132E1B08A5 GTIN (EAN): 4058352058855
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 4680lm | ST1.2a | Plus | 43 | 45 | 20 | 7.8 |
DL® 30 LED, direct symmetric wide distribution, PL1.2s
Order No.: 5XA5132J1B08A4 GTIN (EAN): 4058352058992
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 3100lm | PL1.2s | Plus | 29 | 30 | 14 | 7.8 |
DL® 30 LED, direct symmetric wide distribution, PL1.2s
Order No.: 5XA5132J1B08A5 GTIN (EAN): 4058352059012
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 5780lm | PL1.2s | Plus | 52 | 54 | 24 | 7.8 |
DL® 30 LED, direct asymmetric wide distribution, ST1.2a
Order No.: 5XA5132K1B08A2 GTIN (EAN): 4058352059173
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 1610lm | ST1.2a | Plus | 14 | 15 | 8 | 7.7 |
DL® 30 LED, direct asymmetric wide distribution, ST1.2a
Order No.: 5XA5132K1B08A4 GTIN (EAN): 4058352059197
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 2740lm | ST1.2a | Plus | 21 | 22 | 11 | 7.7 |
DL® 30 LED, direct asymmetric wide distribution, ST1.2a
Order No.: 5XA5132K1B08A5 GTIN (EAN): 4058352059210
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 5640lm | ST1.2a | Plus | 43 | 45 | 21 | 7.8 |
DL® 30 LED, direct symmetric wide distribution, PL1.2s
Order No.: 5XA5132R1B08A4 GTIN (EAN): 4058352059357
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 3540lm | PL1.2s | Plus | 28 | 29 | 14 | 7.8 |
DL® 30 LED, direct symmetric wide distribution, PL1.2s
Order No.: 5XA5132R1B08A5 GTIN (EAN): 4058352059371
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 6990lm | PL1.2s | Plus | 52 | 54 | 24 | 7.8 |
DL® 30 LED, direct asymmetric wide distribution, P1.0a
Order No.: 5XA5132S1B08A1 GTIN (EAN): 4058352059470
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 1600lm | P1.0a | Plus | 13 | 13 | 7 | 7.7 |
DL® 30 LED, direct asymmetric extremely wide distribution, P1.0a
Order No.: 5XA5132S1B08A3 GTIN (EAN): 4058352059494
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 70 | 2720lm | P1.0a | Plus | 20 | 21 | 11 | 7.8 |
DL® 30 LED, direct asymmetric wide distribution, P1.0a
Order No.: 5XA5132T1B08A1 GTIN (EAN): 4058352059609
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 1400lm | P1.0a | Plus | 13 | 14 | 7 | 7.7 |
DL® 30 LED, direct asymmetric extremely wide distribution, P1.0a
Order No.: 5XA5132T1B08A3 GTIN (EAN): 4058352059616
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 2370lm | P1.0a | Plus | 20 | 21 | 10 | 7.8 |
DL® 30 LED, direct symmetric wide distribution, PL1.2s
Order No.: 5XA5132J1ZS00095XX GTIN (EAN): 4058352448823
| Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 3100lm | PL1.2s | D4i | 29 | 30 | 8.0 |
DL® 30 LED, direct asymmetric wide distribution, crossroads, ST1.2c
Order No.: 5XA513271B08A5GTIN (EAN): 4058352058619
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 5540lm |
| Light distribution | ST1.2c |
| Control | Plus |
| Pnom begin service life | 49 |
| Pnom end service life | 51 |
| Pred at 50% lumin. flux | 23 |
| Wt. (kg) | 7.8 |
DL® 30 LED, direct asymmetric wide distribution, crossroads, ST1.2c
Order No.: 5XA513281B08A5GTIN (EAN): 4058352058688
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4590lm |
| Light distribution | ST1.2c |
| Control | Plus |
| Pnom begin service life | 49 |
| Pnom end service life | 51 |
| Pred at 50% lumin. flux | 22 |
| Wt. (kg) | 7.8 |
DL® 30 LED, direct asymmetric wide distribution, ST1.2a
Order No.: 5XA5132E1B08A2GTIN (EAN): 4058352058817
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1410lm |
| Light distribution | ST1.2a |
| Control | Plus |
| Pnom begin service life | 15 |
| Pnom end service life | 15 |
| Pred at 50% lumin. flux | 8 |
| Wt. (kg) | 7.7 |
DL® 30 LED, direct asymmetric wide distribution, ST1.2a
Order No.: 5XA5132E1B08A4GTIN (EAN): 4058352058848
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2400lm |
| Light distribution | ST1.2a |
| Control | Plus |
| Pnom begin service life | 23 |
| Pnom end service life | 23 |
| Pred at 50% lumin. flux | 11 |
| Wt. (kg) | 7.7 |
DL® 30 LED, direct asymmetric wide distribution, ST1.2a
Order No.: 5XA5132E1B08A5GTIN (EAN): 4058352058855
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4680lm |
| Light distribution | ST1.2a |
| Control | Plus |
| Pnom begin service life | 43 |
| Pnom end service life | 45 |
| Pred at 50% lumin. flux | 20 |
| Wt. (kg) | 7.8 |
DL® 30 LED, direct symmetric wide distribution, PL1.2s
Order No.: 5XA5132J1B08A4GTIN (EAN): 4058352058992
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3100lm |
| Light distribution | PL1.2s |
| Control | Plus |
| Pnom begin service life | 29 |
| Pnom end service life | 30 |
| Pred at 50% lumin. flux | 14 |
| Wt. (kg) | 7.8 |
DL® 30 LED, direct symmetric wide distribution, PL1.2s
Order No.: 5XA5132J1B08A5GTIN (EAN): 4058352059012
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5780lm |
| Light distribution | PL1.2s |
| Control | Plus |
| Pnom begin service life | 52 |
| Pnom end service life | 54 |
| Pred at 50% lumin. flux | 24 |
| Wt. (kg) | 7.8 |
DL® 30 LED, direct asymmetric wide distribution, ST1.2a
Order No.: 5XA5132K1B08A2GTIN (EAN): 4058352059173
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 1610lm |
| Light distribution | ST1.2a |
| Control | Plus |
| Pnom begin service life | 14 |
| Pnom end service life | 15 |
| Pred at 50% lumin. flux | 8 |
| Wt. (kg) | 7.7 |
DL® 30 LED, direct asymmetric wide distribution, ST1.2a
Order No.: 5XA5132K1B08A4GTIN (EAN): 4058352059197
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 2740lm |
| Light distribution | ST1.2a |
| Control | Plus |
| Pnom begin service life | 21 |
| Pnom end service life | 22 |
| Pred at 50% lumin. flux | 11 |
| Wt. (kg) | 7.7 |
DL® 30 LED, direct asymmetric wide distribution, ST1.2a
Order No.: 5XA5132K1B08A5GTIN (EAN): 4058352059210
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 5640lm |
| Light distribution | ST1.2a |
| Control | Plus |
| Pnom begin service life | 43 |
| Pnom end service life | 45 |
| Pred at 50% lumin. flux | 21 |
| Wt. (kg) | 7.8 |
DL® 30 LED, direct symmetric wide distribution, PL1.2s
Order No.: 5XA5132R1B08A4GTIN (EAN): 4058352059357
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 3540lm |
| Light distribution | PL1.2s |
| Control | Plus |
| Pnom begin service life | 28 |
| Pnom end service life | 29 |
| Pred at 50% lumin. flux | 14 |
| Wt. (kg) | 7.8 |
DL® 30 LED, direct symmetric wide distribution, PL1.2s
Order No.: 5XA5132R1B08A5GTIN (EAN): 4058352059371
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 6990lm |
| Light distribution | PL1.2s |
| Control | Plus |
| Pnom begin service life | 52 |
| Pnom end service life | 54 |
| Pred at 50% lumin. flux | 24 |
| Wt. (kg) | 7.8 |
DL® 30 LED, direct asymmetric wide distribution, P1.0a
Order No.: 5XA5132S1B08A1GTIN (EAN): 4058352059470
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 1600lm |
| Light distribution | P1.0a |
| Control | Plus |
| Pnom begin service life | 13 |
| Pnom end service life | 13 |
| Pred at 50% lumin. flux | 7 |
| Wt. (kg) | 7.7 |
DL® 30 LED, direct asymmetric extremely wide distribution, P1.0a
Order No.: 5XA5132S1B08A3GTIN (EAN): 4058352059494
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 70 |
| Luminous flux | 2720lm |
| Light distribution | P1.0a |
| Control | Plus |
| Pnom begin service life | 20 |
| Pnom end service life | 21 |
| Pred at 50% lumin. flux | 11 |
| Wt. (kg) | 7.8 |
DL® 30 LED, direct asymmetric wide distribution, P1.0a
Order No.: 5XA5132T1B08A1GTIN (EAN): 4058352059609
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1400lm |
| Light distribution | P1.0a |
| Control | Plus |
| Pnom begin service life | 13 |
| Pnom end service life | 14 |
| Pred at 50% lumin. flux | 7 |
| Wt. (kg) | 7.7 |
DL® 30 LED, direct asymmetric extremely wide distribution, P1.0a
Order No.: 5XA5132T1B08A3GTIN (EAN): 4058352059616
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2370lm |
| Light distribution | P1.0a |
| Control | Plus |
| Pnom begin service life | 20 |
| Pnom end service life | 21 |
| Pred at 50% lumin. flux | 10 |
| Wt. (kg) | 7.8 |
DL® 30 LED, direct symmetric wide distribution, PL1.2s
Order No.: 5XA5132J1ZS00095XXGTIN (EAN): 4058352448823
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3100lm |
| Light distribution | PL1.2s |
| Control | D4i |
| Pnom begin service life | 29 |
| Pnom end service life | 30 |
| Pred at 50% lumin. flux | |
| Wt. (kg) | 8.0 |
Optional accessory
| Order No.: 5NA24600XR2GTIN (EAN): 4050737978154 | Show details |
| Order No.: 5EA6Y00L02GTIN (EAN): 4050737028804 | Show details |
| Order No.: 5EA6Y00L03GTIN (EAN): 4050737028828 | Show details |
| Order No.: 5EA6Y00L08GTIN (EAN): 4050737056098 | Show details |
| Order No.: 5NY70062DKGTIN (EAN): 4058352552247 | Show details |
