Apollon® 41
The lay-in panel is an economical lighting solution thanks to its cost-optimized design and high efficiency. The Apollon® 41 is a durable replacement for traditional recessed luminaires and provides a homogeneous and glare-free light distribution.
Our simple solution: Apollon® 41 is our recessed-mounted luminaire with the simplest requirements in terms of efficiency and quality
Product types

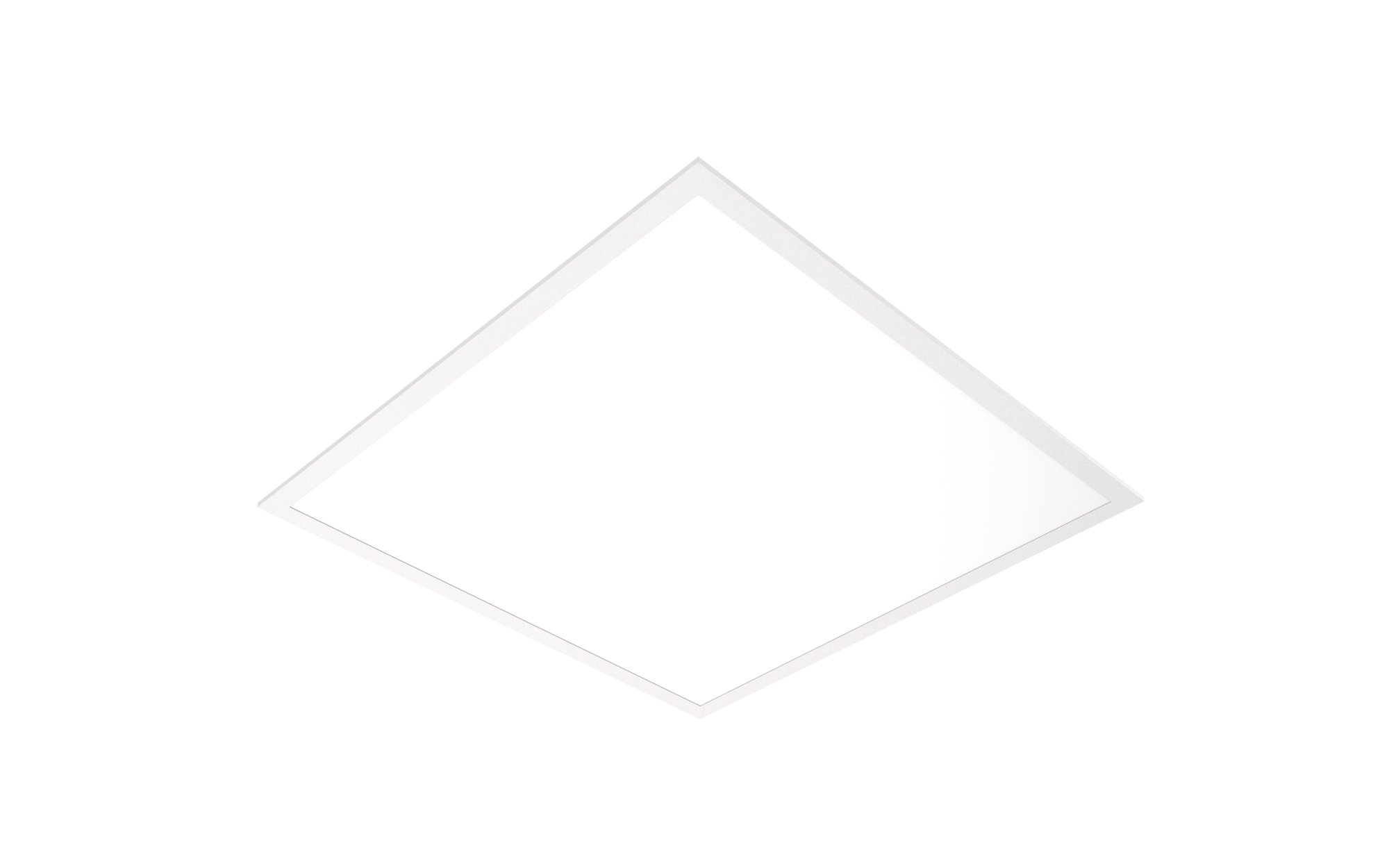

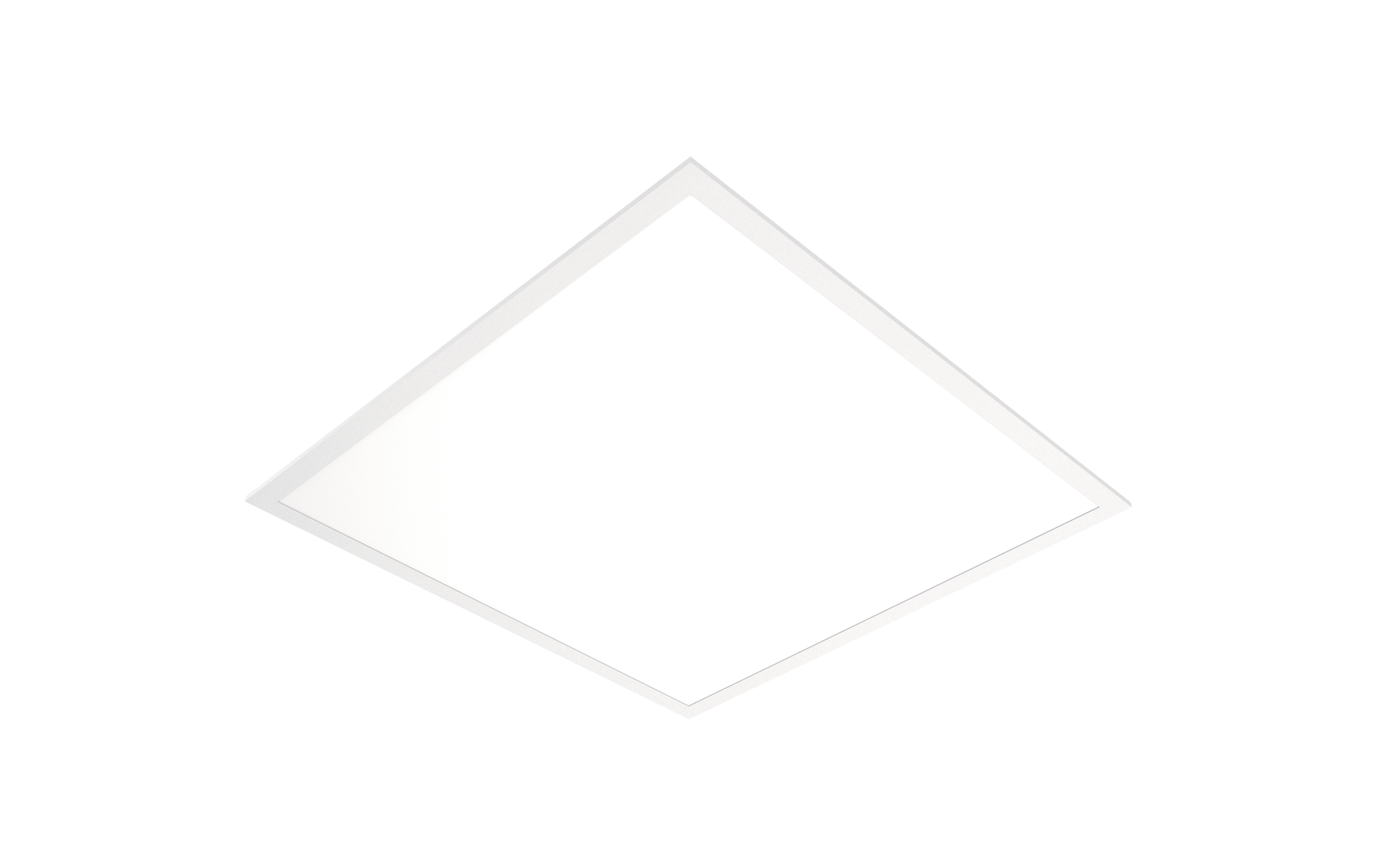

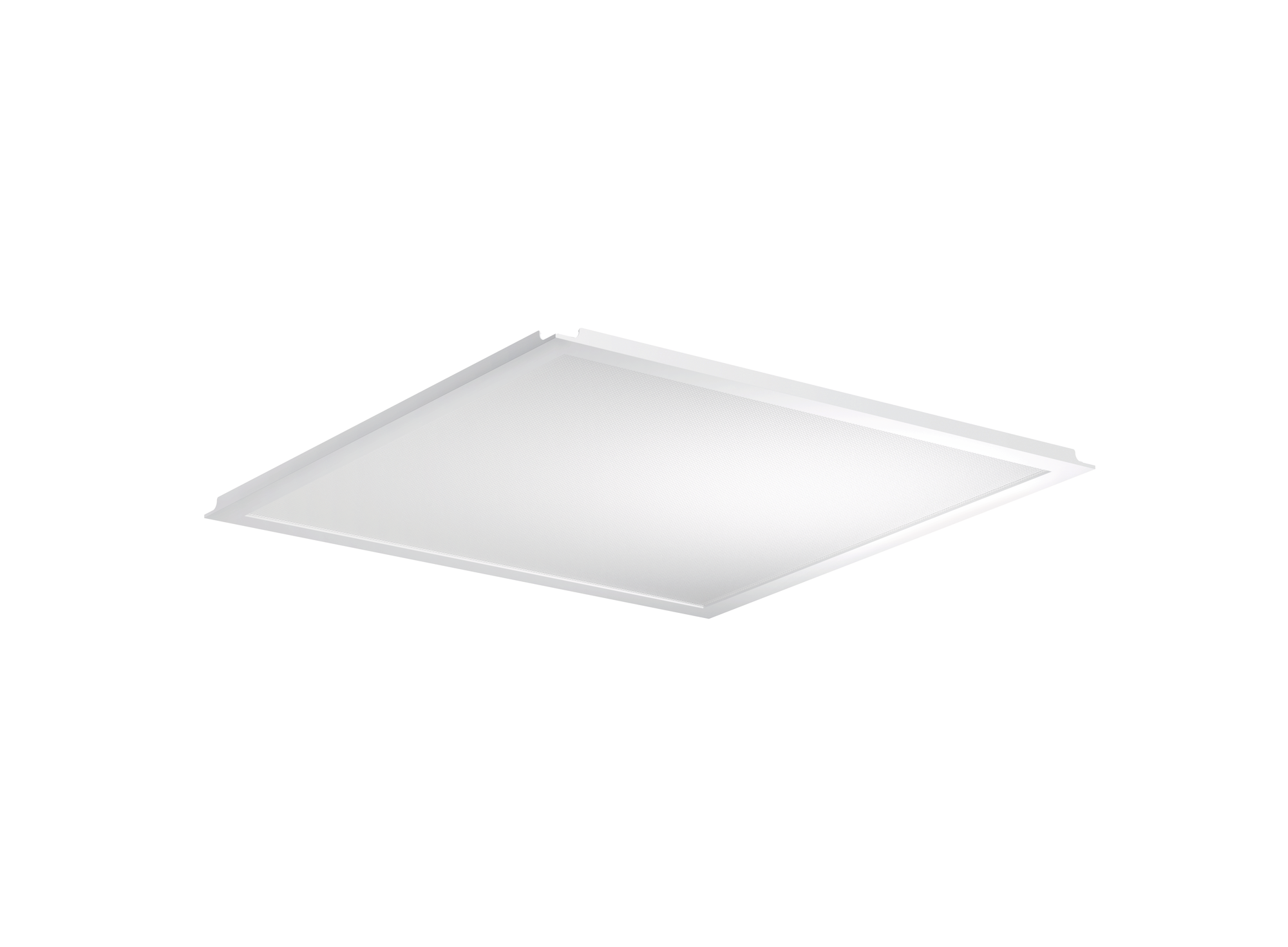

Apollon® 41 with square housing (Back LED)
Intro product family
Key data
Article office luminaire
Lighting effect direct symmetric wide distribution, 90°; direct symmetric wide distribution, 110°
Net luminous flux 3500lm to 5000lm
Colour temperature 4000/6500K; 3000/4000K; 3000K; 4000K
Control ON/OFF; ON/OFF Multilumen; DALI 2
Protection rating IP20/IP40
Service life 50000h (L80/B50) at AT = 25°C; 60000h (L70/B50) at AT = 25°C
Special features
Apollon® 41 is suitable for most applications in offices and for general lighting in commercial buildings with system ceilings
Replacement for traditional louvre sulutions
Good colour rendering, with uniformly illuminated cover without dark spots
VDU-compliant in accordance with EN 12464-1 for computer screens with high luminance levels
Configuration & data sheets
- lay-in mounting into system ceilings without recessing accessories
- recessing into a cut ceiling aperture possible with quick mounting bracket or recessing frame; please order quick mounting bracket or mounting frame matching the luminaire separately
- please order mounting cable separately for additional support of the luminaire in the ceiling cavity if required
Results
Apollon® 41, Light colour 830, ON/OFF, for M625
Order No.: 51MH11W72343 GTIN (EAN): 4058352930854
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 3500lm | 28.5W | 123lm/W | ON/OFF | 620x620 | 1 piece | 1.9 |
Apollon® 41, Light colour 840, DALI 2, for M625
Order No.: 51MH11WD2443 GTIN (EAN): 4058352930908
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3500lm | 28.5W | 123lm/W | DALI 2 | 620x620 | 1 piece | 2.0 |
Apollon® 41, Light colour 840/865, DALI 2, for M625
Order No.: 51MH11WD2N43 GTIN (EAN): 4058352967201
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000/6500K | CRI > 80 | 3500lm | 28.5W | 123lm/W | DALI 2 | 620x620 | 1 piece | 2.2 |
Apollon® 41, Light colour 840, ON/OFF, for M600
Order No.: 51MH12H72443 GTIN (EAN): 4058352930915
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 5000lm | 38.5W | 130lm/W | ON/OFF | 595x595 | 1 piece | 1.9 |
Apollon® 41, Light colour 830, ON/OFF, for M600
Order No.: 51MH12W72343 GTIN (EAN): 4058352930922
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 3500lm | 28.5W | 123lm/W | ON/OFF | 595x595 | 1 piece | 1.9 |
Apollon® 41, Light colour 840, DALI 2, for M600
Order No.: 51MH12WD2443 GTIN (EAN): 4058352930977
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3500lm | 28.5W | 123lm/W | DALI 2 | 595x595 | 1 piece | 1.9 |
Apollon® 41, Light colour 840, ON/OFF Multilumen, for M625
Order No.: 51MH11WM2443 GTIN (EAN): 4069025171405
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4375lm | 35W | 125lm/W | ON/OFF Multilumen | 620x620 | 1 piece | 1.9 |
Apollon® 41, Light colour 830/840, ON/OFF Multilumen, for M625
Order No.: 51MH11WM2M43 GTIN (EAN): 4069025171412
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000/4000K | CRI > 80 | 4375lm | 35W | 125lm/W | ON/OFF Multilumen | 620x620 | 1 piece | 1.9 |
Apollon® 41, Light colour 830/840, DALI 2, for M625
Order No.: 51MH11WD2M43 GTIN (EAN): 4069025185082
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000/4000K | CRI > 80 | 3500lm | 28.5W | 123lm/W | DALI 2 | 620x620 | 1 piece | 2.2 |
Apollon® 41, Light colour 840, ON/OFF Multilumen, for M600
Order No.: 51MH12WM2443 GTIN (EAN): 4069025171436
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 4375lm | 35W | 125lm/W | ON/OFF Multilumen | 595x595 | 1 piece | 1.9 |
Apollon® 41, Light colour 830/840, ON/OFF Multilumen, for M600
Order No.: 51MH12WM2M43 GTIN (EAN): 4069025171443
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000/4000K | CRI > 80 | 4375lm | 35W | 125lm/W | ON/OFF Multilumen | 595x595 | 1 piece | 1.9 |
Apollon® 41, Light colour 830/840, DALI 2, for M600
Order No.: 51MH12WD2M43 GTIN (EAN): 4069025234346
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Dimension (mm) | PU | Wt. (kg) |
|---|---|---|---|---|---|---|---|---|
| 3000/4000K | CRI > 80 | 3500lm | 28.5W | 123lm/W | DALI 2 | 595x595 | 1 piece | 2.1 |
Apollon® 41, Light colour 830, ON/OFF, for M625
Order No.: 51MH11W72343GTIN (EAN): 4058352930854
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3500lm |
| Connected load | 28.5W |
| Luminous efficacy | 123lm/W |
| Control | ON/OFF |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 1.9 |
Apollon® 41, Light colour 840, DALI 2, for M625
Order No.: 51MH11WD2443GTIN (EAN): 4058352930908
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3500lm |
| Connected load | 28.5W |
| Luminous efficacy | 123lm/W |
| Control | DALI 2 |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 2.0 |
Apollon® 41, Light colour 840/865, DALI 2, for M625
Order No.: 51MH11WD2N43GTIN (EAN): 4058352967201
| Colour temperature | 4000/6500K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3500lm |
| Connected load | 28.5W |
| Luminous efficacy | 123lm/W |
| Control | DALI 2 |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 2.2 |
Apollon® 41, Light colour 840, ON/OFF, for M600
Order No.: 51MH12H72443GTIN (EAN): 4058352930915
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 5000lm |
| Connected load | 38.5W |
| Luminous efficacy | 130lm/W |
| Control | ON/OFF |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 1.9 |
Apollon® 41, Light colour 830, ON/OFF, for M600
Order No.: 51MH12W72343GTIN (EAN): 4058352930922
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3500lm |
| Connected load | 28.5W |
| Luminous efficacy | 123lm/W |
| Control | ON/OFF |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 1.9 |
Apollon® 41, Light colour 840, DALI 2, for M600
Order No.: 51MH12WD2443GTIN (EAN): 4058352930977
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3500lm |
| Connected load | 28.5W |
| Luminous efficacy | 123lm/W |
| Control | DALI 2 |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 1.9 |
Apollon® 41, Light colour 840, ON/OFF Multilumen, for M625
Order No.: 51MH11WM2443GTIN (EAN): 4069025171405
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4375lm |
| Connected load | 35W |
| Luminous efficacy | 125lm/W |
| Control | ON/OFF Multilumen |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 1.9 |
Apollon® 41, Light colour 830/840, ON/OFF Multilumen, for M625
Order No.: 51MH11WM2M43GTIN (EAN): 4069025171412
| Colour temperature | 3000/4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4375lm |
| Connected load | 35W |
| Luminous efficacy | 125lm/W |
| Control | ON/OFF Multilumen |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 1.9 |
Apollon® 41, Light colour 830/840, DALI 2, for M625
Order No.: 51MH11WD2M43GTIN (EAN): 4069025185082
| Colour temperature | 3000/4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3500lm |
| Connected load | 28.5W |
| Luminous efficacy | 123lm/W |
| Control | DALI 2 |
| Dimension (mm) | 620x620 |
| PU | 1 piece |
| Wt. (kg) | 2.2 |
Apollon® 41, Light colour 840, ON/OFF Multilumen, for M600
Order No.: 51MH12WM2443GTIN (EAN): 4069025171436
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4375lm |
| Connected load | 35W |
| Luminous efficacy | 125lm/W |
| Control | ON/OFF Multilumen |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 1.9 |
Apollon® 41, Light colour 830/840, ON/OFF Multilumen, for M600
Order No.: 51MH12WM2M43GTIN (EAN): 4069025171443
| Colour temperature | 3000/4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 4375lm |
| Connected load | 35W |
| Luminous efficacy | 125lm/W |
| Control | ON/OFF Multilumen |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 1.9 |
Apollon® 41, Light colour 830/840, DALI 2, for M600
Order No.: 51MH12WD2M43GTIN (EAN): 4069025234346
| Colour temperature | 3000/4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3500lm |
| Connected load | 28.5W |
| Luminous efficacy | 123lm/W |
| Control | DALI 2 |
| Dimension (mm) | 595x595 |
| PU | 1 piece |
| Wt. (kg) | 2.1 |
Optional accessories
| Order No.: 59MQ11008004GTIN (EAN): 4069025012340 | Show all details |
| Order No.: 59MQ11018004GTIN (EAN): 4069025012333 | Show all details |
| Order No.: 58DB00B013AGTIN (EAN): 4069025012647 | Show all details |
| Order No.: 59MH12000022GTIN (EAN): 4058352405932 | Show all details |
| Order No.: 59MQ12005024GTIN (EAN): 4069025012326 | Show all details |
| Order No.: 59MQ11005024GTIN (EAN): 4069025012357 | Show all details |
