Taris® 21

ProducttypesConfiguration & Datasheets

Harmonious light paired with unique functionality in an integrative design: The Taris® range enables the holistic implementation of modern lighting concepts in offices and public buildings. The wide variety of models, various mounting methods and diverse functional options such as emergency light and sensor technology provide the necessary flexibility. The innovative lighting technology with Optical Core System achieves a high optical light output ratio and excellent glare control values (UGR ≤ 19) for maximum visual comfort. Due to outstanding efficiency of up to 178lm/W and a long service life, cost-effective, reliable operation is ensured.

One fits all: versatile, flexible and with many variants.

Producttypes

Taris® 21 with rectangular housing

Taris® 21 with square housing

Taris® 21 wallwasher

Taris® 21 with rectangular housing

Intro to Productfamily

Data

Article office luminaire
Lighting effect direct symmetric wide distribution; direct/indirect symmetric wide distribution
Net luminous flux 3420lm to 7360lm
Colour temperature 3000K; 4000K
Control ON/OFF; DALI

Specials

Elegant, integrative design for diverse applications in offices and public buildings
Large number of variants via various dimensions, luminous intensities and mounting options as well as sensor technology, control and emergency light functionality for maximum flexibility
Innovative "Optical Core System" lighting technology consisting of linear lens and reflector for outstanding optical light output ratio, best glare control values (UGR ≤ 19)
Modern LED luminaire with efficiency of up to 178lm/W and
long service life

Configuration & Datasheets

Installation type

Lighting effect

Light emission

Colour temperature

Light colour

Rated luminous flux (lm)

Control

Ceiling system

Dimension (mm)

  • surface-mounting to ceilings without luminaire-specific mounting accessories; for further installation methods: please order mounting accessory separately
  • for suspended mounting of direct/indirect lighting luminaire: please order suspension accessories separately (2 per luminaire required); luminaire incl. connection cable, l = 1.0m
  • for suspended mounting of direct lighting luminaire: please order suspension accessories separately (2 per luminaire required); please order connection cable separately
  • for recessed ceiling mounting in system ceilings (lay-in mounting): please order mount element for the matching module size separately
  • for recessed ceiling mounting in cut-out ceilings: please order rapid-mount bracket separately (2 per luminaire required)
  • push button interface and multi-sensor only usable in combination with controller

Results

Taris® 21, direct distribution, Light colour 830, DALI, for recessed, for cut ceiling aperture

Order No.: 5MT115D03WDGTIN (EAN): 4058352219140
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
3000KCRI > 803420lm22W154lm/WDALI968x1502.8
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Taris® 21, direct distribution, Light colour 840, DALI, for recessed, for cut ceiling aperture

Order No.: 5MT115D04WDGTIN (EAN): 4058352219157
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 803680lm22W166lm/WDALI968x1502.8
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Taris® 21, direct distribution, Light colour 840, ON/OFF, for recessed, for M625 and for cut ceiling aperture

Order No.: 5MT116704WDGTIN (EAN): 4058352219041
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 804910lm31W160lm/WON/OFF1250x1503.4
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Taris® 21, direct distribution, Light colour 830, DALI, for recessed, for M625 and for cut ceiling aperture

Order No.: 5MT116D03WDGTIN (EAN): 4058352219058
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
3000KCRI > 804560lm29W158lm/WDALI1250x1503.6
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Taris® 21, direct distribution, Light colour 840, DALI, for recessed, for M625 and for cut ceiling aperture

Order No.: 5MT116D04WDGTIN (EAN): 4058352219249
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 804910lm29W170lm/WDALI1250x1503.6
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Taris® 21, direct distribution, Light colour 830, ON/OFF, for recessed, for cut ceiling aperture

Order No.: 5MT117703WDGTIN (EAN): 4058352219164
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
3000KCRI > 805700lm37W154lm/WON/OFF1530x1504.2
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Taris® 21, direct distribution, Light colour 830, DALI, for recessed, for cut ceiling aperture

Order No.: 5MT117D03WDGTIN (EAN): 4058352219188
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
3000KCRI > 805700lm36W159lm/WDALI1530x1504.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

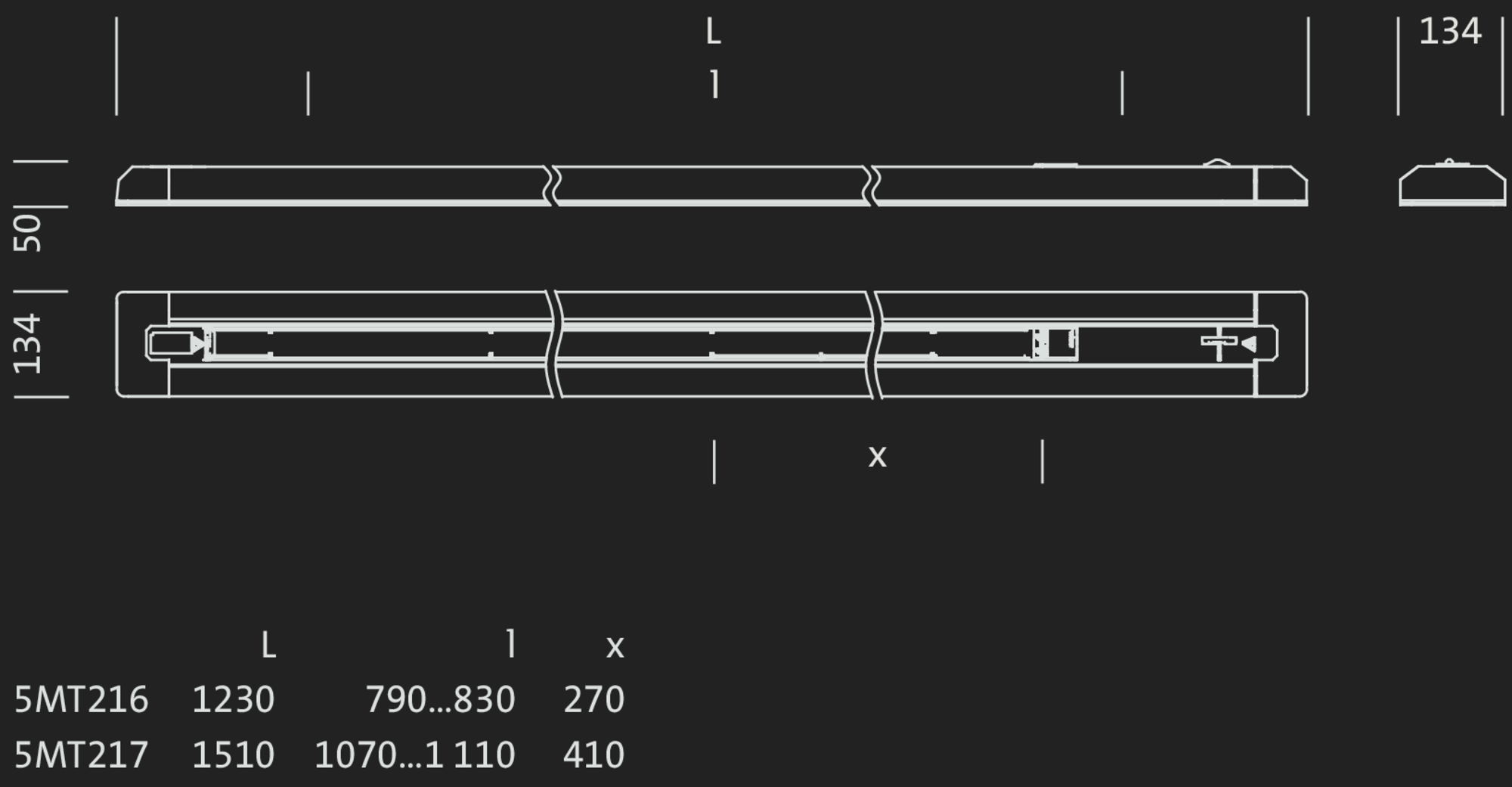

Taris® 21, direct distribution, Light colour 840, ON/OFF, for surface-mounted

Order No.: 5MT216704WDGTIN (EAN): 4058352219010
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 804910lm31W160lm/WON/OFF1230x1344.0
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Taris® 21, direct distribution, Light colour 840, DALI, for surface-mounted

Order No.: 5MT216D04WDGTIN (EAN): 4058352219034
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 804910lm29W170lm/WDALI1230x1343.7
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Taris® 21, direct distribution, Light colour 830, ON/OFF, for surface-mounted

Order No.: 5MT217703WDGTIN (EAN): 4058352219201
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
3000KCRI > 805700lm37W154lm/WON/OFF1510x1344.1
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Taris® 21, direct distribution, Light colour 840, ON/OFF, for surface-mounted

Order No.: 5MT217704WDGTIN (EAN): 4058352219218
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 806140lm37W166lm/WON/OFF1510x1344.1
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Taris® 21, direct distribution, Light colour 830, DALI, for surface-mounted

Order No.: 5MT217D03WDGTIN (EAN): 4058352219225
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
3000KCRI > 805700lm36W159lm/WDALI1510x1344.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Taris® 21, direct distribution, Light colour 840, DALI, for surface-mounted

Order No.: 5MT217D04WDGTIN (EAN): 4058352219232
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 806140lm36W171lm/WDALI1510x1344.3
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Taris® 21, direct/indirect distribution, Light colour 830, DALI, for suspended mounting

Order No.: 5MT316D03WDGTIN (EAN): 4058352219119
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
3000KCRI > 805700lm36W158lm/WDALI1230x1344.2
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Taris® 21, direct/indirect distribution, Light colour 840, DALI, for suspended mounting

Order No.: 5MT316D04WDGTIN (EAN): 4058352219065
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 806130lm36W171lm/WDALI1230x1344.2
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Taris® 21, direct/indirect distribution, Light colour 840, DALI, for suspended mounting

Order No.: 5MT317D04WDGTIN (EAN): 4058352219089
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 807360lm43W172lm/WDALI1510x1345.0
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Taris® 21, direct distribution, Light colour 830, DALI, for recessed, for cut ceiling aperture

Order No.: 5MT115D03WDGTIN (EAN): 4058352219140

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux3420lm
Connected load22W
Luminous efficacy154lm/W
ControlDALI
Dimension (mm)968x150
Wt. (kg)2.8
Show details

Taris® 21, direct distribution, Light colour 840, DALI, for recessed, for cut ceiling aperture

Order No.: 5MT115D04WDGTIN (EAN): 4058352219157

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux3680lm
Connected load22W
Luminous efficacy166lm/W
ControlDALI
Dimension (mm)968x150
Wt. (kg)2.8
Show details

Taris® 21, direct distribution, Light colour 840, ON/OFF, for recessed, for M625 and for cut ceiling aperture

Order No.: 5MT116704WDGTIN (EAN): 4058352219041

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4910lm
Connected load31W
Luminous efficacy160lm/W
ControlON/OFF
Dimension (mm)1250x150
Wt. (kg)3.4
Show details

Taris® 21, direct distribution, Light colour 830, DALI, for recessed, for M625 and for cut ceiling aperture

Order No.: 5MT116D03WDGTIN (EAN): 4058352219058

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux4560lm
Connected load29W
Luminous efficacy158lm/W
ControlDALI
Dimension (mm)1250x150
Wt. (kg)3.6
Show details

Taris® 21, direct distribution, Light colour 840, DALI, for recessed, for M625 and for cut ceiling aperture

Order No.: 5MT116D04WDGTIN (EAN): 4058352219249

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4910lm
Connected load29W
Luminous efficacy170lm/W
ControlDALI
Dimension (mm)1250x150
Wt. (kg)3.6
Show details

Taris® 21, direct distribution, Light colour 830, ON/OFF, for recessed, for cut ceiling aperture

Order No.: 5MT117703WDGTIN (EAN): 4058352219164

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux5700lm
Connected load37W
Luminous efficacy154lm/W
ControlON/OFF
Dimension (mm)1530x150
Wt. (kg)4.2
Show details

Taris® 21, direct distribution, Light colour 830, DALI, for recessed, for cut ceiling aperture

Order No.: 5MT117D03WDGTIN (EAN): 4058352219188

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux5700lm
Connected load36W
Luminous efficacy159lm/W
ControlDALI
Dimension (mm)1530x150
Wt. (kg)4.3
Show details

Taris® 21, direct distribution, Light colour 840, ON/OFF, for surface-mounted

Order No.: 5MT216704WDGTIN (EAN): 4058352219010

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4910lm
Connected load31W
Luminous efficacy160lm/W
ControlON/OFF
Dimension (mm)1230x134
Wt. (kg)4.0
Show details

Taris® 21, direct distribution, Light colour 840, DALI, for surface-mounted

Order No.: 5MT216D04WDGTIN (EAN): 4058352219034

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4910lm
Connected load29W
Luminous efficacy170lm/W
ControlDALI
Dimension (mm)1230x134
Wt. (kg)3.7
Show details

Taris® 21, direct distribution, Light colour 830, ON/OFF, for surface-mounted

Order No.: 5MT217703WDGTIN (EAN): 4058352219201

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux5700lm
Connected load37W
Luminous efficacy154lm/W
ControlON/OFF
Dimension (mm)1510x134
Wt. (kg)4.1
Show details

Taris® 21, direct distribution, Light colour 840, ON/OFF, for surface-mounted

Order No.: 5MT217704WDGTIN (EAN): 4058352219218

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux6140lm
Connected load37W
Luminous efficacy166lm/W
ControlON/OFF
Dimension (mm)1510x134
Wt. (kg)4.1
Show details

Taris® 21, direct distribution, Light colour 830, DALI, for surface-mounted

Order No.: 5MT217D03WDGTIN (EAN): 4058352219225

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux5700lm
Connected load36W
Luminous efficacy159lm/W
ControlDALI
Dimension (mm)1510x134
Wt. (kg)4.3
Show details

Taris® 21, direct distribution, Light colour 840, DALI, for surface-mounted

Order No.: 5MT217D04WDGTIN (EAN): 4058352219232

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux6140lm
Connected load36W
Luminous efficacy171lm/W
ControlDALI
Dimension (mm)1510x134
Wt. (kg)4.3
Show details

Taris® 21, direct/indirect distribution, Light colour 830, DALI, for suspended mounting

Order No.: 5MT316D03WDGTIN (EAN): 4058352219119

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux5700lm
Connected load36W
Luminous efficacy158lm/W
ControlDALI
Dimension (mm)1230x134
Wt. (kg)4.2
Show details

Taris® 21, direct/indirect distribution, Light colour 840, DALI, for suspended mounting

Order No.: 5MT316D04WDGTIN (EAN): 4058352219065

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux6130lm
Connected load36W
Luminous efficacy171lm/W
ControlDALI
Dimension (mm)1230x134
Wt. (kg)4.2
Show details

Taris® 21, direct/indirect distribution, Light colour 840, DALI, for suspended mounting

Order No.: 5MT317D04WDGTIN (EAN): 4058352219089

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux7360lm
Connected load43W
Luminous efficacy172lm/W
ControlDALI
Dimension (mm)1510x134
Wt. (kg)5.0
Show details

Optional accessory

Articlesingle wire suspension, with ceiling canopy, white, angularPU1 pc.Wt. (kg)0.1Order No.: 5LY92001GTIN (EAN): 4058352074022Show details
Articlesingle wire suspension, with ceiling canopy, grey, angularPU1 pc.Wt. (kg)0.1Order No.: 5LY92002GTIN (EAN): 4058352074053Show details
Articlesingle wire suspension, with ceiling canopy, white, roundPU1 pc.Wt. (kg)0.1Order No.: 5LY92003GTIN (EAN): 4058352074077Show details
Articlesingle wire suspension, with ceiling canopy, grey, roundPU1 pc.Wt. (kg)0.1Order No.: 5LY92004GTIN (EAN): 4058352074091Show details
Articlesingle wire suspension, with ceiling sleevePU1 pc.Wt. (kg)0.1Order No.: 5LY92005GTIN (EAN): 4058352074138Show details
Articleconnection cable, 3-core, 0.75mm², L= 0.8m, with terminalPU1 pc.Wt. (kg)0.1Order No.: 5LF90001LGTIN (EAN): 4039806139948Show details
Articleconnection cable, 3-core, 0.75mm², L= 1.4m, with terminalPU1 pc.Wt. (kg)0.1Order No.: 5LF90002LGTIN (EAN): 4039806198839Show details
Articleconnection cable, 3-core, 0.75mm², L= 2m, with terminalPU1 pc.Wt. (kg)0.1Order No.: 5LF90003LGTIN (EAN): 4039806507693Show details
Articleconnection cable, 5-core, 0.75mm², L= 1.4m, with terminalPU1 pc.Wt. (kg)0.1Order No.: 5LF90005LGTIN (EAN): 4039806201935Show details
Articleconnection cable, 5-core, 0.75mm², L= 2m, with terminalPU1 pc.Wt. (kg)0.2Order No.: 5LF90006LGTIN (EAN): 4039806507709Show details
Articlerapid mounting bracket, clamping range 9..36mmPU1 pc.Wt. (kg)0.3Order No.: 58MT90015XCGTIN (EAN): 4058352133354Show details
Articlemounting element, 1247x 184mm, M625, for luminaire Lx B= 968 x 150mmPU1 pc.Wt. (kg)1.5Order No.: 5MT90011GTIN (EAN): 4058352230138Show details
Articlemounting element, 1497x 184mm, for luminaire Lx B= 1250 x 150mmPU1 pc.Wt. (kg)1.7Order No.: 5MT92021GTIN (EAN): 4058352230251Show details
Articlemounting element, 1497x 297mm, for luminaire Lx B= 1250 x 150mmPU1 pc.Wt. (kg)2.5Order No.: 5MT92022GTIN (EAN): 4058352230275Show details
Articlemounting element, 1547x 184mm, for luminaire Lx B= 1250 x 150mmPU1 pc.Wt. (kg)1.7Order No.: 5MT90021GTIN (EAN): 4058352230176Show details
Articlemounting element, 1547x 309mm, for luminaire Lx B= 1250 x 150mmPU1 pc.Wt. (kg)2.7Order No.: 5MT90022GTIN (EAN): 4058352230190Show details
Articlepresence detector, multi-sensor, master, DALI, recessedPU1 pc.Wt. (kg)0.1Order No.: 5LZ925600GTIN (EAN): 4058352364048Show details
Articlepresence detector, multi-sensor, slave, DALI 2, recessedPU1 pc.Wt. (kg)0.2Order No.: 5LZ925601GTIN (EAN): 4058352362020Show details
Articlesurface-mounted housingPU1 pc.Wt. (kg)0.1Order No.: 5LZ925APGTIN (EAN): 4050737767505Show details
Articlepresence detector, multi-sensor, master, DALI, surface-mountedPU1 pc.Wt. (kg)0.3Order No.: 5LZ925602GTIN (EAN): 4058352364062Show details
ArticleSmart RemotePU1 pc.Wt. (kg)0.1Order No.: 59UC3RCAGTIN (EAN): 4058352363713Show details
