Taris® 21

ProducttypesConfiguration & Datasheets

Harmonious light paired with unique functionality in an integrative and high-quality design: the Taris® family enables the holistic implementation of modern lighting concepts in offices and public buildings. The large variety of types, different mounting options and various functional options such as emergency lighting or sensors create the necessary flexibility. Thanks to maximum efficiency with excellent glare control and a long service life, cost-effective, reliable operation is ensured.

One fits all: versatile, flexible and with many variants

Producttypes

Taris® 21 with rectangular housing

Taris® 21 with square housing

Taris® 21 wallwasher

Taris® 21 with square housing

Intro to Productfamily

Data

Article office luminaire
Lighting effect direct symmetric wide distribution
Net luminous flux 4290lm to 4620lm
Colour temperature 3000K; 4000K
Control ON/OFF; DALI

Specials

Elegant, integrative design for diverse applications in offices and public buildings
Large number of variants via various dimensions, luminous intensities and mounting options as well as sensor technology, control and emergency light functionality for maximum flexibility
Innovative "Optical Core System" lighting technology consisting of linear lens and reflector for outstanding optical light output ratio, best glare control values (UGR ≤ 19)
Modern LED luminaire with efficiency of up to 178lm/W and
long service life

Configuration & Datasheets

Colour temperature

Light colour

Rated luminous flux (lm)

Control

Ceiling system

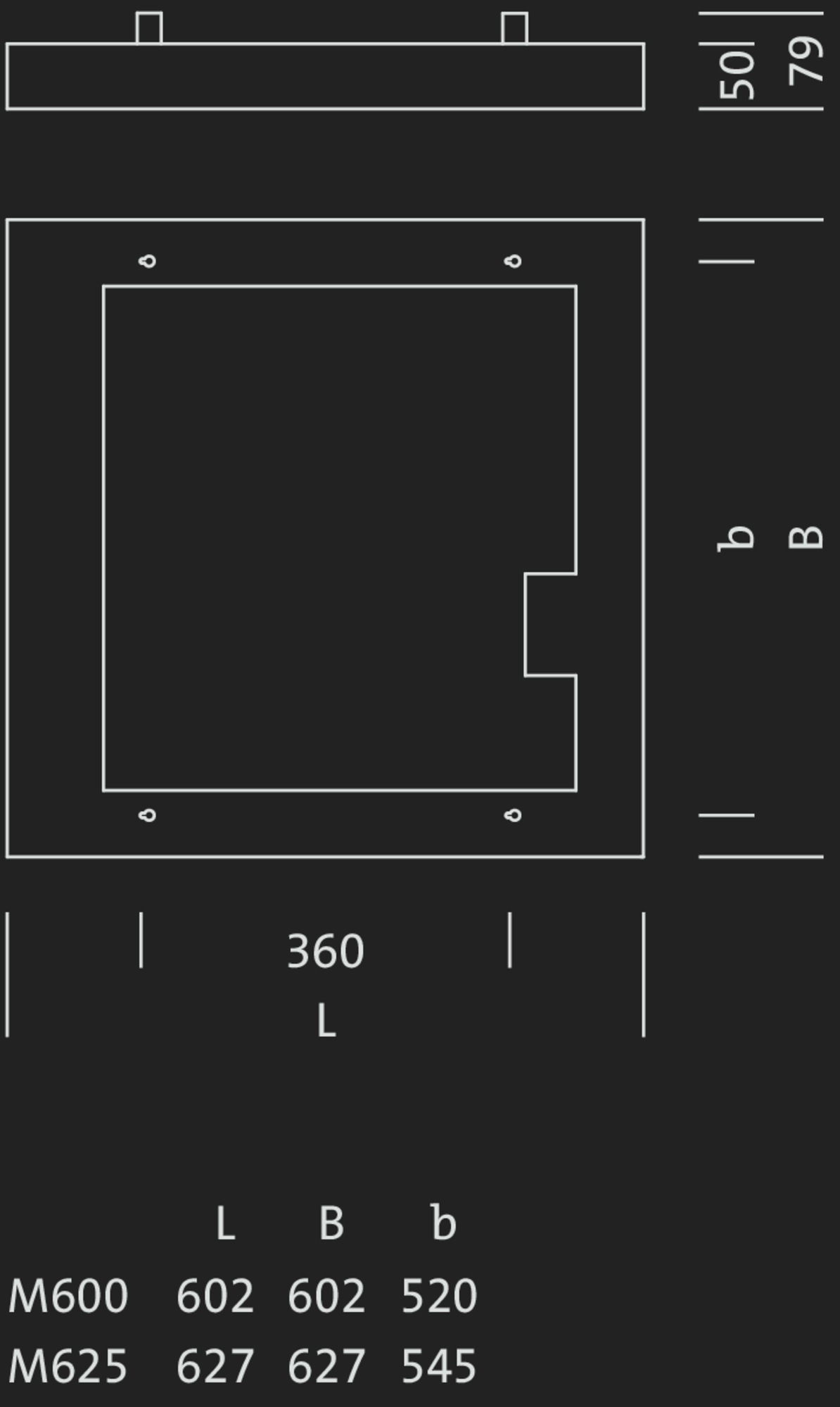

Dimension (mm)

  • for ceiling surface-mounting: please order luminaire and surface-mount housing individually in the matching size
  • luminaire for integration in light management concepts suitable both for building environments with local control and those with central control
  • for light management with local control: master luminaire (with light and motion sensor) and slave luminaire (with motion sensor) can be used; the light sensor of the slave luminaire is inactive in this application
  • with light management concept with local control: manual control of lighting installation is possible via push button interface and commercial push buttons; for commissioning and parameterizing the installation, a commissioning remote control is required
  • for light management with central control: slave luminaire (with light and motion sensor) can be used
  • with light management concept with central control: manual control of lighting installation via push button interface only possible in combination with controller
  • please order push button interface, controller, commissioning remote control and further Siteco Connect components separately if required

Results

Taris® 21, direct distribution, Light colour 830, DALI, for M600

Order No.: 51MT1LD0JHFEDC02GTIN (EAN): 4058352219539
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
3000KCRI > 804290lm27W157lm/WDALI597x5972.9
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Taris® 21, direct distribution, Light colour 840, DALI, for M625

Order No.: 51MT1LD0JHGDDC02GTIN (EAN): 4058352218969
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 804620lm27W169lm/WDALI622x6222.9
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Taris® 21, direct distribution, Light colour 840, DALI, for M600

Order No.: 51MT1LD0JHGEDC02GTIN (EAN): 4058352218983
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 804620lm27W169lm/WDALI597x5972.9
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Taris® 21, direct distribution, Light colour 840, ON/OFF, for M625

Order No.: 51MT1LV0JHGDDB02GTIN (EAN): 4058352219447
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 804620lm31W149lm/WON/OFF622x6222.9
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Taris® 21, direct distribution, Light colour 840, ON/OFF, for M600

Order No.: 51MT1LV0JHGEDB02GTIN (EAN): 4058352218792
Colour temperatureColour renderingLuminous fluxConnected loadLuminous efficacyControlDimension (mm)Wt. (kg)
4000KCRI > 804620lm31W149lm/WON/OFF597x5972.9
Show details
Tender textData sheet (PDF, full)Photometric report / planning dataAll Downloads

Taris® 21, direct distribution, Light colour 830, DALI, for M600

Order No.: 51MT1LD0JHFEDC02GTIN (EAN): 4058352219539

Colour temperature3000K
Colour renderingCRI > 80
Luminous flux4290lm
Connected load27W
Luminous efficacy157lm/W
ControlDALI
Dimension (mm)597x597
Wt. (kg)2.9
Show details

Taris® 21, direct distribution, Light colour 840, DALI, for M625

Order No.: 51MT1LD0JHGDDC02GTIN (EAN): 4058352218969

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4620lm
Connected load27W
Luminous efficacy169lm/W
ControlDALI
Dimension (mm)622x622
Wt. (kg)2.9
Show details

Taris® 21, direct distribution, Light colour 840, DALI, for M600

Order No.: 51MT1LD0JHGEDC02GTIN (EAN): 4058352218983

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4620lm
Connected load27W
Luminous efficacy169lm/W
ControlDALI
Dimension (mm)597x597
Wt. (kg)2.9
Show details

Taris® 21, direct distribution, Light colour 840, ON/OFF, for M625

Order No.: 51MT1LV0JHGDDB02GTIN (EAN): 4058352219447

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4620lm
Connected load31W
Luminous efficacy149lm/W
ControlON/OFF
Dimension (mm)622x622
Wt. (kg)2.9
Show details

Taris® 21, direct distribution, Light colour 840, ON/OFF, for M600

Order No.: 51MT1LV0JHGEDB02GTIN (EAN): 4058352218792

Colour temperature4000K
Colour renderingCRI > 80
Luminous flux4620lm
Connected load31W
Luminous efficacy149lm/W
ControlON/OFF
Dimension (mm)597x597
Wt. (kg)2.9
Show details

Optional accessory

Articlesurface-mounted housing, traffic white (RAL 9016), prepared for through-wiring, for luminaire M625PU1 pc.Wt. (kg)2.0Order No.: 58MT2000000DBC02D0GTIN (EAN): 4058352085004Show details
Articlesurface-mounted housing, traffic white (RAL 9016), prepared for through-wiring, for luminaire M600PU1 pc.Wt. (kg)1.8Order No.: 58MT2000000EBC02D0GTIN (EAN): 4058352085011Show details
Articlecommissioning remote controlPU1 pc.Wt. (kg)0.2Order No.: 5LZ904307GTIN (EAN): 4052899195967Show details
