Silica® 11

ProducttypesConfiguration & Datasheets

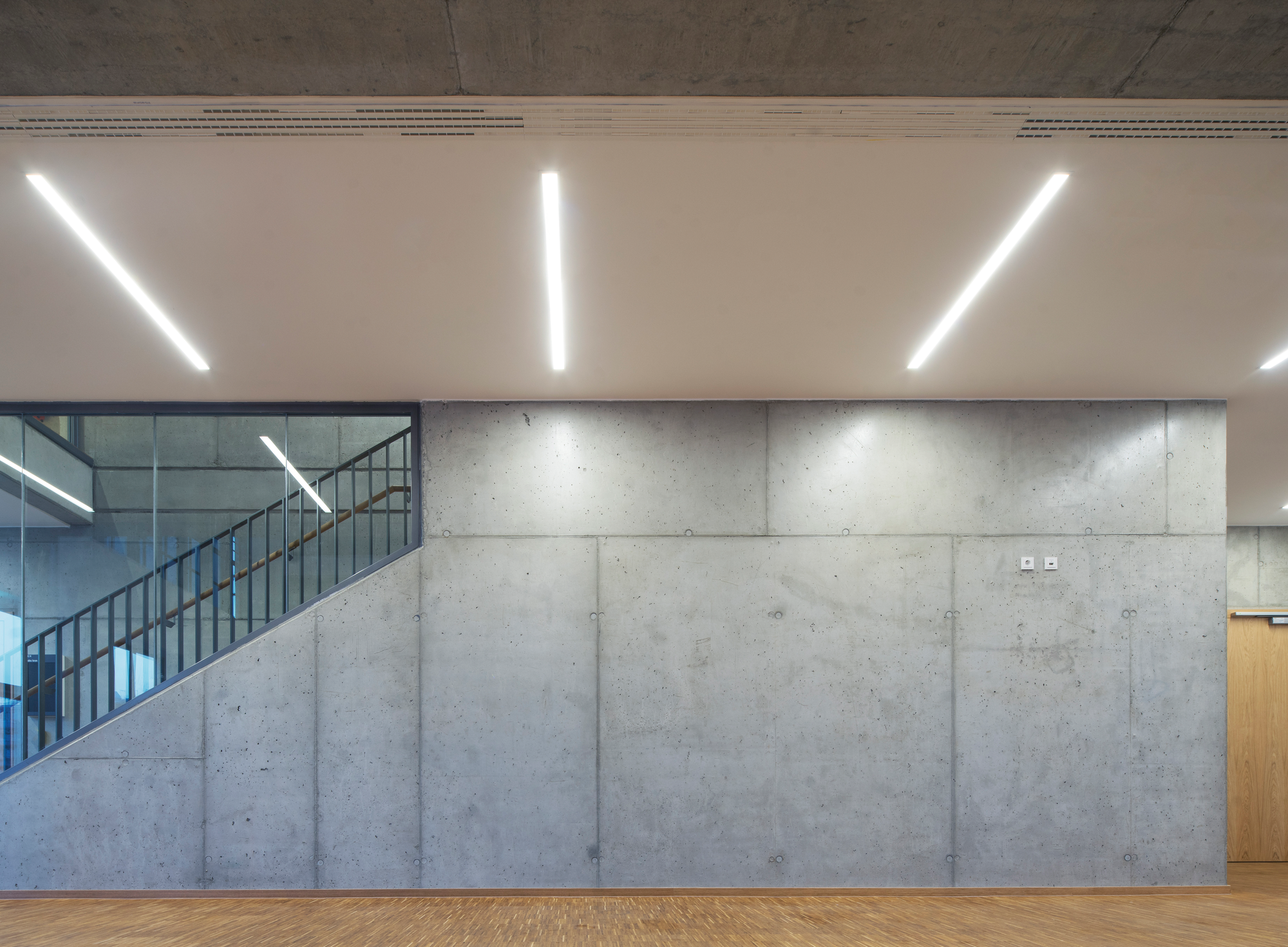

Silica® 11 combines simplicity and elegance in a high quality, linear housing. The appearance as a continuous row is made possible by the integrated ECG and, together with a large number of customization options, creates architectural integration in sophisticated environments. Silica® stands for lighting technology at the highest level: the hybrid optics system with optimal glare control creates the ideal conditions for comfortable working at computer workstations. Thanks to the optional Tunable White function, all variants are ideally suited for SITECO HCLlive applications to increase well-being and motivation.

office lighting in a new light: compact, simple, well thought out

Producttypes

Data

Varetekst kontorarmatur
Lyseffekt direkte symmetrisk bredstrålende; wallwasher - direkte asymmetrisk bredstrålende
Netto lysfluks 3010lm til 9910lm
Fargetemperatur 4000K
Styring DALI 2

Specials

Integrert design takket være montasje i flukt med taket

Configuration & Datasheets

Lyseffekt

Overflaten

Anslått lysfluks (lm)

UGR

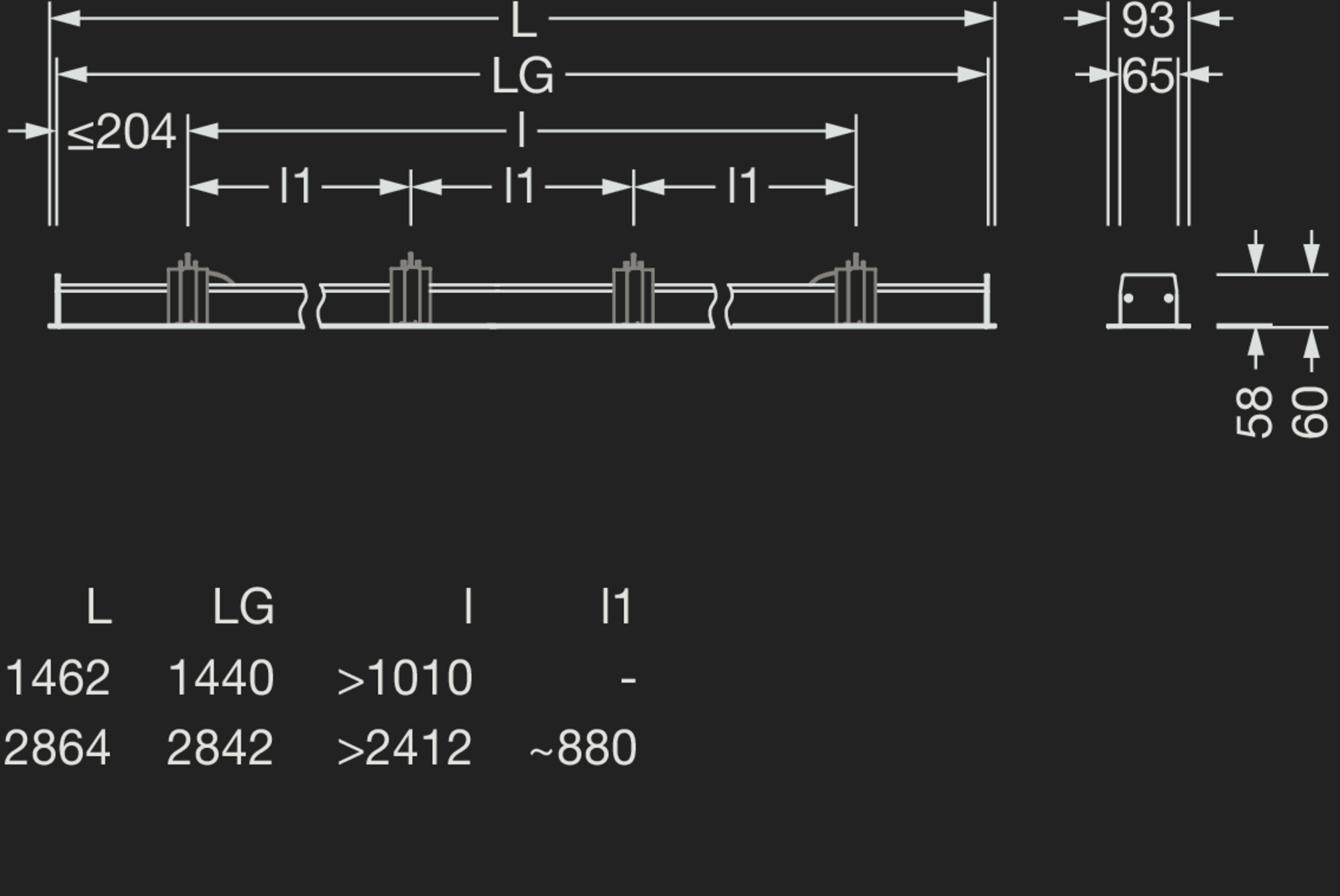

Lengde (mm)

  • monteringstilbehør må bestilles separat
  • 2 takmonteringselementer med sikkerhetswire per armatur er påkrevd; for the luminaire with L= 2864mm, two additional ceiling mounting elements without a safety cable are required

Results

Silica®, direkte strålende, Lysfarge 840, DALI 2, for utsparing i himling

Bestillingsnummer: 5MX11BD1W4A GTIN (EAN): 4058352305249
FargetemperaturFargegjengivelseLysfluksTilkoblingseffektLysutbytteStyringL (mm)Vekt (kg)
4000KCRI > 804950lm29W169lm/WDALI 214623,5

Silica®, direkte strålende, Lysfarge 840, DALI 2, for utsparing i himling

Bestillingsnummer: 5MX11BD2W4A GTIN (EAN): 4058352305263
FargetemperaturFargegjengivelseLysfluksTilkoblingseffektLysutbytteStyringL (mm)Vekt (kg)
4000KCRI > 809910lm60W165lm/WDALI 228647,0

Silica®, direkte strålende, opal, Lysfarge 840, DALI 2, for utsparing i himling

Bestillingsnummer: 5MX11DD1W4A GTIN (EAN): 4058352305287
FargetemperaturFargegjengivelseLysfluksTilkoblingseffektLysutbytteStyringL (mm)Vekt (kg)
4000KCRI > 803010lm24W123lm/WDALI 214623,3

Silica®, direkte strålende, wallwasher, Lysfarge 840, DALI 2, for utsparing i himling

Bestillingsnummer: 5MX12WD1W4A GTIN (EAN): 4058352305324
FargetemperaturFargegjengivelseLysfluksTilkoblingseffektLysutbytteStyringL (mm)Vekt (kg)
4000KCRI > 804680lm29W160lm/WDALI 214623,5

Silica®, direkte strålende, Lysfarge 840, DALI 2, for utsparing i himling

Bestillingsnummer: 5MX11BD1W4AGTIN (EAN): 4058352305249

Fargetemperatur4000K
FargegjengivelseCRI > 80
Lysfluks4950lm
Tilkoblingseffekt29W
Lysutbytte169lm/W
StyringDALI 2
L (mm)1462
Vekt (kg)3,5

Silica®, direkte strålende, Lysfarge 840, DALI 2, for utsparing i himling

Bestillingsnummer: 5MX11BD2W4AGTIN (EAN): 4058352305263

Fargetemperatur4000K
FargegjengivelseCRI > 80
Lysfluks9910lm
Tilkoblingseffekt60W
Lysutbytte165lm/W
StyringDALI 2
L (mm)2864
Vekt (kg)7,0

Silica®, direkte strålende, opal, Lysfarge 840, DALI 2, for utsparing i himling

Bestillingsnummer: 5MX11DD1W4AGTIN (EAN): 4058352305287

Fargetemperatur4000K
FargegjengivelseCRI > 80
Lysfluks3010lm
Tilkoblingseffekt24W
Lysutbytte123lm/W
StyringDALI 2
L (mm)1462
Vekt (kg)3,3

Silica®, direkte strålende, wallwasher, Lysfarge 840, DALI 2, for utsparing i himling

Bestillingsnummer: 5MX12WD1W4AGTIN (EAN): 4058352305324

Fargetemperatur4000K
FargegjengivelseCRI > 80
Lysfluks4680lm
Tilkoblingseffekt29W
Lysutbytte160lm/W
StyringDALI 2
L (mm)1462
Vekt (kg)3,5

Mandatory accessory

Varetekstsett for utenpåliggende montering, med 1x sikkerhetswireForpakningsenhet1 stykkVekt (kg)0,2Bestillingsnummer: 5MX90101GTIN (EAN): 4058352311820Show details
Varetekstsett for utenpåliggende monteringForpakningsenhet1 stykkVekt (kg)0,2Bestillingsnummer: 5MX90102GTIN (EAN): 4058352311844Show details
