Lunis 11
Whether spot, downlight or wallwasher - the Lunis 11 family meets the highest demands in terms of design, light quality and flexibility. As an individual lighting kit, it covers the entire range of general lighting, from the lighting of VDU workstations to precise accent lighting. The high-quality design ensures seamless integration into the architectural space, especially in the built-in versions. The optical core system always creates the best quality of light and enables optimal viewing conditions.
Our performance solution: Lunis 11 is our innovative downlight with maximum efficiency, service life and flexibility
Product types
Lunis 11 mini Spot
Intro product family
Key data
Article downlight
Lighting effect narrow distribution
Net luminous flux 1020lm to 3240lm
Colour temperature 3000K; 4000K
Control ON/OFF; DALI
Special features
High flexibility due to modular design and large number of variants based on the Optical Core System
Seamless integration into the architectural space due to high design factor with shadow gap
Excellent visual conditions at VDU workstations due to UGR ≤ 19
Uncomplicated handling and simple, quick mounting via clip system
Configuration & data sheets
- please order decorative optical accessories separately if required
- downlight narrow distribution as series; please order lens for medium light distribution separately
Results

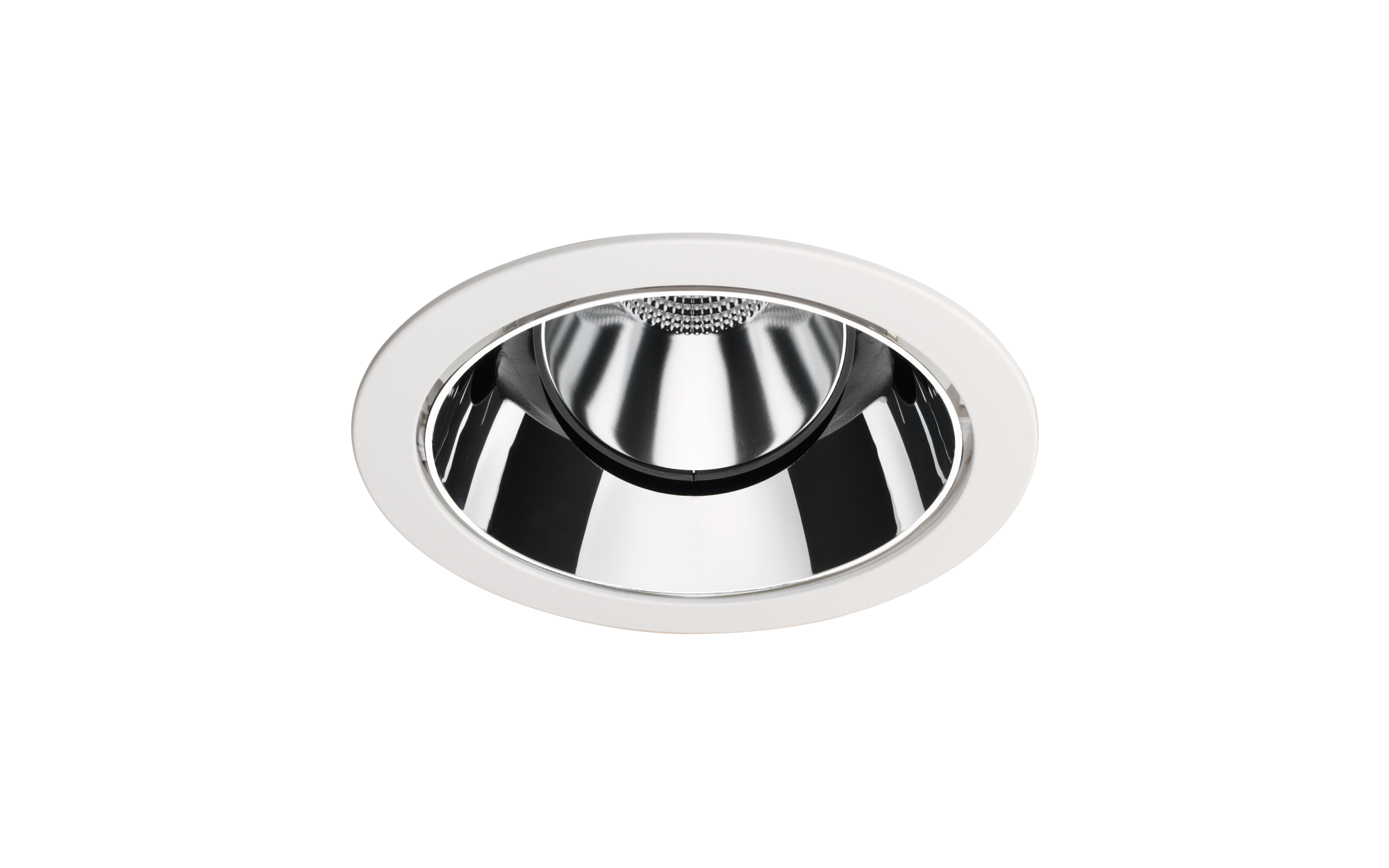

Lunis 11 mini round Spot, narrow distribution, Light colour 830, ON/OFF
Order No.: 51DH11B71FF22 GTIN (EAN): 4058352107256
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 1020lm | 10W | 99lm/W | ON/OFF | 0.7 |
Lunis 11 mini round Spot, narrow distribution, Light colour 840, ON/OFF
Order No.: 51DH11B71FG22 GTIN (EAN): 4058352107737
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 1110lm | 10W | 107lm/W | ON/OFF | 0.7 |
Lunis 11 mini round Spot, narrow distribution, Light colour 830, ON/OFF
Order No.: 51DH11B72FF22 GTIN (EAN): 4058352107263
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 1990lm | 19W | 104lm/W | ON/OFF | 0.7 |
Lunis 11 mini round Spot, narrow distribution, Light colour 840, ON/OFF
Order No.: 51DH11B72FG22 GTIN (EAN): 4058352107744
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 1980lm | 19W | 102lm/W | ON/OFF | 0.7 |
Lunis 11 mini round Spot, narrow distribution, Light colour 830, ON/OFF
Order No.: 51DH11B73FF22 GTIN (EAN): 4058352107270
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 2780lm | 27W | 102lm/W | ON/OFF | 0.9 |
Lunis 11 mini round Spot, narrow distribution, Light colour 840, ON/OFF
Order No.: 51DH11B73FG22 GTIN (EAN): 4058352107751
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 2760lm | 28W | 100lm/W | ON/OFF | 0.9 |
Lunis 11 mini round Spot, narrow distribution, Light colour 830, ON/OFF
Order No.: 51DH11B74FF22 GTIN (EAN): 4058352107294
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 3220lm | 35W | 93lm/W | ON/OFF | 0.9 |
Lunis 11 mini round Spot, narrow distribution, Light colour 840, ON/OFF
Order No.: 51DH11B74FG22 GTIN (EAN): 4058352107287
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3240lm | 35W | 92lm/W | ON/OFF | 0.9 |
Lunis 11 mini round Spot, narrow distribution, Light colour 830, DALI
Order No.: 51DH11CD1FF22 GTIN (EAN): 4058352106891
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 1020lm | 10W | 99lm/W | DALI | 0.7 |
Lunis 11 mini round Spot, narrow distribution, Light colour 840, DALI
Order No.: 51DH11CD1FG22 GTIN (EAN): 4058352106884
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 1110lm | 10W | 107lm/W | DALI | 0.7 |
Lunis 11 mini round Spot, narrow distribution, Light colour 830, DALI
Order No.: 51DH11CD2FF22 GTIN (EAN): 4058352107485
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 1990lm | 19W | 104lm/W | DALI | 0.7 |
Lunis 11 mini round Spot, narrow distribution, Light colour 840, DALI
Order No.: 51DH11CD2FG22 GTIN (EAN): 4058352107768
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 1980lm | 19W | 102lm/W | DALI | 0.7 |
Lunis 11 mini round Spot, narrow distribution, Light colour 830, DALI
Order No.: 51DH11CD3FF22 GTIN (EAN): 4058352107515
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 2780lm | 27W | 103lm/W | DALI | 0.9 |
Lunis 11 mini round Spot, narrow distribution, Light colour 840, DALI
Order No.: 51DH11CD3FG22 GTIN (EAN): 4058352107980
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 2760lm | 27W | 101lm/W | DALI | 0.9 |
Lunis 11 mini round Spot, narrow distribution, Light colour 830, DALI
Order No.: 51DH11CD4FF22 GTIN (EAN): 4058352107522
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 3000K | CRI > 80 | 3220lm | 34W | 94lm/W | DALI | 0.9 |
Lunis 11 mini round Spot, narrow distribution, Light colour 840, DALI
Order No.: 51DH11CD4FG22 GTIN (EAN): 4058352107508
| Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | Wt. (kg) |
|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 3240lm | 35W | 93lm/W | DALI | 0.9 |
Lunis 11 mini round Spot, narrow distribution, Light colour 830, ON/OFF
Order No.: 51DH11B71FF22GTIN (EAN): 4058352107256
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1020lm |
| Connected load | 10W |
| Luminous efficacy | 99lm/W |
| Control | ON/OFF |
| Wt. (kg) | 0.7 |
Lunis 11 mini round Spot, narrow distribution, Light colour 840, ON/OFF
Order No.: 51DH11B71FG22GTIN (EAN): 4058352107737
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1110lm |
| Connected load | 10W |
| Luminous efficacy | 107lm/W |
| Control | ON/OFF |
| Wt. (kg) | 0.7 |
Lunis 11 mini round Spot, narrow distribution, Light colour 830, ON/OFF
Order No.: 51DH11B72FF22GTIN (EAN): 4058352107263
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1990lm |
| Connected load | 19W |
| Luminous efficacy | 104lm/W |
| Control | ON/OFF |
| Wt. (kg) | 0.7 |
Lunis 11 mini round Spot, narrow distribution, Light colour 840, ON/OFF
Order No.: 51DH11B72FG22GTIN (EAN): 4058352107744
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1980lm |
| Connected load | 19W |
| Luminous efficacy | 102lm/W |
| Control | ON/OFF |
| Wt. (kg) | 0.7 |
Lunis 11 mini round Spot, narrow distribution, Light colour 830, ON/OFF
Order No.: 51DH11B73FF22GTIN (EAN): 4058352107270
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2780lm |
| Connected load | 27W |
| Luminous efficacy | 102lm/W |
| Control | ON/OFF |
| Wt. (kg) | 0.9 |
Lunis 11 mini round Spot, narrow distribution, Light colour 840, ON/OFF
Order No.: 51DH11B73FG22GTIN (EAN): 4058352107751
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2760lm |
| Connected load | 28W |
| Luminous efficacy | 100lm/W |
| Control | ON/OFF |
| Wt. (kg) | 0.9 |
Lunis 11 mini round Spot, narrow distribution, Light colour 830, ON/OFF
Order No.: 51DH11B74FF22GTIN (EAN): 4058352107294
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3220lm |
| Connected load | 35W |
| Luminous efficacy | 93lm/W |
| Control | ON/OFF |
| Wt. (kg) | 0.9 |
Lunis 11 mini round Spot, narrow distribution, Light colour 840, ON/OFF
Order No.: 51DH11B74FG22GTIN (EAN): 4058352107287
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3240lm |
| Connected load | 35W |
| Luminous efficacy | 92lm/W |
| Control | ON/OFF |
| Wt. (kg) | 0.9 |
Lunis 11 mini round Spot, narrow distribution, Light colour 830, DALI
Order No.: 51DH11CD1FF22GTIN (EAN): 4058352106891
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1020lm |
| Connected load | 10W |
| Luminous efficacy | 99lm/W |
| Control | DALI |
| Wt. (kg) | 0.7 |
Lunis 11 mini round Spot, narrow distribution, Light colour 840, DALI
Order No.: 51DH11CD1FG22GTIN (EAN): 4058352106884
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1110lm |
| Connected load | 10W |
| Luminous efficacy | 107lm/W |
| Control | DALI |
| Wt. (kg) | 0.7 |
Lunis 11 mini round Spot, narrow distribution, Light colour 830, DALI
Order No.: 51DH11CD2FF22GTIN (EAN): 4058352107485
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1990lm |
| Connected load | 19W |
| Luminous efficacy | 104lm/W |
| Control | DALI |
| Wt. (kg) | 0.7 |
Lunis 11 mini round Spot, narrow distribution, Light colour 840, DALI
Order No.: 51DH11CD2FG22GTIN (EAN): 4058352107768
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 1980lm |
| Connected load | 19W |
| Luminous efficacy | 102lm/W |
| Control | DALI |
| Wt. (kg) | 0.7 |
Lunis 11 mini round Spot, narrow distribution, Light colour 830, DALI
Order No.: 51DH11CD3FF22GTIN (EAN): 4058352107515
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2780lm |
| Connected load | 27W |
| Luminous efficacy | 103lm/W |
| Control | DALI |
| Wt. (kg) | 0.9 |
Lunis 11 mini round Spot, narrow distribution, Light colour 840, DALI
Order No.: 51DH11CD3FG22GTIN (EAN): 4058352107980
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 2760lm |
| Connected load | 27W |
| Luminous efficacy | 101lm/W |
| Control | DALI |
| Wt. (kg) | 0.9 |
Lunis 11 mini round Spot, narrow distribution, Light colour 830, DALI
Order No.: 51DH11CD4FF22GTIN (EAN): 4058352107522
| Colour temperature | 3000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3220lm |
| Connected load | 34W |
| Luminous efficacy | 94lm/W |
| Control | DALI |
| Wt. (kg) | 0.9 |
Lunis 11 mini round Spot, narrow distribution, Light colour 840, DALI
Order No.: 51DH11CD4FG22GTIN (EAN): 4058352107508
| Colour temperature | 4000K |
|---|---|
| Colour rendering | CRI > 80 |
| Luminous flux | 3240lm |
| Connected load | 35W |
| Luminous efficacy | 93lm/W |
| Control | DALI |
| Wt. (kg) | 0.9 |
Optional accessories
| Order No.: 59DL1L0000G0000D0GTIN (EAN): 4058352030165 | Show all details |
| Order No.: 59DL10000400F00D0GTIN (EAN): 4058352103814 | Show all details |
| Order No.: 59DL10000300F00D0GTIN (EAN): 4058352097106 | Show all details |
| Order No.: 59DL100000H0F00D0GTIN (EAN): 4058352125472 | Show all details |
