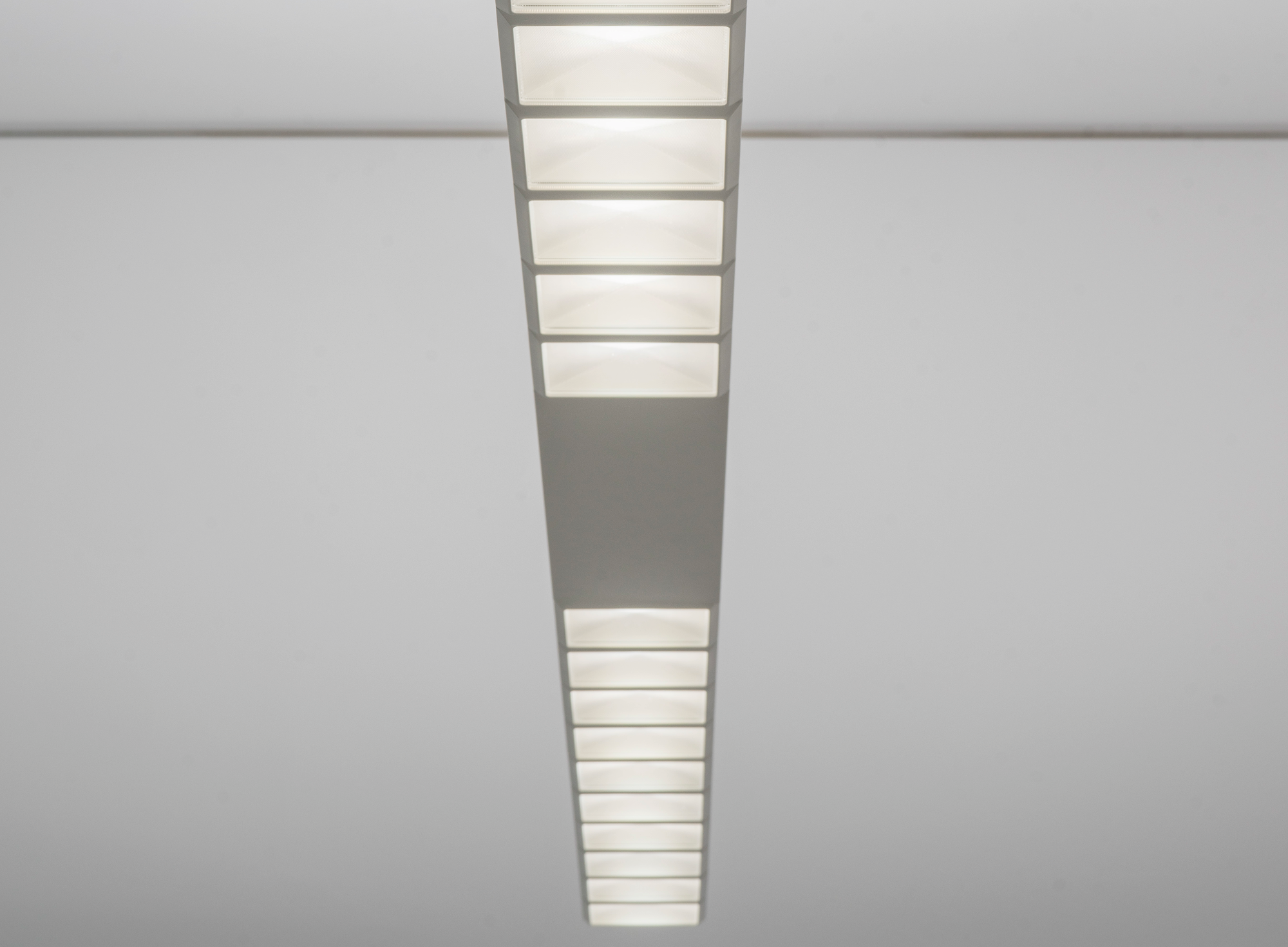

Scriptus® 11
The Scriptus® product series, designed by the Berlin design studio Aisslinger, stands for quality design paired with innovative technology. Thanks to the three-stage optical technology for maximum glare control, the luminaire offers the best visual comfort, especially at VDU workstations. Scriptus® 11 relies on reduced elegance, clear lines and maximum system flexibility and is therefore ideally suited for modern working environments.
Progressive, contemporary design with outstanding efficiency and quality of light
Producttypes
Scriptus® 11
Intro to Productfamily
Data
Opis pisarniška svetilka
Svetlobni učinek direktno/indirektna simetrična porazdelitev
Neto svetlobni tok 8020lm do 16060lm
Barvna temperatura 3000…6500K; 4000K
Upravljanje DALI; DALI DT8
Specials
Luminaire range for ceiling surface mounting or suspended mounting as well as individual ceiling recessed variants – with a sophisticated appearance due to discreetly integrated ECG
High quality lighting technology with new, multi-step optic system for maximum visual comfort due to very good glare control (UGR ≤ 16) and uniform illumination
Available with Tunable White function as suspended version with indirect light component as the ideal basis for HCLlive applications – for greater well-being and motivation
Maximum planning flexibility due to various lengths, luminous intensities and configurations as well as extensive control options
Configuration & Datasheets
- luminaire incl. pre-assembled connection cable, l = 1.2m
- please order wire suspension separately (2 pieces required per luminaire)
- luminaire for integration in light management concepts suitable both for building environments with local control and those with central control
- for light management with local control: master luminaire (with light and motion sensor) and slave luminaire (with motion sensor) can be used; the light sensor of the slave luminaire is inactive in this application
- with light management concept with local control: manual control of lighting installation is possible via push button interface and commercial push buttons; for commissioning and parameterizing the installation, a commissioning remote control is required
- for light management with central control: slave luminaire (with light and motion sensor) can be used
- with light management concept with central control: manual control of lighting installation via push button interface only possible in combination with controller
- please order push button interface, controller, commissioning remote control and further Siteco Connect components separately if required
Results

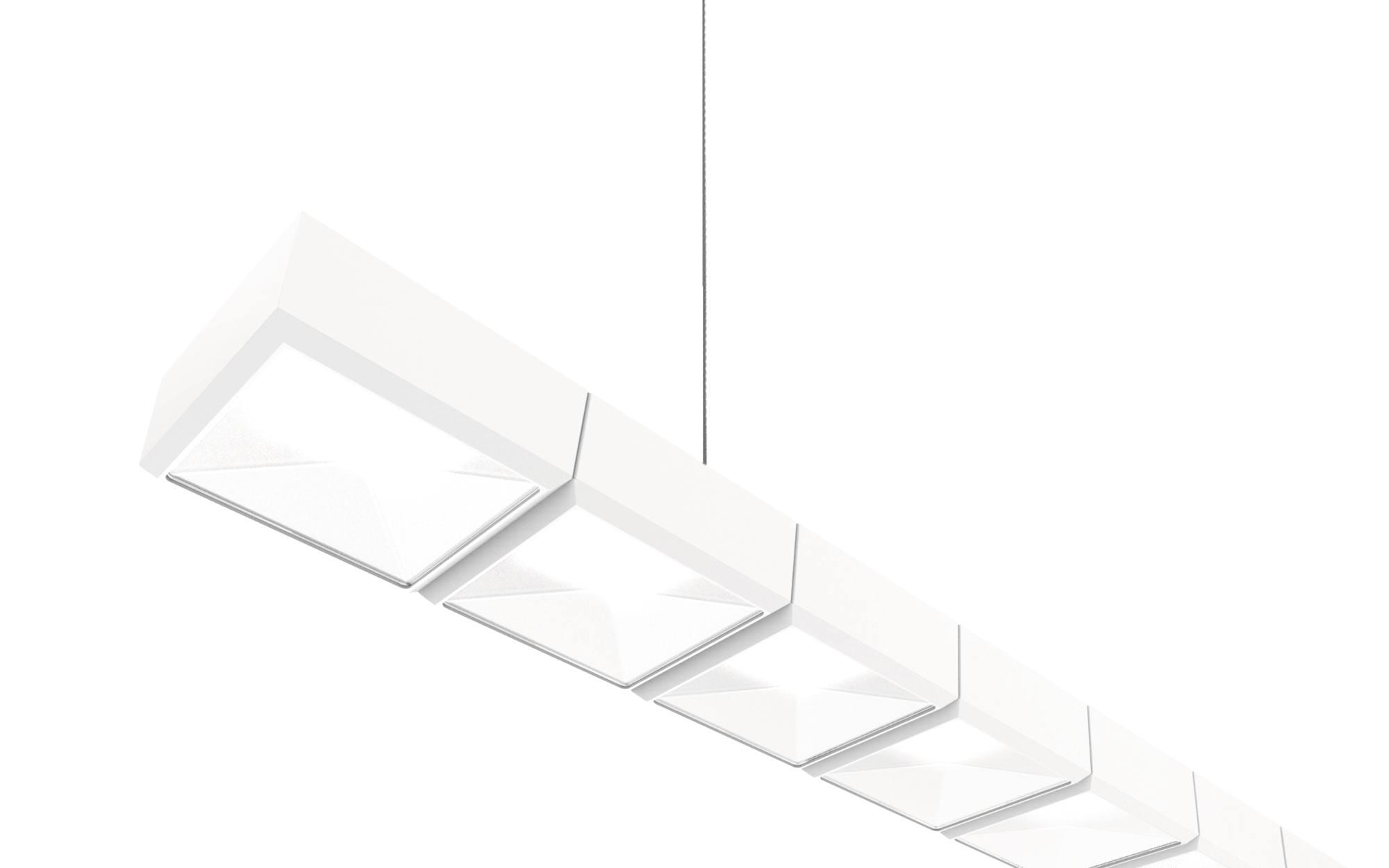

Scriptus® 11, direktno/indirektna porazdelitev, Barva svetlobe 840, DALI
Oznaka za naročilo: 5MZ312D04WAGTIN (EAN): 4058352065129

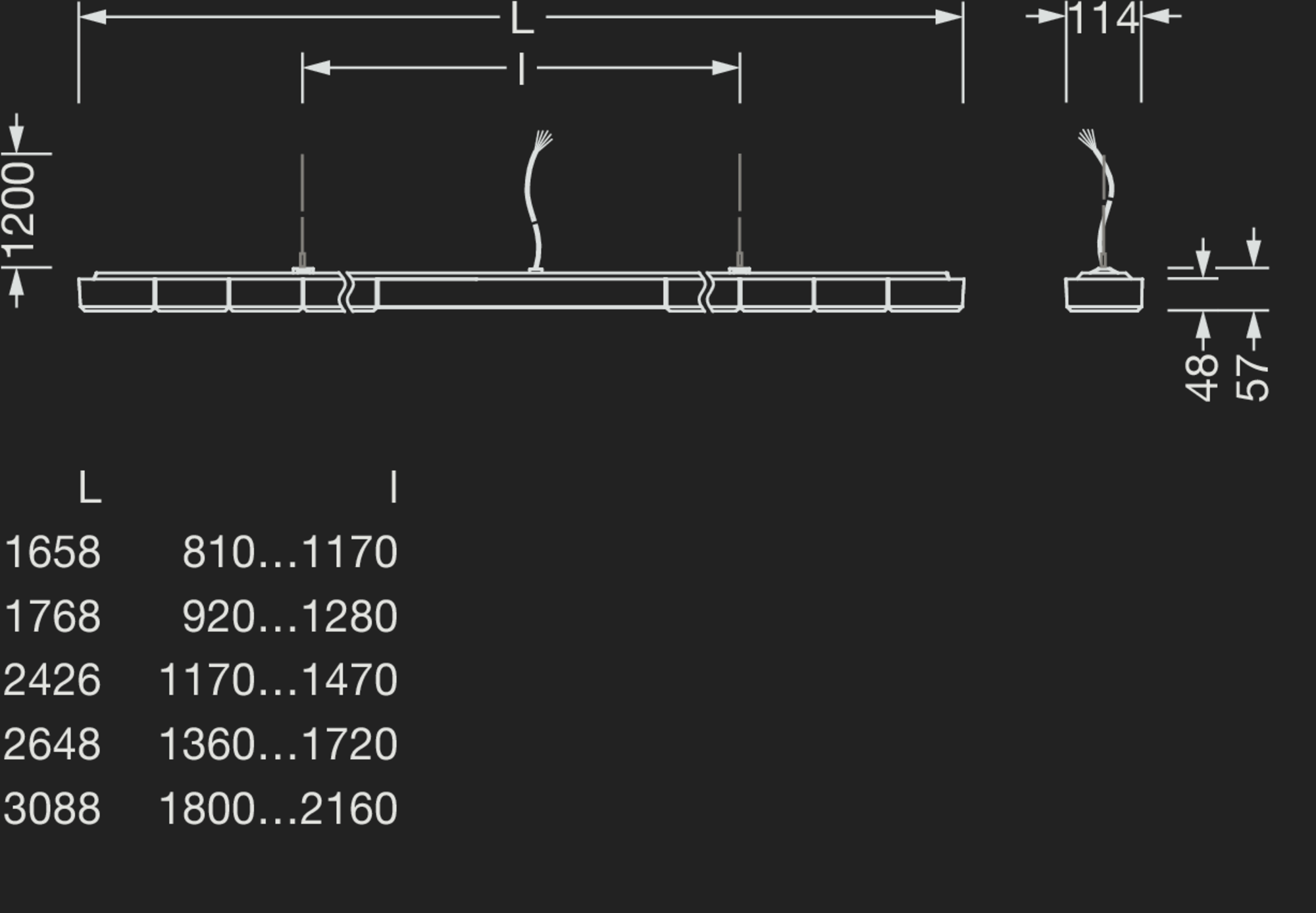

| Barvna temperatura | Barvni videz | Upravljanje razsvetljave | Priključna moč | Svetlobni izkoristek | Upravljanje | L (mm) | Masa (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 8020lm | 62W | 130lm/W | DALI | 1658 | 5,8 |
Scriptus® 11, direktno/indirektna porazdelitev, 3000..6500K, DALI DT8
Oznaka za naročilo: 5MZ312D0TWBGTIN (EAN): 4058352198193
| Barvna temperatura | Barvni videz | Upravljanje razsvetljave | Priključna moč | Svetlobni izkoristek | Upravljanje | L (mm) | Masa (kg) |
|---|---|---|---|---|---|---|---|
| 3000..6500K | CRI > 80 | 11150lm | 96W | 116lm/W | DALI DT8 | 1768 | 6,6 |
Scriptus® 11, direktno/indirektna porazdelitev, Barva svetlobe 840, DALI
Oznaka za naročilo: 5MZ313D04WAGTIN (EAN): 4058352128718
| Barvna temperatura | Barvni videz | Upravljanje razsvetljave | Priključna moč | Svetlobni izkoristek | Upravljanje | L (mm) | Masa (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 13330lm | 99W | 134lm/W | DALI | 2648 | 8,1 |
Scriptus® 11, direktno/indirektna porazdelitev, 3000..6500K, DALI DT8
Oznaka za naročilo: 5MZ313D0TWBGTIN (EAN): 4058352198414
| Barvna temperatura | Barvni videz | Upravljanje razsvetljave | Priključna moč | Svetlobni izkoristek | Upravljanje | L (mm) | Masa (kg) |
|---|---|---|---|---|---|---|---|
| 3000..6500K | CRI > 80 | 13880lm | 110W | 126lm/W | DALI DT8 | 2648 | 8,2 |
Scriptus® 11, direktno/indirektna porazdelitev, Barva svetlobe 840, DALI
Oznaka za naročilo: 5MZ314D04WAGTIN (EAN): 4058352067789
| Barvna temperatura | Barvni videz | Upravljanje razsvetljave | Priključna moč | Svetlobni izkoristek | Upravljanje | L (mm) | Masa (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 16060lm | 120W | 133lm/W | DALI | 3088 | 10,4 |
Scriptus® 11, direktno/indirektna porazdelitev, 3000..6500K, DALI DT8
Oznaka za naročilo: 5MZ314D0TWBGTIN (EAN): 4058352198438
| Barvna temperatura | Barvni videz | Upravljanje razsvetljave | Priključna moč | Svetlobni izkoristek | Upravljanje | L (mm) | Masa (kg) |
|---|---|---|---|---|---|---|---|
| 3000..6500K | CRI > 80 | 13970lm | 110W | 128lm/W | DALI DT8 | 3088 | 10,4 |

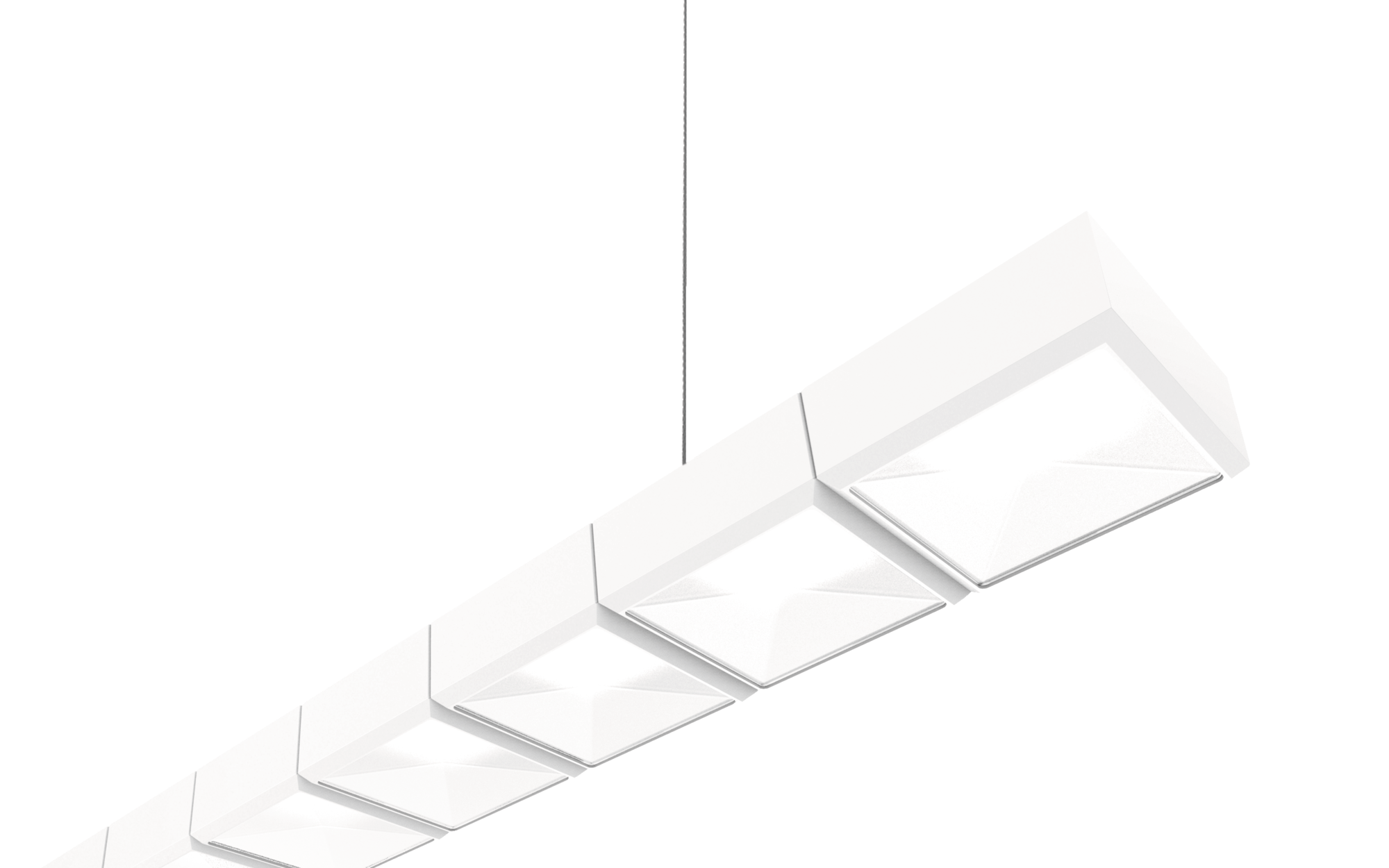

Scriptus® 11, direktno/indirektna porazdelitev, Barva svetlobe 840, DALI
Oznaka za naročilo: 5MZ323D04WAGTIN (EAN): 4058352124918
| Barvna temperatura | Barvni videz | Upravljanje razsvetljave | Priključna moč | Svetlobni izkoristek | Upravljanje | L (mm) | Masa (kg) |
|---|---|---|---|---|---|---|---|
| 4000K | CRI > 80 | 12070lm | 91W | 133lm/W | DALI | 2426 | 8,1 |
Scriptus® 11, direktno/indirektna porazdelitev, Barva svetlobe 840, DALI
Oznaka za naročilo: 5MZ312D04WAGTIN (EAN): 4058352065129
| Barvna temperatura | 4000K |
|---|---|
| Barvni videz | CRI > 80 |
| Upravljanje razsvetljave | 8020lm |
| Priključna moč | 62W |
| Svetlobni izkoristek | 130lm/W |
| Upravljanje | DALI |
| L (mm) | 1658 |
| Masa (kg) | 5,8 |
Scriptus® 11, direktno/indirektna porazdelitev, 3000..6500K, DALI DT8
Oznaka za naročilo: 5MZ312D0TWBGTIN (EAN): 4058352198193
| Barvna temperatura | 3000..6500K |
|---|---|
| Barvni videz | CRI > 80 |
| Upravljanje razsvetljave | 11150lm |
| Priključna moč | 96W |
| Svetlobni izkoristek | 116lm/W |
| Upravljanje | DALI DT8 |
| L (mm) | 1768 |
| Masa (kg) | 6,6 |
Scriptus® 11, direktno/indirektna porazdelitev, Barva svetlobe 840, DALI
Oznaka za naročilo: 5MZ313D04WAGTIN (EAN): 4058352128718
| Barvna temperatura | 4000K |
|---|---|
| Barvni videz | CRI > 80 |
| Upravljanje razsvetljave | 13330lm |
| Priključna moč | 99W |
| Svetlobni izkoristek | 134lm/W |
| Upravljanje | DALI |
| L (mm) | 2648 |
| Masa (kg) | 8,1 |
Scriptus® 11, direktno/indirektna porazdelitev, 3000..6500K, DALI DT8
Oznaka za naročilo: 5MZ313D0TWBGTIN (EAN): 4058352198414
| Barvna temperatura | 3000..6500K |
|---|---|
| Barvni videz | CRI > 80 |
| Upravljanje razsvetljave | 13880lm |
| Priključna moč | 110W |
| Svetlobni izkoristek | 126lm/W |
| Upravljanje | DALI DT8 |
| L (mm) | 2648 |
| Masa (kg) | 8,2 |
Scriptus® 11, direktno/indirektna porazdelitev, Barva svetlobe 840, DALI
Oznaka za naročilo: 5MZ314D04WAGTIN (EAN): 4058352067789
| Barvna temperatura | 4000K |
|---|---|
| Barvni videz | CRI > 80 |
| Upravljanje razsvetljave | 16060lm |
| Priključna moč | 120W |
| Svetlobni izkoristek | 133lm/W |
| Upravljanje | DALI |
| L (mm) | 3088 |
| Masa (kg) | 10,4 |
Scriptus® 11, direktno/indirektna porazdelitev, 3000..6500K, DALI DT8
Oznaka za naročilo: 5MZ314D0TWBGTIN (EAN): 4058352198438
| Barvna temperatura | 3000..6500K |
|---|---|
| Barvni videz | CRI > 80 |
| Upravljanje razsvetljave | 13970lm |
| Priključna moč | 110W |
| Svetlobni izkoristek | 128lm/W |
| Upravljanje | DALI DT8 |
| L (mm) | 3088 |
| Masa (kg) | 10,4 |
Scriptus® 11, direktno/indirektna porazdelitev, Barva svetlobe 840, DALI
Oznaka za naročilo: 5MZ323D04WAGTIN (EAN): 4058352124918
| Barvna temperatura | 4000K |
|---|---|
| Barvni videz | CRI > 80 |
| Upravljanje razsvetljave | 12070lm |
| Priključna moč | 91W |
| Svetlobni izkoristek | 133lm/W |
| Upravljanje | DALI |
| L (mm) | 2426 |
| Masa (kg) | 8,1 |
Mandatory accessory
| Oznaka za naročilo: 5LY92001GTIN (EAN): 4058352074022 | Show details |
| Oznaka za naročilo: 5LY92002GTIN (EAN): 4058352074053 | Show details |
| Oznaka za naročilo: 5LY92003GTIN (EAN): 4058352074077 | Show details |
| Oznaka za naročilo: 5LY92004GTIN (EAN): 4058352074091 | Show details |
| Oznaka za naročilo: 5LY92005GTIN (EAN): 4058352074138 | Show details |
Optional accessory
| Oznaka za naročilo: 5LZ904307GTIN (EAN): 4052899195967 | Show details |
