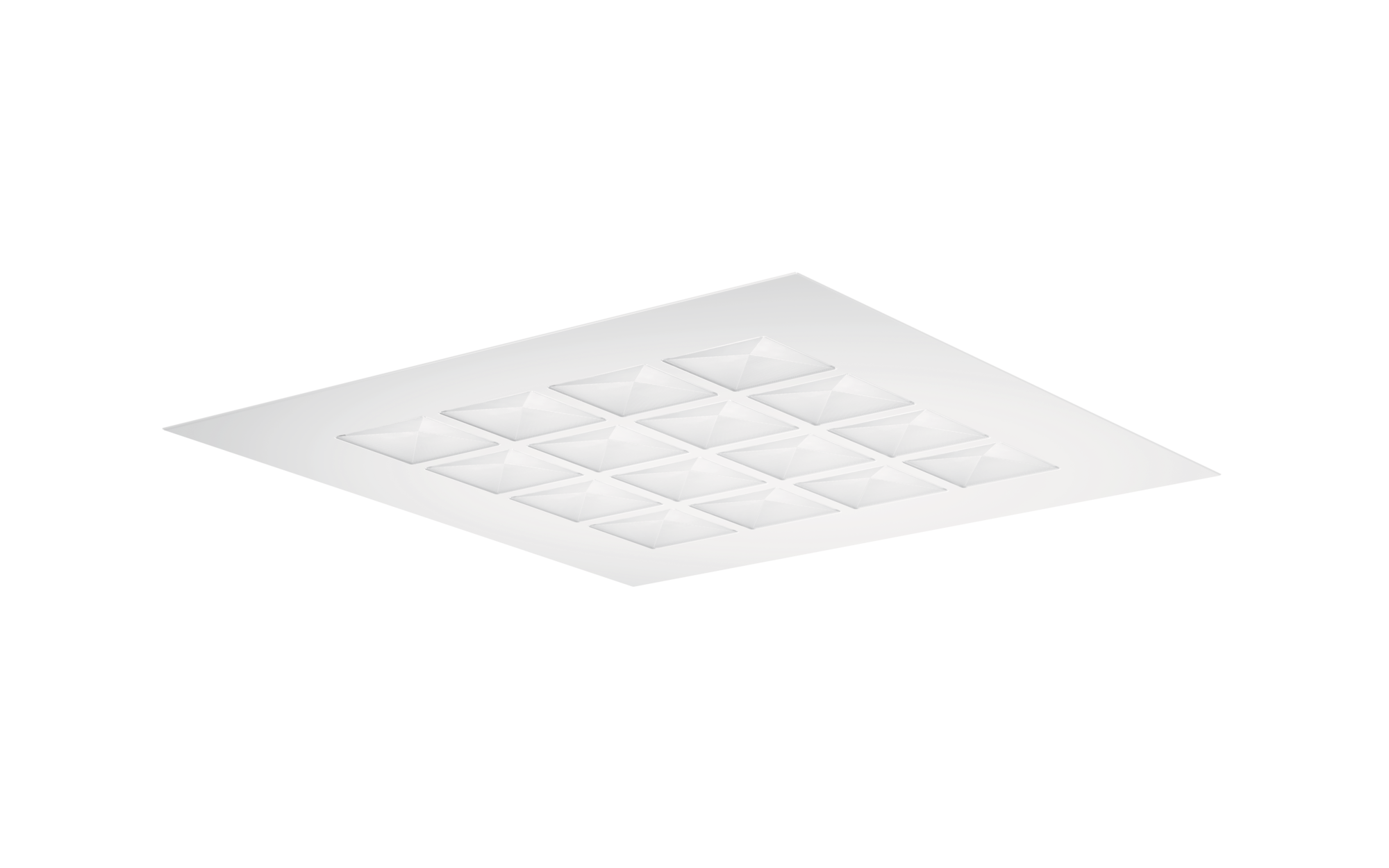

Scriptus® 11
The Scriptus® product series, designed by the Berlin design studio Aisslinger, stands for quality design paired with innovative technology. Thanks to the three-stage optical technology for maximum glare control, the luminaire offers the best visual comfort, especially at VDU workstations. Scriptus® 11 relies on reduced elegance, clear lines and maximum system flexibility and is therefore ideally suited for modern working environments.
Progressive, contemporary design with outstanding efficiency and quality of light
Producttypes
Scriptus® 11 innleggsarmatur
Intro to Productfamily
Data
Varetekst kontorarmatur
Lyseffekt direkte symmetrisk strålende
Netto lysfluks 6400lm
Fargetemperatur 3000…6500K; 4000K
Styring DALI; DALI DT8
Configuration & Datasheets
Results
Scriptus® 11, direkte symmetrisk strålende, DALI, for innleggingsmontering, for M625
| Fargetemperatur | Fargegjengivelse | Lysfluks | Styring | Vekt (kg) |
|---|---|---|---|---|
| 4000K | CRI > 80 | 6400lm | DALI | 8,0 |
Scriptus® 11, direkte symmetrisk strålende, DALI DT8, for innleggingsmontering, for M625
| Fargetemperatur | Fargegjengivelse | Lysfluks | Styring | Vekt (kg) |
|---|---|---|---|---|
| 3000..6500K | CRI > 80 | 6400lm | DALI DT8 | 8,0 |

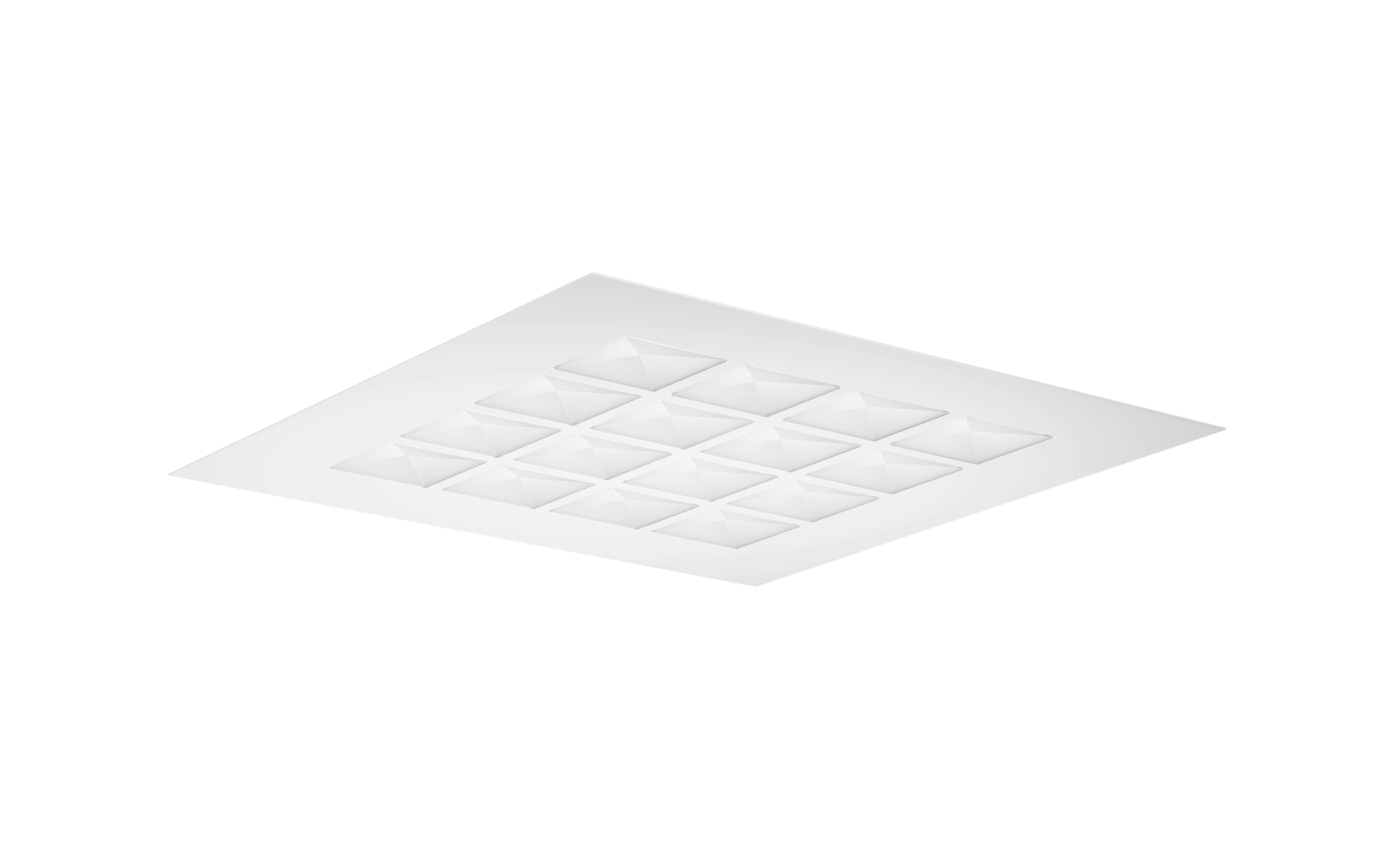

Scriptus® 11, direkte symmetrisk strålende, DALI, for innleggingsmontering, for M625
Bestillingsnummer: 5MZ312LEDZM00191XXGTIN (EAN): 4058352535011
| Fargetemperatur | 4000K |
|---|---|
| Fargegjengivelse | CRI > 80 |
| Lysfluks | 6400lm |
| Styring | DALI |
| Vekt (kg) | 8,0 |
Scriptus® 11, direkte symmetrisk strålende, DALI DT8, for innleggingsmontering, for M625
Bestillingsnummer: 5MZ312LEDZM00192XXGTIN (EAN): 4058352535035
| Fargetemperatur | 3000..6500K |
|---|---|
| Fargegjengivelse | CRI > 80 |
| Lysfluks | 6400lm |
| Styring | DALI DT8 |
| Vekt (kg) | 8,0 |
