51MY6LDS34BA
Article office luminaire
Product name Silica 31 Square
Lamp LED
Rated luminous flux 4650lm
Luminous efficacy 158lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 29.4W
Service life 70000h (L85/B50) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 3.1kg
Silica 31 Square, office luminaire, primary light control with lens, of PMMA, primary anti-glare with reflector, of PC, black, light emission: direct distribution, primary light characteristic: symmetric, installation type: lay-in mounting, LED, rated luminous flux: 4.650lm, luminous efficacy: 158lm/W, light colour: 830, colour temperature: 3000K, control gear: DALI 2, Multilumen, with terminal, 5-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 29.4W, luminaire housing, of sheet steel, coated, jet black (RAL 9005), module: M600, length: 595mm, width: 595mm, height: 43mm, protection rating (complete): IP20, insulation class (complete): insulation class II (safety insulation), certification: CE, impact resistance: IK03, permissible operating ambient temperature: -20..+35°C, standard: EN 50419, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

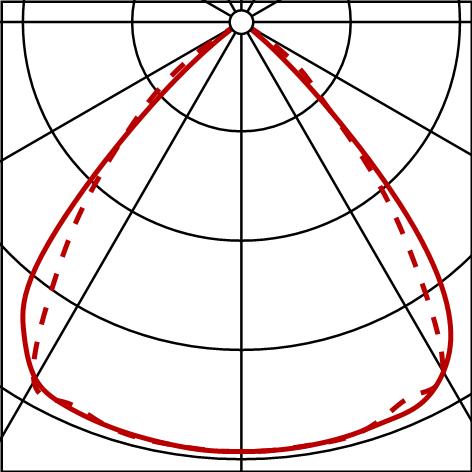

Photometric report / planning data
Silica 31 Square
office luminaire, jet black (RAL 9005), DALI 2, Multilumen, 4650lm, 830, 595x595mm, for M600, Connection: terminal
Lamps: 1x LED
Order No.: 51MY6LDS34BA
