51TR6J9

Order No.: 51TR6J9
Remember articleRemember article

Article trunking components group (TS)
Product name Licross
Protection rating maximum IP64, depends on used inserts and accessories
Weight 7.1kg

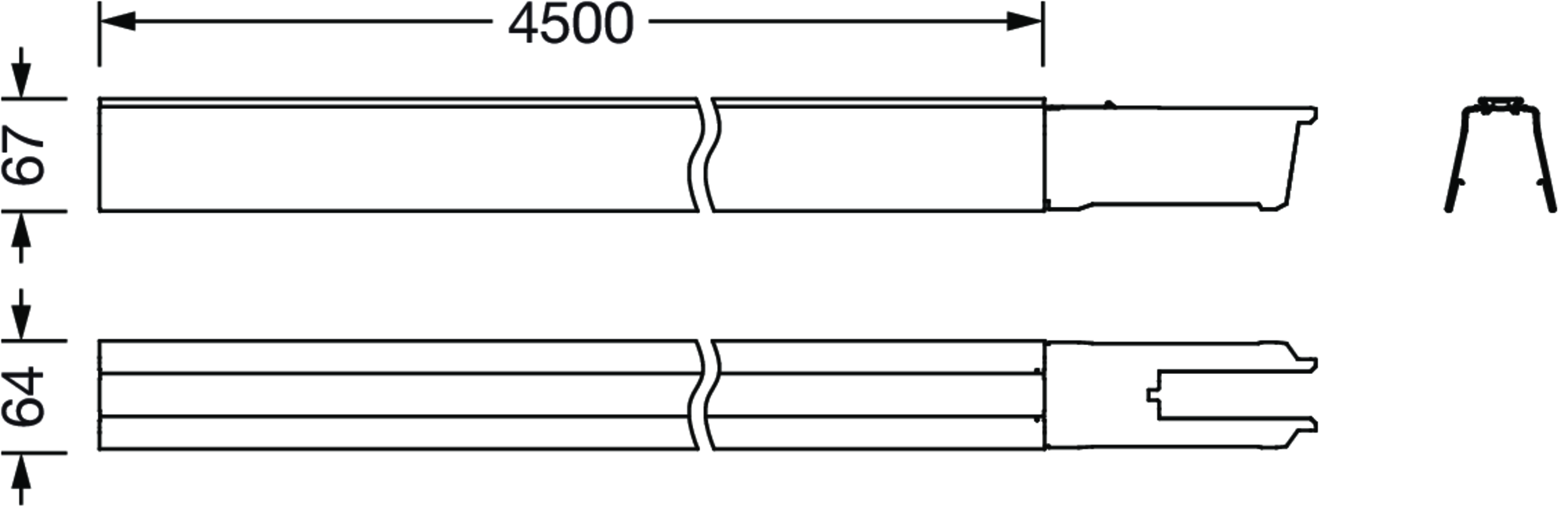

Licross, trunking rail, of sheet steel, galvanised, coil coated, metallic grey (RAL 9006), length: 4.500 mm, width: 64 mm, height: 67mm, through-wiring: 9x 2.5mm², protection rating (complete): maximum IP64, depends on used inserts and accessories, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type trunking components group (TS)
Product name Licross
Order No. 51TR6J9

Supplement

Certificates, Standards

Protection rating maximum IP64, depends on used inserts and accessories
Insulation class insulation class I (protective earthing)
Supplement LABS conformity tested according to VDMA 24364:2018-05
Certification, designation CE, UKCA

Material, Colour

trunking rail sheet steel, galvanised, coil coated, metallic grey (RAL 9006)
Colour specification metallic grey (RAL 9006)

Mounting

Mounting method, mounting location suspended mounting, surface-mounted, to the ceiling
Arrangement single/continuous arrangement
Supplement only suitable for use in indoor areas

Electrical connection

Through-wiring 9x 2.5mm²

Dimensions, Weight

Length 4500mm
Width 64mm
Height 67mm
Weight 7.1kg

Product type
trunking components group (TS)

Product name
Licross

Order No.
51TR6J9

Protection rating
maximum IP64, depends on used inserts and accessories

Insulation class
insulation class I (protective earthing)

Supplement
LABS conformity tested according to VDMA 24364:2018-05

Certification, designation
CE, UKCA

trunking rail
sheet steel, galvanised, coil coated, metallic grey (RAL 9006)

Colour specification
metallic grey (RAL 9006)

Mounting method, mounting location
suspended mounting, surface-mounted, to the ceiling

Arrangement
single/continuous arrangement

Supplement
only suitable for use in indoor areas

Through-wiring
9x 2.5mm²

Length
4500mm

Width
64mm

Height
67mm

Weight
7.1kg
