59HS91002

Order No.: 59HS91002
Remember articleRemember article

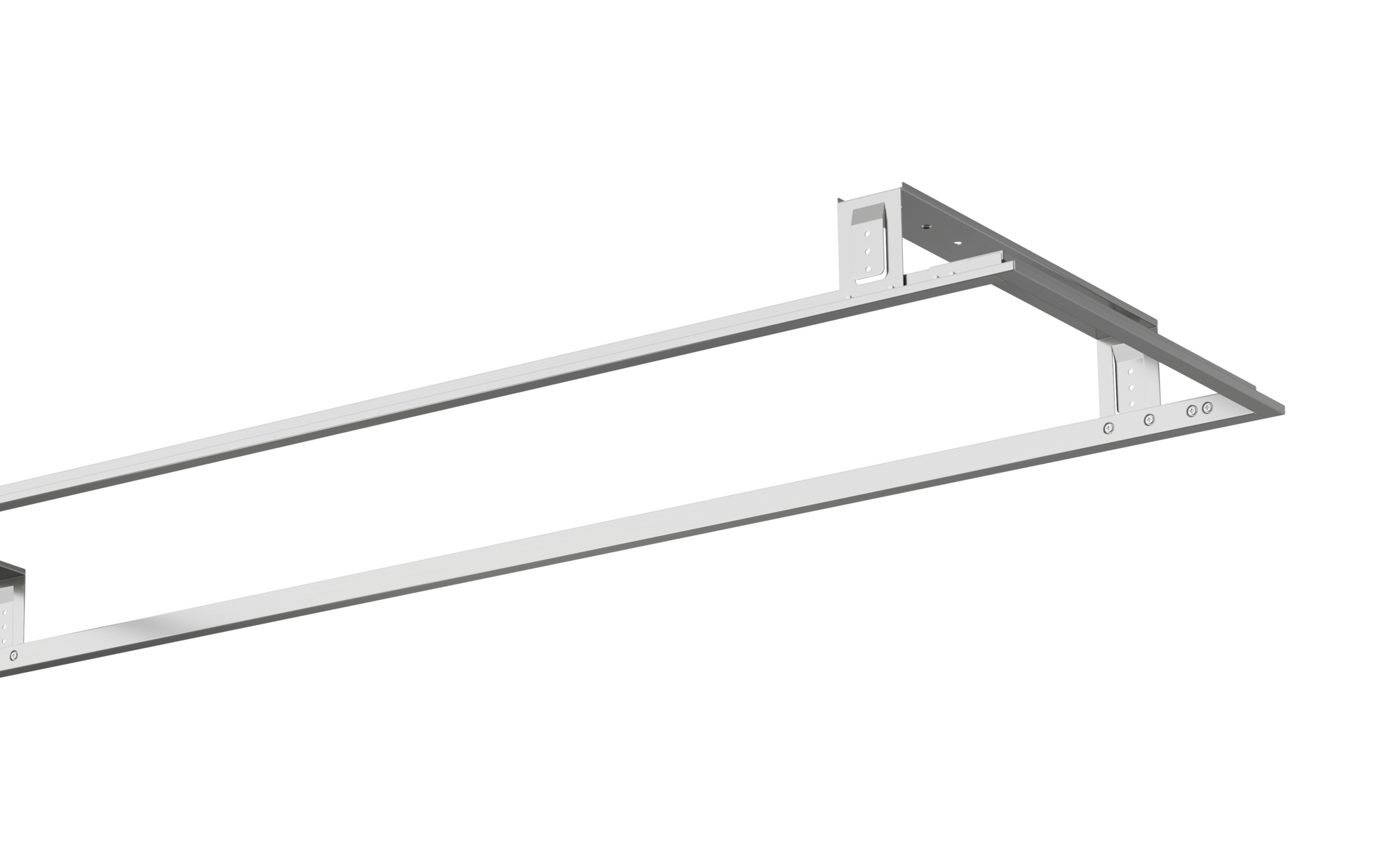

Article ceiling recessing frame
Product name Sport 31
Weight 0.8kg

Sport 31, ceiling recessing frame, installation type: recessed, mounting frame, of sheet steel, traffic white (RAL 9016), incl. screws, length: 1.582mm, width: 458mm, height: 105mm, clamping range: 10..60mm, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type ceiling recessing frame
Product name Sport 31
Order No. 59HS91002

Material, Colour

mounting frame sheet steel, traffic white (RAL 9016), incl. screws

Mounting

Mounting method, mounting location recessed, in the ceiling
Clamping range 10..60mm
Arrangement single/continuous arrangement

Dimensions, Weight

Length 1582mm
Width 458mm
Height 105mm
Weight 0.8kg
Supplement for luminaire Lx B= 1540 x 415mm

Product type
ceiling recessing frame

Product name
Sport 31

Order No.
59HS91002

mounting frame
sheet steel, traffic white (RAL 9016), incl. screws

Mounting method, mounting location
recessed, in the ceiling

Clamping range
10..60mm

Arrangement
single/continuous arrangement

Length
1582mm

Width
458mm

Height
105mm

Weight
0.8kg

Supplement
for luminaire Lx B= 1540 x 415mm
