5EA40RS01

Order No.: 5EA40RS01
Remember articleRemember article

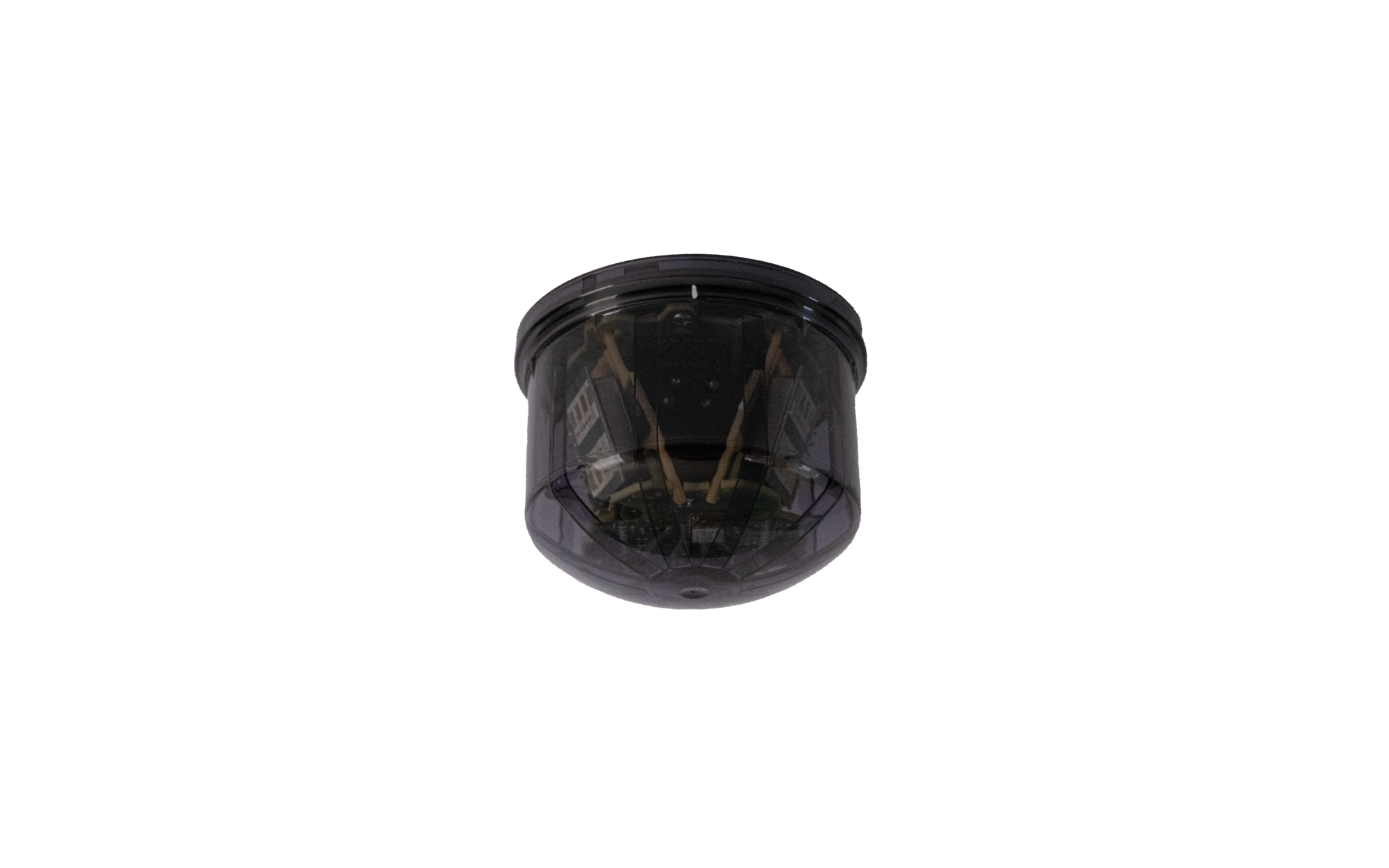

Article sensor
Product name SITECO Connect Wireless
Protection rating IP66
Impact resistance IK09
Weight 0.1kg

SITECO Connect WirelessMotion Radar, sensor, communication: D4i type B, control: local setting and operation with USB stick, by movement, sensor technology: 2 radar movement sensors, Smart Interface below, without built-in radio device, installation type: screw fastening, installation location: to the luminaire, of plastic, voltage: 24V, voltage type: DC, radar movement sensor, protection rating (complete): IP66, certification: CE, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

System family SITECO Connect 31 Wireless
Product type sensor
Product name SITECO Connect Wireless
Order No. 5EA40RS01

Control

Certificates, Standards

Protection rating IP66
Impact resistance IK09
Temperature range (operation) -20..+60°C
Standard according to Zhaga book 18
Certification, designation CE

Material, Colour

housing plastic, transparent, colour-backed, transparent

Mounting

Mounting method, mounting location screw fastening, to the luminaire
Mounting height 4..8m

Electrical connection

Nominal voltage 24V, DC

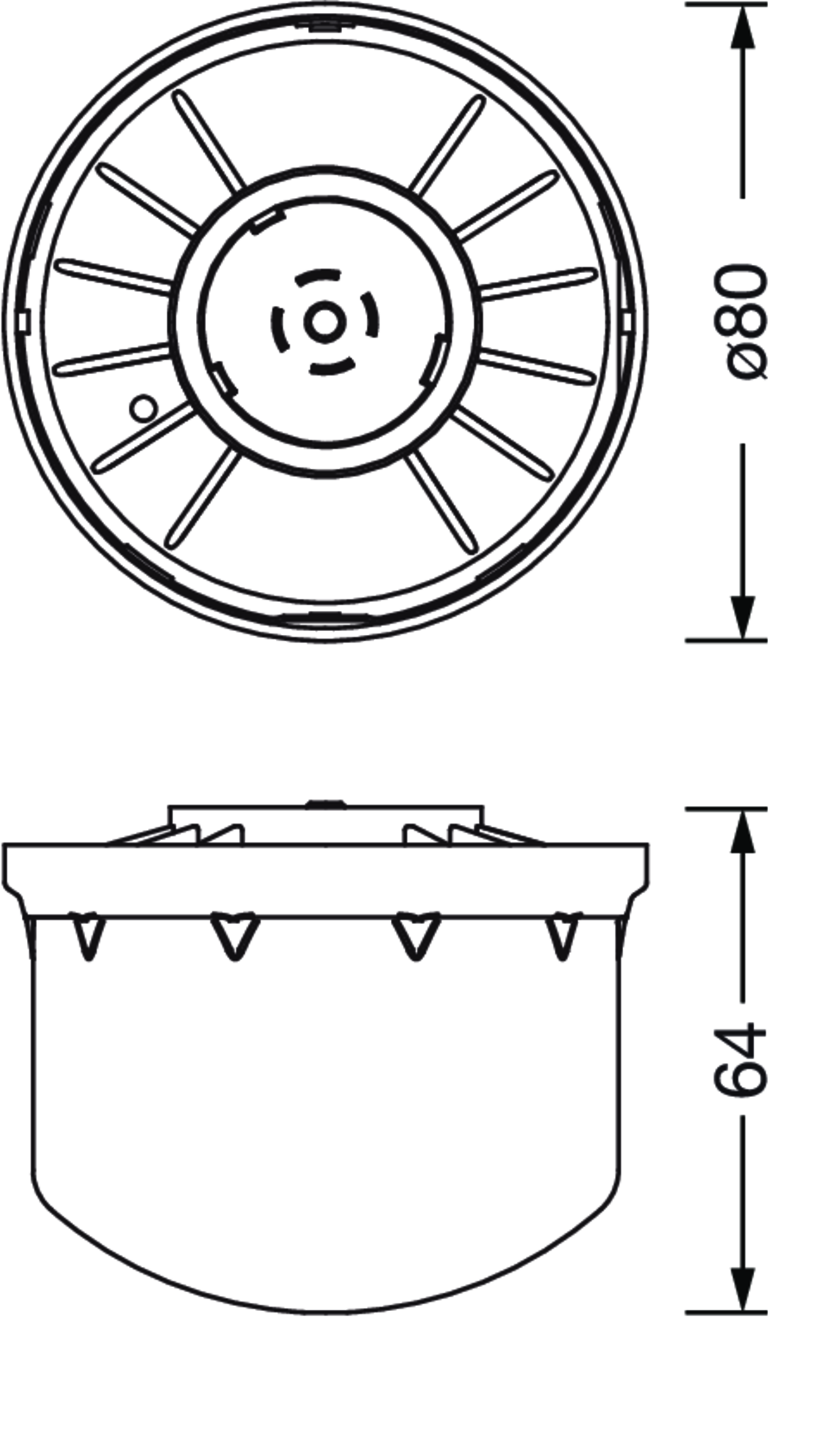

Dimensions, Weight

Diameter 80mm
Height 63mm
Weight 0.1kg

Inputs

radar movement sensor

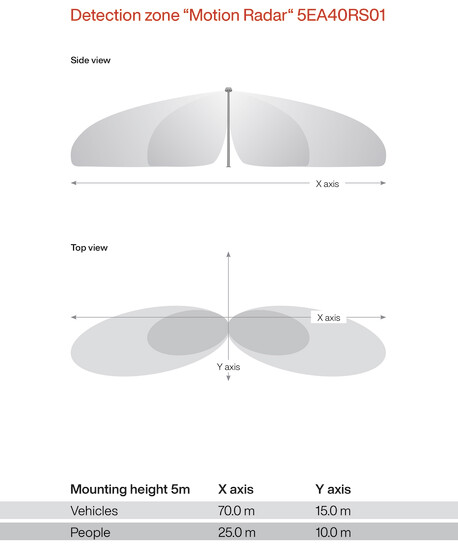

Detection range max. 70x20m

System family
SITECO Connect 31 Wireless

Product type
sensor

Product name
SITECO Connect Wireless

Order No.
5EA40RS01

Protection rating
IP66

Impact resistance
IK09

Temperature range (operation)
-20..+60°C

Standard
according to Zhaga book 18

Certification, designation
CE

housing
plastic, transparent, colour-backed, transparent

Mounting method, mounting location
screw fastening, to the luminaire

Mounting height
4..8m

Nominal voltage
24V, DC

Diameter
80mm

Height
63mm

Weight
0.1kg

radar movement sensor

Detection range
max. 70x20m
