5TR102A0H

Order No.: 5TR102A0H
Remember articleRemember article

Article trunking components group (TS)
Product name Modario
Protection rating for IP20/IP40 protection rating
Weight 3.6kg

Modario, trunking rail, of sheet steel, coated, pure white, 2-length, length: 2.392 mm, width: 58 mm, height: 43mm, through-wiring: 10x 2.5mm², with terminal, 10-pole, max. 2.5mm², protection rating (complete): for IP20/IP40 protection rating, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, standard: EN 60598, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type trunking components group (TS)
Product name Modario
Order No. 5TR102A0H

Supplement

Certificates, Standards

Protection rating for IP20/IP40 protection rating
Insulation class insulation class I (protective earthing)
Standard EN 60598
Certification, designation CE, ENEC, VDE

Material, Colour

trunking rail sheet steel, coated, pure white, 2-length
Colour specification pure white

Mounting

Mounting method, mounting location suspended mounting, surface-mounted, to the ceiling
Arrangement single/continuous arrangement
Supplement only suitable for use in indoor areas

Electrical connection

Connection terminal, 10-pole, max. 2.5mm²
Through-wiring 10x 2.5mm²

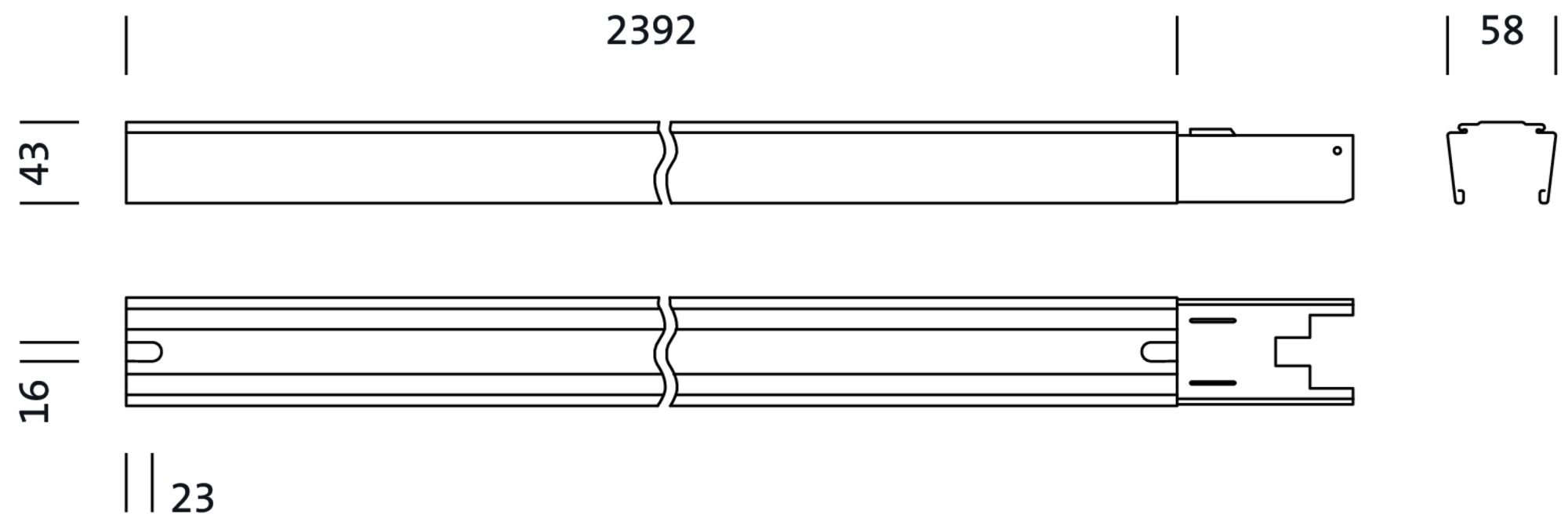

Dimensions, Weight

System units 8x SE
Length 2392mm
Width 58mm
Height 43mm
Mounting distance max. 3.5m
Weight 3.6kg

Product type
trunking components group (TS)

Product name
Modario

Order No.
5TR102A0H

Protection rating
for IP20/IP40 protection rating

Insulation class
insulation class I (protective earthing)

Standard
EN 60598

Certification, designation
CE, ENEC, VDE

trunking rail
sheet steel, coated, pure white, 2-length

Colour specification
pure white

Mounting method, mounting location
suspended mounting, surface-mounted, to the ceiling

Arrangement
single/continuous arrangement

Supplement
only suitable for use in indoor areas

Connection
terminal, 10-pole, max. 2.5mm²

Through-wiring
10x 2.5mm²

System units
8x SE

Length
2392mm

Width
58mm

Height
43mm

Mounting distance
max. 3.5m

Weight
3.6kg
