5XC2E11Y08HE

Order No.: 5XC2E11Y08HE
Remember articleRemember article

Article mast luminaire
Product name Streetlight SL 11 iQ mini
Lamp LED
Rated luminous flux 4490lm
Luminous efficacy 77lm/W
Colour temperature 1800K
Colour rendering CRI > 70
Pnom begin service life 58
Pnom end service life 61
Pred at 50% lumin. flux 26
Service life 100000h at AT = 25°C
Protection rating IP66
Impact resistance IK10
Weight 6.8kg

Streetlight SL 11 iQ mini, mast luminaire, primary light control with 3 zone facetted reflector, of plastic, silver coated, highly specular, primary optical cover: cover, of PMMA, transparent, light distribution: PC-L, light emission: direct distribution, primary light characteristic: asymmetric, left, installation type: post-top, side-entry, lamps: LED, High Power LED, rated values: 4.490lm | 58,3W | 77lm/W (begin service life); end service life: 4.490lm | 60,7W; at 50% lumin. flux: 2.245lm | 26,2W | 85,7lm/W, colour temperature: 1800K, colour rendering: CRI > 70, light colour: 718, light setting 1 begin service life: 100% | 4.490lm | 58,3W | 77lm/W | 1.800K, light setting 1 end service life: 60,7W, further light settings possible, control: pre-setting: logarithmic dimming characteristic, Street-Remote, Auto-Match, Temp-Guard, Lumen-Switch, Night-Set, Smart-Wire, Light-Fading, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), optimised constant luminous flux control (CLO 2.0), with cable H07RN-F 3x 1.5mm², mains connection: 230..240V, AC, 50/60Hz, connection cable pre-assembled, cable length: 8,5m, luminaire housing, of diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), please order mast flange separately, inclination adjustable without tools: 0°, 5°, 10°, 15° (post-top) | 0°, -5°, -10°, -15° (side-entry), sealing non-destructively replaceable, multi-level sealing system, length: 736mm, width: 174mm, height: 116mm, mast flange for spigot size: 42mm (side-entry): 5XC10008XM4, 60/48mm (side-entry/post-top): 5XC10108XM2, 76/60mm (side-entry/post-top): 5XC10108XM1, equipment: Power, Smart Interface below and above, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, ENEC+, VDE, UKCA, impact resistance: IK10, permissible operating ambient temperature for outdoor applications: -25..+50°C, standard-compliant lighting for roads and squares, Environmental Product Declaration (EPD) tested and certified by an independent institute, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type mast luminaire
Product name Streetlight SL 11 iQ mini
Order No. 5XC2E11Y08HE

Lighting technology

Light control 3 zone facetted reflector of plastic, silver coated, highly specular
Cover cover, transparent
Light distribution PC-L
Beam angle wide distribution
Symmetry asymmetric, left
Light emission direct distribution

Lamps

Lamps with High Power LED, LED
Rated values 4490lm | 58.3W | 77lm/W (begin service life);
end service life: 4490lm | 60.7W;
at 50% lumin. flux: 2245lm | 26.2W | 85.7lm/W
Colour temperature 1800K
Colour rendering index CRI > 70
Light colour 718
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)

Factory light settings (LS)

begin service life
LS 1: 100% | 4490lm | 58.3W | 77lm/W | 1800K
end service life
LS 1: 60.7W
further light settings possible

Operating device

Control iQ-Street Remote, D4i with power reduction, Smart Interface below and above
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK10
Temperature range (operation) -25..+50°C
Supplement standard-compliant lighting for roads and squares
Certification, designation CE, ENEC, ENEC+, VDE, UKCA
EPD Environmental Product Declaration (EPD) tested and certified by an independent institute

Material, Colour

luminaire housing diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), please order mast flange separately, inclination adjustable without tools: 0°, 5°, 10°, 15° (post-top) | 0°, -5°, -10°, -15° (side-entry), sealing non-destructively replaceable, multi-level sealing system
Colour specification SITECO metallic grey (DB 702S)
Cover cover of PMMA

Mounting

Mounting method, mounting location side-entry, post-top, on mast

Electrical connection

Connection cable H07RN-F 3x 1.5mm²
Nominal voltage 230..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)
Connection cable pre-assembled, L= 8.5m

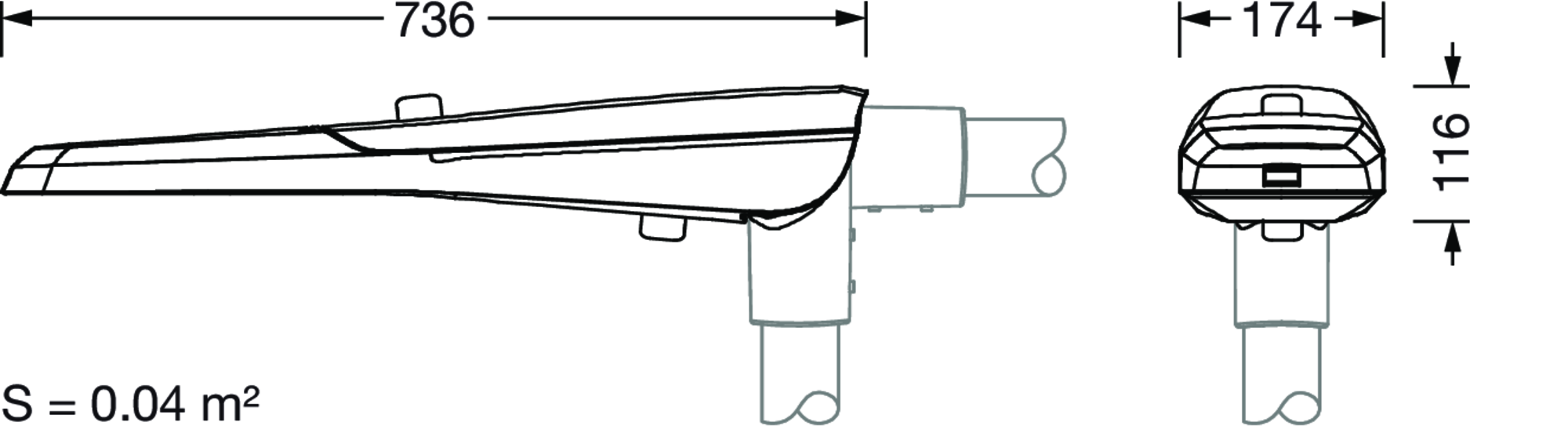

Dimensions, Weight

Length 736mm
Width 174mm
Height 116mm
Weight 6.8kg
Mast spigot mast flange for spigot size: 42mm (side-entry): 5XC10008XM4, 60/48mm (side-entry/post-top): 5XC10108XM2, 76/60mm (side-entry/post-top): 5XC10108XM1

Light emission

Light emission 0% at 0° inclination

Service life

Rated service life 100000h at AT = 25°C

Product type
mast luminaire

Product name
Streetlight SL 11 iQ mini

Order No.
5XC2E11Y08HE

Light control
3 zone facetted reflector of plastic, silver coated, highly specular

Cover
cover, transparent

Light distribution
PC-L

Beam angle
wide distribution

Symmetry
asymmetric, left

Light emission
direct distribution

Lamps
with High Power LED, LED

Rated values
4490lm | 58.3W | 77lm/W (begin service life);
end service life: 4490lm | 60.7W;
at 50% lumin. flux: 2245lm | 26.2W | 85.7lm/W

Colour temperature
1800K

Colour rendering index
CRI > 70

Light colour
718

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 5 SDCM (initial)

begin service life

LS 1: 100% | 4490lm | 58.3W | 77lm/W | 1800K

end service life

LS 1: 60.7W


further light settings possible

Control
iQ-Street Remote, D4i with power reduction, Smart Interface below and above

Equipment
optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Protection rating
IP66

Insulation class
insulation class II (safety insulation)

Impact resistance
IK10

Temperature range (operation)
-25..+50°C

Supplement
standard-compliant lighting for roads and squares

Certification, designation
CE, ENEC, ENEC+, VDE, UKCA

EPD
Environmental Product Declaration (EPD) tested and certified by an independent institute

luminaire housing
diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), please order mast flange separately, inclination adjustable without tools: 0°, 5°, 10°, 15° (post-top) | 0°, -5°, -10°, -15° (side-entry), sealing non-destructively replaceable, multi-level sealing system

Colour specification
SITECO metallic grey (DB 702S)

Cover
cover of PMMA

Mounting method, mounting location
side-entry, post-top, on mast

Connection
cable H07RN-F 3x 1.5mm²

Nominal voltage
230..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Connection cable
pre-assembled, L= 8.5m

Length
736mm

Width
174mm

Height
116mm

Weight
6.8kg

Mast spigot
mast flange for spigot size: 42mm (side-entry): 5XC10008XM4, 60/48mm (side-entry/post-top): 5XC10108XM2, 76/60mm (side-entry/post-top): 5XC10108XM1

Light emission
0% at 0° inclination

Rated service life
100000h at AT = 25°C

Photometric report / planning data

SL11iQmn
PCL,4490lm718,SR,D4i,LST,ZaZb
Lamps: 1x LED
Order No.: 5XC2E11Y08HE

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
