5XH8C31T08TA

Order No.: 5XH8C31T08TA
Remember articleRemember article

Article mast luminaire
Product name Streetlight SL 31 maxi
Lamp LED
Rated luminous flux 33650lm
Luminous efficacy 147lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom begin service life 229
Pnom end service life 249
Pred at 50% lumin. flux 102
Service life 100000h (L94/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK09
Weight 11.4kg

Streetlight SL 31 maxi D4i, Desk-Remote mast luminaire for post-top, side-entry; light control with lens of PMMA; light distribution: ST0.8a, direct asymmetric distribution, for standard-compliant lighting for roads and squares; LED: luminous flux: 33.650lm, light colour: 730, colour temperature: 3000K; luminous efficacy: 147,1lm/W; control: pre-setting: logarithmic dimming characteristic, flexible luminous flux parameterisation, time-dependent luminous flux control, constant luminous flux control, power reduction, intelligent temperature release in ECG and LED module, overheat protection; luminaire housing, of diecast aluminium, SITECO metallic grey (DB 702S), corrosivity category C5 high according to DIN EN ISO 12944; cover of toughened safety glass, transparent, opened without tools; mast flange of diecast aluminium, SITECO metallic grey (DB 702S), spigot size: 76/60mm, mast flange included unmounted; cable length: 14,5m, connection cable pre-assembled; mains connection: 220..240V, AC, 50/60Hz; power consumption (at start of service life): 228,8W / (at end of service life): 248,7W / (with reduced operation 50%): 102,4W; protection rating (complete): IP66; insulation class (complete): insulation class II (safety insulation); impact resistance: IK09; certification: CE, ENEC, ENEC+, VDE, UKCA, ZD4i; permissible operating ambient temperature for outdoor applications: -40..+50°C; packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type mast luminaire
Product name Streetlight SL 31 maxi
Order No. 5XH8C31T08TA

Lighting technology

Light control lens of PMMA
Cover cover, transparent
Light distribution ST0.8a
Beam angle wide distribution
Symmetry asymmetric distribution
Light emission direct distribution

Lamps

Lamps with High Power LED, LED
Rated luminous flux 33650lm
Luminous efficacy 147lm/W
Colour temperature 3000K
Colour rendering index CRI > 70
Light colour 730
Rated input power begin service life 229
Rated input power end service life 249
Rated input power at 50% lumin. flux 102

Operating device

Control D4i, Desk-Remote, Smart Interface below and above
Equipment overheat protection, power reduction, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation, intelligent temperature release in ECG and LED module, pre-setting: logarithmic dimming characteristic

Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK09
Temperature range (operation) -40..+50°C
Supplement standard-compliant lighting for roads and squares
Corrosion protection corrosivity category C5 high according to DIN EN ISO 12944
Certification, designation CE, ENEC, ENEC+, VDE, UKCA, ZD4i

Material, Colour

luminaire housing diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), sealing non-destructively replaceable, multi-level sealing system, inclination: -15°..+20° (post-top) | -20°..+20° (side-entry), adjustable in 5° steps, no sealing on luminaire upper side
Colour specification SITECO metallic grey (DB 702S)
mast flange diecast aluminium, coated, SITECO metallic grey (DB 702S), mast flange included unmounted
Colour specification SITECO metallic grey (DB 702S)
Cover cover of toughened safety glass

Mounting

Mounting method, mounting location side-entry, post-top, on mast

Electrical connection

Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)
Connection cable pre-assembled, L= 14.5m

Dimensions, Weight

Weight 11.4kg
Mast spigot spigot size: 76/60mm

Light emission

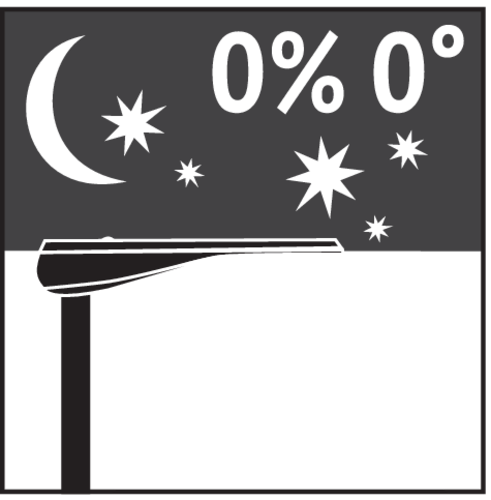

Light emission 0% at 0° inclination

Service life

Rated service life 100000h (L94/B10) at AT = 25°C

Product type
mast luminaire

Product name
Streetlight SL 31 maxi

Order No.
5XH8C31T08TA

Light control
lens of PMMA

Cover
cover, transparent

Light distribution
ST0.8a

Beam angle
wide distribution

Symmetry
asymmetric distribution

Light emission
direct distribution

Lamps
with High Power LED, LED

Rated luminous flux
33650lm

Luminous efficacy
147lm/W

Colour temperature
3000K

Colour rendering index
CRI > 70

Light colour
730

Rated input power begin service life
229

Rated input power end service life
249

Rated input power at 50% lumin. flux
102

Control
D4i, Desk-Remote, Smart Interface below and above

Equipment
overheat protection, power reduction, constant luminous flux control, time-dependent luminous flux control, flexible luminous flux parameterisation, intelligent temperature release in ECG and LED module, pre-setting: logarithmic dimming characteristic

Protection rating
IP66

Insulation class
insulation class II (safety insulation)

Impact resistance
IK09

Temperature range (operation)
-40..+50°C

Supplement
standard-compliant lighting for roads and squares

Corrosion protection
corrosivity category C5 high according to DIN EN ISO 12944

Certification, designation
CE, ENEC, ENEC+, VDE, UKCA, ZD4i

luminaire housing
diecast aluminium, powder-coated, SITECO metallic grey (DB 702S), sealing non-destructively replaceable, multi-level sealing system, inclination: -15°..+20° (post-top) | -20°..+20° (side-entry), adjustable in 5° steps, no sealing on luminaire upper side

Colour specification
SITECO metallic grey (DB 702S)

mast flange
diecast aluminium, coated, SITECO metallic grey (DB 702S), mast flange included unmounted

Colour specification
SITECO metallic grey (DB 702S)

Cover
cover of toughened safety glass

Mounting method, mounting location
side-entry, post-top, on mast

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Connection cable
pre-assembled, L= 14.5m

Weight
11.4kg

Mast spigot
spigot size: 76/60mm

Light emission
0% at 0° inclination

Rated service life
100000h (L94/B10) at AT = 25°C

Photometric report / planning data

SL31mx
ST0.8a,33650lm730,D4iDR,SIa/b
Lamps: 1x LED
Order No.: 5XH8C31T08TA

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
