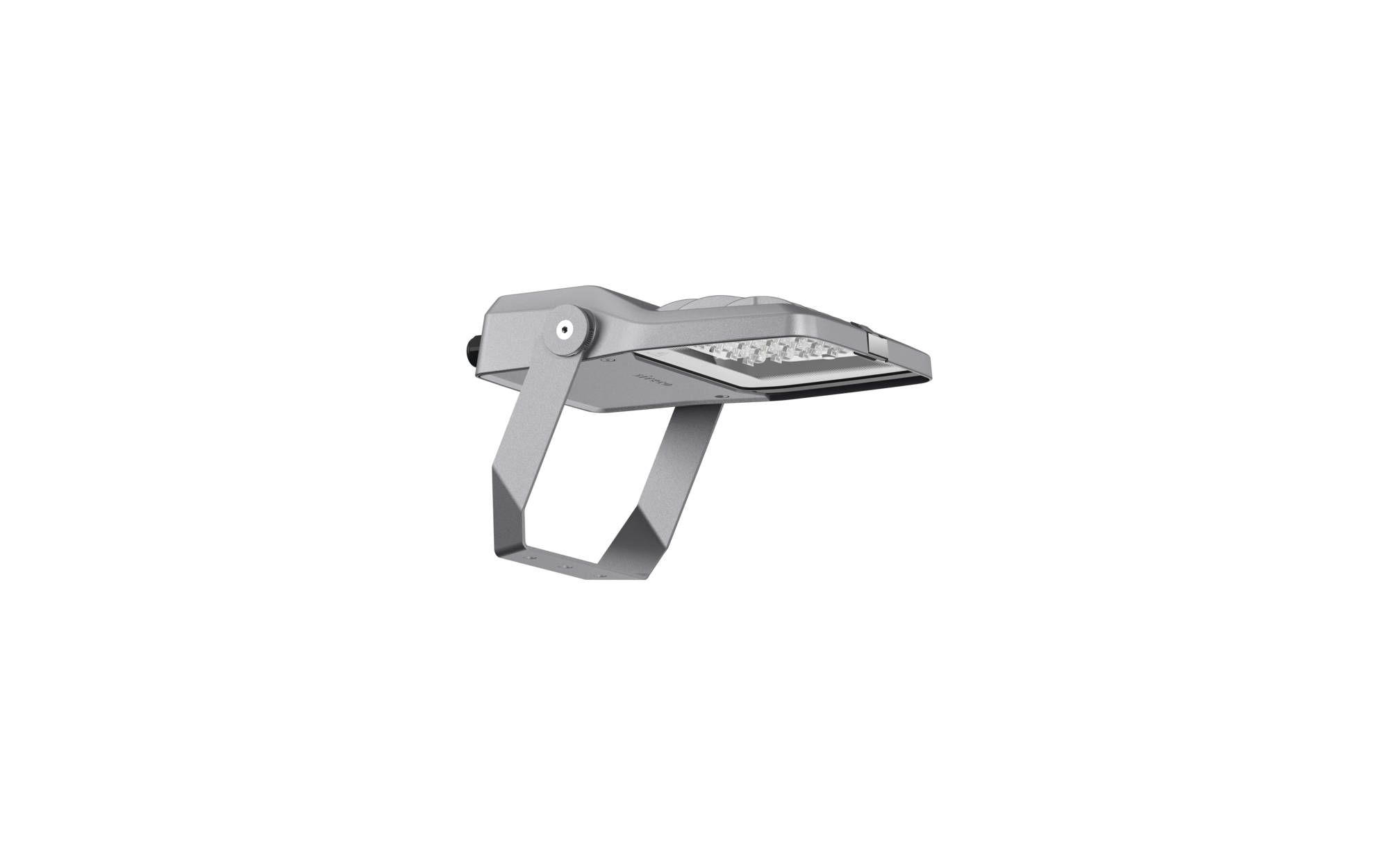

Floodlight FL 21 micro, PL61, direct distribution

Close
Ordercode: 5XA7763A2C1A
Remember productRemember product

Article floodlight
Product name Floodlight FL 21 micro
Lamp LED
Rated luminous flux 4360lm
Luminous efficacy 114lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom begin service life 38
Pnom end service life 38
Pred at 50% lumin. flux 17
Protection rating IP66
Impact resistance IK07
Weight 3.2kg

Floodlight FL 21 micro, floodlight, primary light control with lens, of PMMA, primary optical cover: protective disc, of toughened safety glass, transparent, light distribution: PL61, light emission: direct distribution, installation type: surface-mounted, LED, High Power LED, rated luminous flux: 4.360lm, luminous efficacy: 114lm/W, light colour: 730, colour temperature: 3000K, control gear: ECG, control: Temp-Guard, with terminal, 6-pole, mains connection: 220..240V, AC, 50/60Hz, start of lifetime: 38W, end of lifetime: 38W, reduction: 17W, luminaire housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), corrosivity category C5 according to DIN EN ISO 12944, mounting bracket, of steel, galvanised, powder-coated, Siteco® metallic grey (DB 702S), ON/OFF, protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, protection symbol: D, impact resistance: IK07, permissible operating ambient temperature: -40..+40°C, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard: DIN EN 12944, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

Product type floodlight
Product name Floodlight FL 21 micro
Order No. 5XA7763A2C1A

Lighting technology

Light control lens of PMMA
Cover protective disc, transparent
Light distribution PL61
Light emission direct distribution

Lamps

Lamps with High Power LED, LED
Rated luminous flux 4360lm
Luminous efficacy 114lm/W
Colour temperature 3000K
Colour rendering index CRI > 70
Light colour 730
Rated input power begin service life 38
Rated input power end service life 38
Rated input power at 50% lumin. flux 17
Supplement prepared for through-wiring, luminous flux adjustable on luminaire in eight steps

Operating device

Control gear ECG
Control ON/OFF Multilumen
Equipment Temp-Guard

Certificates, Standards

Protection rating IP66
Insulation class insulation class I (protective earthing)
Impact resistance IK07
Protection symbol D
Temperature range (operation) -40..+40°C
Standard DIN EN 12944
Corrosion protection corrosivity category C5 according to DIN EN ISO 12944
Certification, designation CE

Material, Colour

luminaire housing diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), sealing non-destructively replaceable
Colour specification Siteco® metallic grey (DB 702S)
mounting bracket steel, galvanised, powder-coated, Siteco® metallic grey (DB 702S)
Colour specification Siteco® metallic grey (DB 702S)
Cover protective disc of toughened safety glass

Mounting

Mounting method, mounting location surface-mounted, to supporting structure, to the cross arm, to the wall
Arrangement single arrangement
Supplement with mounting bracket

Electrical connection

Connection terminal, 6-pole
Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance 10kV 1.2/50µs

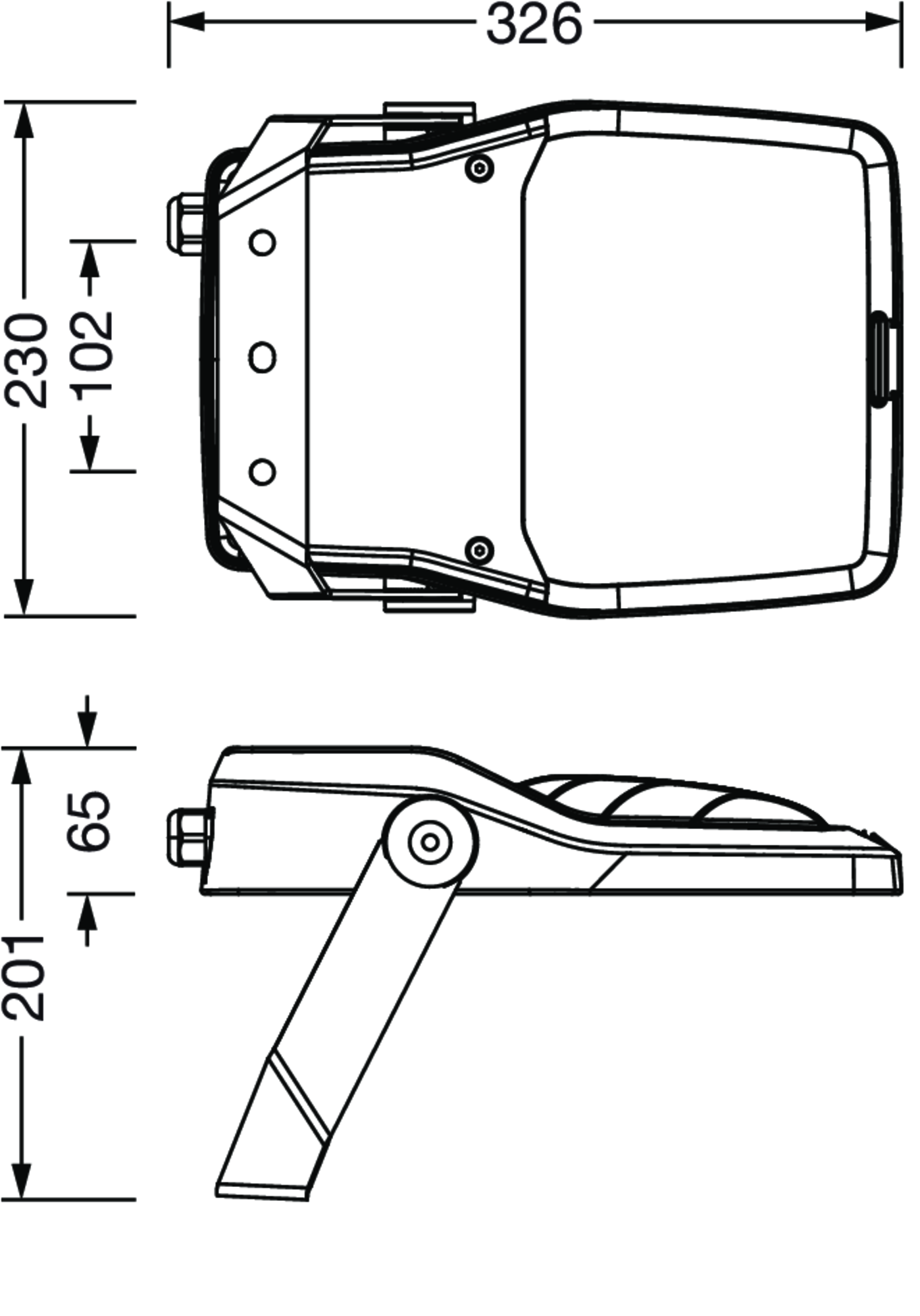

Dimensions, Weight

Weight 3.2kg

Product type
floodlight

Product name
Floodlight FL 21 micro

Order No.
5XA7763A2C1A

Light control
lens of PMMA

Cover
protective disc, transparent

Light distribution
PL61

Light emission
direct distribution

Lamps
with High Power LED, LED

Rated luminous flux
4360lm

Luminous efficacy
114lm/W

Colour temperature
3000K

Colour rendering index
CRI > 70

Light colour
730

Rated input power begin service life
38

Rated input power end service life
38

Rated input power at 50% lumin. flux
17

Supplement
prepared for through-wiring, luminous flux adjustable on luminaire in eight steps

Control gear
ECG

Control
ON/OFF Multilumen

Equipment
Temp-Guard

Protection rating
IP66

Insulation class
insulation class I (protective earthing)

Impact resistance
IK07

Protection symbol
D

Temperature range (operation)
-40..+40°C

Standard
DIN EN 12944

Corrosion protection
corrosivity category C5 according to DIN EN ISO 12944

Certification, designation
CE

luminaire housing
diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), sealing non-destructively replaceable

Colour specification
Siteco® metallic grey (DB 702S)

mounting bracket
steel, galvanised, powder-coated, Siteco® metallic grey (DB 702S)

Colour specification
Siteco® metallic grey (DB 702S)

Cover
protective disc of toughened safety glass

Mounting method, mounting location
surface-mounted, to supporting structure, to the cross arm, to the wall

Arrangement
single arrangement

Supplement
with mounting bracket

Connection
terminal, 6-pole

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
10kV 1.2/50µs

Weight
3.2kg

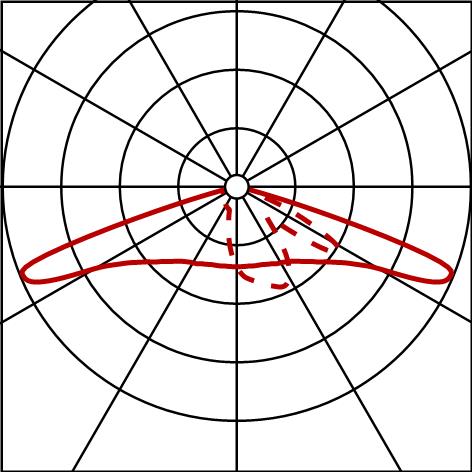

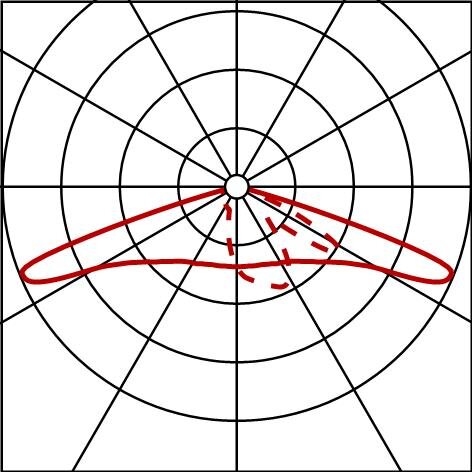

Photometric report / planning data

Photometric report / planning data

Floodlight FL 21 micro
LED, ECG, direct distribution, surface-mounted, to supporting structure, to the cross arm, to the wall
Ordercode: 5XA7763A2C1A

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
