Ordercode: 5XA7782E2C3A

Article floodlight

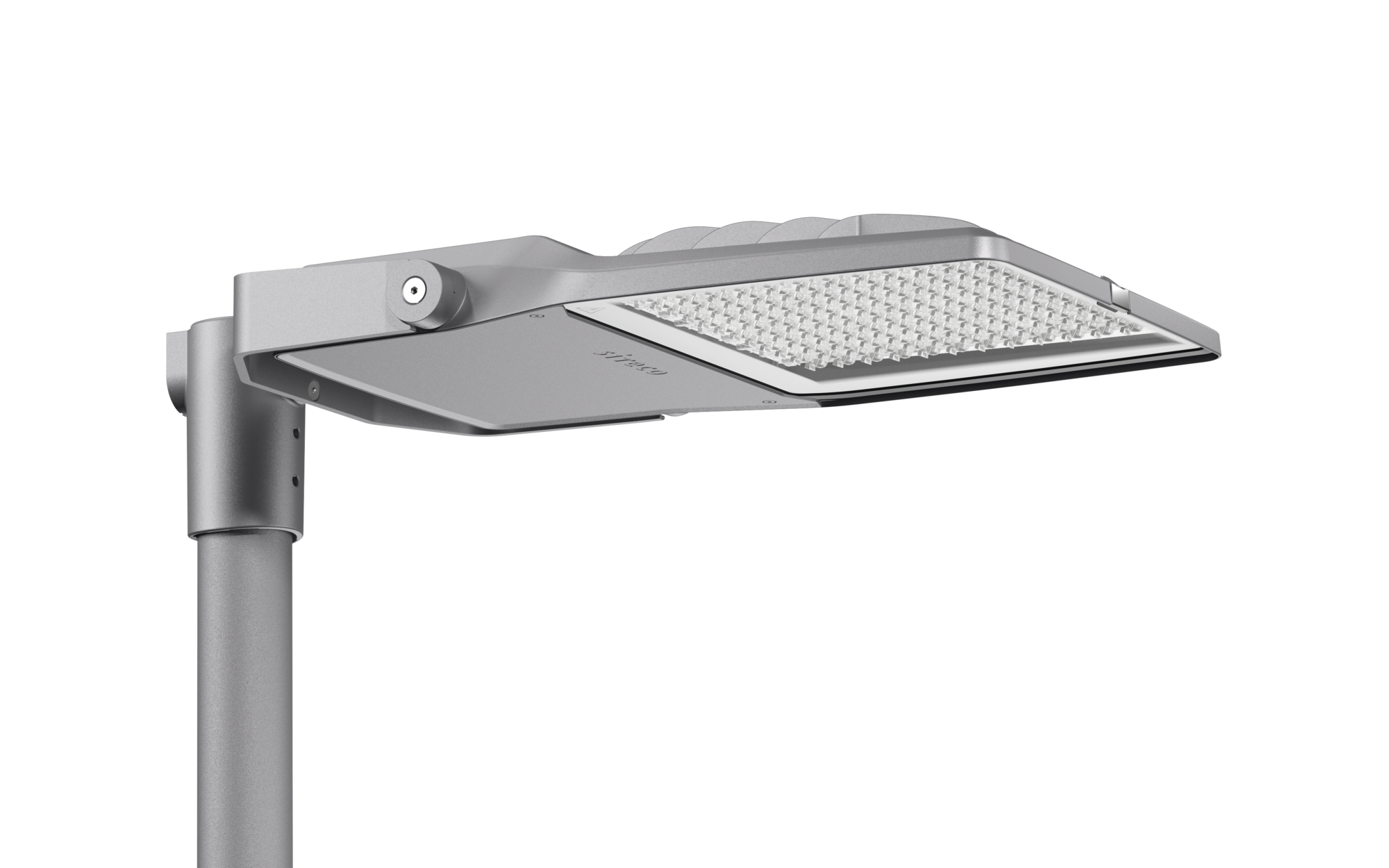

Product name Floodlight FL 21 iQ midi
Lamp LED
Rated luminous flux 26360lm
Luminous efficacy 127lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom begin service life 208
Pnom end service life 227
Pred at 50% lumin. flux 90
Service life 100000h (L95/B10) at AT = 15°C, 50000h (L95/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 10.2kg

Floodlight FL 21 iQ midi, floodlight, primary light control with lens, of PMMA, primary optical cover: protective disc, of toughened safety glass, transparent, light distribution: PL61, light emission: direct distribution, installation type: surface-mounted, LED, High Power LED, rated luminous flux: 26.360lm, luminous efficacy: 127lm/W, light colour: 730, colour temperature: 3000K, control gear: ECG iQ, control: optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Smart-Wire, Night-Set, Temp-Guard, Auto-Match, Street-Remote, with terminal, 6-pole, mains connection: 220..240V, AC, 50/60Hz, start of lifetime: 208W, end of service life: 227W, reduction: 90W, luminaire housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), corrosivity category C5 mid according to DIN EN ISO 12944, sealing non-destructively replaceable, please order mast flange separately, mast bracket, of steel, galvanised, powder-coated, Siteco® metallic grey (DB 702S), protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, protection symbol: D, impact resistance: IK08, permissible operating ambient temperature: -40..+40°C, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard: DIN EN 12944, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece

Product details


Key data

Product type floodlight
Product name Floodlight FL 21 iQ midi
Order No. 5XA7782E2C3A


Lighting technology

Light control lens of PMMA
Cover protective disc, transparent
Light distribution PL61

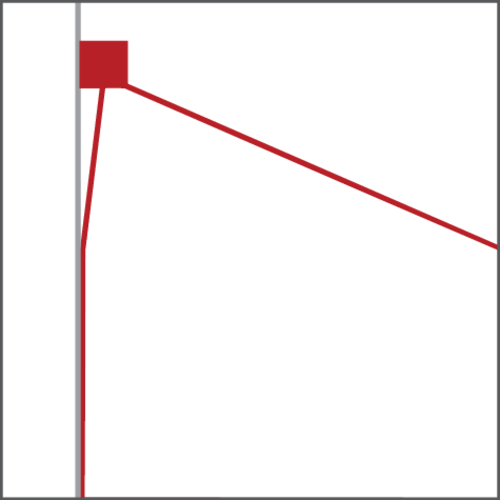

Light emission direct distribution


Lamps

Lamps with High Power LED, LED
Rated luminous flux 26360lm
Luminous efficacy 127lm/W
Colour temperature 3000K
Colour rendering index CRI > 70
Light colour 730
Rated input power begin service life 208
Rated input power end service life 227
Rated input power at 50% lumin. flux 90
Supplement prepared for through-wiring


Operating device

Control gear ECG iQ
Control iQ Street-Remote/DALI
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Smart-Wire, Night-Set, Temp-Guard, Auto-Match, Street-Remote


Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK08
Protection symbol D
Temperature range (operation) -40..+40°C
Supplement LABS conformity tested according to VDMA 24364:2018-05
Standard DIN EN 12944
Corrosion protection corrosivity category C5 mid according to DIN EN ISO 12944
Certification, designation CE


Material, Colour

luminaire housing diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), sealing non-destructively replaceable, please order mast flange separately
Colour specification Siteco® metallic grey (DB 702S)
mast bracket steel, galvanised, powder-coated, Siteco® metallic grey (DB 702S)
Colour specification Siteco® metallic grey (DB 702S)
Cover protective disc of toughened safety glass


Mounting

Mounting method, mounting location surface-mounted, to mast
Arrangement single arrangement
Supplement with mounting bracket


Electrical connection

Connection terminal, 6-pole
Nominal voltage 220..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)

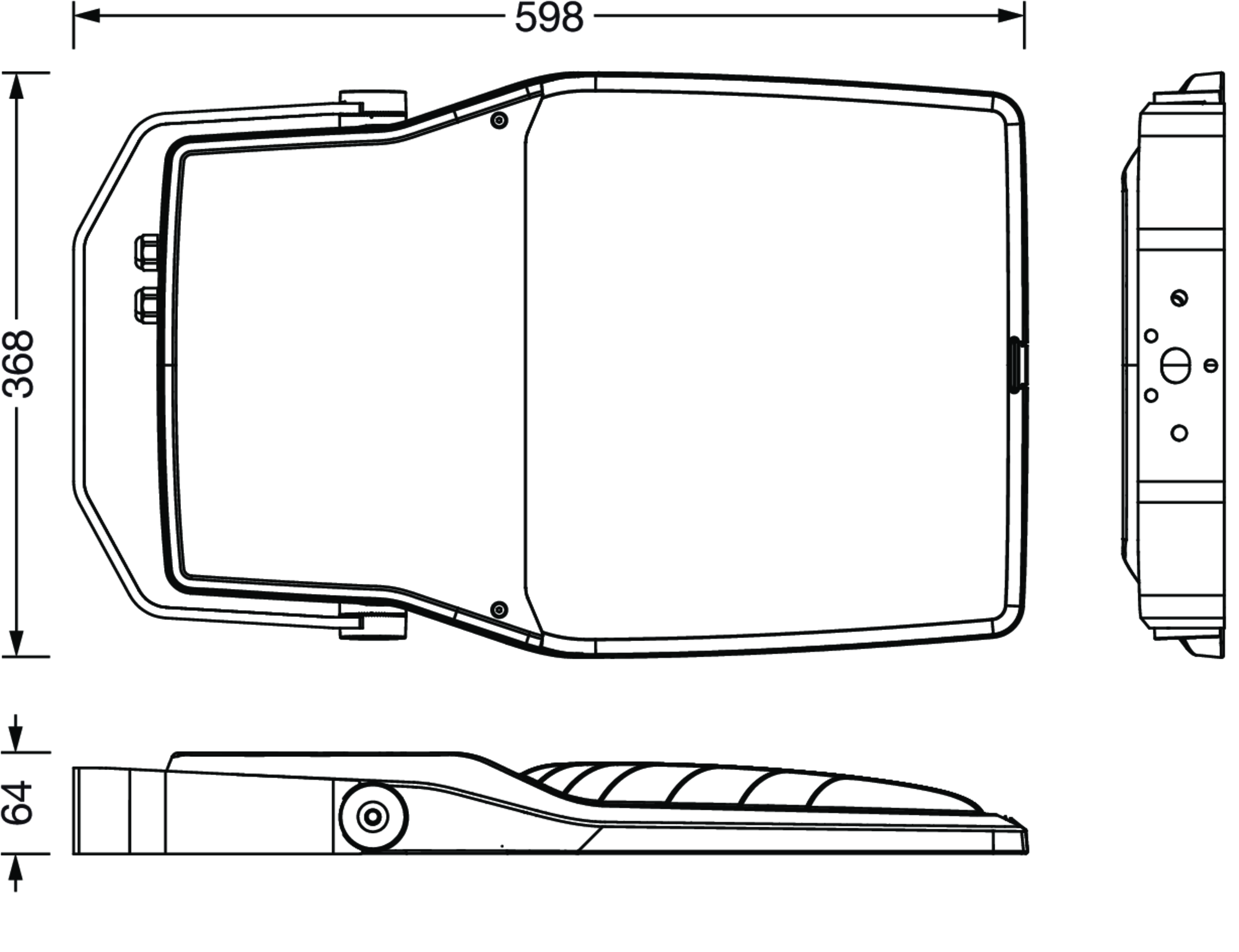

Dimensions, Weight

Weight 10.2kg


Service life

Rated service life 50000h (L95/B10) at AT = 25°C, 100000h (L95/B10) at AT = 15°C

Product type
floodlight

Product name
Floodlight FL 21 iQ midi

Order No.
5XA7782E2C3A

Light control
lens of PMMA

Cover
protective disc, transparent

Light distribution
PL61

Light emission
direct distribution

Lamps
with High Power LED, LED

Rated luminous flux
26360lm

Luminous efficacy
127lm/W

Colour temperature
3000K

Colour rendering index
CRI > 70

Light colour
730

Rated input power begin service life
208

Rated input power end service life
227

Rated input power at 50% lumin. flux
90

Supplement
prepared for through-wiring

Control gear
ECG iQ

Control
iQ Street-Remote/DALI

Equipment
optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Smart-Wire, Night-Set, Temp-Guard, Auto-Match, Street-Remote

Protection rating
IP66

Insulation class
insulation class II (safety insulation)

Impact resistance
IK08

Protection symbol
D

Temperature range (operation)
-40..+40°C

Supplement
LABS conformity tested according to VDMA 24364:2018-05

Standard
DIN EN 12944

Corrosion protection
corrosivity category C5 mid according to DIN EN ISO 12944

Certification, designation
CE

luminaire housing
diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), sealing non-destructively replaceable, please order mast flange separately

Colour specification
Siteco® metallic grey (DB 702S)

mast bracket
steel, galvanised, powder-coated, Siteco® metallic grey (DB 702S)

Colour specification
Siteco® metallic grey (DB 702S)

Cover
protective disc of toughened safety glass

Mounting method, mounting location
surface-mounted, to mast

Arrangement
single arrangement

Supplement
with mounting bracket

Connection
terminal, 6-pole

Nominal voltage
220..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Weight
10.2kg

Rated service life
50000h (L95/B10) at AT = 25°C, 100000h (L95/B10) at AT = 15°C

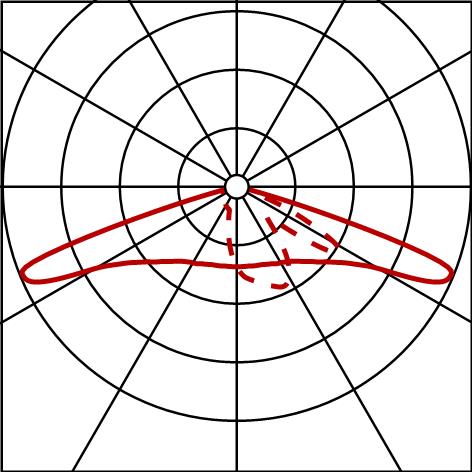

Photometric report / planning data

Photometric report / planning data

Floodlight FL 21 iQ midi
LED, ECG iQ, direct distribution, surface-mounted, to mast
Ordercode: 5XA7782E2C3A
