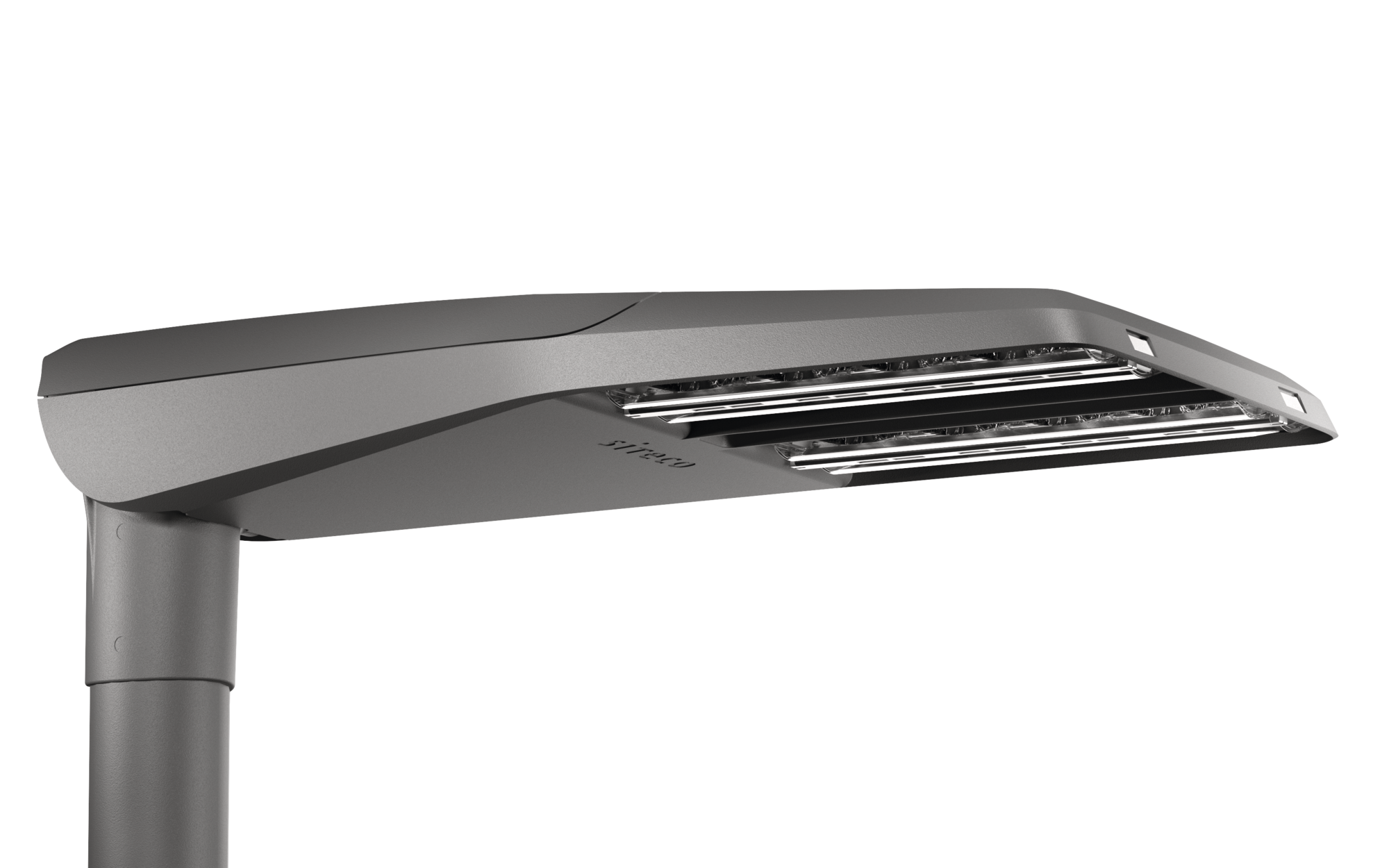

Streetlight SL 11 iQ midi, direct asymmetric (right) wide distribution, PC-R

Close
Ordercode: 5XC3F41F08ME
Remember productRemember product

Article mast luminaire
Product name Streetlight SL 11 iQ midi
Lamp LED
Rated luminous flux 16220lm
Luminous efficacy 130lm/W
Colour temperature 4000K
Colour rendering CRI > 70
Pnom begin service life 125
Pnom end service life 132
Pred at 50% lumin. flux 57
Service life 100000h (L96/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK10
Weight 11.5kg

Streetlight SL 11 iQ midi, mast luminaire, primary light control with 3 zone facetted reflector, of plastic, silver coated, highly specular, primary optical cover: cover, of PMMA, transparent, light distribution: PC-R, light emission: direct distribution, primary light characteristic: asymmetric, right, installation type: post-top, side-entry, lamps: LED, High Power LED, rated values: 16.220lm | 124,7W | 130,1lm/W (begin service life); end service life: 16.220lm | 132,2W; at 50% lumin. flux: 8.110lm | 57,4W | 141,3lm/W, colour temperature: 4000K, colour rendering: CRI > 70, light colour: 740, light setting 1 begin service life: 100% | 16.220lm | 124,7W | 130,1lm/W | 4.000K, light setting 1 end service life: 132,2W, further light settings possible, control: Street-Remote, optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, with cable H07RN-F 5x 1.5mm², mains connection: 230..240V, AC, 50/60Hz, connection cable pre-assembled, cable length: 12,5m, luminaire housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), please order mast flange separately, inclination adjustable without tools: 0°, 5°, 10°, 15° (post-top) | 0°, -5°, -10°, -15° (side-entry), sealing non-destructively replaceable, multi-level sealing system, length: 780mm, width: 376mm, height: 118mm, mast flange for spigot size: 42mm (side-entry): 5XC10008XM4, 60/48mm (side-entry/post-top): 5XC10108XM2, 76/60mm (side-entry/post-top): 5XC10108XM1, equipment: Power, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, ENEC+, VDE, impact resistance: IK10, permissible operating ambient temperature for outdoor applications: -25..+50°C, standard-compliant lighting for roads and squares, Environmental Product Declaration (EPD) tested and certified by an independent institute, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

Product type mast luminaire
Product name Streetlight SL 11 iQ midi
Order No. 5XC3F41F08ME

Lighting technology

Light control 3 zone facetted reflector of plastic, silver coated, highly specular
Cover cover, transparent
Light distribution PC-R
Beam angle wide distribution
Symmetry asymmetric, right
Light emission direct distribution

Lamps

Lamps with High Power LED, LED
Rated values 16220lm | 124.7W | 130.1lm/W (begin service life);
end service life: 16220lm | 132.2W;
at 50% lumin. flux: 8110lm | 57.4W | 141.3lm/W
Colour temperature 4000K
Colour rendering index CRI > 70
Light colour 740
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)

Factory light settings (LS)

begin service life
LS 1: 100% | 16220lm | 124.7W | 130.1lm/W | 4000K
end service life
LS 1: 132.2W
further light settings possible

Operating device

Control iQ Street-Remote
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote

Certificates, Standards

Protection rating IP66
Insulation class insulation class II (safety insulation)
Impact resistance IK10
Temperature range (operation) -25..+50°C
Supplement standard-compliant lighting for roads and squares
Certification, designation CE, ENEC, ENEC+, VDE
EPD Environmental Product Declaration (EPD) tested and certified by an independent institute

Material, Colour

luminaire housing diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), please order mast flange separately, inclination adjustable without tools: 0°, 5°, 10°, 15° (post-top) | 0°, -5°, -10°, -15° (side-entry), sealing non-destructively replaceable, multi-level sealing system
Colour specification Siteco® metallic grey (DB 702S)
Cover cover of PMMA

Mounting

Mounting method, mounting location side-entry, post-top, on mast

Electrical connection

Connection cable H07RN-F 5x 1.5mm²
Nominal voltage 230..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)
Connection cable pre-assembled, L= 12.5m

Dimensions, Weight

Length 780mm
Width 376mm
Height 118mm
Weight 11.5kg
Mast spigot mast flange for spigot size: 42mm (side-entry): 5XC10008XM4, 60/48mm (side-entry/post-top): 5XC10108XM2, 76/60mm (side-entry/post-top): 5XC10108XM1

Light emission

Light emission 0% at 0° inclination

Service life

Rated service life 100000h (L96/B10) at AT = 25°C

Product type
mast luminaire

Product name
Streetlight SL 11 iQ midi

Order No.
5XC3F41F08ME

Light control
3 zone facetted reflector of plastic, silver coated, highly specular

Cover
cover, transparent

Light distribution
PC-R

Beam angle
wide distribution

Symmetry
asymmetric, right

Light emission
direct distribution

Lamps
with High Power LED, LED

Rated values
16220lm | 124.7W | 130.1lm/W (begin service life);
end service life: 16220lm | 132.2W;
at 50% lumin. flux: 8110lm | 57.4W | 141.3lm/W

Colour temperature
4000K

Colour rendering index
CRI > 70

Light colour
740

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 5 SDCM (initial)

begin service life

LS 1: 100% | 16220lm | 124.7W | 130.1lm/W | 4000K

end service life

LS 1: 132.2W


further light settings possible

Control
iQ Street-Remote

Equipment
optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote

Protection rating
IP66

Insulation class
insulation class II (safety insulation)

Impact resistance
IK10

Temperature range (operation)
-25..+50°C

Supplement
standard-compliant lighting for roads and squares

Certification, designation
CE, ENEC, ENEC+, VDE

EPD
Environmental Product Declaration (EPD) tested and certified by an independent institute

luminaire housing
diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), please order mast flange separately, inclination adjustable without tools: 0°, 5°, 10°, 15° (post-top) | 0°, -5°, -10°, -15° (side-entry), sealing non-destructively replaceable, multi-level sealing system

Colour specification
Siteco® metallic grey (DB 702S)

Cover
cover of PMMA

Mounting method, mounting location
side-entry, post-top, on mast

Connection
cable H07RN-F 5x 1.5mm²

Nominal voltage
230..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Connection cable
pre-assembled, L= 12.5m

Length
780mm

Width
376mm

Height
118mm

Weight
11.5kg

Mast spigot
mast flange for spigot size: 42mm (side-entry): 5XC10008XM4, 60/48mm (side-entry/post-top): 5XC10108XM2, 76/60mm (side-entry/post-top): 5XC10108XM1

Light emission
0% at 0° inclination

Rated service life
100000h (L96/B10) at AT = 25°C

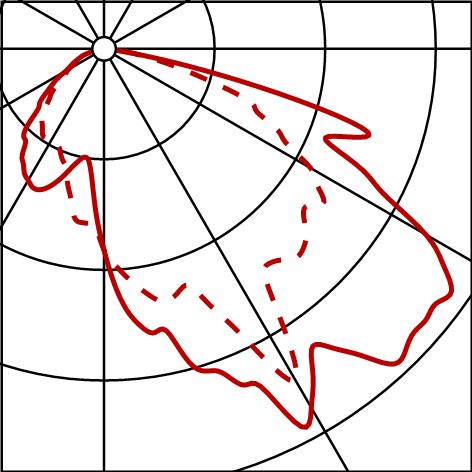

Photometric report / planning data

SL11iQmd
PCR,16220lm740,SR
Lamps: 1x LED
Ordercode: 5XC3F41F08ME

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
