Round 21 S, opal, direct distribution, 105°, Light colour 840, DALI 2, white
Close

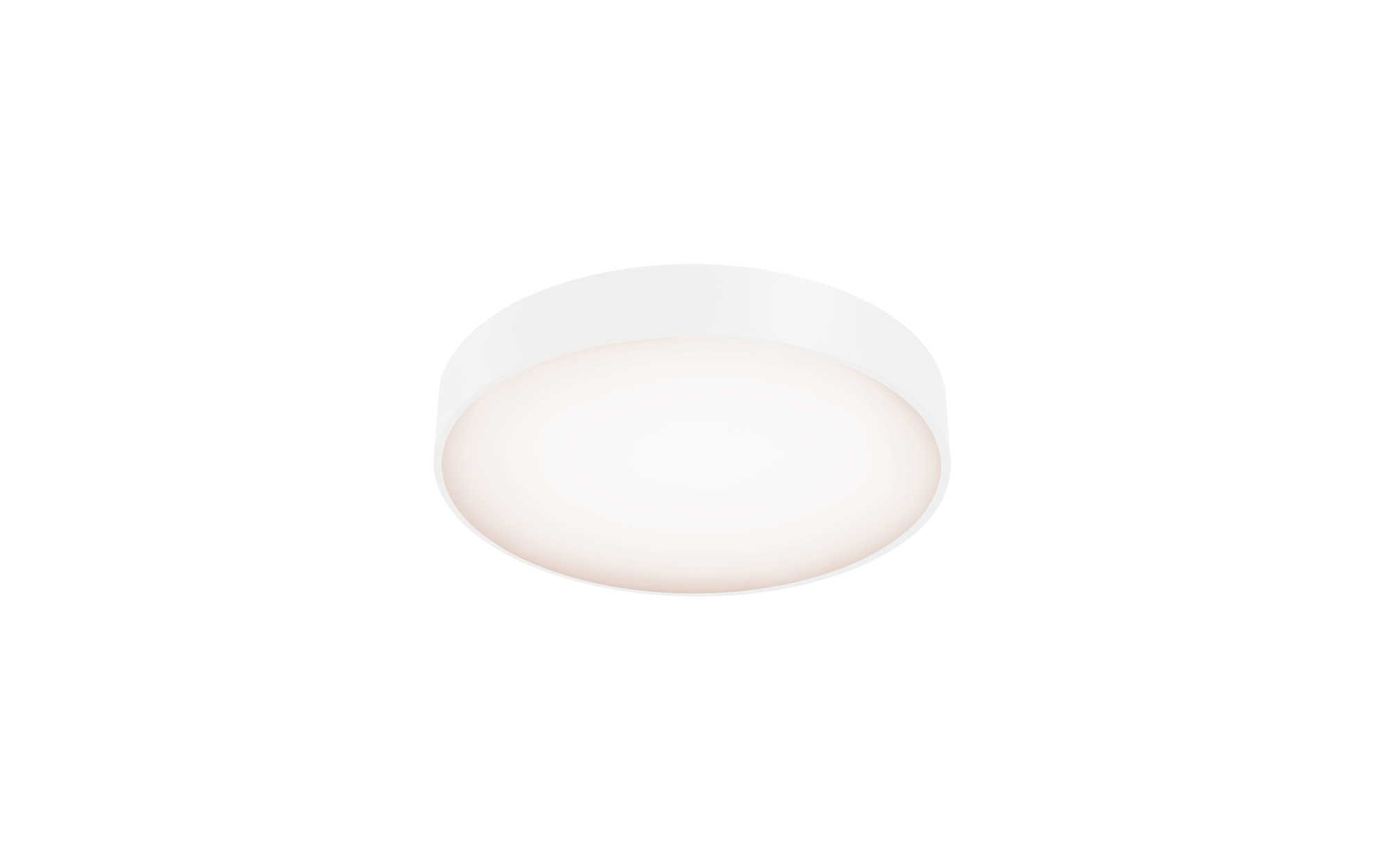

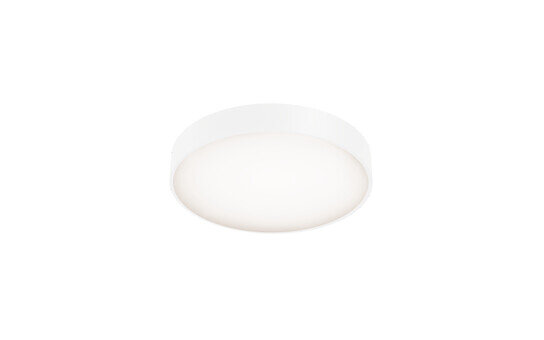

Article wall and ceiling luminaire
Product name Round 21 S
Lamp LED
Rated luminous flux 3900lm
Luminous efficacy 129lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 30.3W
Service life 50000h (L80/B20) at AT = 25°C
Protection rating IP40
Impact resistance IK04
Weight 3.1kg

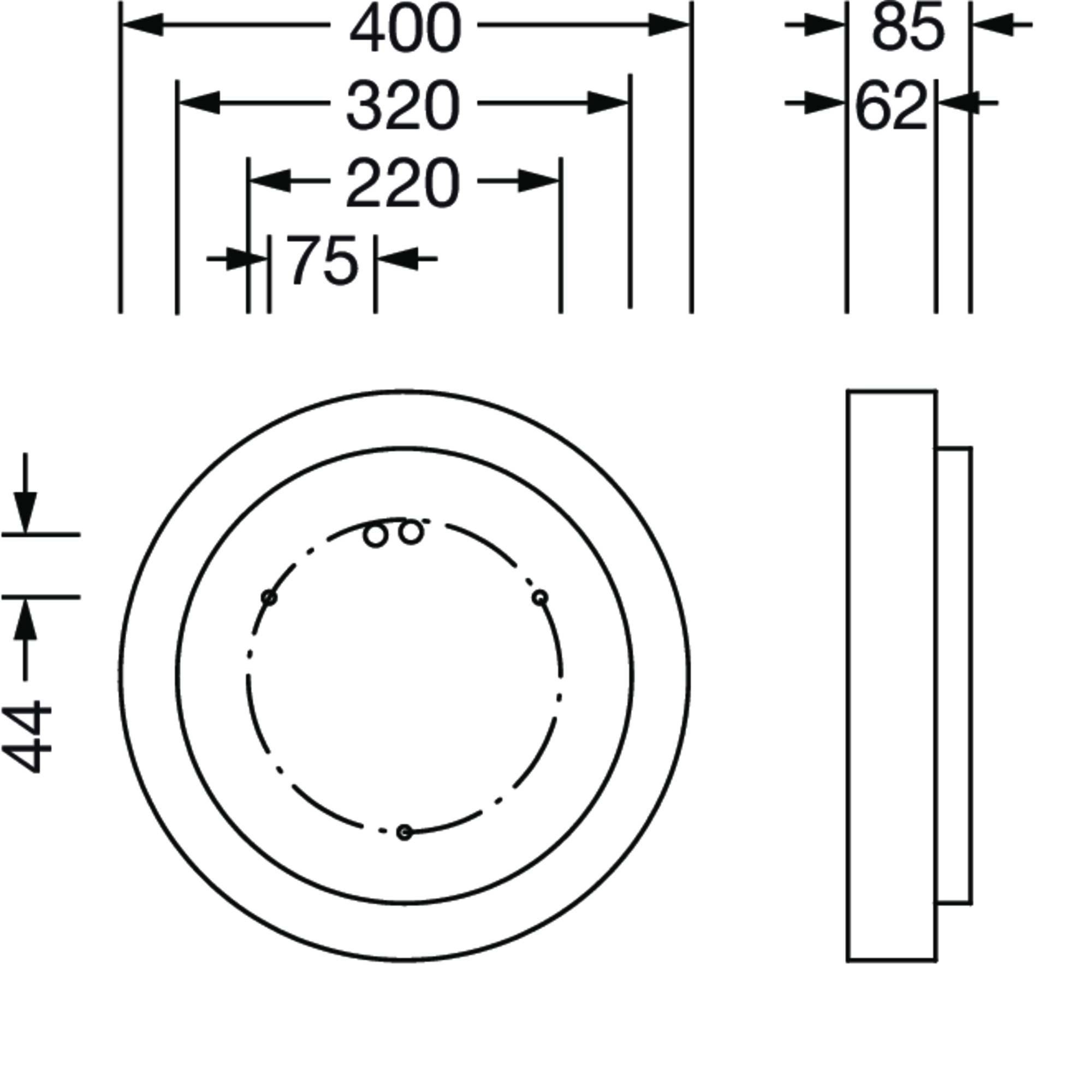

Round 21 S, wall and ceiling luminaire, primary optical cover: cover, of PMMA, opal, light emission: direct distribution, primary light characteristic: symmetric, installation type: suspended mounting, surface-mounted, LED, rated luminous flux: 3.900lm, luminous efficacy: 129lm/W, light colour: 840, colour temperature: 4000K, control gear: DALI 2, with terminal, 5-pole, mains connection: 230V, AC, 50/60Hz, rated input power: 30.3W, housing, of aluminium, coated, white, diameter: 400mm, height: 62mm, protection rating (complete): IP40, insulation class (complete): insulation class I (protective earthing), certification: CE, impact resistance: IK04, permissible operating ambient temperature: -10..+35°C, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

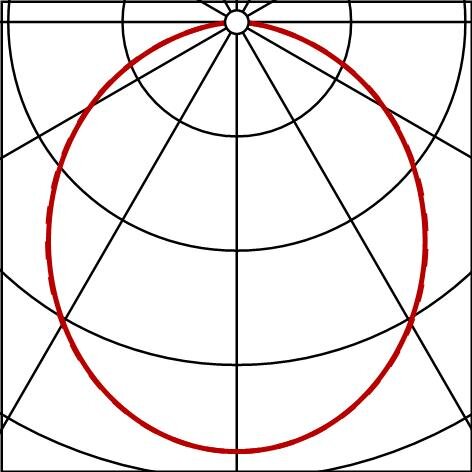

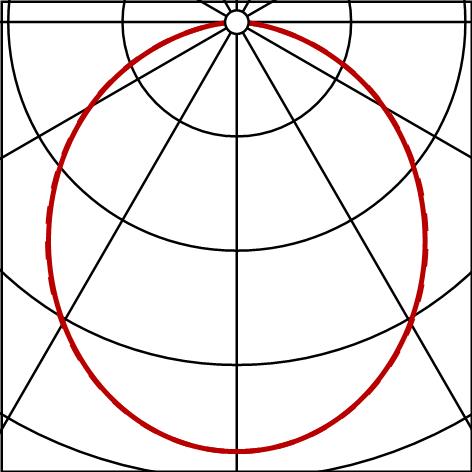

Photometric report / planning data
Round21S
opal,dir,3900lm840,DA2,wh
Lamps: 1x LED
Order No.: 51MR34FD0421W
