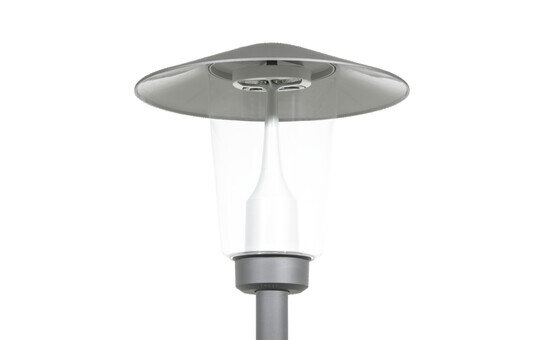

Mushroom Luminaire iQ, PL1.2s, direct symmetric wide distribution, transparent, standard

Close
Ordercode: 5XA5235JF14H000022
Remember productRemember product

Article mast luminaire
Product name Mushroom Luminaire iQ
Lamp LED
Rated luminous flux 3000lm
Luminous efficacy 155lm/W
Colour temperature 3000K
Colour rendering CRI > 70
Pnom begin service life 19
Pnom end service life 21
Pred at 50% lumin. flux 10
Service life 100000h at AT = 25°C
Protection rating IP65
Weight 9.0kg

Mushroom Luminaire iQ, mast luminaire, Module 540 iQ-SR, primary light control with 3 zone facetted reflector, of plastic, silver coated, highly specular, structured, primary optical cover: cover, of PMMA, transparent, light distribution: PL1.2s, light emission: direct distribution, primary light characteristic: symmetric, installation type: post-top, LED, High Power LED, rated luminous flux: 3.000lm, luminous efficacy: 155lm/W, light colour: 730, colour temperature: 3000K, control gear: iQ Street-Remote, control: Street-Remote, Auto-Match, Temp-Guard, Lumen-Switch, Night-Set, Smart-Wire, Light-Fading, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), optimised constant luminous flux control (CLO 2.0), pre-setting: logarithmic dimming characteristic, mains connection: 230..240V, AC, 50/60Hz, connection cable pre-assembled, cable length: 5,5m, wiring characteristics: H07RN-F, start of lifetime: 19W, end of service life: 21W, reduction: 10W, luminaire housing, upper part, of glass-fibre reinforced polyester, coated, Siteco® metallic grey (DB 702S), diameter: 650mm, height: 586mm, spigot size: d x l = 76 x 70mm (post-top) | with reducer (optional accessory) 60 x 70mm, mounting height: 3..5m, post-top mast mounting element, of diecast aluminium, coated, Siteco® metallic grey (DB 702S), Module 540 iQ-SR, traffic white (RAL 9016), equipment: standard, protection rating (complete): IP65, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

Product type mast luminaire
Product name Mushroom Luminaire iQ
Order No. 5XA5235JF14H000022

Lighting technology

Light control 3 zone facetted reflector of plastic, silver coated, highly specular
Cover cover, transparent
Light distribution PL1.2s
Beam angle wide distribution
Symmetry symmetric distribution
Light emission direct distribution

Lamps

Lamps with High Power LED, LED
Rated luminous flux 3000lm
Luminous efficacy 155lm/W
Colour temperature 3000K
Colour rendering index CRI > 70
Light colour 730
SDCM (Standard Deviation of Colour Matching) MacAdam ≤ 5 SDCM (initial)
Rated input power begin service life 19
Rated input power end service life 21
Rated input power at 50% lumin. flux 10

Operating device

Control gear ECG iQ
Control iQ Street-Remote
Equipment optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Certificates, Standards

Protection rating IP65
Insulation class insulation class II (safety insulation)
Certification, designation CE, ENEC, VDE

Material, Colour

luminaire housing, upper part glass-fibre reinforced polyester, coated, Siteco® metallic grey (DB 702S)
Colour specification Siteco® metallic grey (DB 702S)
post-top mast mounting element diecast aluminium, coated, Siteco® metallic grey (DB 702S)
Colour specification Siteco® metallic grey (DB 702S)
Colour specification traffic white (RAL 9016)
Cover cover of PMMA

Mounting

Mounting method, mounting location post-top, on mast

Electrical connection

Nominal voltage 230..240V, 50/60Hz, AC
Surge voltage resistance surge voltage resistance: 10kV (common mode); 6kV (differential mode)
Connection cable pre-assembled, L= 5.5m

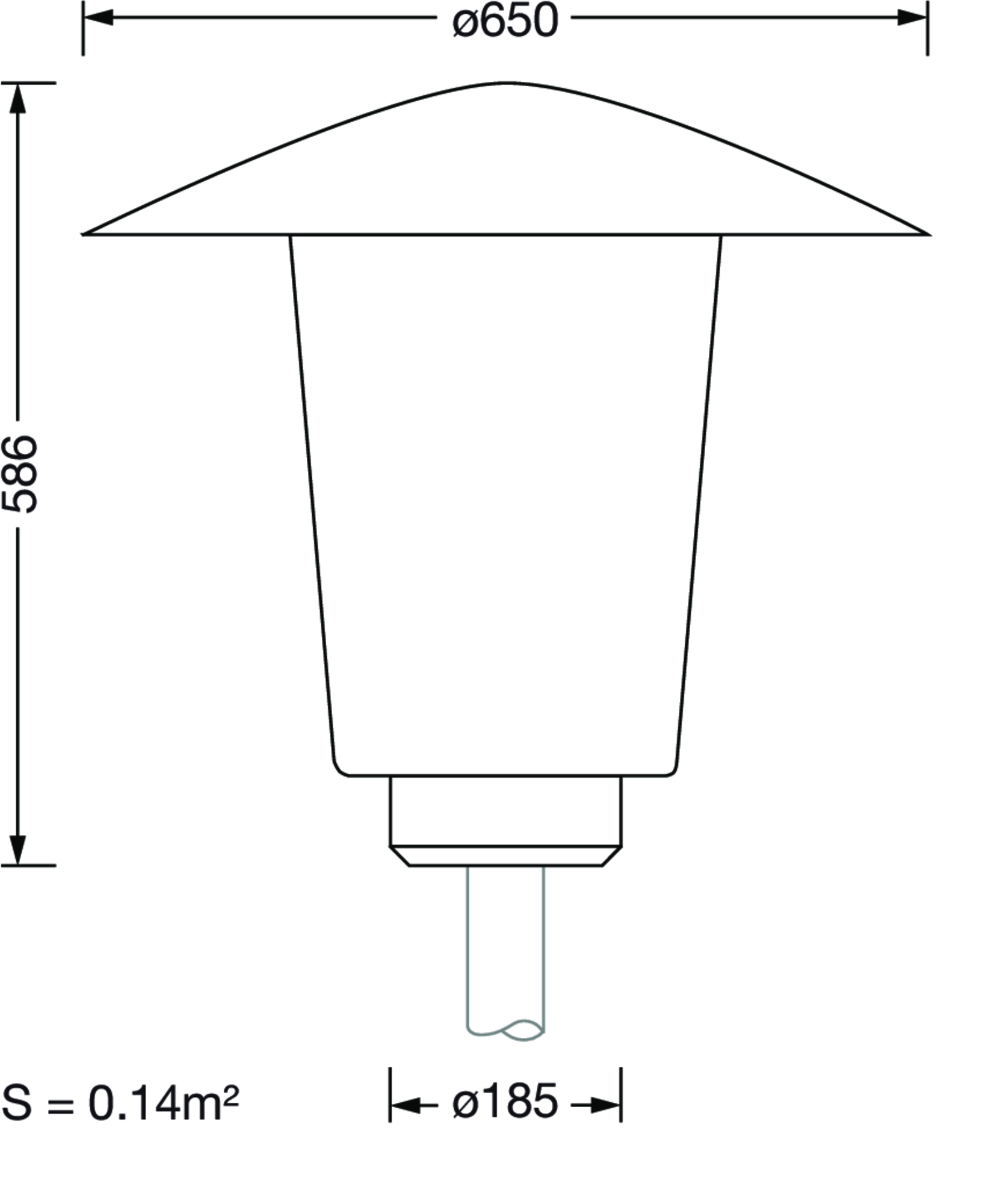

Dimensions, Weight

Diameter 650mm
Height 586mm
Weight 9.0kg
Mast spigot spigot size: d x l = 76 x 70mm (post-top) | with reducer (optional accessory) 60 x 70mm

Light emission

Light emission < 3%

Service life

Rated service life 100000h at AT = 25°C

Product type
mast luminaire

Product name
Mushroom Luminaire iQ

Order No.
5XA5235JF14H000022

Light control
3 zone facetted reflector of plastic, silver coated, highly specular

Cover
cover, transparent

Light distribution
PL1.2s

Beam angle
wide distribution

Symmetry
symmetric distribution

Light emission
direct distribution

Lamps
with High Power LED, LED

Rated luminous flux
3000lm

Luminous efficacy
155lm/W

Colour temperature
3000K

Colour rendering index
CRI > 70

Light colour
730

SDCM (Standard Deviation of Colour Matching)
MacAdam ≤ 5 SDCM (initial)

Rated input power begin service life
19

Rated input power end service life
21

Rated input power at 50% lumin. flux
10

Control gear
ECG iQ

Control
iQ Street-Remote

Equipment
optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, Street-Remote, pre-setting: logarithmic dimming characteristic

Protection rating
IP65

Insulation class
insulation class II (safety insulation)

Certification, designation
CE, ENEC, VDE

luminaire housing, upper part
glass-fibre reinforced polyester, coated, Siteco® metallic grey (DB 702S)

Colour specification
Siteco® metallic grey (DB 702S)

post-top mast mounting element
diecast aluminium, coated, Siteco® metallic grey (DB 702S)

Colour specification
Siteco® metallic grey (DB 702S)

Colour specification
traffic white (RAL 9016)

Cover
cover of PMMA

Mounting method, mounting location
post-top, on mast

Nominal voltage
230..240V, 50/60Hz, AC

Surge voltage resistance
surge voltage resistance: 10kV (common mode); 6kV (differential mode)

Connection cable
pre-assembled, L= 5.5m

Diameter
650mm

Height
586mm

Weight
9.0kg

Mast spigot
spigot size: d x l = 76 x 70mm (post-top) | with reducer (optional accessory) 60 x 70mm

Light emission
< 3%

Rated service life
100000h at AT = 25°C

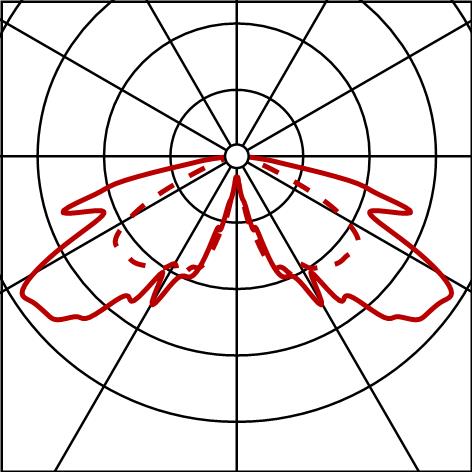

Photometric report / planning data

MushiQ
PL1.2s,3000lm730,SR
Lamps: 1x LED
Ordercode: 5XA5235JF14H000022

Photometric report (PDF)
Relux (ROLF)
Dialux (ULD)
EULUMDAT (LDT)
IES
