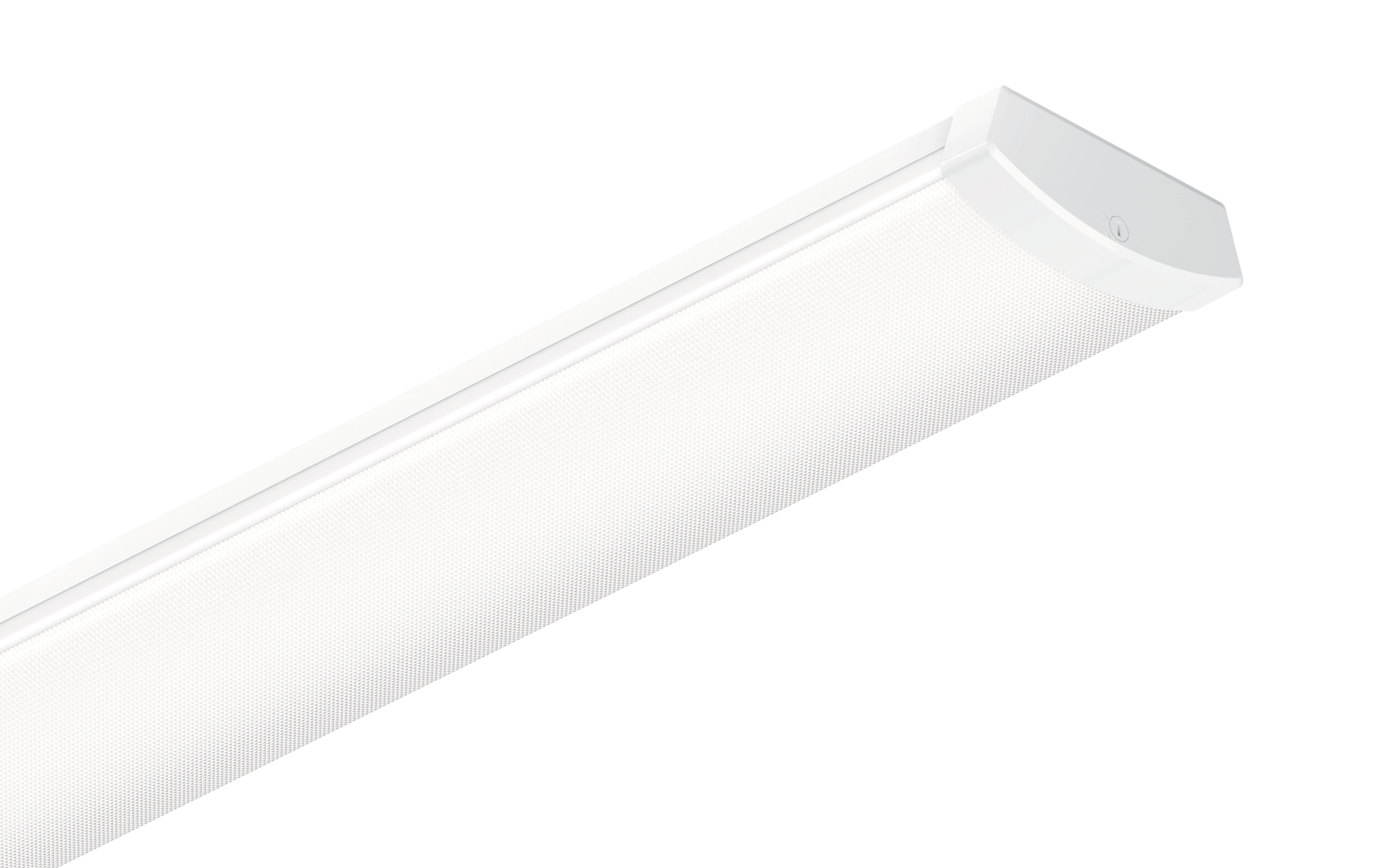

Siluette® 21, wide distribution, enclosure, frosted, ON/OFF Multilumen, white
Close
Article office luminaire
Product name Siluette® 21
Lamp LED
Rated luminous flux 2630lm
Luminous efficacy 135lm/W
Colour temperature 3000/4000/5000K
Colour rendering CRI > 80
Rated input power 20W
Service life 100000h (L80/B50) at AT = 25°C
Protection rating IP44
Impact resistance IK04
Weight 1.6kg

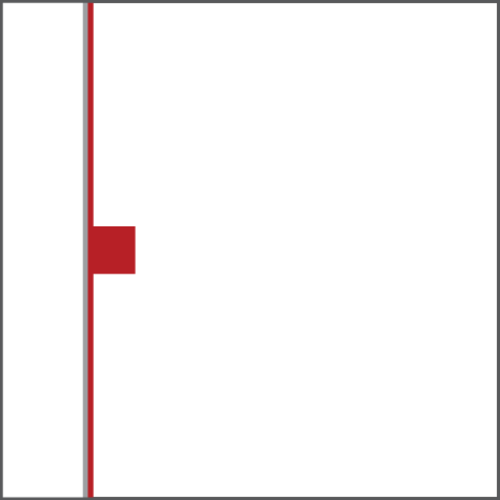

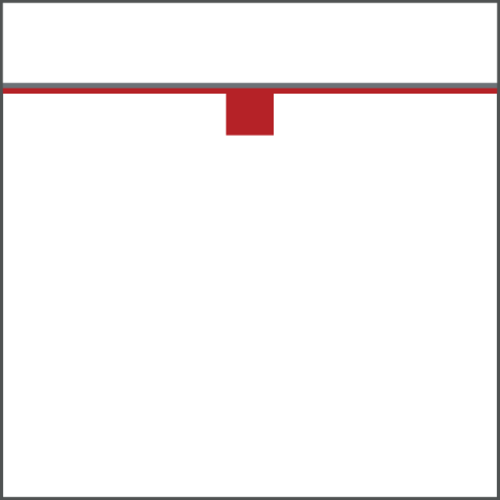

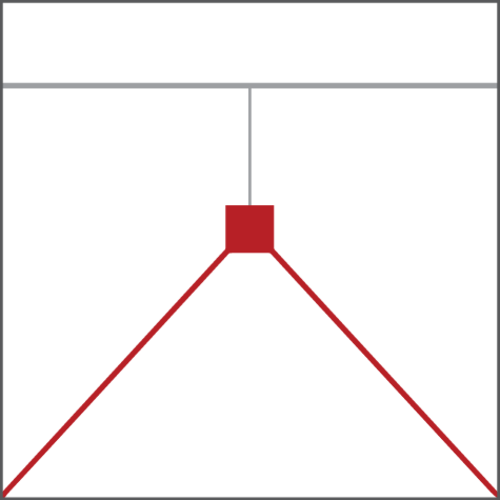

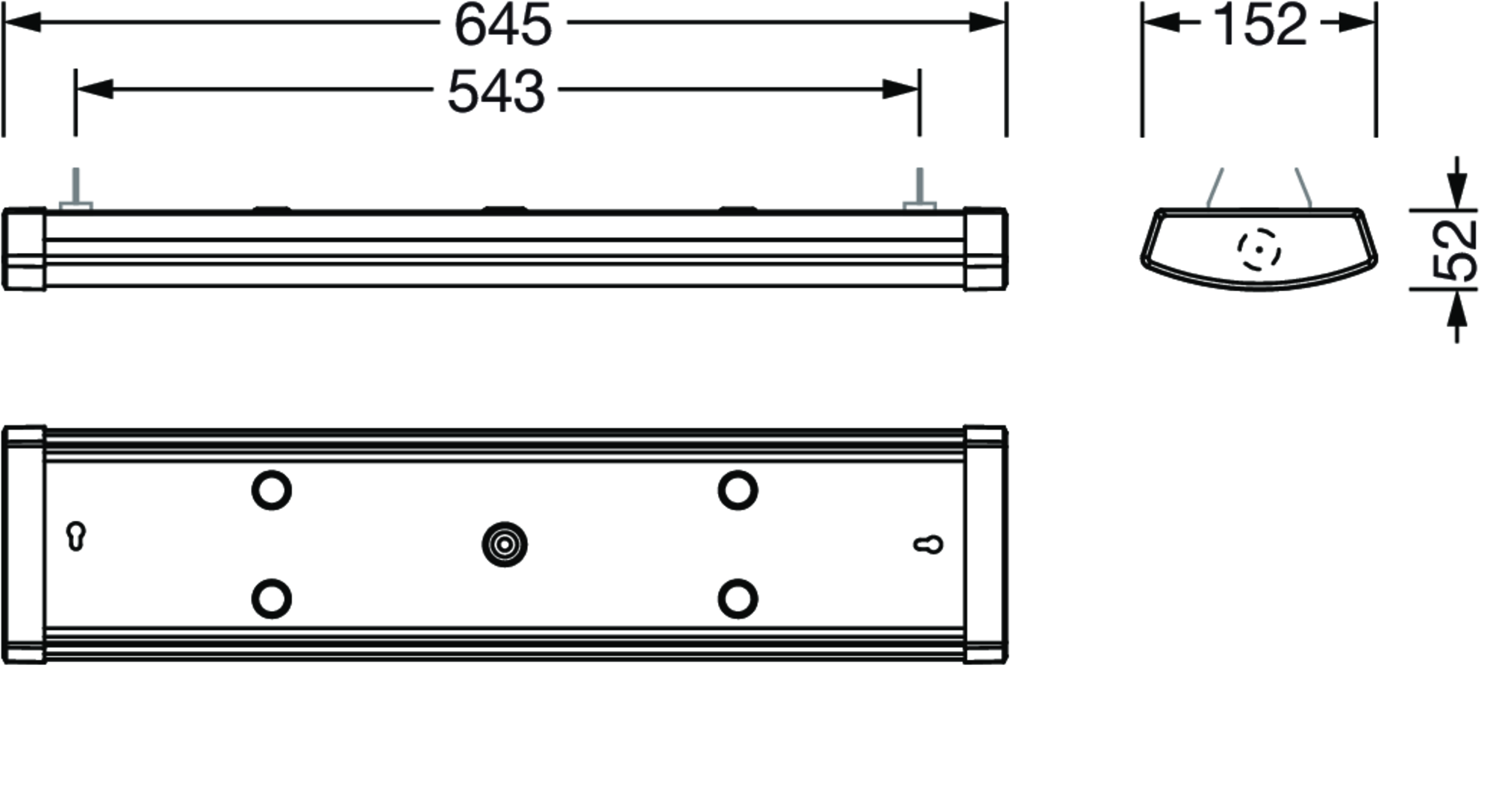

Siluette® 21, office luminaire, primary optical cover: enclosure, of PC, frosted, light emission: direct distribution, primary light characteristic: symmetric, installation type: suspended mounting, surface-mounted, LED, rated luminous flux: 2.630lm, luminous efficacy: 135lm/W, light colour: 830/840/850, colour temperature: 3000/4000/5000K, control gear: ON/OFF Multilumen, with terminal, 3-pole, mains connection: 220..240V, AC, 50/60Hz, rated input power: 20W, housing, of sheet steel, white, length: 600mm, width: 152mm, height: 53mm, end cap, of PMMA, white, protection rating (complete): IP44, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, protection symbol: D, impact resistance: IK04, permissible operating ambient temperature: -20..+40°C, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, packaging unit: 1 piece
Downloads
Technical product information
Data for applications
Product details

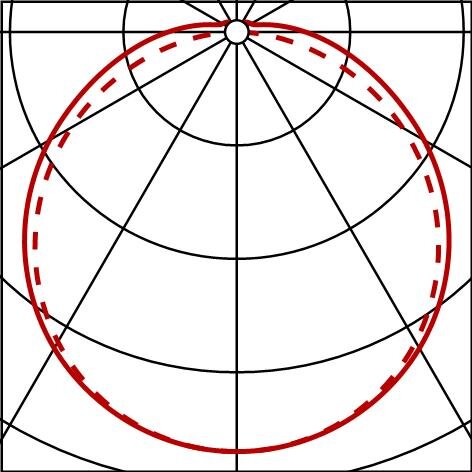

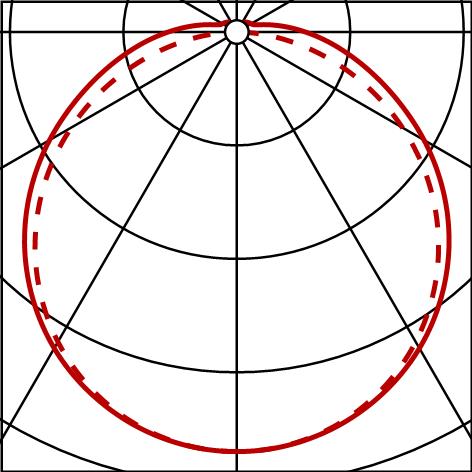

Photometric report / planning data
Siluette® 21
office luminaire, white, ON/OFF Multilumen, 2630lm, 830/840/850, 600x152mm, Connection: terminal
Lamps: 1x LED, factory setting: colour temperature 4000K
Order No.: 51LN12MDM20A
Siluette® 21
Lamps: 1x LED, individual setting: colour temperature 3000K
Order No.: 51LN12MDM20A
Siluette® 21
Lamps: 1x LED, individual setting: colour temperature 5000K
Order No.: 51LN12MDM20A
