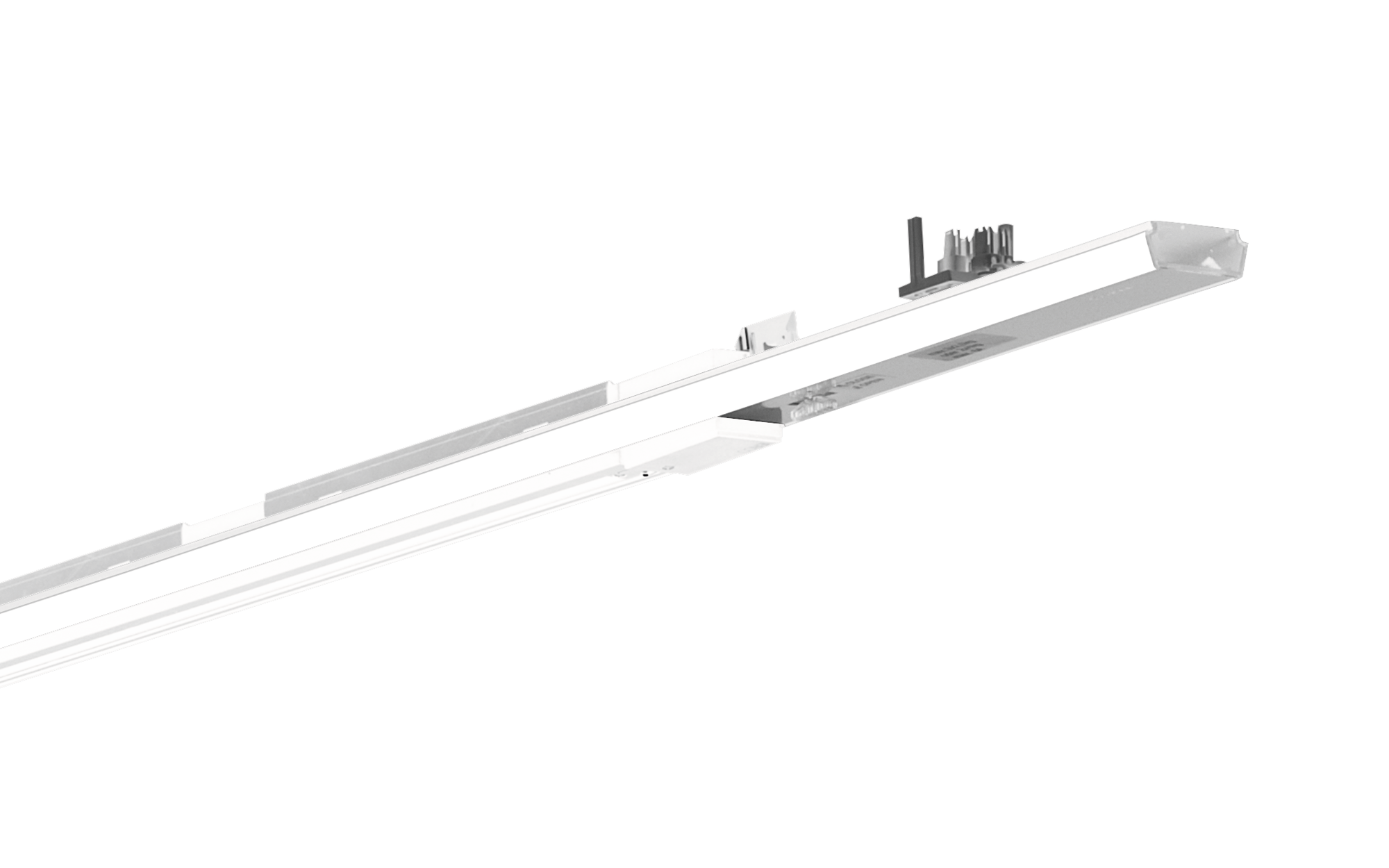

Modario®, track adapter insert, IP20

Close
Ordercode: 5TR31TDS
Remember productRemember product

Article track adapter insert
Product name Modario®
Protection rating IP20
Weight 1.5kg

Modario®, track adapter insert, with plug, 5-pole, with phase selection, for trunking rail, 10-core, mains connection: 230/400V, track adapter insert, of sheet steel, coil coated, pure white, 4x system unit, length: 1.196 mm, width: 48 mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, packaging unit: 1 piece

Downloads

Technical product information
Data for application programs

Product details

Key data

Product type track adapter insert
Product name Modario®
Order No. 5TR31TDS

Lamps

Supplement max. current consumption 6A

Operating device

Control DALI

Certificates, Standards

Protection rating IP20
Insulation class insulation class I (protective earthing)
Certification, designation CE

Material, Colour

track adapter insert sheet steel, coil coated, pure white, 4x system unit, max. weight load 5kg
Colour specification pure white

Electrical connection

Connection plug, 5-pole, with phase selection, for trunking rail, 10-core
Nominal voltage 230/400V

Dimensions, Weight

System units 4x SE
Length 1196mm
Width 48mm
Weight 1.5kg

Product type
track adapter insert

Product name
Modario®

Order No.
5TR31TDS

Supplement
max. current consumption 6A

Control
DALI

Protection rating
IP20

Insulation class
insulation class I (protective earthing)

Certification, designation
CE

track adapter insert
sheet steel, coil coated, pure white, 4x system unit, max. weight load 5kg

Colour specification
pure white

Connection
plug, 5-pole, with phase selection, for trunking rail, 10-core

Nominal voltage
230/400V

System units
4x SE

Length
1196mm

Width
48mm

Weight
1.5kg
