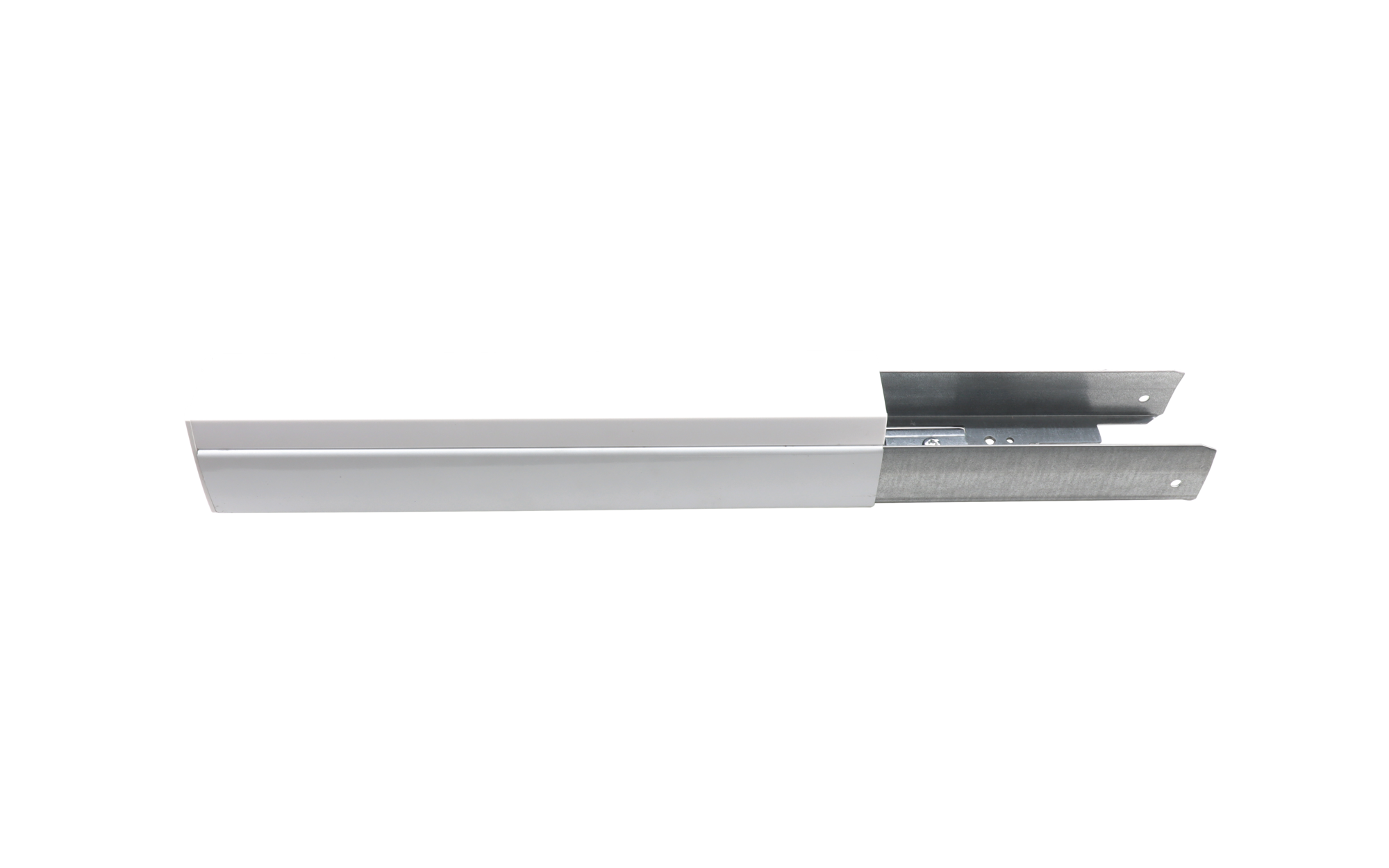

Modario® 31, connection compartment

Close
Order No.: 5TR91AFN0
Remember articleRemember article

Article infeed
Product name Modario® 31
Protection rating IP40
Weight 0.7kg

Modario® 31 connection compartment, white; connection compartment of sheet steel, galvanised, coated, with cable entry for four cables, Ø 8.5..13mm; 2x end cap 1x blank cover of PC/ABS, white; 1x connector of steel, galvanised, connector pre-assembled on trunking rail; dimension: (LxWxH) = 299 x 58 x 43mm; IP40; insulation class: insulation class I (protective earthing); certification: CE, UKCA; packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type infeed
Product name Modario® 31
Order No. 5TR91AFN0

Certificates, Standards

Protection rating IP40
Insulation class insulation class I (protective earthing)
Certification, designation CE, UKCA

Material, Colour

connection compartment sheet steel, galvanised, coated, white, without terminals
Colour specification white
Quantity 2 piece
blank cover PC/ABS, white
Quantity 1 piece
Colour specification white
connector steel, galvanised, connector pre-assembled on trunking rail
Quantity 1 piece

Mounting

Mounting method, mounting location surface-mounted, to the Modario® trunking rail

Dimensions, Weight

Length 299mm
Width 58mm
Height 43mm
Weight 0.7kg

Product type
infeed

Product name
Modario® 31

Order No.
5TR91AFN0

Protection rating
IP40

Insulation class
insulation class I (protective earthing)

Certification, designation
CE, UKCA

connection compartment
sheet steel, galvanised, coated, white, without terminals

Colour specification
white

Quantity
2 piece

blank cover
PC/ABS, white

Quantity
1 piece

Colour specification
white

connector
steel, galvanised, connector pre-assembled on trunking rail

Quantity
1 piece

Mounting method, mounting location
surface-mounted, to the Modario® trunking rail

Length
299mm

Width
58mm

Height
43mm

Weight
0.7kg
