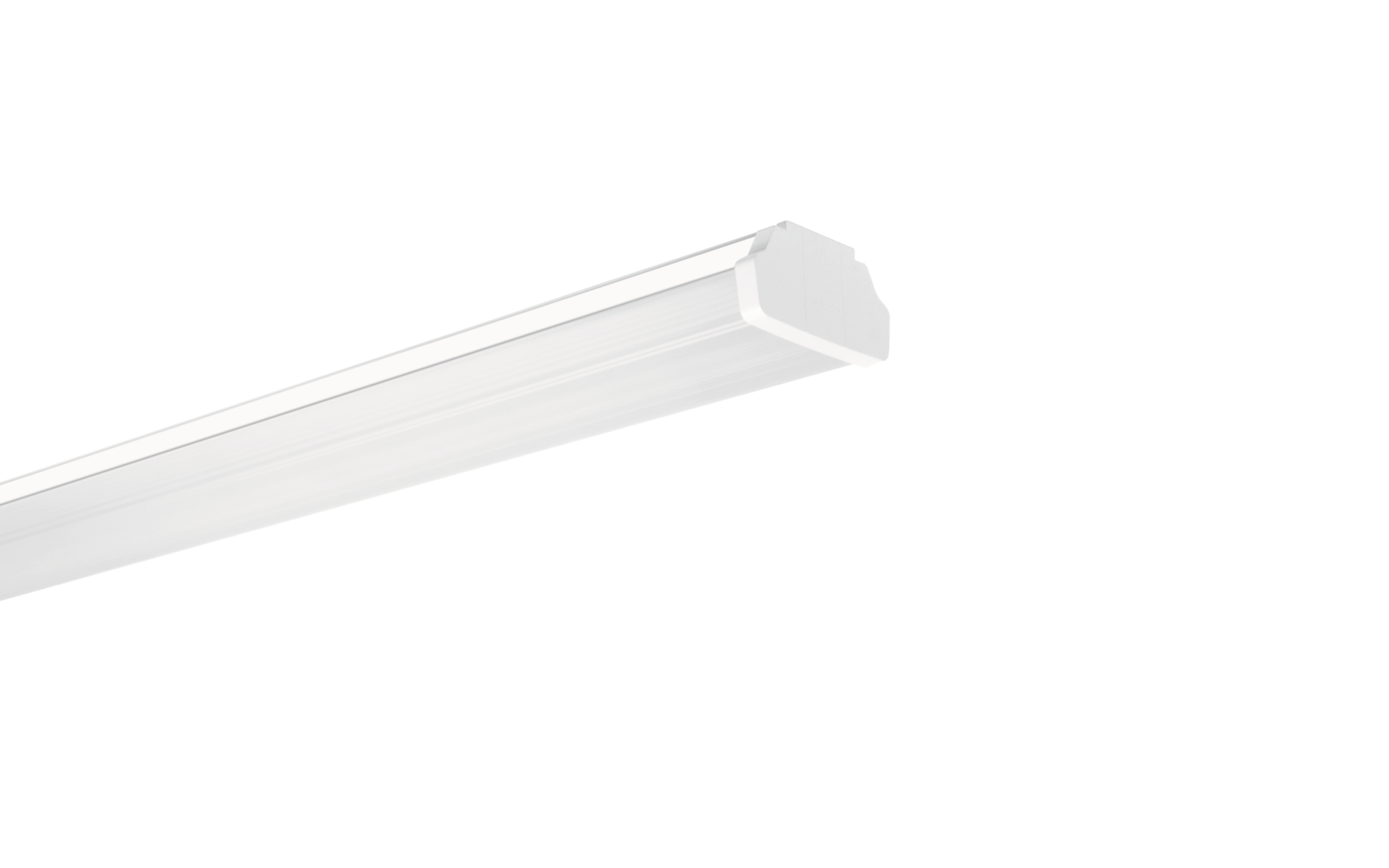

Modario® 31 HO, symmetric extremely narrow distribution, IP20, AC

Order No.: 53BM813D2V4120

Article luminaire insert
Product name Modario® 31 HO
Lamp LED
Rated luminous flux 12260lm
Luminous efficacy 154lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 80W
Service life 50000h (L85/B50) at AT = 25°C
Protection rating IP20
Impact resistance IK03
Weight 2.0kg

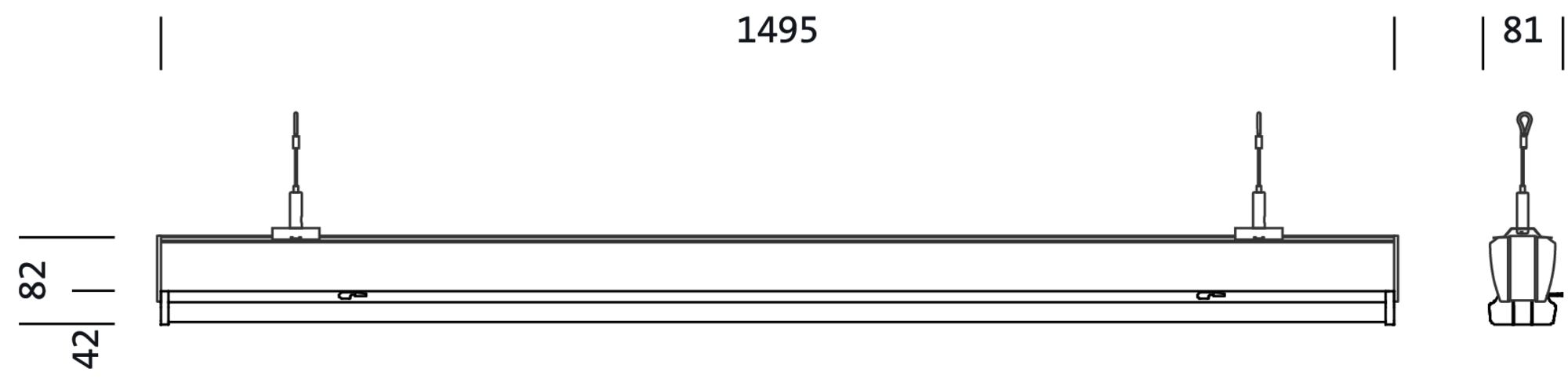

Modario® 31 HO, luminaire insert, of sheet steel, coil coated, white, length: 1.495mm, width: 81mm, height: 82mm, 5x system unit, system units: 299mm, LED rated luminous flux: 12.260lm, light colour: 840, control gear: DALI 2, control gear: ECG DALI, with plug, 5-pole, with phase selection, mains connection: 220..240V, AC, 50/60Hz, rated input power: 80W, through-wiring accessed according to module size, primary optical cover: cover, of PMMA, light emission: direct distribution, primary light characteristic: symmetric, protection rating (complete): IP20, protection rating (LED compartment): IP50, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, UKCA, impact resistance: IK03, permissible ambient temperature for indoor applications: -25..+30°C, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, reducing of maximum allowable ambient temperature of 5°C with ceiling mounting, packaging unit: 1 piece
