Modario® 31

ProducttypesConfiguration & Datasheets

More than 1,000,000 installed luminaires make Modario® one of our greatest successes. Flexibility and quality have always counted for us: the modular system offers a variety of luminaire inserts for maximum adaptability whilst the prismatic frosted optics ensure low glare and maximum visual comfort. Luminous flux tracking and multilumen capability also with On/Off models offer the basis for lighting solutions tailored to requirements. Upgrading your existing system via state of the art luminaire inserts with up to 170lm/W enables highly simple and significant cost and CO2 reductions.

Modario® A trunking system for universal use.

Modario® 31 luminaire insert

Intro to Productfamily

Data

Article luminaire insert
Colour temperature 4000K; 6500K
Lighting effect direct symmetric extremely narrow distribution; direct symmetric narrow distribution; direct symmetric wide distribution

Specials

Wide range of variants due to modular system with a large number of luminaire inserts for maximum flexibility
LED luminaire insert with IP20 and IP64
Different light distributions for diverse applications
Multilumen capability also with On/Off models for lighting solutions tailored to requirements
Highly efficient LED inserts with high luminous efficacy – also suitable for replacing conventional luminaire inserts in existing Modario® systems for simple exploitation of energy-saving potential.

Configuration & Datasheets

Product name

Lighting effect

Colour temperature

Rated luminous flux (lm)

Control

  • please order Modario® trunking rail and trunking rail accessories separately
  • with ceiling surface mounting: reducing of maximum allowable ambient temperature of 5°C

Results

Modario® 31 MO, symmetric wide distribution, IP20

Order No.: 53BM812M1V4085GTIN (EAN): 4058352421864
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)ColourWt. (kg)
4000KCRI > 80895060W150lm/WON/OFF Multilumen-35..+30°C1495white1.9

Modario® 31 MO, symmetric wide distribution, IP20

Order No.: 53BM812C1V4075GTIN (EAN): 4058352421789
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)ColourWt. (kg)
4000KCRI > 80762049W156lm/WON/OFF Multilumen, CLOi-35..+30°C1495white1.9

Modario® 31 MO, symmetric wide distribution, IP20

Order No.: 53BM81271V4080GTIN (EAN): 4058352425909
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)ColourWt. (kg)
4000KCRI > 80781051W154lm/WON/OFF-35..+35°C1495white1.9

Modario® 31 MO, symmetric wide distribution, IP20

Order No.: 53BM812D2V4085GTIN (EAN): 4058352421826
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)ColourWt. (kg)
4000KCRI > 80893062W144lm/WDALI 2-25..+30°C1495white1.9

Modario® 31 MO, symmetric narrow distribution, IP20

Order No.: 53BM811D2V4085GTIN (EAN): 4058352453186
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)ColourWt. (kg)
4000KCRI > 80893062W144lm/WDALI 2-25..+30°C1495white1.9

Modario® 31 MO, symmetric extremely narrow distribution, IP20

Order No.: 53BM813D2V4085GTIN (EAN): 4058352453209
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)ColourWt. (kg)
4000KCRI > 80877062W142lm/WDALI 2-25..+30°C1495white1.9

Modario® 31 MO, symmetric wide distribution, IP20

Order No.: 53BM812C1V6075GTIN (EAN): 4058352434574
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)ColourWt. (kg)
6500KCRI > 80764049W156lm/WON/OFF Multilumen, CLOi-35..+30°C1495white1.8

Modario® 31 MO, symmetric wide distribution, IP20

Order No.: 53BM81271V6080GTIN (EAN): 4058352434550
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)ColourWt. (kg)
6500KCRI > 80782051W154lm/WON/OFF-35..+35°C1495white1.9

Modario® 31 MO, symmetric wide distribution, IP20

Order No.: 53BM812D2V6085GTIN (EAN): 4058352434611
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)ColourWt. (kg)
6500KCRI > 80896062W145lm/WDALI 2-25..+30°C1495white1.9

Modario® PS, symmetric wide distribution, IP20

Order No.: 5TS812D2V6115GTIN (EAN): 4058352181164
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)ColourWt. (kg)
6500KCRI > 801147076W151lm/WDALI-25..+30°C1495white1.9

Modario® 31 HO, symmetric narrow distribution, IP20

Order No.: 53BM811D2V4120GTIN (EAN): 4058352498040
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)ColourWt. (kg)
4000KCRI > 801235079W156lm/WDALI 2-25..+30°C1495white2.0

Modario® 31 HO, symmetric wide distribution, IP20

Order No.: 53BM812D2V4120GTIN (EAN): 4058352421857
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)ColourWt. (kg)
4000KCRI > 801235080W155lm/WDALI 2-25..+30°C1495white2.0

Modario® 31 HO, symmetric wide distribution, IP20

Order No.: 53BM812M1V4120GTIN (EAN): 4058352421888
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)ColourWt. (kg)
4000KCRI > 801238077W160lm/WON/OFF Multilumen-35..+35°C1495white1.9

Modario® 31 HO, symmetric extremely narrow distribution, IP20

Order No.: 53BM813D2V4120GTIN (EAN): 4058352421901
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)ColourWt. (kg)
4000KCRI > 801226080W154lm/WDALI 2-25..+30°C1495white2.0

Modario® 31 HO, symmetric wide distribution, IP20

Order No.: 53BM812C1V4105GTIN (EAN): 4058352421802
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)ColourWt. (kg)
4000KCRI > 801052064W165lm/WON/OFF Multilumen, CLOi-35..+35°C1495white1.9

Modario® 31 HO, symmetric narrow distribution, IP20

Order No.: 53BM811M1V4120GTIN (EAN): 4058352511954
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)ColourWt. (kg)
4000KCRI > 801238077W160lm/WON/OFF Multilumen-35..+35°C1495white1.9

Modario® 31 HO, symmetric wide distribution, IP20

Order No.: 53BM812C1V6105GTIN (EAN): 4058352434604
Colour temperatureColour renderingNet luminous flux (lm)Connected loadLuminous efficacyControltaL (mm)ColourWt. (kg)
6500KCRI > 801056064W166lm/WON/OFF Multilumen, CLOi-35..+35°C1495white1.9

Modario® 31 MO, symmetric wide distribution, IP20

Order No.: 53BM812M1V4085GTIN (EAN): 4058352421864

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)8950
Connected load60W
Luminous efficacy150lm/W
ControlON/OFF Multilumen
ta-35..+30°C

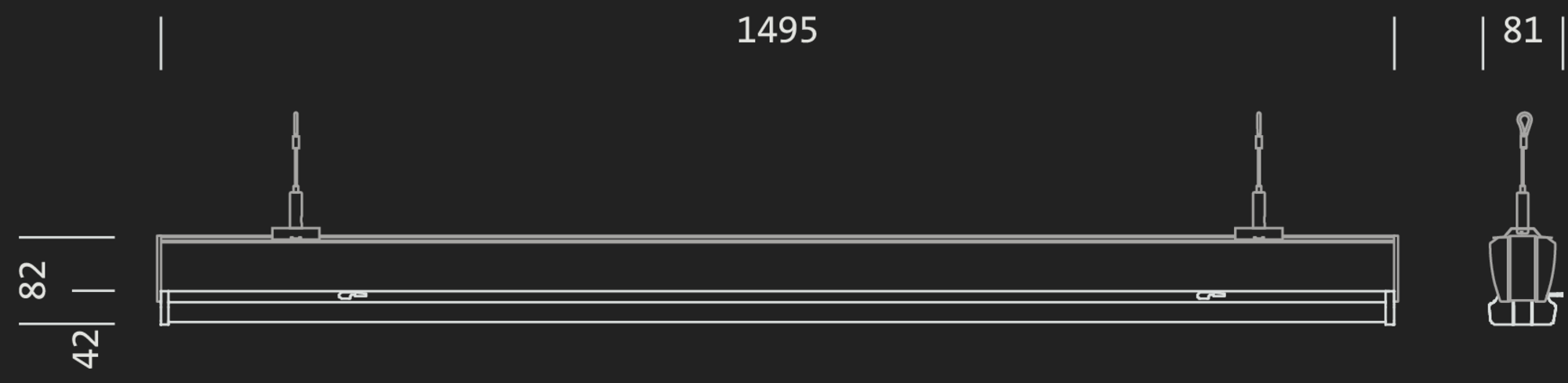

L (mm)1495
Colourwhite
Wt. (kg)1.9

Modario® 31 MO, symmetric wide distribution, IP20

Order No.: 53BM812C1V4075GTIN (EAN): 4058352421789

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)7620
Connected load49W
Luminous efficacy156lm/W
ControlON/OFF Multilumen, CLOi
ta-35..+30°C
L (mm)1495
Colourwhite
Wt. (kg)1.9

Modario® 31 MO, symmetric wide distribution, IP20

Order No.: 53BM81271V4080GTIN (EAN): 4058352425909

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)7810
Connected load51W
Luminous efficacy154lm/W
ControlON/OFF
ta-35..+35°C
L (mm)1495
Colourwhite
Wt. (kg)1.9

Modario® 31 MO, symmetric wide distribution, IP20

Order No.: 53BM812D2V4085GTIN (EAN): 4058352421826

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)8930
Connected load62W
Luminous efficacy144lm/W
ControlDALI 2
ta-25..+30°C
L (mm)1495
Colourwhite
Wt. (kg)1.9

Modario® 31 MO, symmetric narrow distribution, IP20

Order No.: 53BM811D2V4085GTIN (EAN): 4058352453186

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)8930
Connected load62W
Luminous efficacy144lm/W
ControlDALI 2
ta-25..+30°C
L (mm)1495
Colourwhite
Wt. (kg)1.9

Modario® 31 MO, symmetric extremely narrow distribution, IP20

Order No.: 53BM813D2V4085GTIN (EAN): 4058352453209

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)8770
Connected load62W
Luminous efficacy142lm/W
ControlDALI 2
ta-25..+30°C
L (mm)1495
Colourwhite
Wt. (kg)1.9

Modario® 31 MO, symmetric wide distribution, IP20

Order No.: 53BM812C1V6075GTIN (EAN): 4058352434574

Colour temperature6500K
Colour renderingCRI > 80
Net luminous flux (lm)7640
Connected load49W
Luminous efficacy156lm/W
ControlON/OFF Multilumen, CLOi
ta-35..+30°C
L (mm)1495
Colourwhite
Wt. (kg)1.8

Modario® 31 MO, symmetric wide distribution, IP20

Order No.: 53BM81271V6080GTIN (EAN): 4058352434550

Colour temperature6500K
Colour renderingCRI > 80
Net luminous flux (lm)7820
Connected load51W
Luminous efficacy154lm/W
ControlON/OFF
ta-35..+35°C
L (mm)1495
Colourwhite
Wt. (kg)1.9

Modario® 31 MO, symmetric wide distribution, IP20

Order No.: 53BM812D2V6085GTIN (EAN): 4058352434611

Colour temperature6500K
Colour renderingCRI > 80
Net luminous flux (lm)8960
Connected load62W
Luminous efficacy145lm/W
ControlDALI 2
ta-25..+30°C
L (mm)1495
Colourwhite
Wt. (kg)1.9

Modario® PS, symmetric wide distribution, IP20

Order No.: 5TS812D2V6115GTIN (EAN): 4058352181164

Colour temperature6500K
Colour renderingCRI > 80
Net luminous flux (lm)11470
Connected load76W
Luminous efficacy151lm/W
ControlDALI
ta-25..+30°C
L (mm)1495
Colourwhite
Wt. (kg)1.9

Modario® 31 HO, symmetric narrow distribution, IP20

Order No.: 53BM811D2V4120GTIN (EAN): 4058352498040

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)12350
Connected load79W
Luminous efficacy156lm/W
ControlDALI 2
ta-25..+30°C
L (mm)1495
Colourwhite
Wt. (kg)2.0

Modario® 31 HO, symmetric wide distribution, IP20

Order No.: 53BM812D2V4120GTIN (EAN): 4058352421857

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)12350
Connected load80W
Luminous efficacy155lm/W
ControlDALI 2
ta-25..+30°C
L (mm)1495
Colourwhite
Wt. (kg)2.0

Modario® 31 HO, symmetric wide distribution, IP20

Order No.: 53BM812M1V4120GTIN (EAN): 4058352421888

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)12380
Connected load77W
Luminous efficacy160lm/W
ControlON/OFF Multilumen
ta-35..+35°C
L (mm)1495
Colourwhite
Wt. (kg)1.9

Modario® 31 HO, symmetric extremely narrow distribution, IP20

Order No.: 53BM813D2V4120GTIN (EAN): 4058352421901

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)12260
Connected load80W
Luminous efficacy154lm/W
ControlDALI 2
ta-25..+30°C
L (mm)1495
Colourwhite
Wt. (kg)2.0

Modario® 31 HO, symmetric wide distribution, IP20

Order No.: 53BM812C1V4105GTIN (EAN): 4058352421802

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)10520
Connected load64W
Luminous efficacy165lm/W
ControlON/OFF Multilumen, CLOi
ta-35..+35°C
L (mm)1495
Colourwhite
Wt. (kg)1.9

Modario® 31 HO, symmetric narrow distribution, IP20

Order No.: 53BM811M1V4120GTIN (EAN): 4058352511954

Colour temperature4000K
Colour renderingCRI > 80
Net luminous flux (lm)12380
Connected load77W
Luminous efficacy160lm/W
ControlON/OFF Multilumen
ta-35..+35°C
L (mm)1495
Colourwhite
Wt. (kg)1.9

Modario® 31 HO, symmetric wide distribution, IP20

Order No.: 53BM812C1V6105GTIN (EAN): 4058352434604

Colour temperature6500K
Colour renderingCRI > 80
Net luminous flux (lm)10560
Connected load64W
Luminous efficacy166lm/W
ControlON/OFF Multilumen, CLOi
ta-35..+35°C
L (mm)1495
Colourwhite
Wt. (kg)1.9
