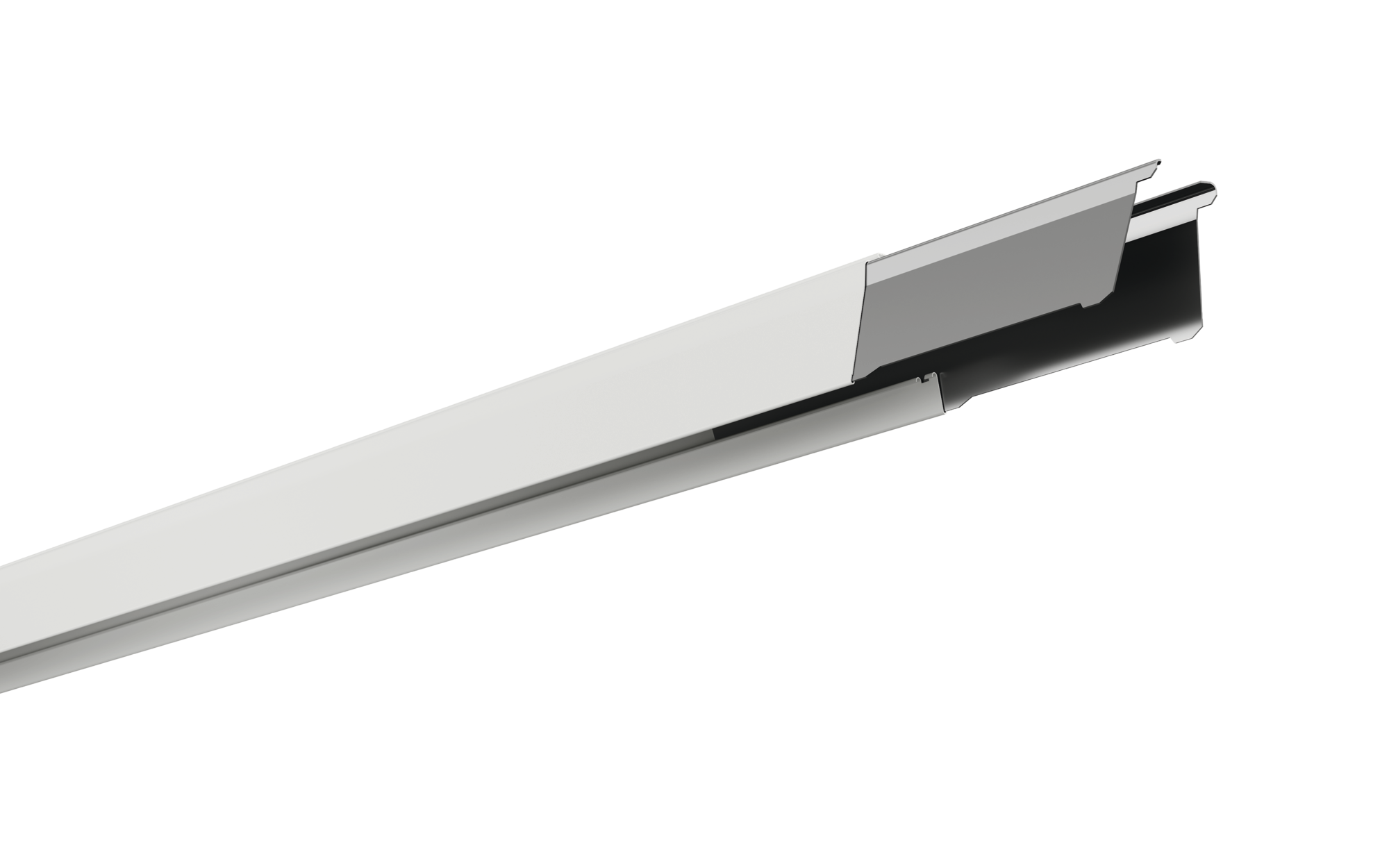

Licross®, trunking rail, maximum IP64, depends on used inserts and accessories, white

Close
Order No.: 51TR1F0
Remember articleRemember article

Article trunking components group (TS)
Product name Licross®
Protection rating maximum IP64, depends on used inserts and accessories
Weight 3.6kg

Licross®, trunking rail, of sheet steel, galvanised, coil coated, white, length: 3.000 mm, width: 64 mm, height: 67mm, protection rating (complete): maximum IP64, depends on used inserts and accessories, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece

Downloads

Technical product information
Data for applications

Product details

Key data

Product type trunking components group (TS)
Product name Licross®
Order No. 51TR1F0

Supplement

Certificates, Standards

Protection rating maximum IP64, depends on used inserts and accessories
Insulation class insulation class I (protective earthing)
Supplement LABS conformity tested according to VDMA 24364:2018-05
Certification, designation CE, UKCA

Material, Colour

trunking rail sheet steel, galvanised, coil coated, white
Colour specification white

Mounting

Mounting method, mounting location suspended mounting, surface-mounted, to the ceiling
Arrangement single/continuous arrangement
Supplement only suitable for use in indoor areas

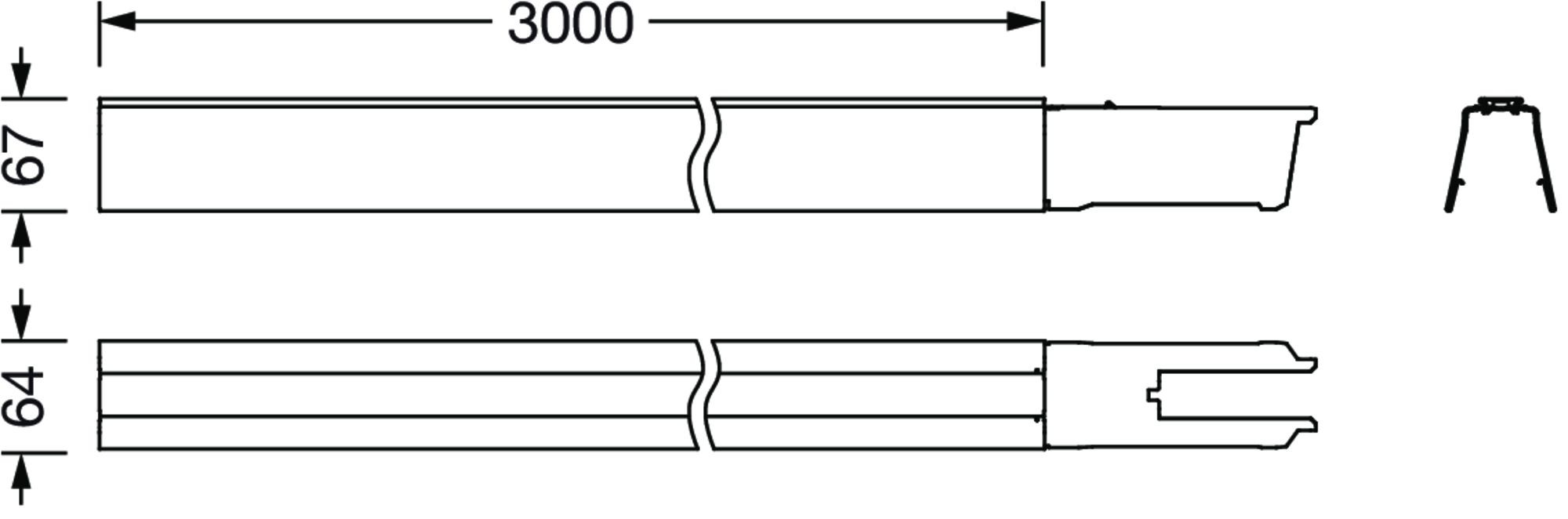

Dimensions, Weight

Length 3000mm
Width 64mm
Height 67mm
Weight 3.6kg

Product type
trunking components group (TS)

Product name
Licross®

Order No.
51TR1F0

Protection rating
maximum IP64, depends on used inserts and accessories

Insulation class
insulation class I (protective earthing)

Supplement
LABS conformity tested according to VDMA 24364:2018-05

Certification, designation
CE, UKCA

trunking rail
sheet steel, galvanised, coil coated, white

Colour specification
white

Mounting method, mounting location
suspended mounting, surface-mounted, to the ceiling

Arrangement
single/continuous arrangement

Supplement
only suitable for use in indoor areas

Length
3000mm

Width
64mm

Height
67mm

Weight
3.6kg
